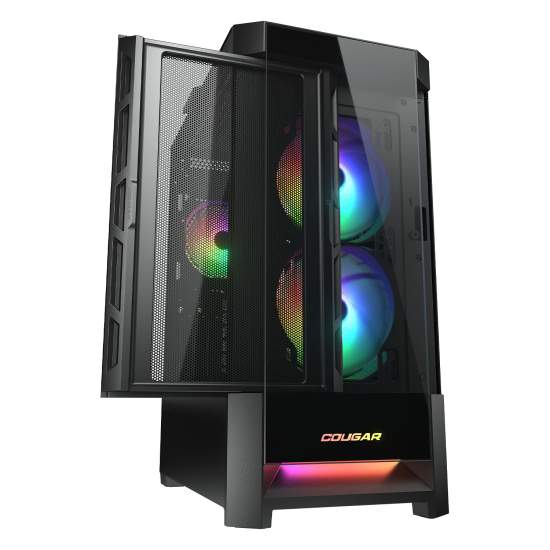

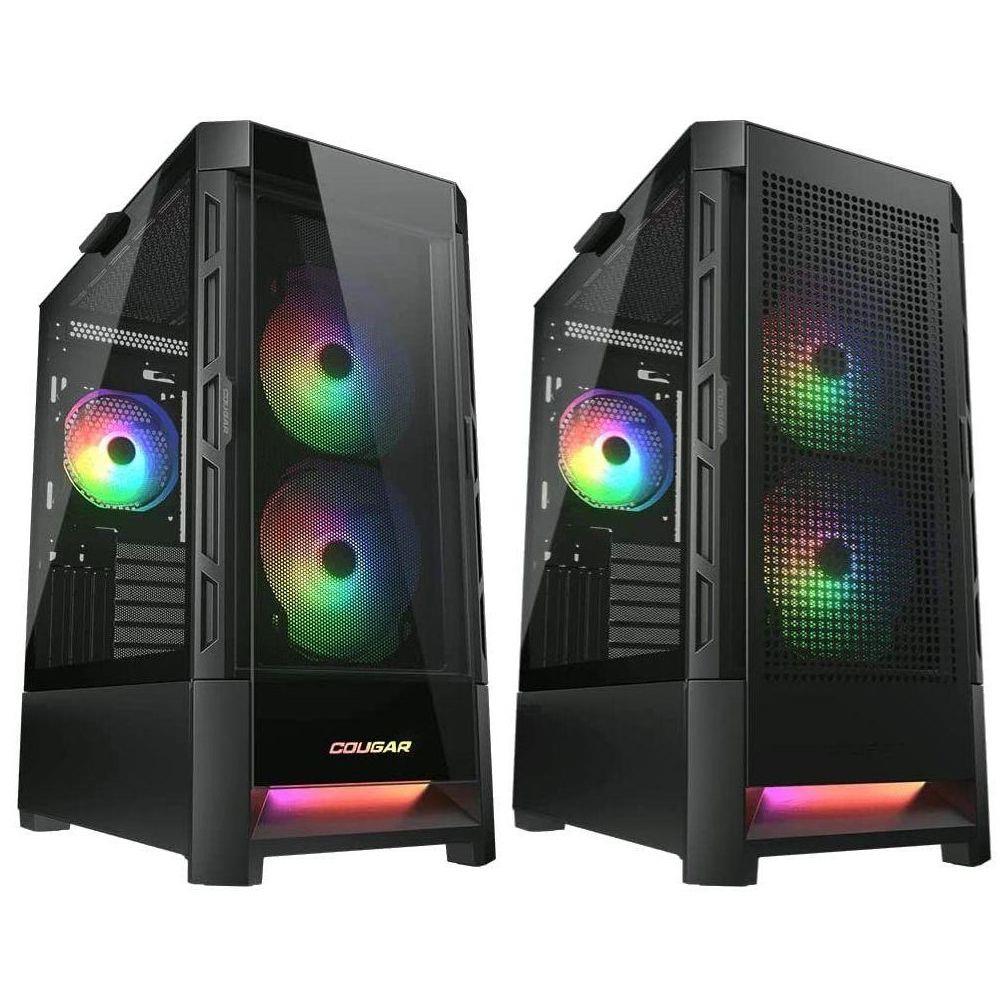

Cougar Duoface RGB Mid-Tower E-ATX Gaming Case – Black/White
Product Name | Duoface RGB |
Case Form Factor | Mid Tower |
Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / *E-ATX |
Dimensions (WxHxD) | 230 x 491 x 386 (mm) 9.1 x 19.3 x 15.2 (in) |
I/O Panel | USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button |
3.5″ Drive Bay | 2 |
2.5″ Drive Bay | 2 (2 SSD trays included) |
Expansion Slots | 7+3 |
Vertical GPU Support | Yes |
Cooling Fan Support | Front: 120mm x 2 / 140mm x 2 Top: 120mm x 2 / 140mm x 2 Rear: 120mm x 1 / 140mm x 1 |
Pre-installed Fans | Front: 140mm ARGB fan x 2 Rear: 120mm ARGB fan x 1 |
Speed | 1000 RPM |
Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) |
Maximum Number of Fans | 5 Max. |
Water Cooling Support | Front: 280mm / 240mm / 140mm / 120mm Top: 280mm / 240mm / 140mm / 120mm Rear: 120mm / 140mm |
Transparent Left Panel | 4mm Tempered Glass |
Onboard Lighting System | Yes |
RGB Sync with M/B | Yes |
COUGAR Logo RGB Light | Yes |
Max. Graphics Card Length | 330 (mm) / 13 (in) |
Max. CPU Cooler Height | 190 (mm) / 7.5 (in) |
Max. PSU Length | 160 (mm) / 6.3 (in) |
Notes | * E-ATX up to 277mm wide. * Please choose either front or top to install a 280mm radiator. * Max. length of RTX 3090 graphic card is 325mm. |
