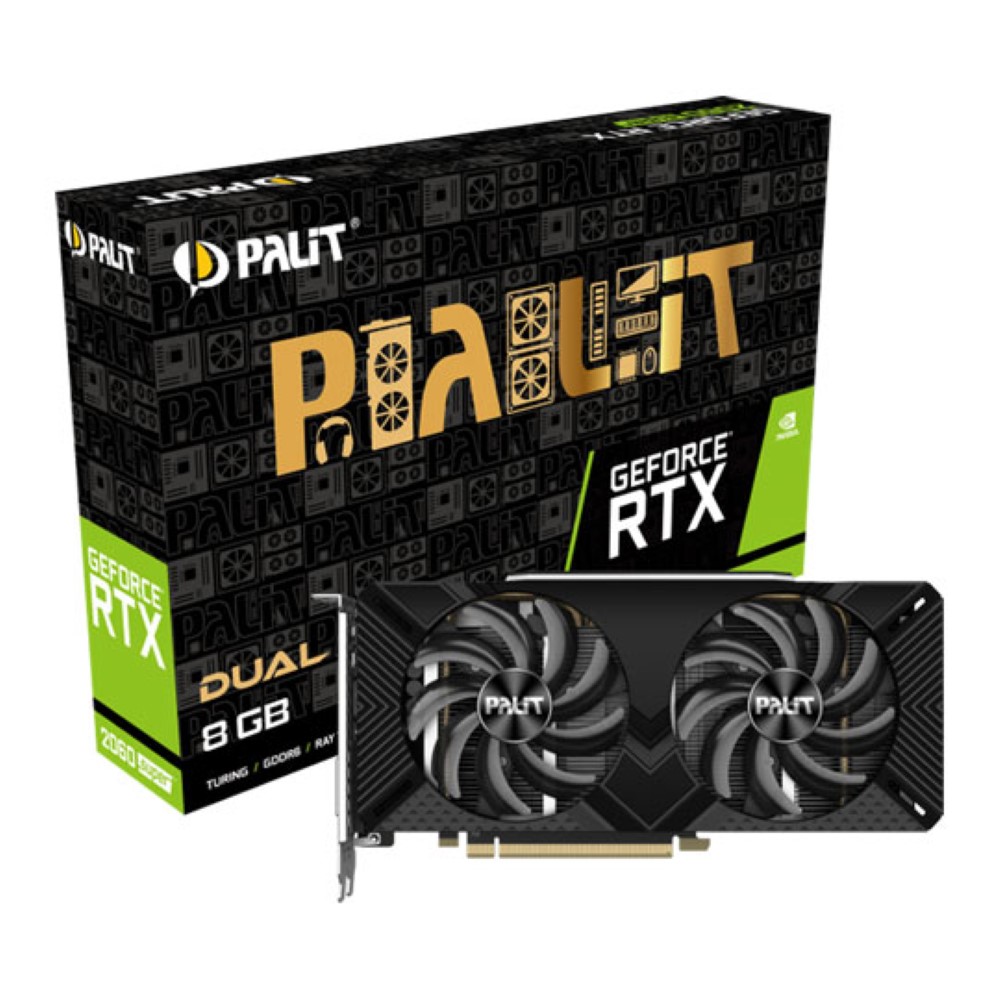

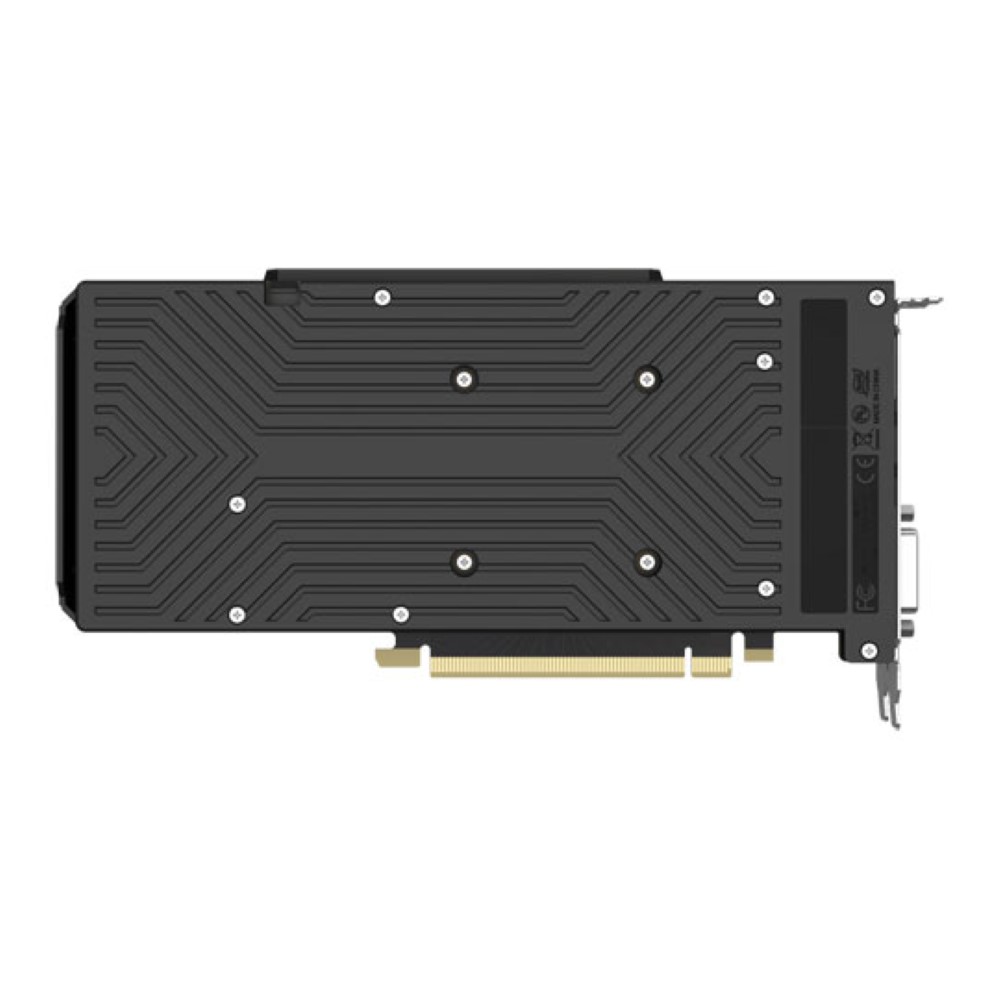

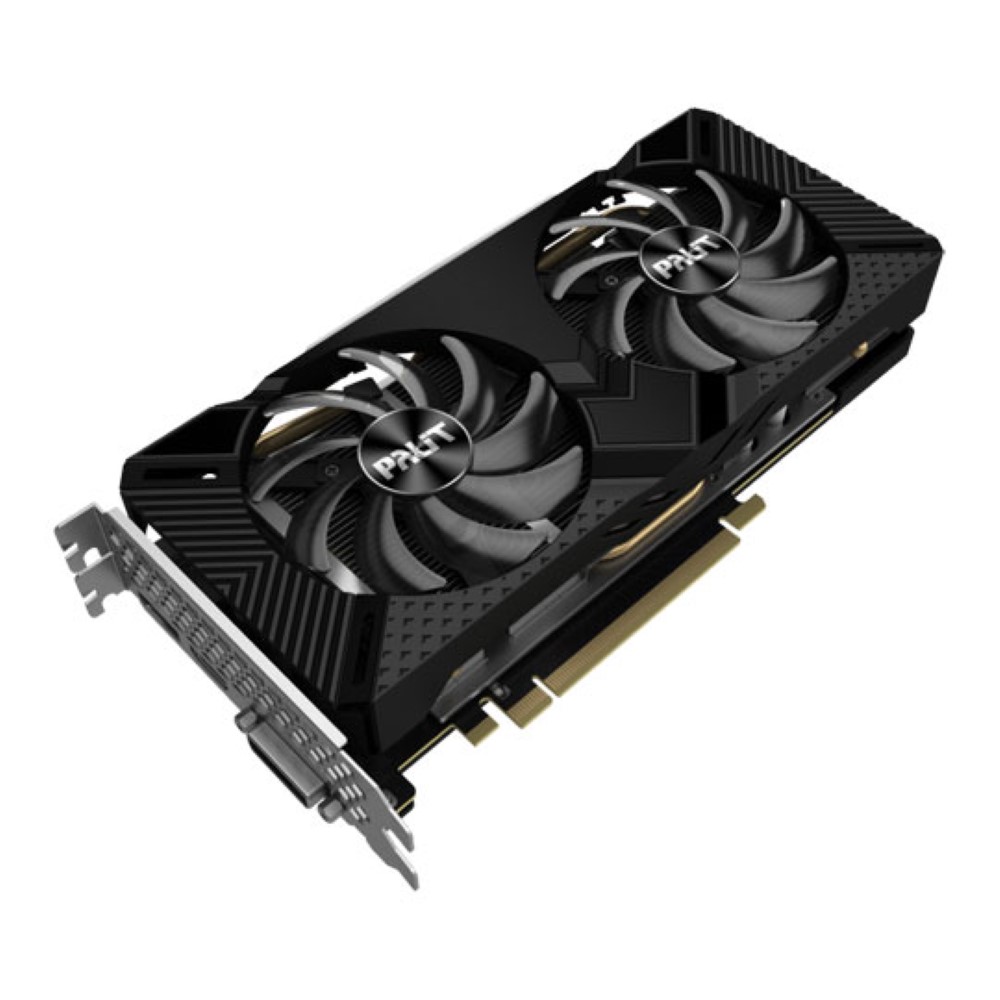

Palit GeForce RTX 2060 Super Dual 8GB Graphics Card
| Specification Group | NVIDIA GeForce RTX 2060 SUPER Details |
|---|---|
| GPU Engine Specs | GPU Architecture: NVIDIA Turing GPU Model: GeForce RTX 2060 SUPER (TU106-410-A1) CUDA Cores: 2176 Ray Tracing Cores: 34 | Tensor Cores: 272 Base Clock: 1470 MHz | Boost Clock: 1650 MHz |
| Memory Specs | Memory Size & Type: 8GB GDDR6 Memory Interface: 256-bit Memory Speed: 14 Gbps Memory Bandwidth: 448 GB/s |

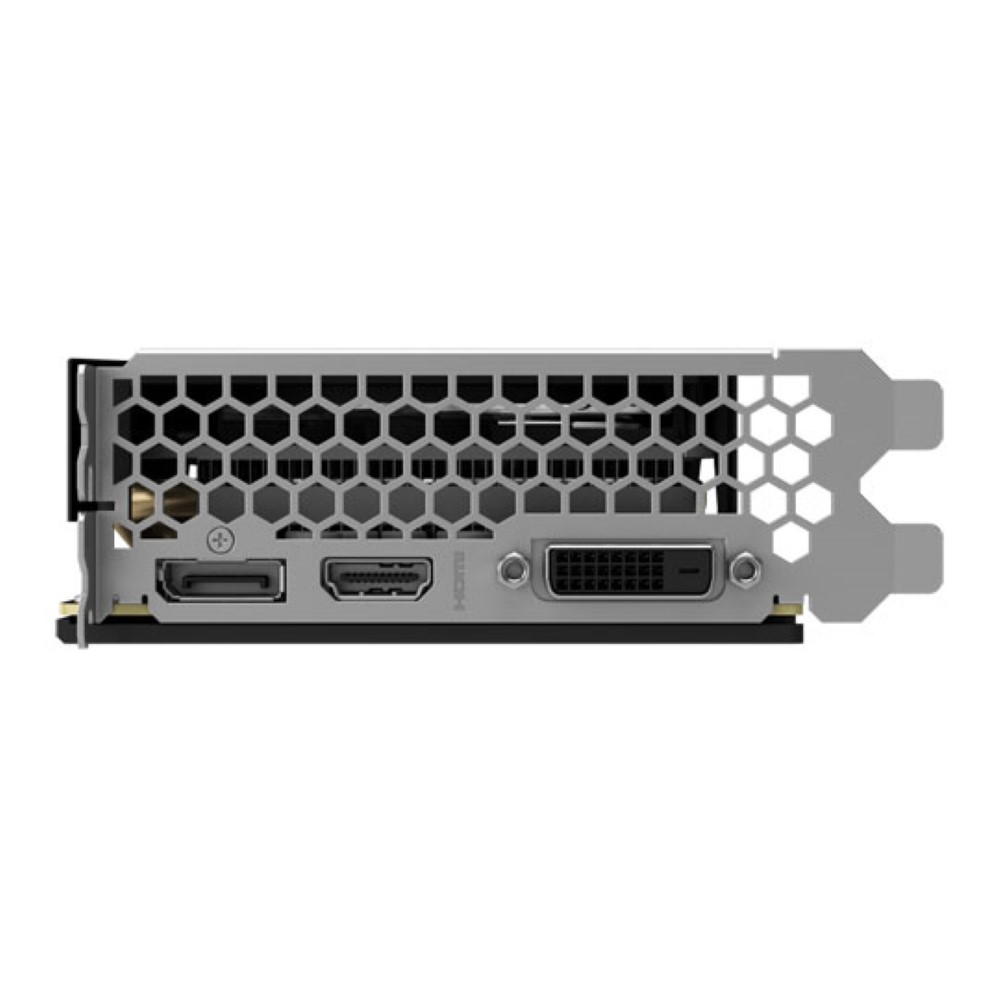

| Display & Ports | Display Outputs: 1× HDMI 2.0b, 1× DisplayPort 1.4a, 1× Dual-Link DVI-D Max Digital Resolution: 7680 × 4320 @ 60Hz Multi-Monitor Support: Up to 3 displays HDCP Support: Yes (v2.2) |
| Power & Thermal | Power Consumption: 175W Recommended PSU: 550W |
| Physical & Cooling | Card Dimensions (L × W × H): 235 × 112 × 40 mm Slot Width: Dual-slot Cooling Solution: Dual Fan Cooler with DrMOS technology (High current circuits, low noise, effective heat reduction) Lighting: White LED lighting |
| Features & APIs | API Support: DirectX 12, OpenGL 4.5, Vulkan API VR Ready: Yes NVIDIA Technologies: DLSS (Deep Learning Super Sampling), NVIDIA G-SYNC, NVIDIA Adaptive Shading, NVIDIA GameStream, NVIDIA GPU Boost, NVIDIA Highlights, NVIDIA Vulkan API |
