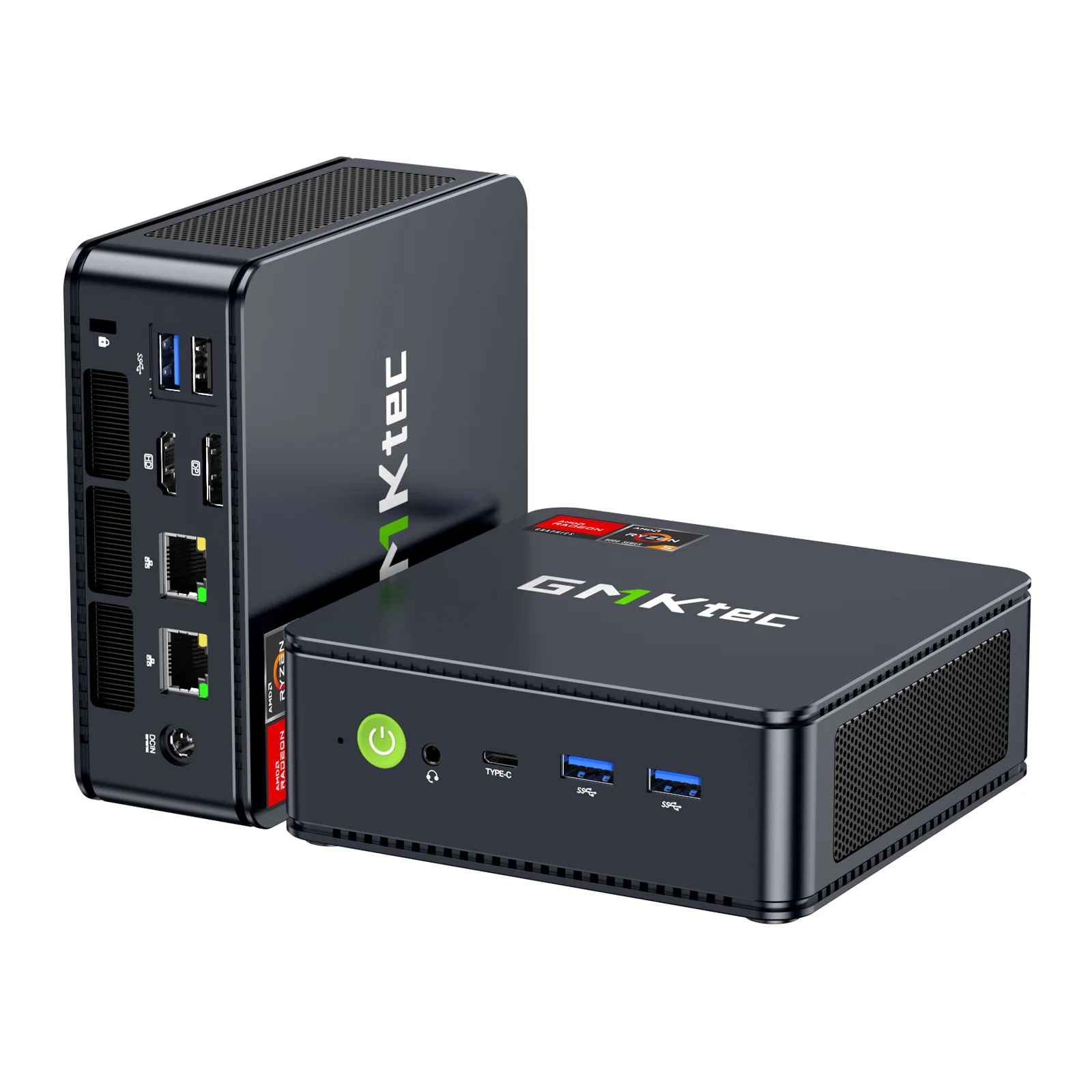

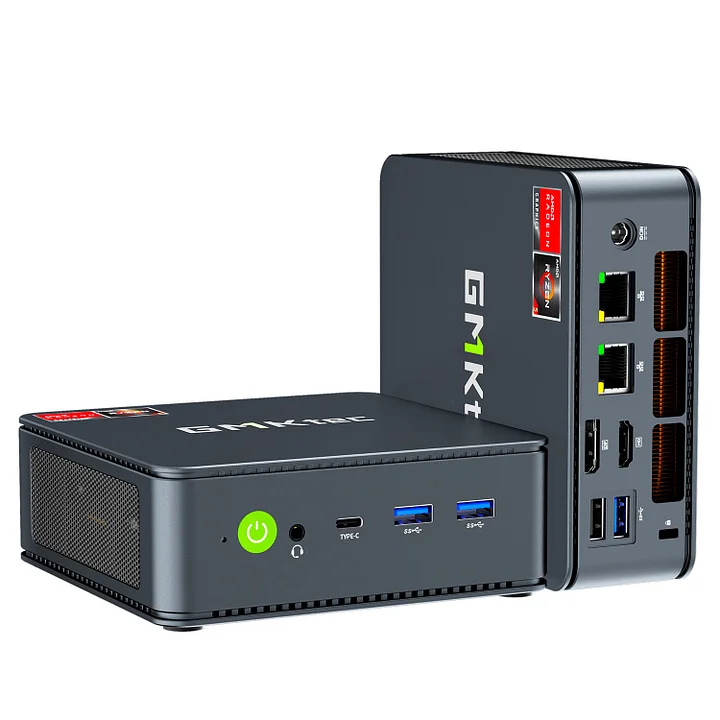

GMKtec NucBox M6 Ultra Mini PC – AMD Ryzen 5 7640HS (32GB RAM/1TB SSD)
| Product Specifications | |
|---|---|
| CPU | AMD Ryzen™ 5 7640HS Processor 6 cores 12 threads, TSMC 4nm process, Max Frequency 5.0GHz, 6MB L2 Cache/16MB L3 Cache, TDP 35W-50W |
| GPU | AMD Radeon™ 760M Graphics (8 cores, 2600MHz), RDNA 3 architecture |
| RAM | SO-DIMM×2, DDR5 4800 MT/s, (Dual-channel), max support 128GB |
| Storage | M.2 SSD×2, NVMe (supports PCIe4.0, ships with PCIe 3.0), expandable up to 8TB (Dual SSD slots) |
| Graphics Output | HDMI 2.0 (4K@60Hz) + DisplayPort (4K@60Hz) + USB4 (supports up to 8K) |
| Network | WiFi 6E (RZ616, 2.4Gbps), Bluetooth 5.2, Dual LAN(RJ45)×2 (2.5G) |
| Power Supply | DC IN(5.5/2.5mm), 19V/6.32A 120W |

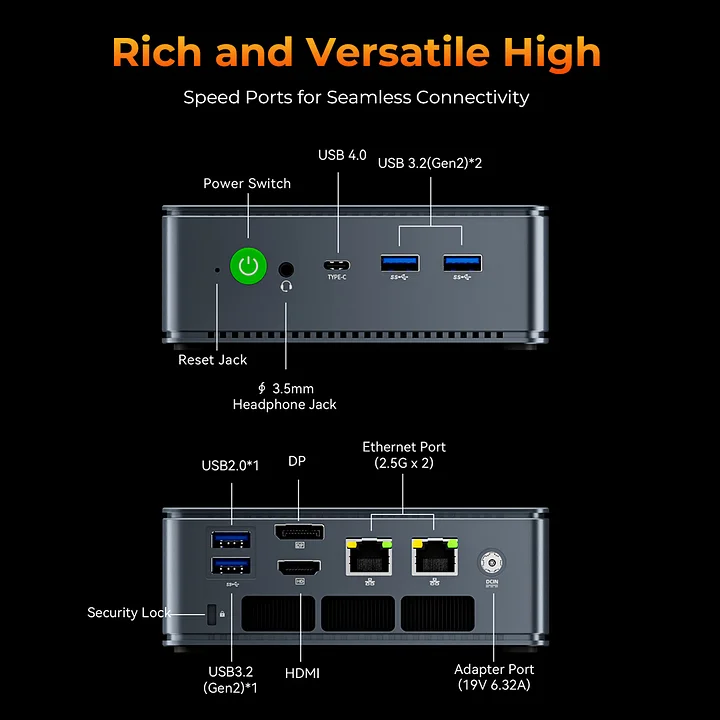

| Interfaces | • 2x USB3.2 Gen2 (10Gbps, front) • 1x USB3.2 Gen2 (10Gbps, rear) + 1x USB2.0 (480Mbps, rear) • 1x USB4.0 (40Gbps, supports DP/PD) • 1x HDMI 2.0: 4K@60Hz • 1x DisplayPort: 4K@60Hz (supports 8K) • Audio Jack: 3.5mm, CTIA standard • DC Power Input • Dual 2.5G Ethernet Ports |
| Operating System | Supports Windows 11 Pro, 14 languages supported (default English) |
| Dimensions / Weight | 128.8mm × 127mm × 47.8mm / Bare unit: 528g (Full packaging: 1386g) |
| Included Accessories | Power adapter, HDMI cable, VESA mount, manual, warranty card |
