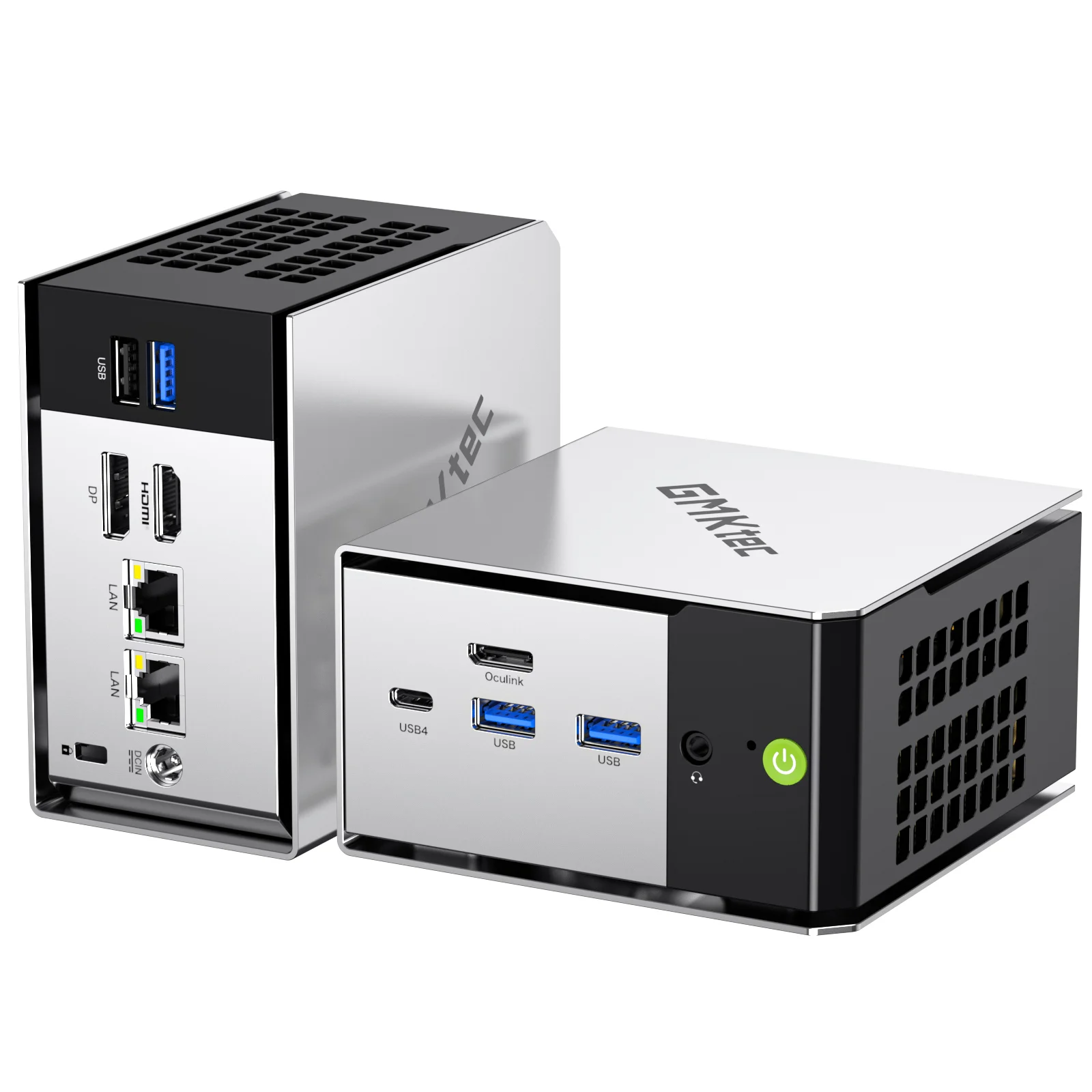

GMKtec NucBox M8 Mini PC – AMD Ryzen 5 Pro 6650H (16GB RAM/512GB SSD)

Product Specifications
CPU	AMD Ryzen PRO 6000 Series, 6 cores / 12 threads, TSMC 6nm FinFET process, base frequency: 3.3GHz, MAX 4.5GHz; 3MB L2 Cache / 16MB L3 Cache; Zen 3+ CPU architecture; Silent mode: 28W, Balanced mode: 35W, Performance mode: 40W (peak 40W)
CPU Model / Package	AMD Ryzen™ 5 PRO 6650H / TSMC 6nm FinFET process
GPU	AMD Radeon™ 660M, 6 cores 1900 MHz; GPU max capacity 2GB
Memory	LPDDR5 6400MT/s 16GB onboard (dual-chip design, non-removable), theoretical max 64GB
Storage	PCIe 3.0 M.2 2280 SSD; 512GB / 1TB pre-installed; primary SSD slot next to WiFi module
Internal Expansion	2×M.2 2280 PCIe 4.0×4 (max 8TB each, total 16TB); supports PCIe 3.0/4.0, not compatible with SATA drives

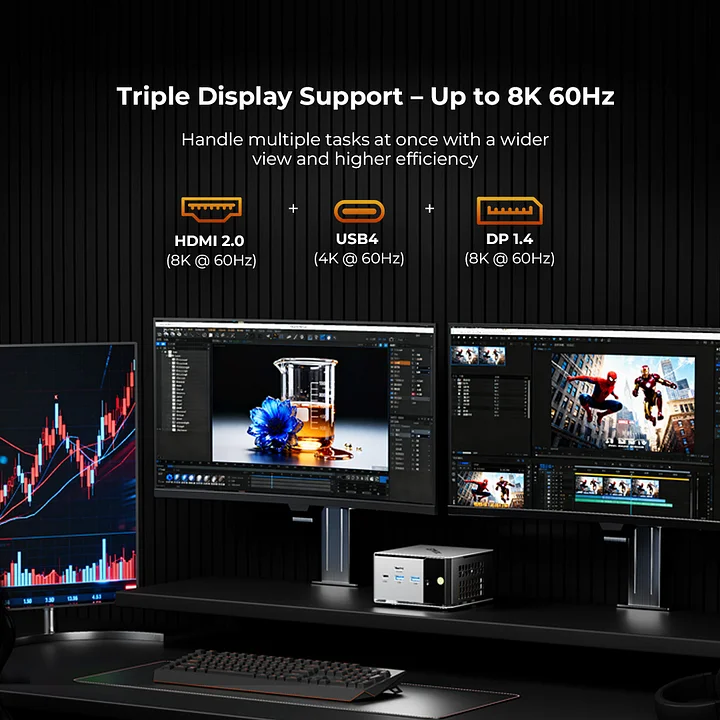

Graphics Output	HDMI + DP + USB4 triple-screen output, supports up to 8K resolution
Networking	WiFi 6E (802.11 a/b/g/n/ac/ax RZ616, up to 2.4Gbps), Bluetooth 5.2, Dual 2.5G LAN (RTL8125BG)
Power	DC IN 20V 5A (100W); built-in button cell battery

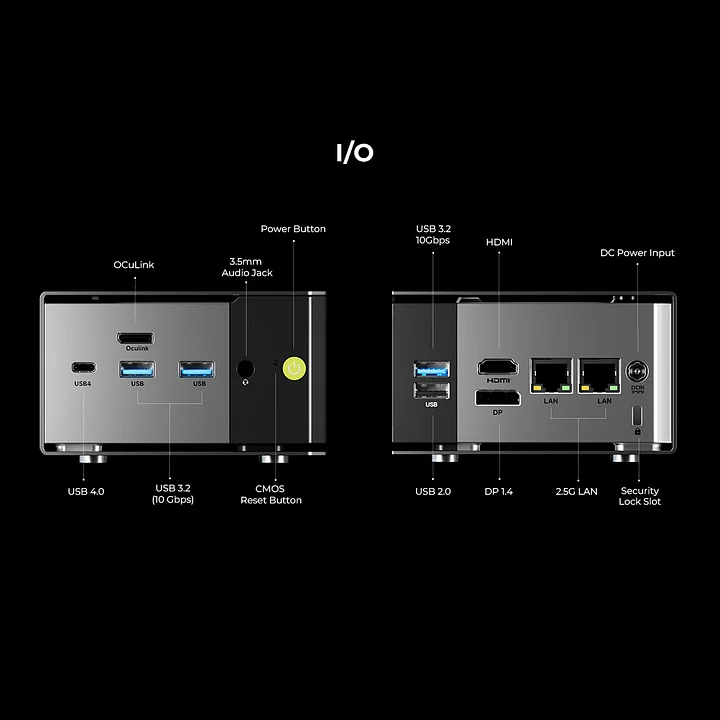

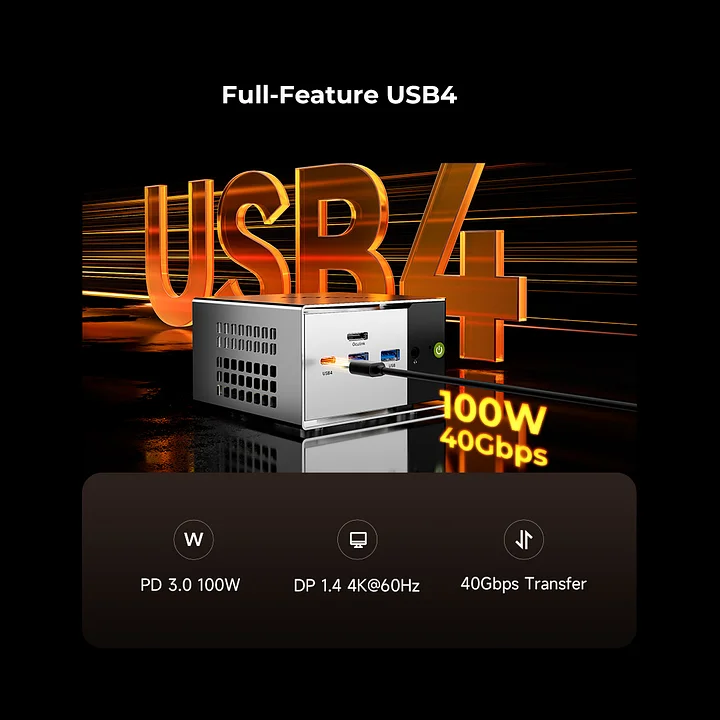

Front I/O	• 2×USB 3.2 Gen2 (10Gbps) • 1×OCulink (PCIe Gen4 ×4) • 1×USB4 (full function, supports 40Gbps / PD3.0 100W input / DP1.4 4K@60Hz) • 1×3.5mm Audio Jack (CTIA standard) • 1×Power button (white LED indicator) • 1×Reset button (system reset when powered on, CMOS clear when powered off)⚠️ Note: The OCulink port does not support hot plugging. Please connect/disconnect only when the system is powered off to avoid motherboard damage.
Rear I/O	• 1×USB 3.2 Gen2 (10Gbps) • 1×USB 2.0 (480Mbps) • 1×HDMI 2.0 (8K@60Hz) • 1×DisplayPort 1.4 (8K@60Hz) • 2×RJ45 LAN (2.5Gbps) • 1×DC IN (5.5/2.5mm) • 1×Security lock hole
OS	Windows 11 Pro pre-installed; supports Linux and Ubuntu
Dimensions / Weight	107 × 111 × 63 mm / Approx. 490g (bare unit); 1.7kg (package)
Package Contents	Power adapter, HDMI cable, User manual, Warranty card (no VESA mount included)
