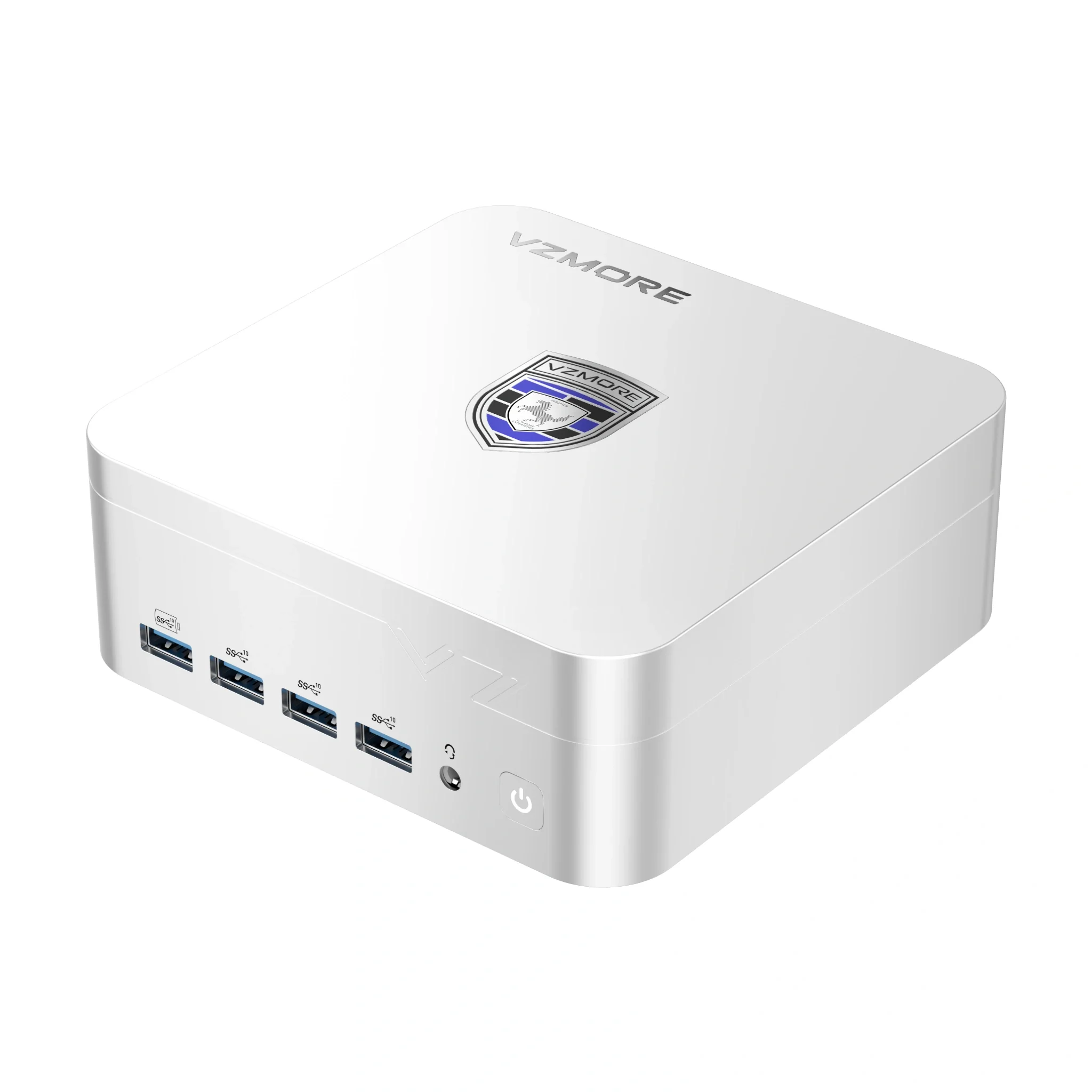

Vzmore AX9 Max AI Mini PC – AMD Ryzen AI 9 HX 470 (32GB RAM/1TB SSD)

Specification Group	AX9 Max Mini PC Details

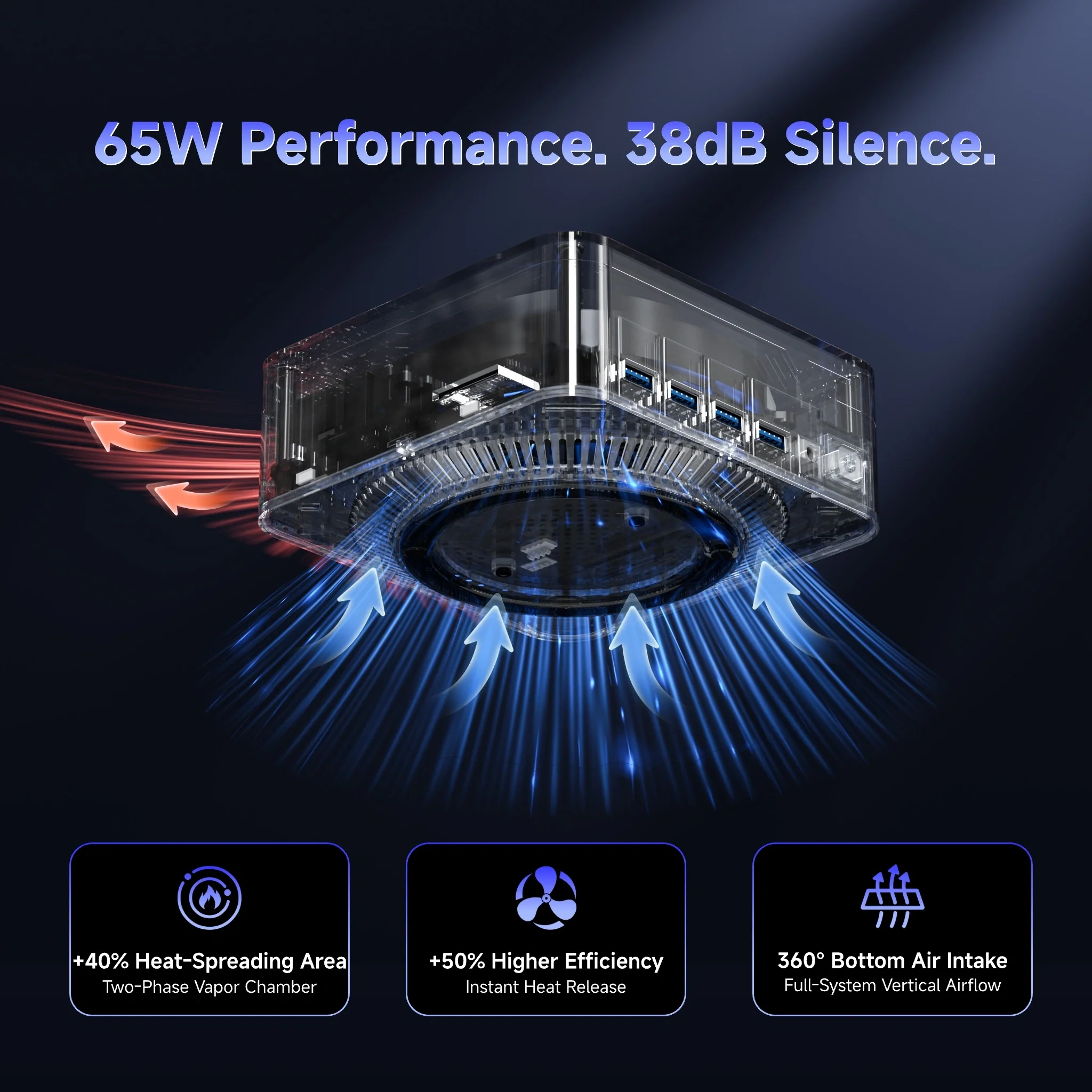

Processor & Performance	CPU: AMD Ryzen™ AI 9 HX 470 GPU: AMD Radeon™ 890M NPU: AMD Ryzen AI NPU (55 TOPS) Power Modes: Silent Mode 45 W \| Balanced Mode 54 W \| Performance Mode 65 W Thermal Module: Vapor Chamber + Fan Cooling
Memory & Storage	System Memory: DDR5 SO-DIMM, Dual-Channel Support (Up to 256GB) Primary Storage: 1× M.2 2280 PCIe Gen4 x4 SSD (1TB Pre-installed, Up to 4TB) Storage Expansion Slot: 1× M.2 2230 PCIe Gen4 x4 SSD Slot (Empty, Up to 1TB)
Connectivity & Network	Wireless LAN: M.2 2230 Wi-Fi 7 EB600NF Bluetooth Version: Bluetooth 5.4

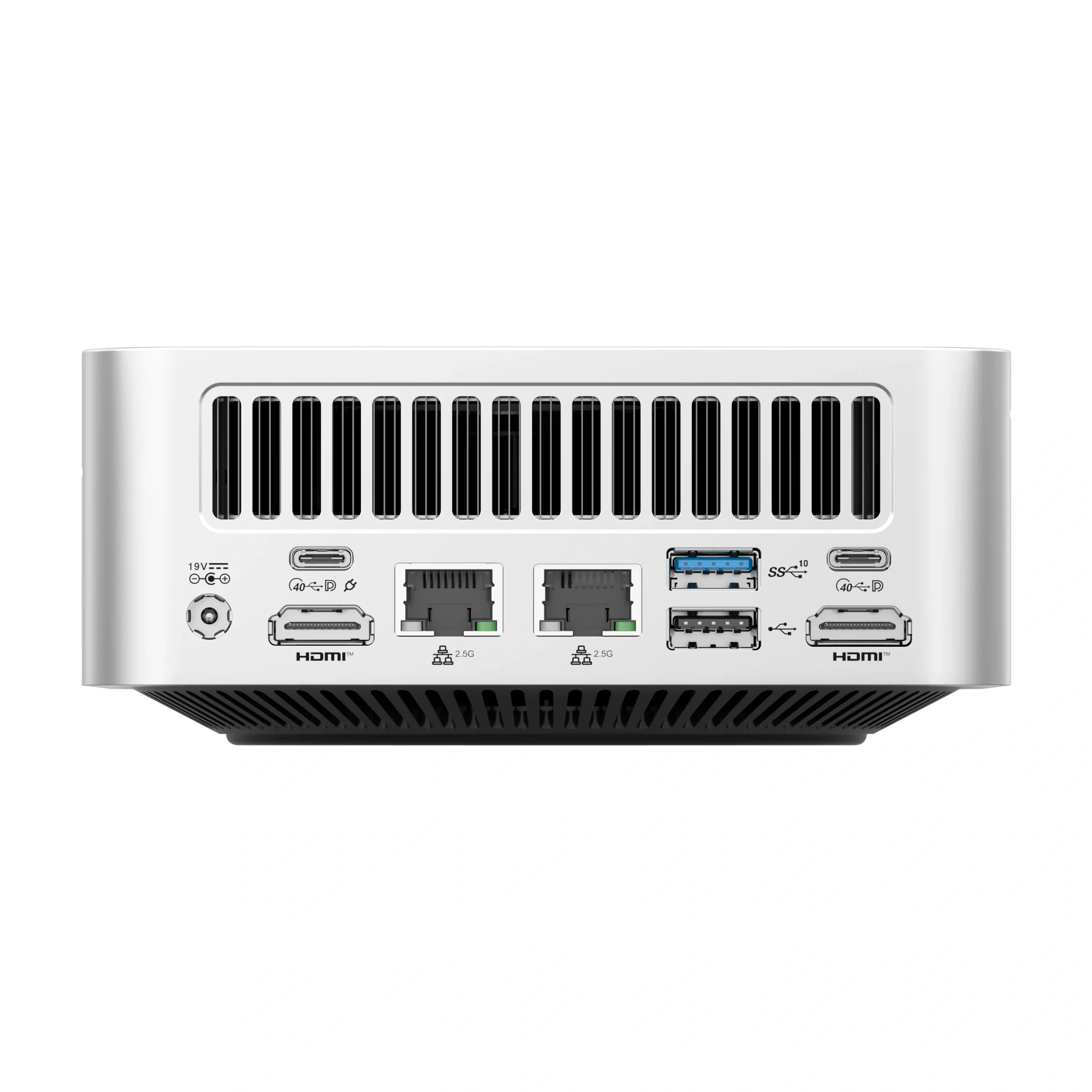

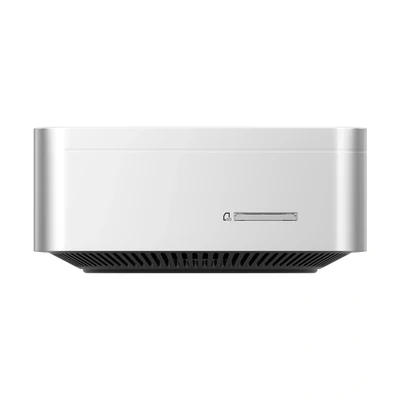

I/O Ports & Interfaces	Front Ports: 3× USB 3.2 Gen 2 Type-A (10Gbps), 1× USB 3.2 Gen 2 Type-A (10Gbps, Support S5 Power Delivery), 1× 3.5mm Stereo Headset Jack, 1× Power Button Rear Ports: 1× USB4 (40Gbps, Alt DP2.0, PD-Out 15W, PD-In 100W / 20V 5A Adapter), 1× USB4 (40Gbps, Alt DP2.0, PD-Out 15W), 1× USB 3.2 Gen 2 Type-A (10Gbps), 1× USB 2.0 Type-A, 2× HDMI 2.1, 2× 2.5G RJ45 LAN, 1× DC In Side Ports: 1× SD 4.0 Card Slot
Power, System & Physical	Operating System: Windows 11 Pro Power Adapter: 120 W (19 V DC, 6.32 A), 100–240 V AC Dimensions: 5.31 × 5.19 × 2.27 in Net Weight: 1.71 lb

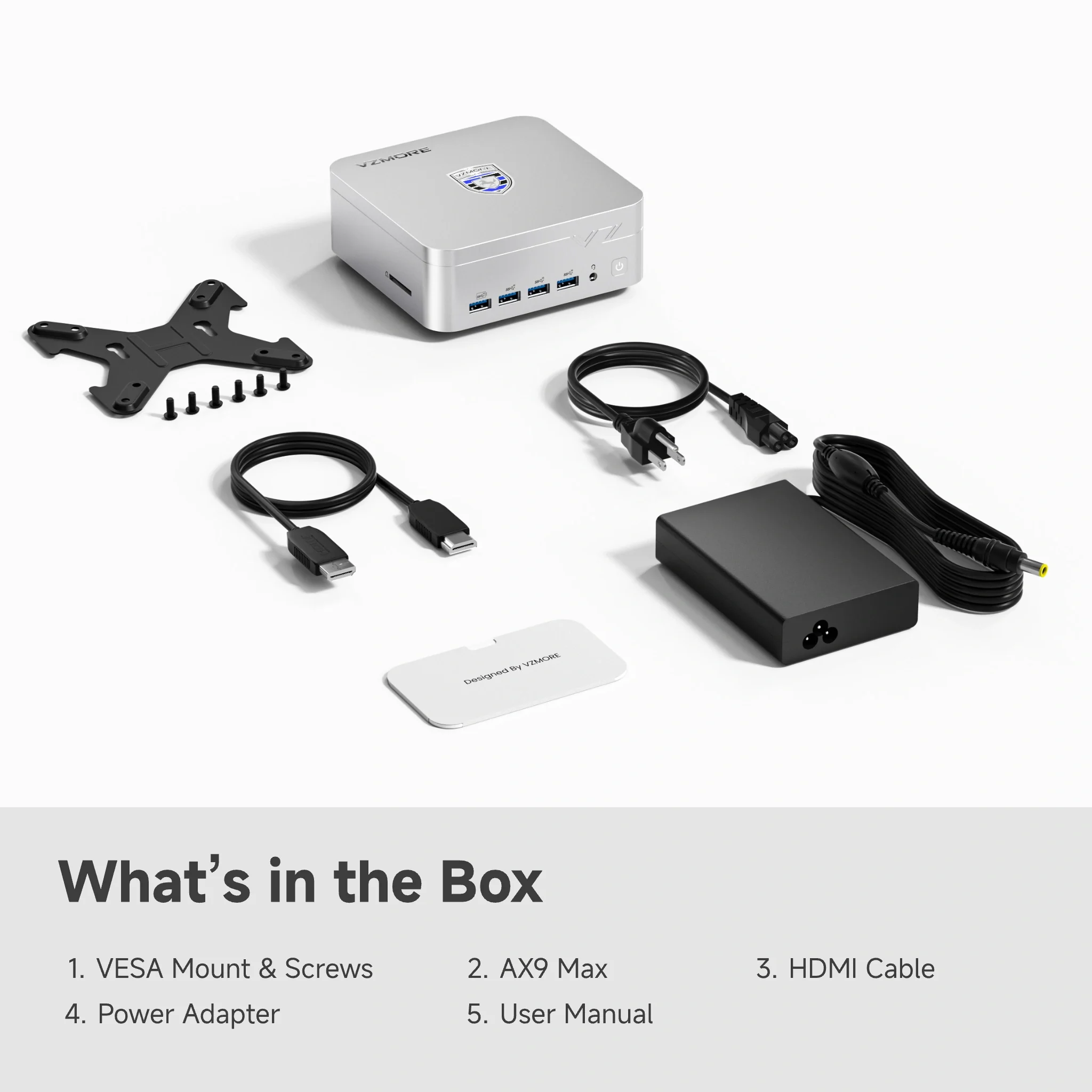

Package Contents	What’s in the Box: 1× AX9 Max, 1× Power Adapter, 1× HDMI Cable, 1× VESA Mount & Screws, 1× User Manual

Brands	VZMORE
Warranty	15 Days Warranty
