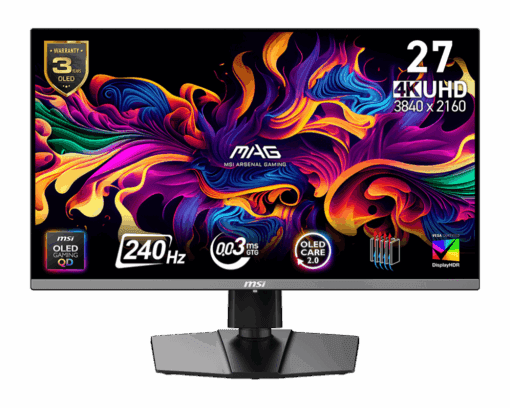

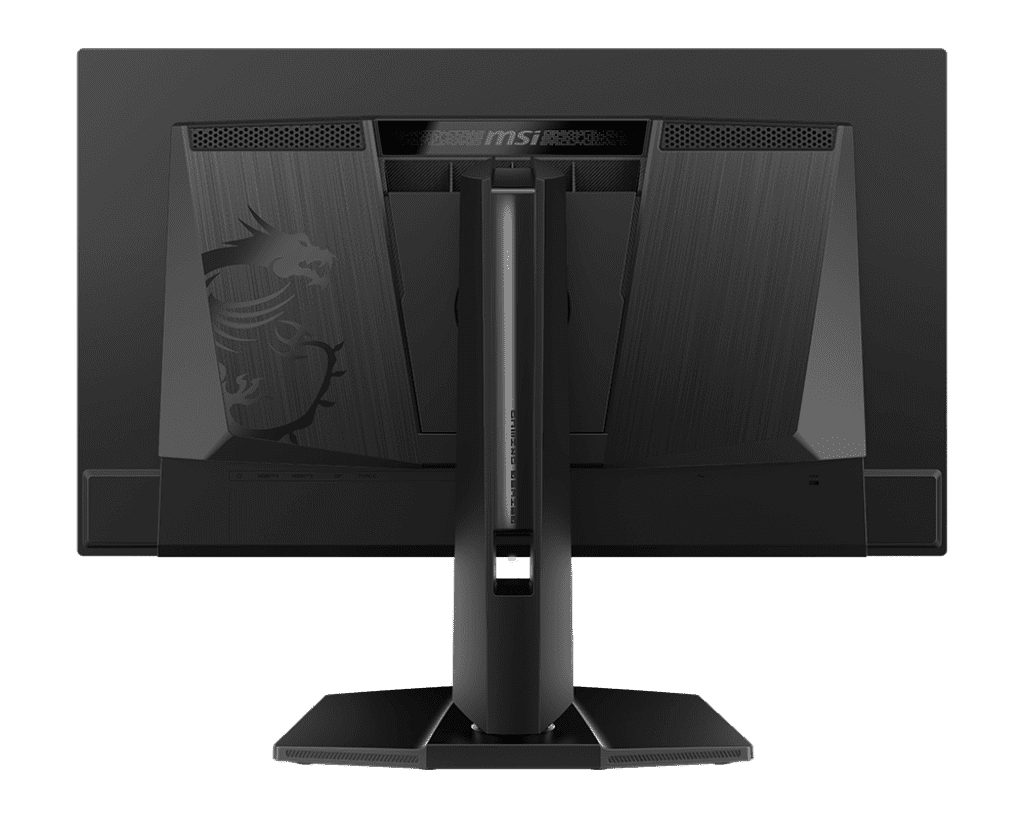

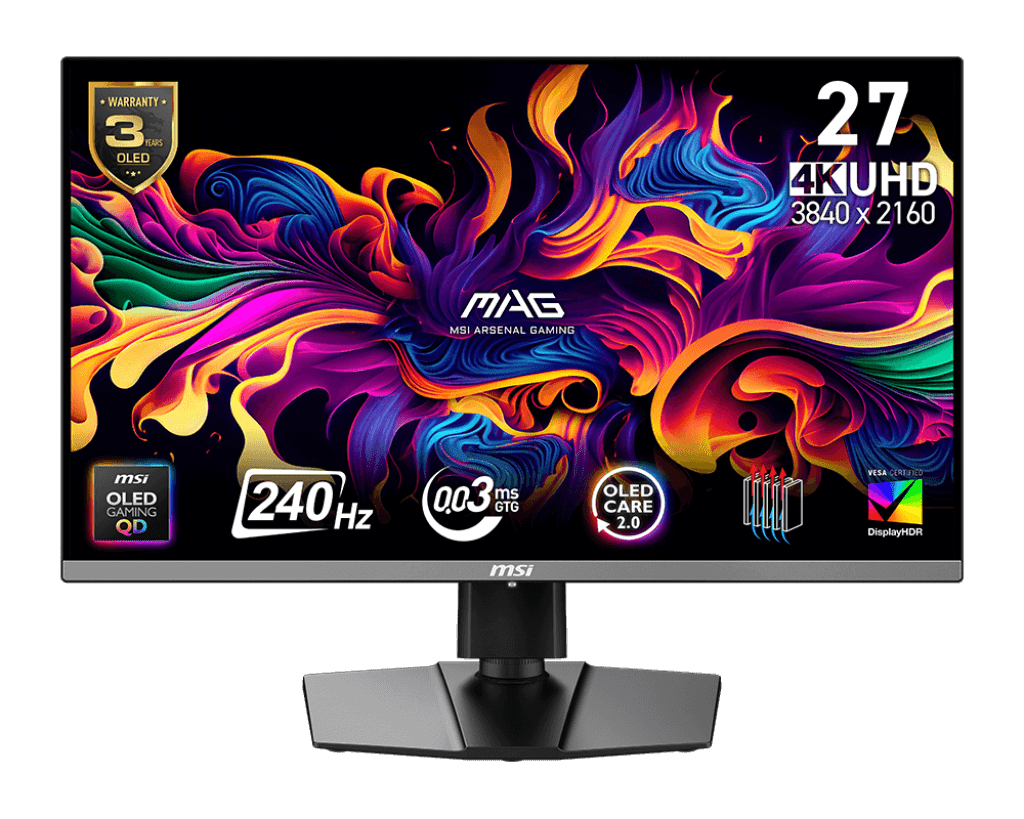

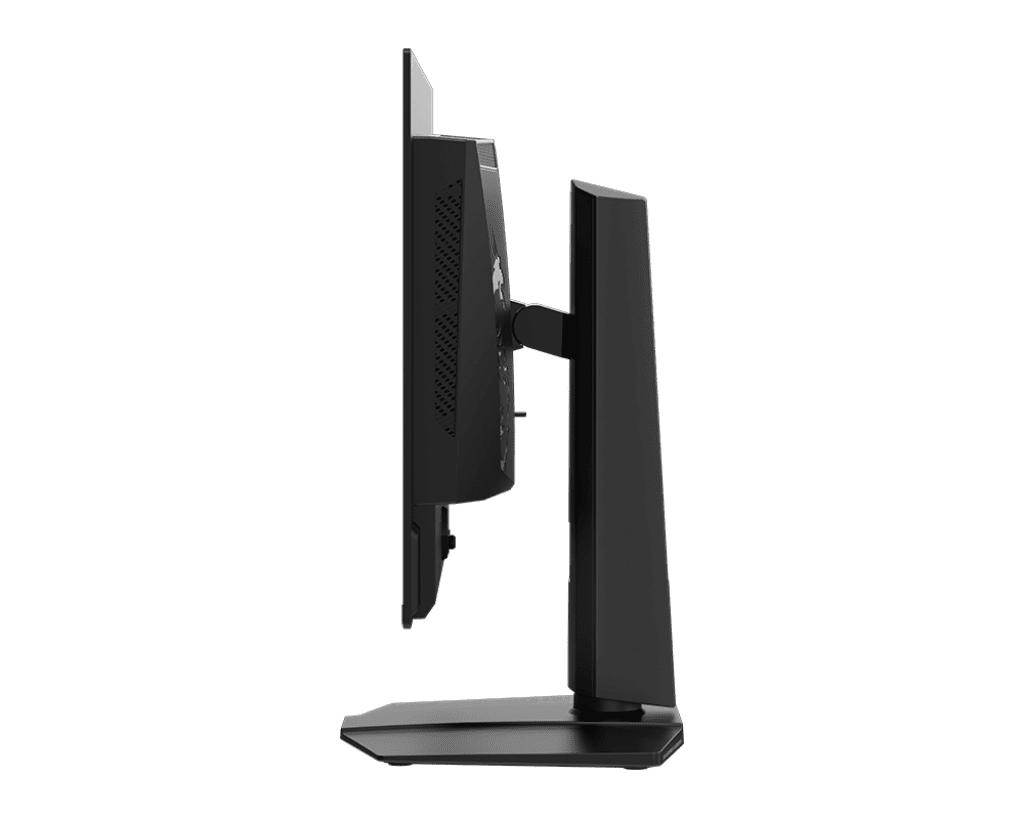

MSI MAG 272UP QD-OLED X24, 27″ (3840×2160) 4K UHD 240Hz 0.03ms, QD-OLED Gaming Monitor
| Specifications | |
|---|---|
| Panel Size | 26.5″ |
| Active Display Area (mm) | 589.97 (H) x 332.93 (V) |
| Curvature | Flat |
| Panel Type | QD-OLED |
| Panel Resolution | 3840 x 2160 (UHD) |
| Pixel Pitch (H x V) | 0.153(H) x 0.153(V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 250 HDR: 450 (Typ.) (True Black 400 with 10% APL) |
| Contrast Ratio | 1000 (Typ.) (Peak 1000 with 3% APL) 1500000:1 (Typ.) |
| Signal Frequency | 31.2~565.42 KHz(H) / 48 ~ 240 Hz(V) |
| Activated Range | 48 ~ 240Hz |
| Refresh Rate | 240Hz |
| Response Time | 0.03ms (GtG) |
| Dynamic Refresh Rate Technology | Adaptive-Sync |
| HDR Support | VESA DisplayHDR True Black 400 |
| Video Ports | 2x HDMI™ 2.1 (UHD@240Hz), 1x DisplayPort 1.4a (HBR3), 1x Type-C (DP alt.) w/ 15W PD |
| Audio Ports | 1x Headphone-out |
| Viewing Angle | 178°(H) / 178°(V) |
| Adobe RGB / DCI-P3 / sRGB | 98% / 99% / 138% (CIE1976 Standard) |
| Surface Treatment | Anti-Reflection |
| Display Colors | 1.07B, 10 bits |
| Console Mode | Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz 1440p: 60Hz and 120Hz 2160p: 60Hz and 120Hz HDMI™ CEC: Supported |
| Power Type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0 ~ 110 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
| Dimension with Stand (W x D x H) | 610.31 x 241.9 x 532.03mm (24 x 9.5 x 20.9 inch) |
| Dimension without Stand (W x D x H) | 610.31 x 69.15 x 532.03mm (24 x 9.5 x 20.9 inch) |
| Weight (NW / GW) | 8kg (17lbs) / 11.1kg (24.4lbs) |
| Carton Dimension (W x D x H) | 820 x 169 x 513mm (32.2 x 6.6 x 20.1 inch) |
| Accessories | 1x DisplayPort Cable (1.4a), 1x HDMI™ (2.1), 1x Power Cord (C13), 1x Quick Guide, 4x VESA Wall Mount Screw, 1x Fiber Cloth |
| Note | HDMI™: 3840 x 2160 (Up to 240Hz) DisplayPort: 3840 x 2160 (Up to 240Hz) Support: HDMI™ CEC, PIP/PBP; Non Support: KVM |
