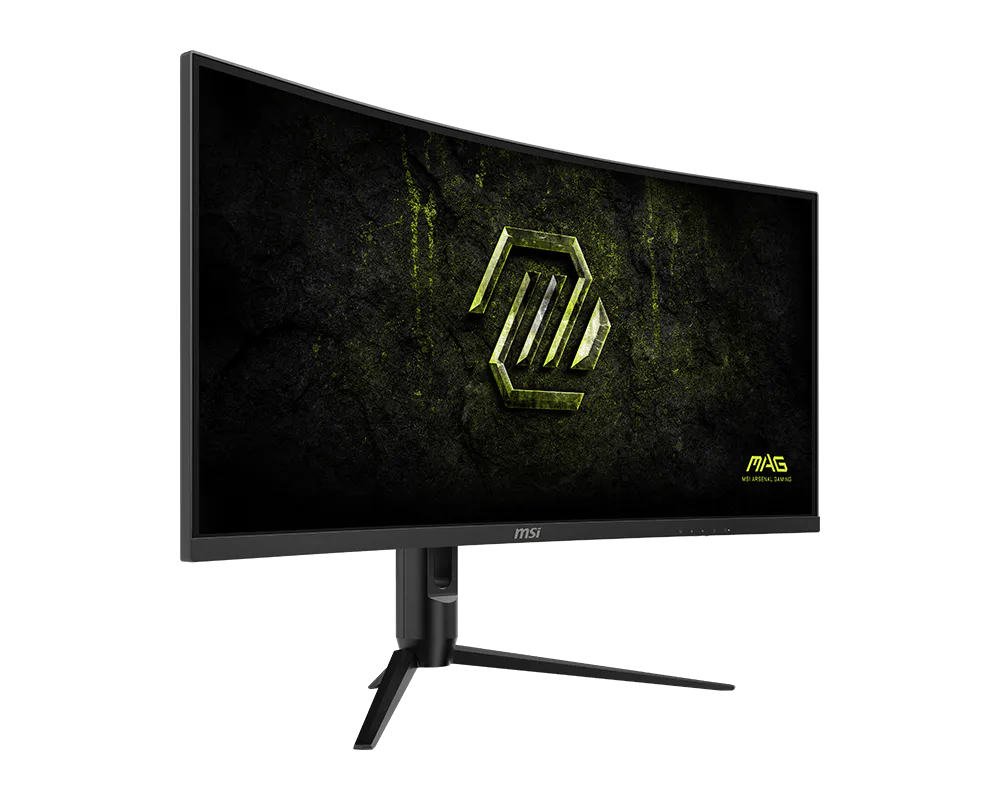

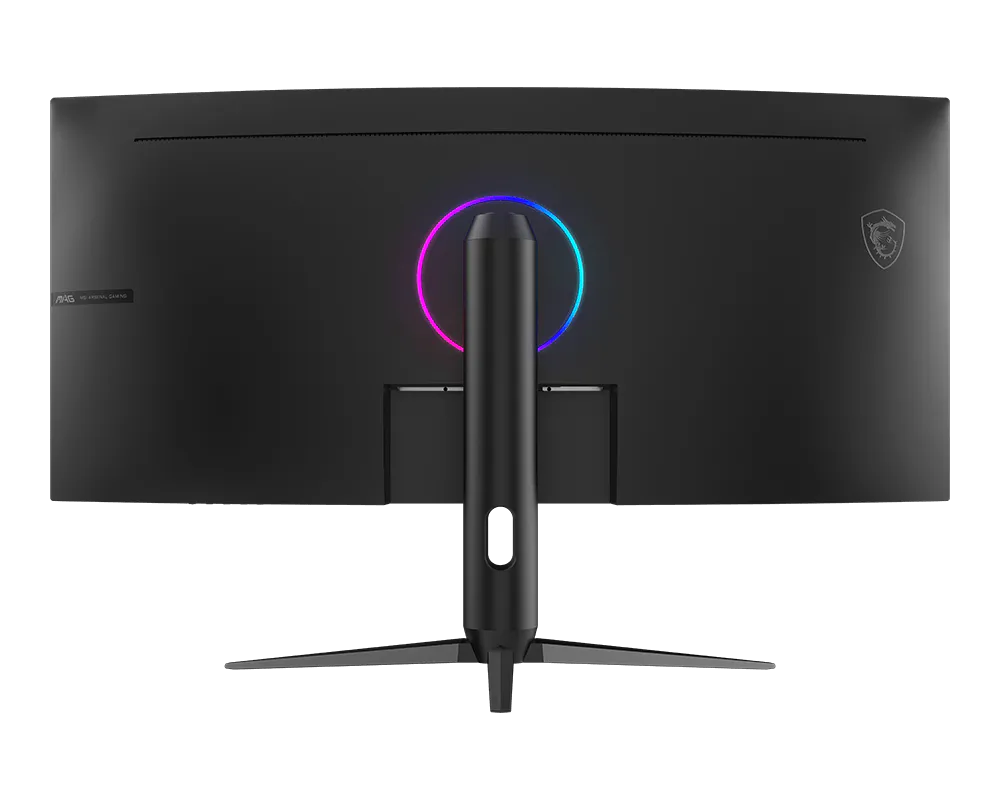

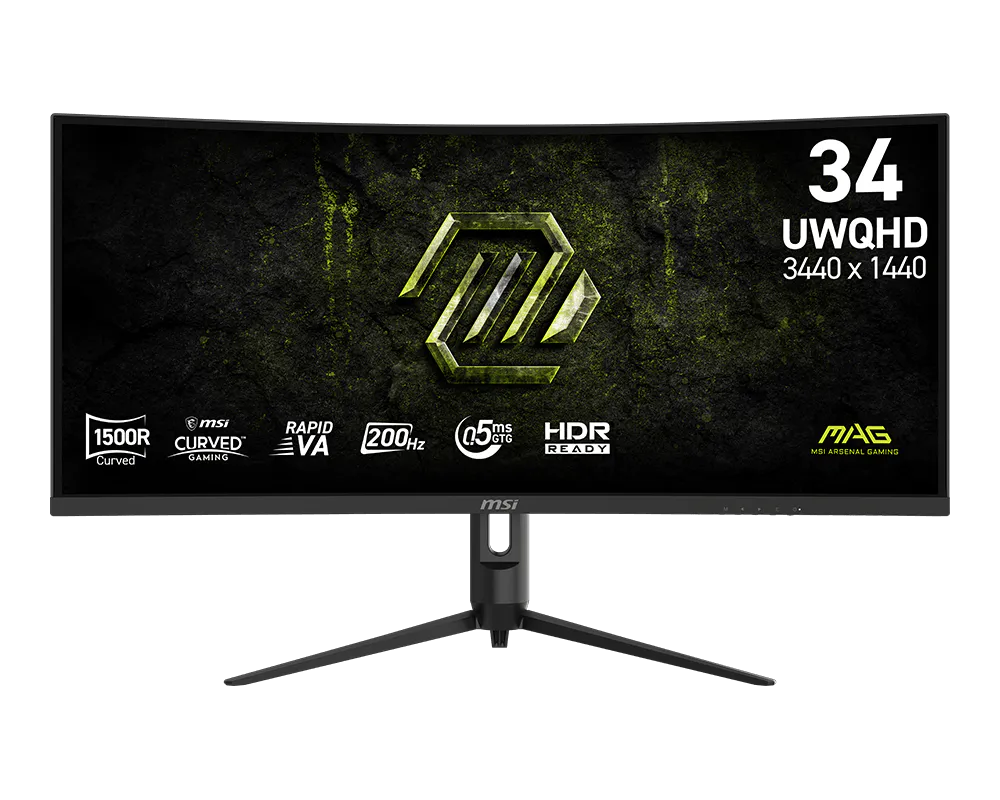

MSI MAG 342CQRF E20, 34″ 2K (3440×1440) UWQHD 200Hz 0.5ms, Rapid VA Curved Gaming Monitor
| Display & Panel Performance | |
|---|---|
| Panel Size / Type | 34″ / Rapid VA (Curve 1500R) |
| Active Display Area (mm) | 797.22 (H) x 333.72 (V) |
| Resolution / Aspect Ratio | 3440 X1440 (UWQHD) / 21:9 |
| Refresh Rate / Response time | 200Hz / 0.5ms (GtG, Min.) |
| Brightness / Contrast Ratio | SDR: 300 cd/m² / 3500:1 (DCR: 100000000:1) |
| Color Gamut (Adobe RGB / DCI-P3 / sRGB) | 88% / 90% / 110% (CIE1976 Standard) |
| Display Colors / Treatment | 1.07B, 10 bits (8 bits + FRC) / Anti-glare |
| Connectivity & Console Features | |
| Video / Audio ports | 1x DisplayPort 1.4a(HBR3) / 2x HDMI™ 2.0b (UWQHD@100Hz) / 1x Headphone-out |
| Console Mode | Supported Res/Refresh: 1080p (60Hz/120Hz); HDMI™ CEC Support; VRR Support (PS5/Xbox) |
| Sync / HDR Support | Adaptive-Sync / HDR Ready |
| Signal Frequency / Activated Range | 71.51~285.31KHz(H) / 48~200 Hz(V) / 48~200Hz Range |
| Physical & Ergonomics | |
| Dimensions (With Stand) | 808.60 x 269.97 x 423.97 mm (31.8 x 10.6 x 16.6 inch) |
| Adjustments (Full) | Tilt: -5°~20° / Swivel: -30° ~ 30° / Pivot: -5° ~ 5° / Height: 0 ~ 90 mm |
| Weight (NW / GW) | 6.95 kg (15.3 lbs) / 10.75 kg (23.7 lbs) |
| VESA / Kensington Lock | 75 x 75 mm / Yes |
| Power & Logistics | |
| Power Input | External Adopter 19V 3.42A / 100~240V, 50/60Hz |
| Accessories | 1x DP Cable (1.4a), 1x Power Cord (C13), 1x AC Adaptor, 1x Quick Guide, 4x VESA Screw |
| Note | HDMI™: 3440 x 1440 (Up to 100Hz); DisplayPort: 3440 x 1440 (Up to 200Hz) Support: HDMI™ CEC; PIP/PBP; Non Support: KVM |
