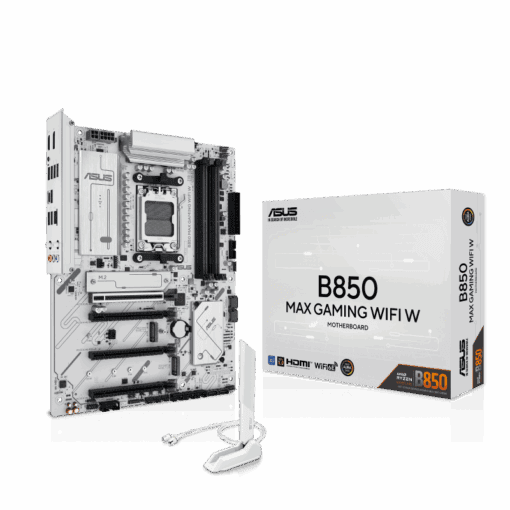

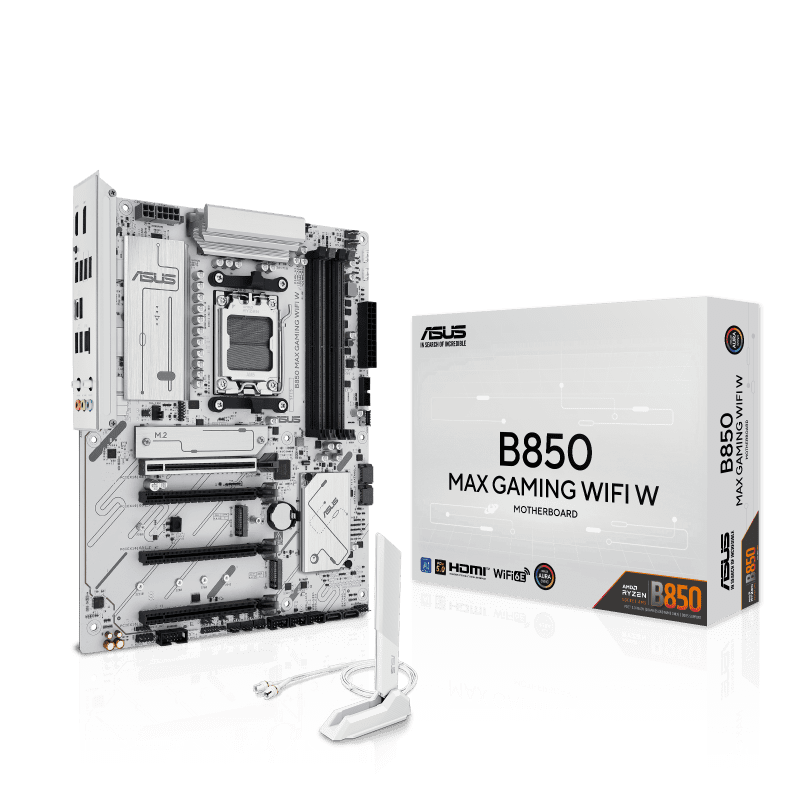

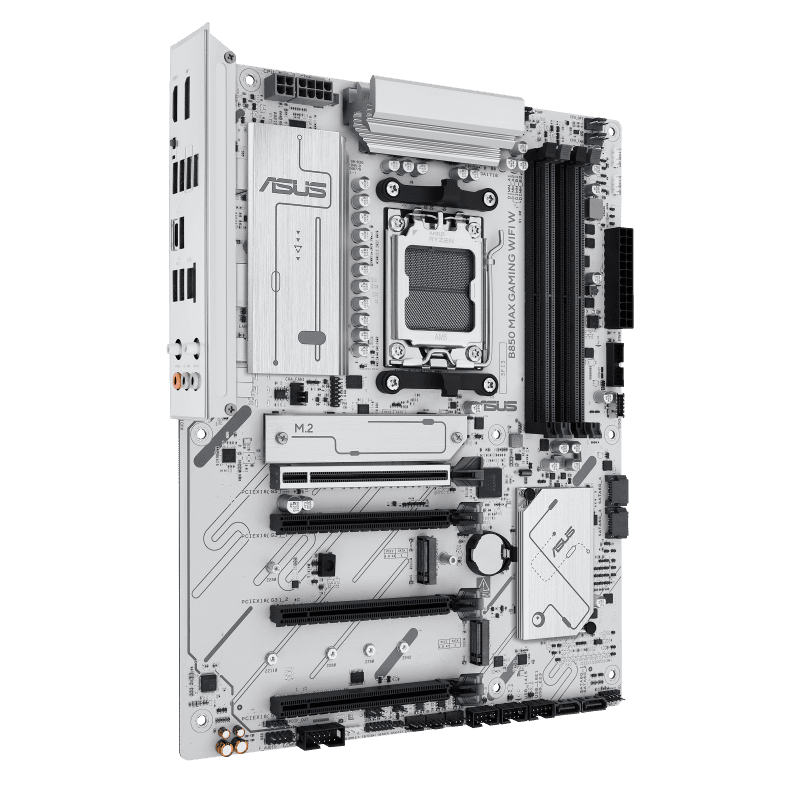

Asus B850 Max Gaming WiFi W ATX AM5 DDR5 Gaming Motherboard

₨78,999

Asus B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Enhanced Power Solution: 8+2+1 phase power design, 6-layer PCB, alloy chokes and durable capacitors for stable
Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gb
Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Antenna, Q-Dashboard, Q-LED Core
Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync
Renowned Software: Armoury Crate, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, ASUS MyHotkey
CEC Tier II ready

In stock

Description
Additional information

Asus B850 Max Gaming WiFi W ATX AM5 DDR5 Gaming Motherboard

B850 MAX GAMING WIFI W — News & Updates
Socket	AM5 Please visit our GLOBAL website to check and download the latest updates.
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to ASUS Support for CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI™ port* Supports max. 8K@30Hz (DisplayPort 1.4) * Supports 4K@60Hz (HDMI 2.1)
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: • 1 x PCIe 5.0 x16 slot (x16 mode) AMD Ryzen™ 8000 Series Desktop Processors: • 1 x PCIe 4.0 x16 slot (x8/x4 mode) AMD B850 Chipset: • 1 x PCIe 4.0 x16 slot (x4 mode) • 2 x PCIe 3.0 x16 slots (x1 mode)* *** PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. SATA6G_1/2 will be disabled when PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Storage	Total: 3 x M.2 slots & 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4 Ryzen™ 8000: M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4/x2 Chipset: M.2_3 PCIe 4.0 x2 (2242/2260/2280/22110) RAID: 9000 (0/1/5/10), 8000 (0/1), 7000 (0/1/10)
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E, 2×2 (802.11ax), 2.4/5/6GHz* Bluetooth® v5.3** * Wi-Fi 6E support varies by region. ** Bluetooth® version may vary by module.
USB	Rear (8 ports): • 4 x USB 10Gbps (3 x Type-A + 1 x Type-C®) • 2 x USB 5Gbps (Type-A) • 2 x USB 2.0 (Type-A) Front (9 ports): • 1 x USB 5Gbps Type-C® connector • 1 x USB 5Gbps header (2 ports) • 3 x USB 2.0 headers (6 ports)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Jack-detection, Multi-streaming, Front Panel Jack-retasking – Up to 24-Bit/192 kHz playback * Chassis with HD audio module required for 7.1 output.

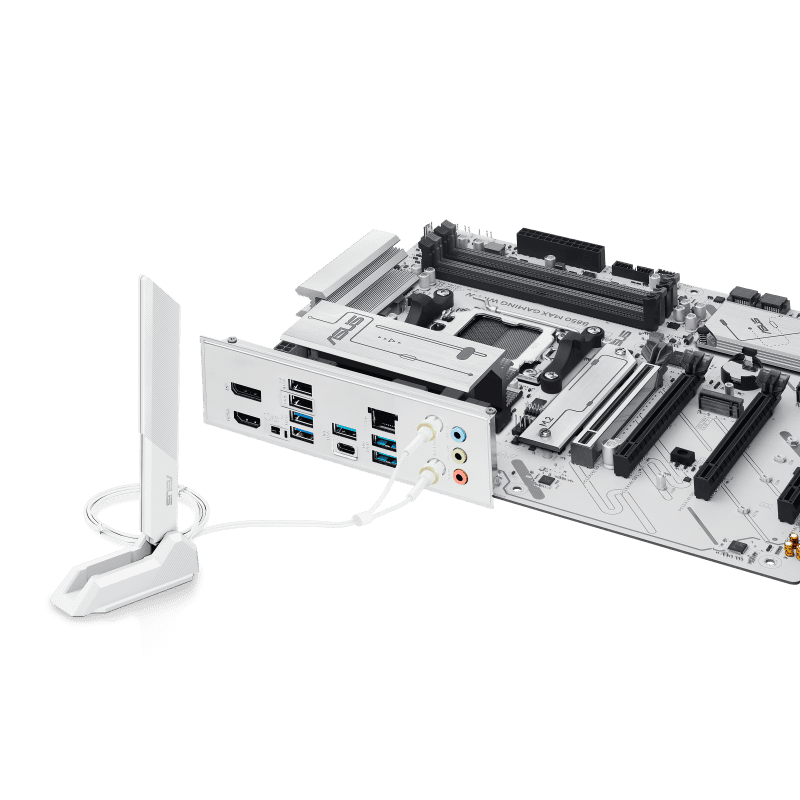

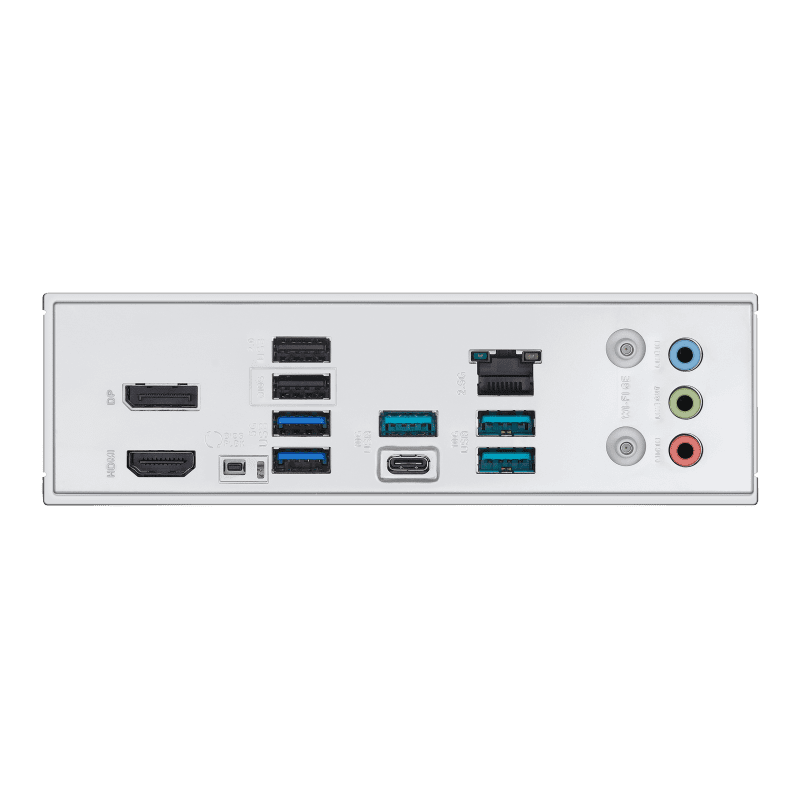

Back Panel I/O	1 x USB 10Gbps Type-C® 3 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 2 x USB 2.0 Type-A 1 x DisplayPort 1 x HDMI™ 1 x Wi-Fi module 1 x Realtek 2.5Gb LAN 3 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O	Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan headers Power: 24-pin, 8-pin + 4-pin CPU connectors Storage: 3 x M.2, 4 x SATA 6Gb/s USB: 1 x USB-C 5Gbps, 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) Misc: 3 x ARGB Gen 2, Clear CMOS, Chassis Intrusion, COM, F_AUDIO, S/PDIF Out, SPI TPM (14-1), Thunderbolt™ header
Special Features	ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot, SS I/O) Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) Thermal: Flexible M.2 & VRM heatsinks DIY: BIOS FlashBack™ button + LED, pre-mounted I/O shield Aura Sync (ARGB Gen 2)
Software	Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving) ASUS AI Advisor, Driver Hub, GlideX TurboV Core, ASUS CPU-Z Norton 360 Deluxe (60 Days), WinRAR (40 Days)
UEFI BIOS	CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

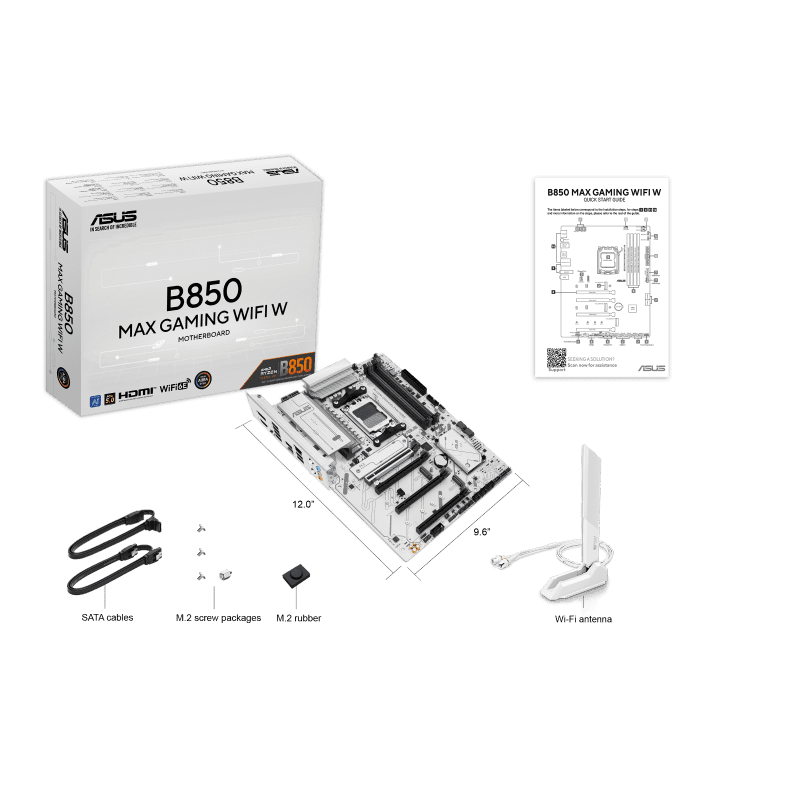

Accessories	Cables: 2 x SATA 6Gb/s Misc: ASUS WiFi Q-Antenna, M.2 rubber packages, 3 x Screw packages Docs: Quick start guide
OS	Windows® 11, Windows® 10 64-bit
Form Factor	ATX — 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
