Chipset: AMD B850 Chipset

Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

Expansion Slots:
– AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode)
– AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
– AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (support x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode)

Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
– AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
– AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
– AMD B850 Chipset: M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports

RAID Support: AMD RAIDXpert2 Technology
– Ryzen™ 9000 Series Processors: RAID 0/1/5/10
– Ryzen™ 8000 Series Processors: RAID 0/1
– Ryzen™ 7000 Series Processors: RAID 0/1/10

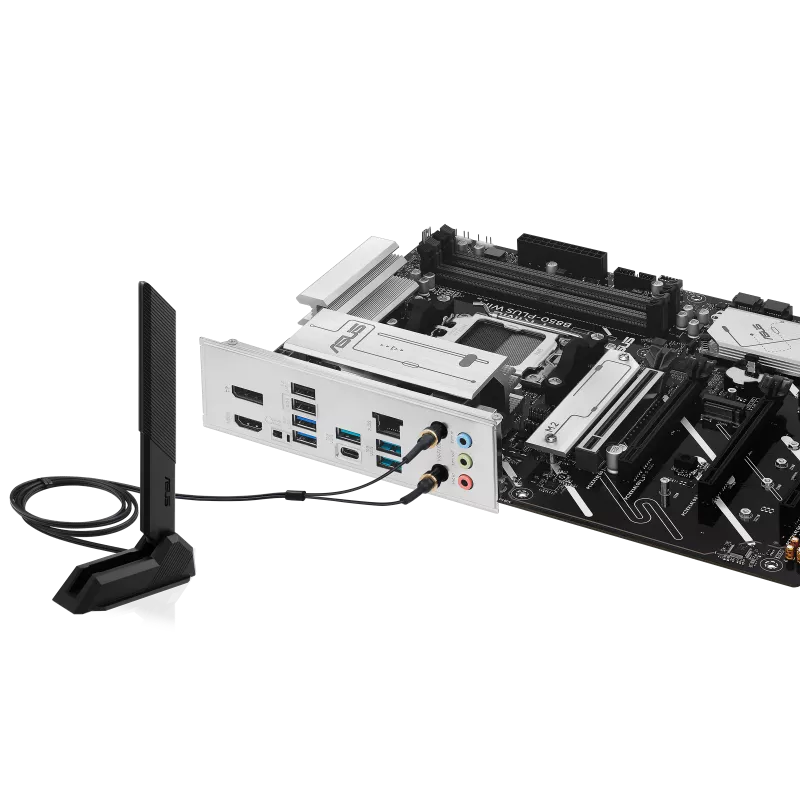

Wireless & Bluetooth: Wi-Fi 6E (2×2 Wi-Fi 6E 802.11ax, Supports 2.4/5/6GHz frequency band) | Bluetooth® v5.3

USB:

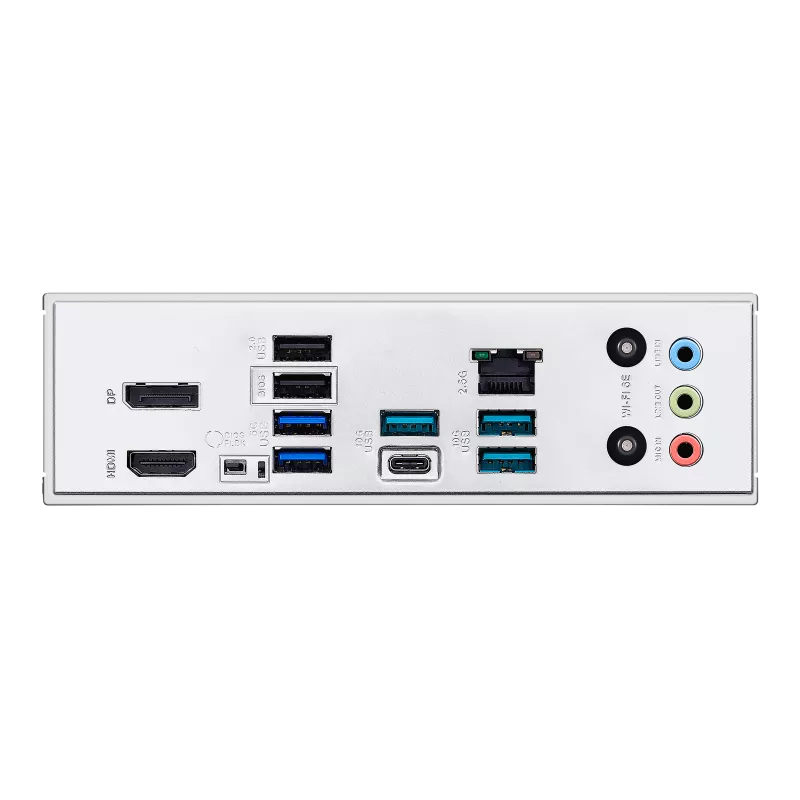

– Rear USB (Total 8 ports): 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
– Front USB (Total 9 ports): 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

Internal I/O Connectors:
– Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
– Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connectors, 1 x 4-pin +12V CPU Power connectors
– Storage Related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
– USB: 1 x USB 5Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports
– Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header, 1 x Thunderbolt™ (USB4®) header

Software Features:
– ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving), ASUS AI Advisor, ASUS Driver Hub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)
– UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey)
– Remote Management Features: IT Management software supported – ASUS Control Center Express(ACCE)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE

Operating System: Windows® 11, Windows® 10 64-bit
