Asus ROG Strix Z790-F Gaming WiFi II ATX LGA1700 DDR5 Gaming Motherboard

Name: Asus ROG Strix Z790-F Gaming WiFi II ATX LGA1700 DDR5 Gaming Motherboard
Brand: ASUS
SKU: RBTGMB00388
Price: 119999 PKR
Availability: InStock

₨119,999

1 Year Local WarrantyReplacement or Refund

The Asus ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions. This platform delivers the power and connectivity that advanced AI PC applications demand.

Intel LGA 1700 Socket
4x DIMMs, DDR5 8000+(OC)
WiFi 7 Technology
DIY-Friendly Design

In stock

Get an email the moment this price drops.

Description
Additional information

Asus ROG Strix Z790-F Gaming WiFi II ATX LGA1700 DDR5 Gaming Motherboard

Specification Group	Motherboard Details
CPU, Chipset & Form Factor	CPU Support: Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold and Celeron® Processors CPU Technologies: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® Z790 Chipset Form Factor: ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
Memory & Expansion Slots	Memory: 4 x DIMM slots, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Memory Architecture: Dual Channel \| Supports Intel® Extreme Memory Profile (XMP), OptiMem II, ASUS Enhanced Memory Profile II (AEMP II), DIMM Flex Expansion Slots: – 1 x PCIe 5.0 x16 slot (supports x16 mode from Intel® Core™ Processors) – 1 x PCIe 4.0 x16 slot (supports x4 mode from Intel® Z790 Chipset) – 1 x PCIe 3.0 x1 slot (from Intel® Z790 Chipset)
Storage & Graphics	Graphics Ports: 1 x DisplayPort 1.4 (Max. 8K@60Hz) \| 1 x HDMI 2.1 (Max. 4K@60Hz) Storage Support: Total 5 x M.2 slots & 4 x SATA 6Gb/s ports – M.2_1 slot (Key M): Type 2242/2260/2280/22110 (PCIe 4.0 x4 mode from CPU) – M.2_2 slot (Key M): Type 2280 (PCIe 4.0 x4 mode from Chipset) – M.2_3 slot (Key M): Type 2280 (PCIe 4.0 x4 mode from Chipset) – M.2_4 slot (Key M): Type 2242/2260/2280/22110 (PCIe 4.0 x4 mode from Chipset) – M.2_5 slot (Key M): Type 2242/2260/2280 (PCIe 4.0 x4 & SATA modes from Chipset) – 4 x SATA 6Gb/s ports RAID Support: Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Network & Wireless	Ethernet: 1 x Intel® 2.5Gb Ethernet \| ASUS LANGuard Wi-Fi: Intel® Wi-Fi 7 (2×2 802.11be, 2.4/5/6GHz, 160MHz bandwidth, up to 2.4Gbps transfer rate) Bluetooth: Bluetooth® v5.4
Audio	Codec: ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080 Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover Performance: 120 dB SNR stereo playback, 110 dB SNR recording, up to 32-Bit/384 kHz playback on front panel, Impedance sense, Jack-detection, Front/Rear MIC Jack-retasking

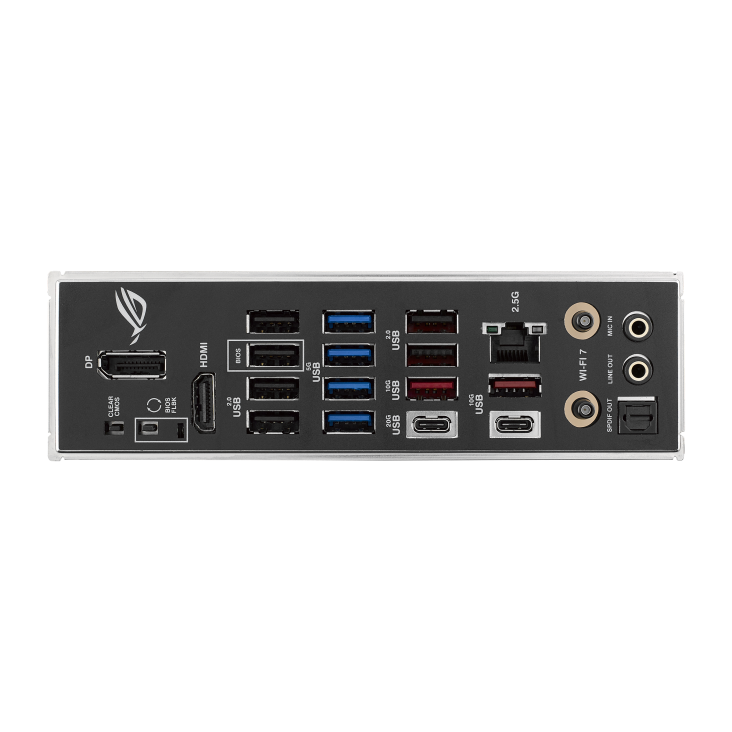

USB & Back Panel I/O	Rear USB Ports (14 Total): 1 x USB 20Gbps (Type-C®) \| 3 x USB 10Gbps (2 x Type-A + 1 x Type-C®) \| 4 x USB 5Gbps (Type-A) \| 6 x USB 2.0 (Type-A) Front USB Headers (7 Ports): 1 x USB 20Gbps connector (Type-C® with up to 30W PD Fast-charge) \| 1 x USB 5Gbps header (supports 2 ports) \| 2 x USB 2.0 headers (support 4 ports) Back Panel I/O Ports: – 1 x USB 20Gbps (Type-C®) – 3 x USB 10Gbps (2 x Type-A + 1 x Type-C®) – 4 x USB 5Gbps (Type-A) – 6 x USB 2.0 (Type-A) – 1 x DisplayPort \| 1 x HDMI port – 1 x Wi-Fi Module \| 1 x Intel® 2.5Gb Ethernet – 2 x Gold-plated audio jacks \| 1 x Optical S/PDIF out port – 1 x BIOS FlashBack™ button \| 1 x Clear CMOS button
Internal Headers & Features	Fan & Cooling Headers: 1 x 4-pin CPU Fan \| 1 x 4-pin CPU OPT Fan \| 1 x 4-pin AIO Pump \| 5 x 4-pin Chassis Fan Power Connectors: 1 x 24-pin Main Power \| 2 x 8-pin +12V Power Misc Connectors: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio (F_AUDIO), 1 x Start button, 1 x 20-3 pin System Panel header (with Chassis intrude), 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header Special Features: – Extreme Engine Digi+ (5K Black Metallic Capacitors) – ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED, Q-Slot – Thermal Solution: M.2 heatsinks & backplate, VRM heatsink design – EZ DIY: BIOS FlashBack™, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM

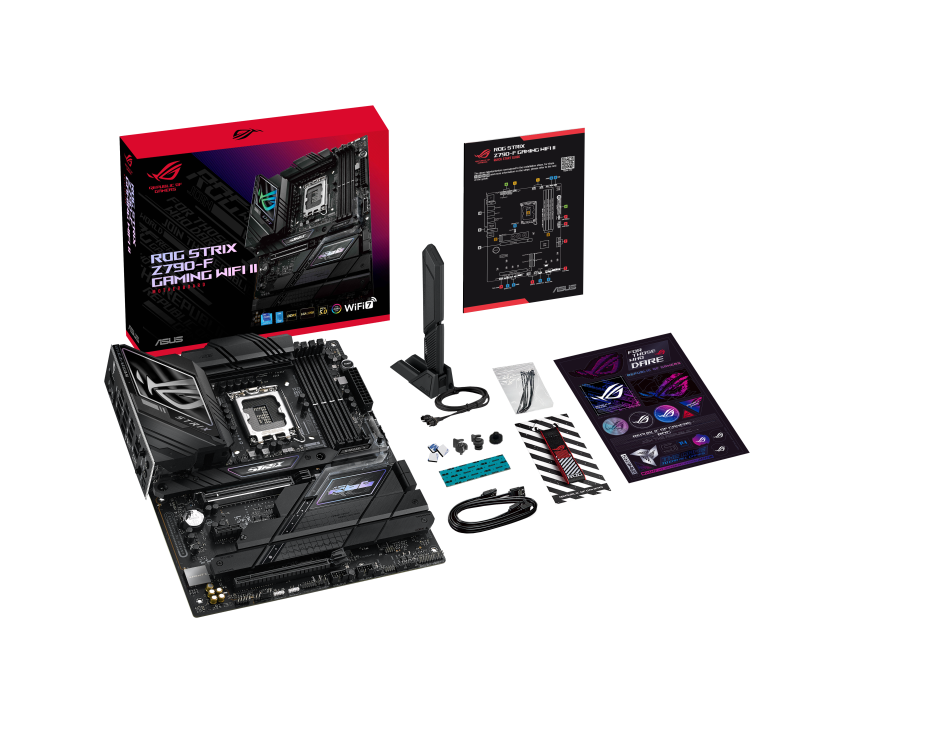

Software & Accessories	Software Features: ROG Exclusive (CPU-Z, DTS® Sound Unbound) \| Armoury Crate (AIDA64 60-day trial, Aura Sync, Fan Xpert 4, Two-Way AI Noise Cancelation) \| AI Suite 3 (AI Overclocking, TPU, DIGI+ VRM) \| MemTest86, UEFI BIOS Operating System: Windows® 11, Windows® 10 64-bit Included Accessories: – Cables: 2 x SATA 6Gb/s cables – Cooling Kit: 1 x Thermal pad for M.2 – Misc: 1 x ASUS Wi-Fi Q-Antenna, Cable ties package, M.2 backplate Q-Latch & M.2 Q-Latch packages, ROG key chain, ROG Strix stickers, M.2 Rubber packages – Documentation: Quick start guide
