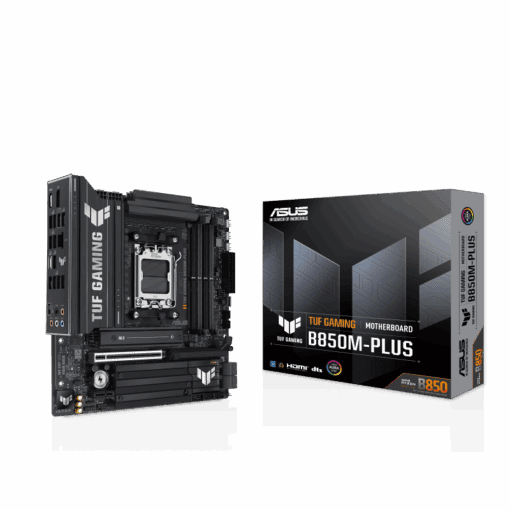

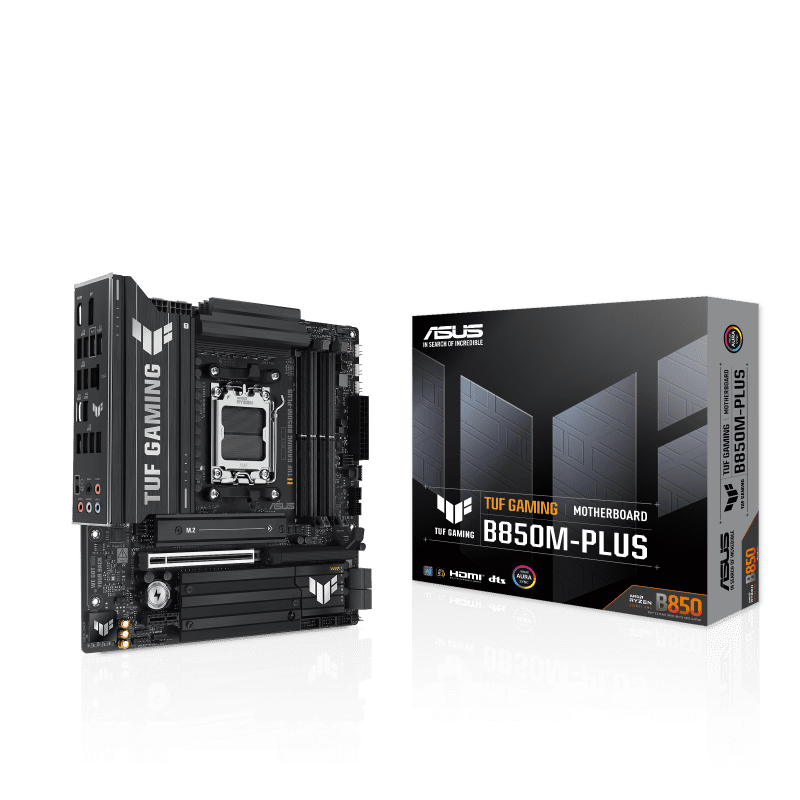

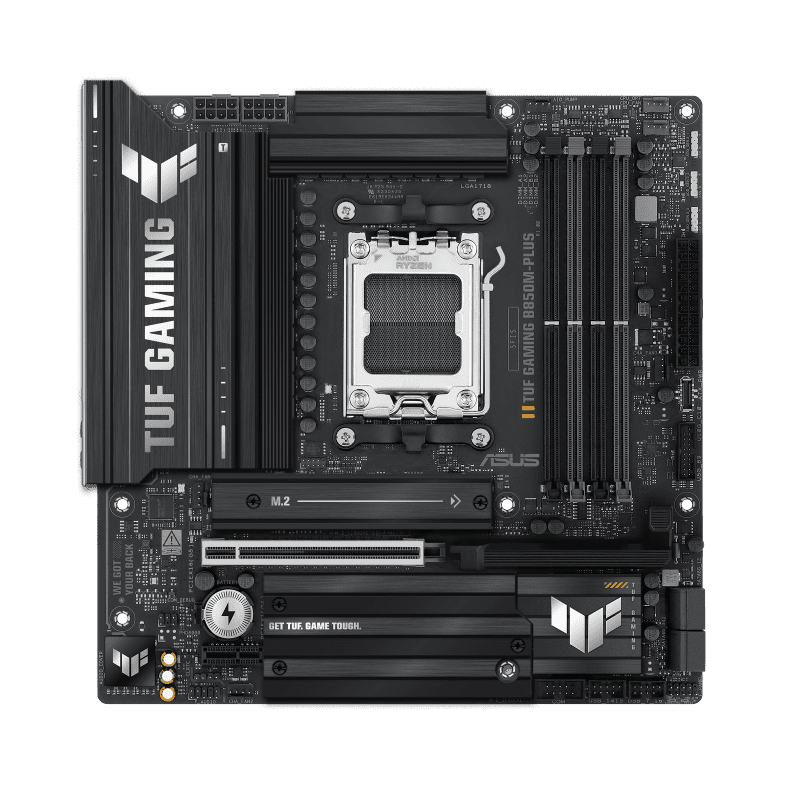

Asus TUF Gaming B850M-Plus M-ATX AM5 DDR5 Gaming Motherboard

₨72,499

ASUS TUF GAMING B850M-PLUS takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

AMD Ryzen 9000 Series Ready
4x DIMMs, DDR5 8000+MT/s (OC)
14+2+1 Premium Power Stages
Aura Sync RGB Lighting Control

In stock

Description
Additional information

Asus TUF Gaming B850M-Plus M-ATX AM5 DDR5 Gaming Motherboard

Model	TUF GAMING B850M-PLUS
News & Updates	Please visit our GLOBAL website to check and download the latest updates.
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI™ port* * Graphics specifications may vary between CPU types. Supports max. 8K@30Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors • 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset • 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site. ** Specifications vary by CPU types.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4 Ryzen™ 8000: M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4/x2* B850 Chipset: M.2_3 PCIe 4.0 x4 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
USB	Rear USB (12 ports) 1 x USB 20Gbps (Type-C®) 3 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) Front USB (7 ports) 1 x USB 10Gbps (Type-C®) 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) * USB Type-C® power delivery output: max. 5V/3A.
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense, Amplifier, Jack-detection, Multi-streaming, Retasking – 120 dB SNR playback / 113 dB SNR recording – Supports up to 32-Bit/192 kHz playback*

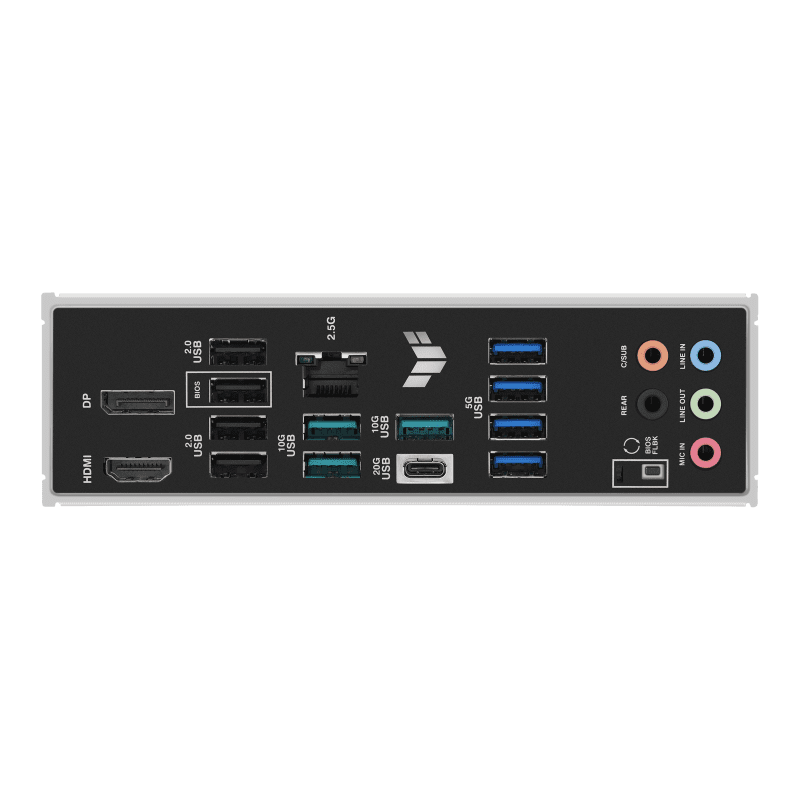

Back Panel I/O Ports	1 x USB 20Gbps (Type-C®) 3 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI™ 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan & Cooling 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan Power 1 x 24-pin Main, 2 x 8-pin CPU Storage 3 x M.2, 4 x SATA USB 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps (2 ports), 2 x USB 2.0 (4 ports) Miscellaneous 3 x Addressable Gen 2, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM, 1 x Front Audio, 1 x Front Panel
Special Features	ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync – DIGI+ VRM, ESD Guards, SafeSlot, Stainless-steel I/O – M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED – BIOS FlashBack™, Pre-mounted I/O shield
Software Features	Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving) ASUS DriverHub, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing Adobe Creative Cloud (Trial), Norton 360 (Trial), WinRAR (Trial)
UEFI BIOS	ASUS CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode, MyHotkey 256 Mb Flash ROM, UEFI AMI BIOS

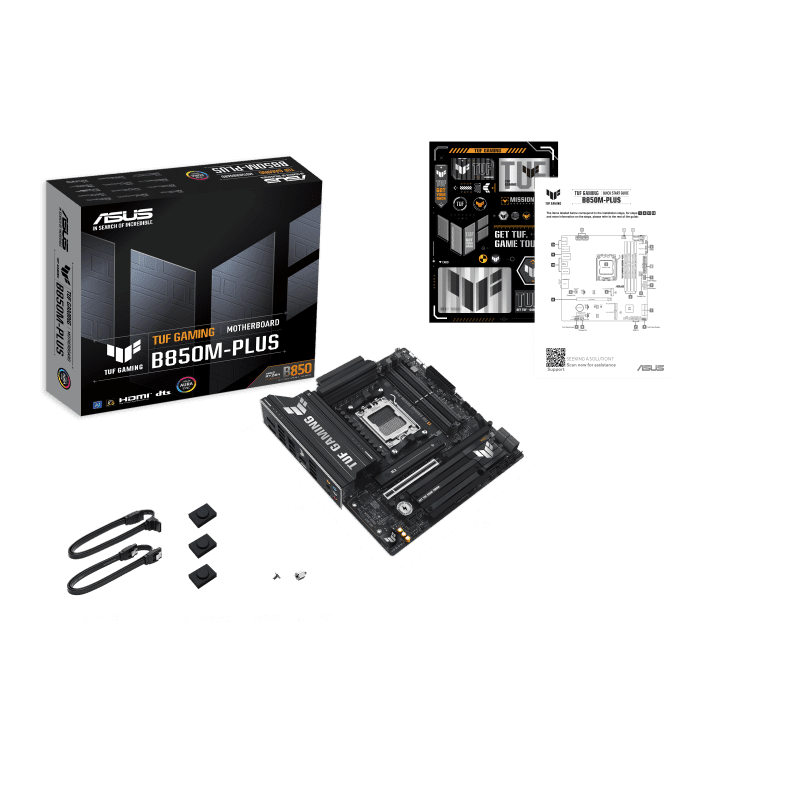

Accessories	2 x SATA 6Gb/s cables 1 x TUF GAMING sticker 2 x M.2 rubber packages 1 x M.2 screw package 1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 x 9.6 in (24.4 x 24.4 cm)
