Asus TUF Gaming B850M-Plus WiFi M-ATX AM5 DDR5 Gaming Motherboard

₨78,999

ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

AMD Ryzen 9000 Series Ready
4x DIMMs, DDR5 8000+MT/s (OC)
14+2+1 Premium Power Stages
Aura Sync RGB Lighting Control

In stock

Description
Additional information

Asus TUF Gaming B850M-Plus WiFi M-ATX AM5 DDR5 Gaming Motherboard

TUF GAMING B850M-PLUS WIFI — Specifications
News & Updates	Please visit our GLOBAL website to check and download the latest updates.
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD EXPO™ and ASUS AEMP * Specs vary depending on CPU and memory configuration.
Graphics	1 x DisplayPort (max. 8K@30Hz) 1 x HDMI™ (max. 4K@60Hz) * Graphics specifications may vary between CPU types.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 (x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 (x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x1 slot * Specifications vary by CPU type.
Storage	Total 3 x M.2 slots + 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: • M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4) Ryzen™ 8000: • M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2) Chipset: • M.2_3 (PCIe 4.0 x4) • 4 x SATA 6Gb/s RAID Support (AMD RAIDXpert2): 9000: RAID 0/1/5/10 \| 8000: RAID 0/1 \| 7000: RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth	Wi-Fi 6E (2×2) 2.4/5/6GHz Bluetooth® v5.3 * 6GHz band supported only on Windows 11+
USB	Rear (12 ports): • 1 x USB 20Gbps Type-C® • 3 x USB 10Gbps Type-A • 4 x USB 5Gbps Type-A • 4 x USB 2.0 Type-A Front (6 ports): • 1 x USB 10Gbps Type-C® • 1 x USB 5Gbps header (2 ports) • 2 x USB 2.0 headers (3 ports) * Type-C® PD output: max. 5V/3A
Audio	Realtek ALC1220P 7.1 Surround Sound 120 dB SNR playback / 113 dB recording Supports 32-Bit/192 kHz playback* Audio shielding, premium capacitors, de-pop circuit * 32-Bit/192 kHz not supported for 7.1 audio.

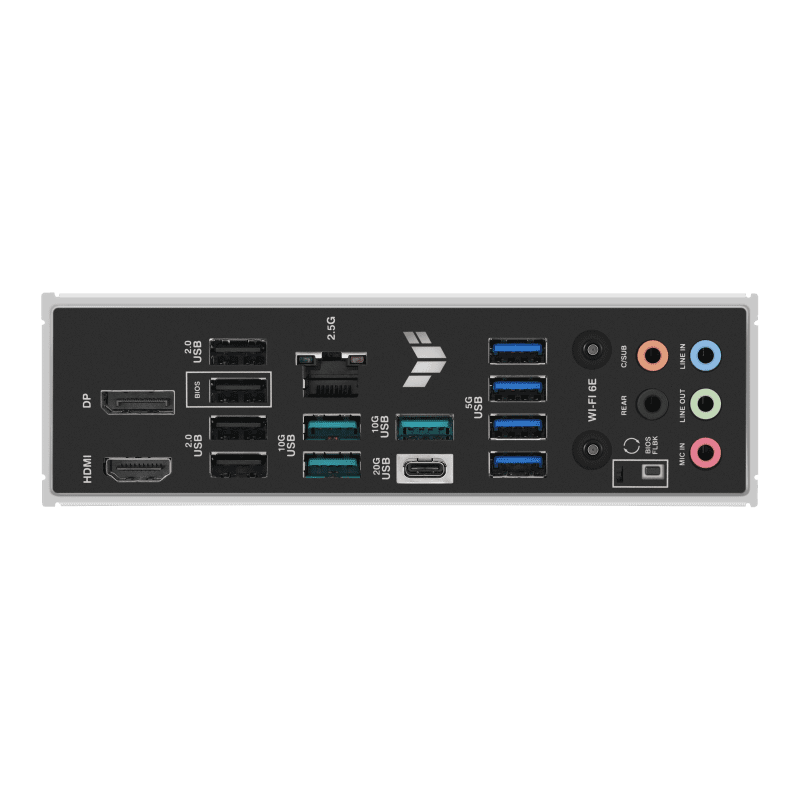

Back Panel I/O	1 x USB 20Gbps Type-C® 3 x USB 10Gbps Type-A 4 x USB 5Gbps Type-A 4 x USB 2.0 Type-A 1 x DisplayPort, 1 x HDMI™ 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O	Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan Power: 1 x 24-pin ATX, 2 x 8-pin CPU Storage: 3 x M.2, 4 x SATA 6Gb/s USB: 1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports) Misc: 3 x ARGB Gen 2, Clear CMOS, Chassis Intrusion, COM Port, Front Audio, Front Panel
Special Features	ASUS TUF Protection: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage, SafeSlot, Stainless-steel I/O Q-Design: M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-DIMM, Q-LED Thermal: M.2 heatsink, VRM heatsink EZ DIY: BIOS FlashBack™ button & LED, ProCool, Pre-mounted I/O shield, SafeDIMM Aura Sync: Addressable Gen2 headers
Software	Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving) ASUS DriverHub, GlideX, TurboV Core, TUF CPU-Z, DTS Audio Processing Adobe Creative Cloud Trial, Norton 360 (60 Days), WinRAR (40 Days)
UEFI BIOS	ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey 256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

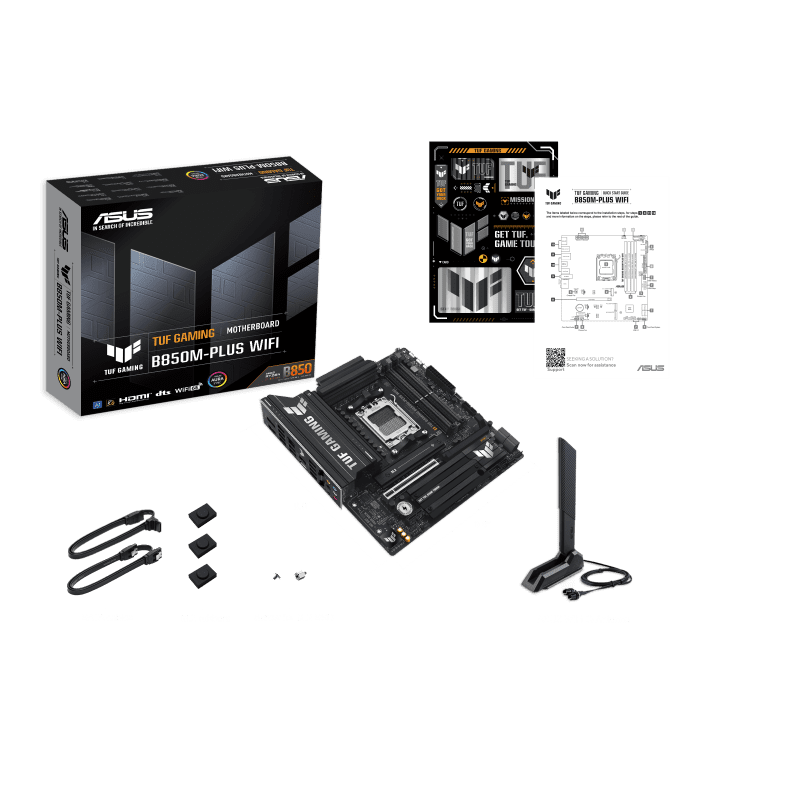

Accessories	Cables: 2 x SATA 6Gb/s Misc: 1 x ASUS WiFi Q-Antenna, 1 x TUF sticker, 2 x M.2 rubber packages, 1 x M.2 screw Documentation: Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor — 24.4 cm x 24.4 cm
