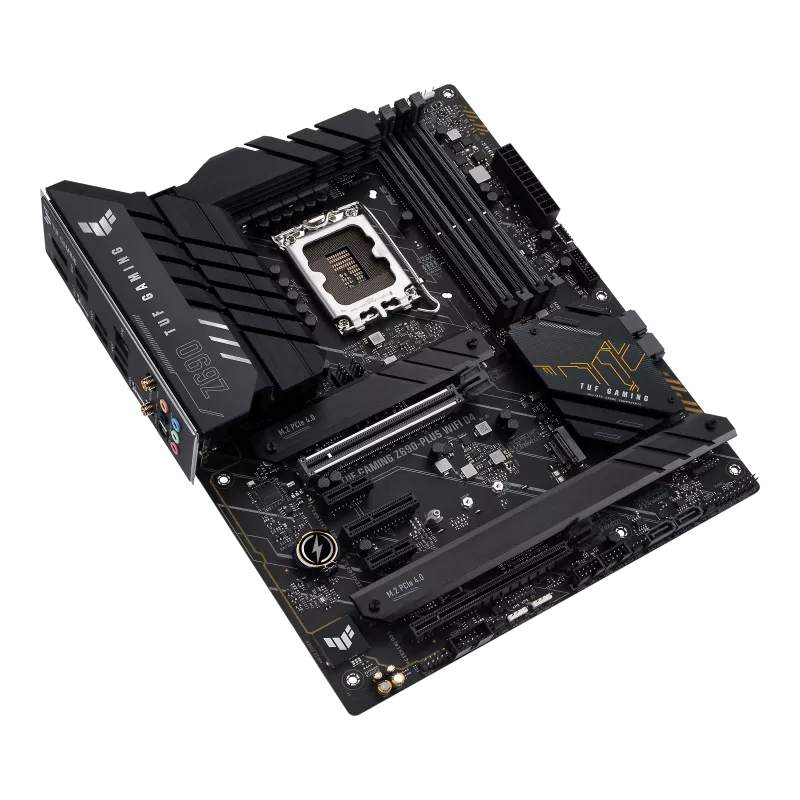

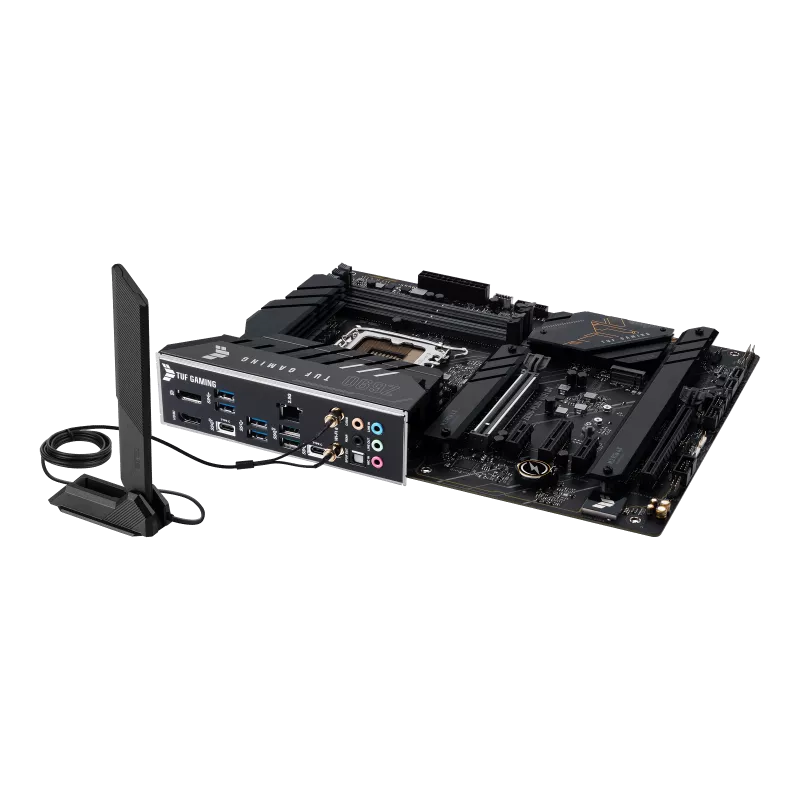

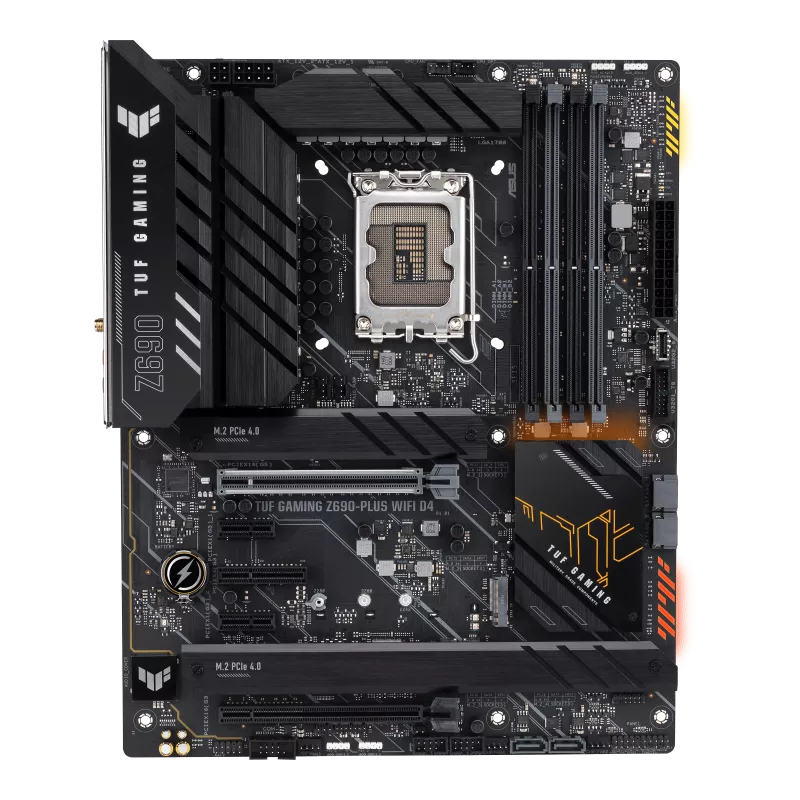

Asus TUF Gaming Z690-Plus WiFi D4 ATX LGA1700 DDR4 Gaming Motherboard – USED

Name: Asus TUF Gaming Z690-Plus WiFi D4 ATX LGA1700 DDR4 Gaming Motherboard - USED
Brand: ASUS
SKU: RBTGMB00394-used
Price: 44999 PKR
Availability: OutOfStock

₨44,999

3 Months Local WarrantyReplacement or Refund

Intel® Z690 (LGA 1700) ATX gaming motherboard, 15 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots, WiFi 6 and Intel 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt™ 4 header and Aura Sync RGB lighting

Intel LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® Core™ processors
Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

Out of stock

Out of stock — log in and we’ll email you when it’s back.

Description
Additional information

Asus TUF Gaming Z690-Plus WiFi D4 ATX LGA1700 DDR4 Gaming Motherboard

Specification Group	TUF GAMING Z690-PLUS WIFI D4 Details
CPU & Chipset	Model Name: TUF GAMING Z690-PLUS WIFI D4 Processor Socket: Intel® Socket LGA1700 CPU Compatibility: Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors CPU Technologies: Intel® Turbo Boost Technology 2.0 & Intel® Turbo Boost Max Technology 3.0 (dependent on CPU type) Chipset: Intel® Z690
Memory Support	Memory Capacity & Slots: 4 × DIMM slots, Max. 128GB, DDR4 Non-ECC Un-buffered Memory Memory Speeds: 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Features: Dual Channel Architecture, Intel® Extreme Memory Profile (XMP), OptiMem II
Graphics & Expansion	Integrated Display Outputs:* – 1 × DisplayPort 1.4 (Supports max. 4K@60Hz) – 1 × HDMI® 2.1 (Supports max. 4K@60Hz) Graphics specs and VGA resolution support depend on processor / graphics card capabilities. Expansion Slots:* – Intel® 14th/13th/12th Gen Processors: 1 × PCIe 5.0 x16 slot – Intel® Z690 Chipset: 1 × PCIe 3.0 x16 slot (supports x4 mode), 1 × PCIe 3.0 x4 slot, 2 × PCIe 3.0 x1 slots *Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Storage & RAID	Total Storage Support: 4 × M.2 slots & 4 × SATA 6Gb/s ports M.2 Configurations: – M.2_1 slot (Key M, 2242/2260/2280/22110): PCIe 4.0 x4 mode (via CPU) – M.2_2 slot (Key M, 2242/2260/2280): PCIe 4.0 x4 & SATA modes (via Z690 Chipset) – M.2_3 slot (Key M, 2242/2260/2280/22110): PCIe 4.0 x4 mode (via Z690 Chipset) – M.2_4 slot (Key M, 2242/2260/2280): PCIe 4.0 x4 mode (via Z690 Chipset) SATA Ports: 4 × SATA 6Gb/s ports RAID & Optane: Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10, and Intel® Optane Memory H Series on PCH-attached M.2 slots
Networking & Wireless	Ethernet: 1 × Intel® 2.5Gb Ethernet with TUF LANGuard Wi-Fi: 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz dual-band Bluetooth: Bluetooth® v5.2
USB Connectivity	Rear USB Ports (8 total): – 1 × USB 3.2 Gen 2×2 port (1 × USB Type-C®) – 2 × USB 3.2 Gen 2 ports (2 × Type-A) – 5 × USB 3.2 Gen 1 ports (4 × Type-A + 1 × USB Type-C®) Front USB Headers (7 total): – 1 × USB 3.2 Gen 2 connector (supports USB Type-C®) – 1 × USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) – 2 × USB 2.0 headers (support 4 additional USB 2.0 ports)
Audio	Audio CODEC: Realtek 7.1 Surround Sound High Definition Audio CODEC Capabilities: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover

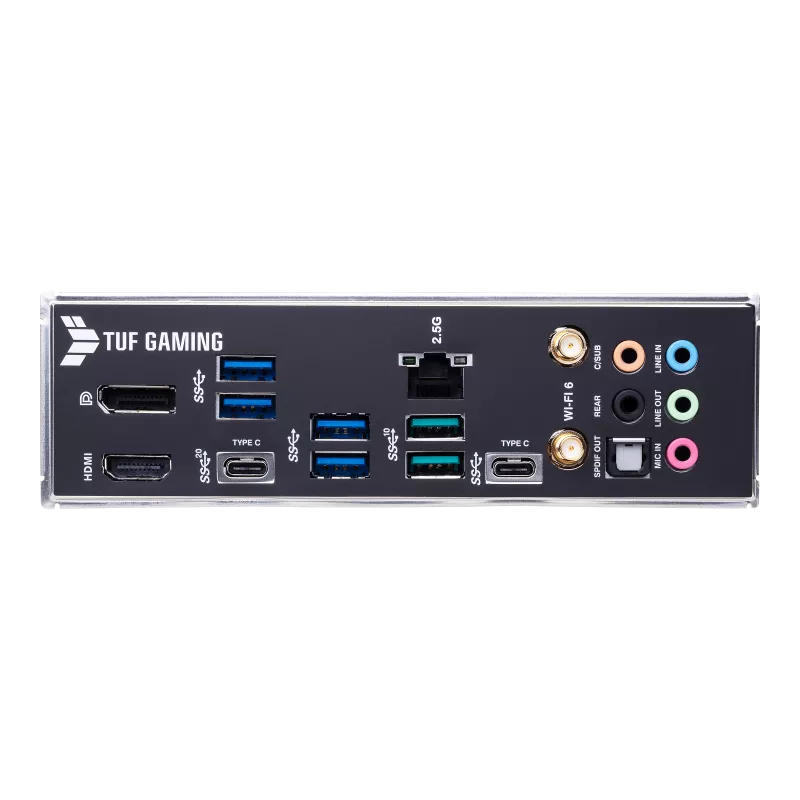

I/O Connectors	Back Panel I/O: 1 × USB 3.2 Gen 2×2 (Type-C®) \| 2 × USB 3.2 Gen 2 (Type-A) \| 5 × USB 3.2 Gen 1 (4 Type-A + 1 Type-C®) \| 1 × DisplayPort \| 1 × HDMI® \| 1 × Wi-Fi Module \| 1 × Intel® 2.5Gb Ethernet \| 5 × Audio Jacks \| 1 × Optical S/PDIF out Internal Headers & Connectors: – Cooling: 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT Fan, 1 × 4-pin AIO Pump, 4 × 4-pin Chassis Fan headers – Power: 1 × 24-pin Main Power, 1 × 8-pin +12V Power, 1 × 4-pin +12V Power – Storage & USB: 4 × M.2 slots (Key M), 4 × SATA 6Gb/s, 1 × USB 3.2 Gen 2 Type-C®, 1 × USB 3.2 Gen 1 header (2 ports), 2 × USB 2.0 headers (4 ports) – Miscellaneous: 3 × Addressable Gen 2 headers, 1 × AURA RGB header, 1 × Clear CMOS header, 1 × COM Port header, 1 × Front Panel Audio header (AAFP), 1 × 20-3 pin System Panel header with Chassis Intrude function, 1 × Thunderbolt™ header
Special Features & Software	ASUS Special Features: – ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS), Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O – ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot – Thermal Solution: M.2 Heatsink, VRM Heatsink Design – EZ DIY: CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM – AURA Sync: AURA RGB header, Addressable Gen 2 headers Software Features: – Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 4, Two-Way AI Noise Cancelation) – AI Suite 3 (Performance And Power Saving Utility, TurboV EVO, EPU, DIGI+ VRM) – TUF GAMING CPU-Z, DTS Audio Processing, MyAsus, Norton Anti-virus (Free Trial), WinRAR – UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
System & Physical	BIOS & Management: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, WOL by PME, PXE Form Factor: ATX Form Factor (30.5 cm × 24.4 cm)
Included Accessories	– Cables: 2 × SATA 6Gb/s cables – Miscellaneous: 1 × ASUS Wi-Fi moving antenna, 2 × M.2 Rubber Packages, 1 × M.2 SSD screw package, 1 × TUF GAMING sticker – Installation Media: 1 × Support DVD – Documentation: 1 × TUF Certification card, 1 × User guide
