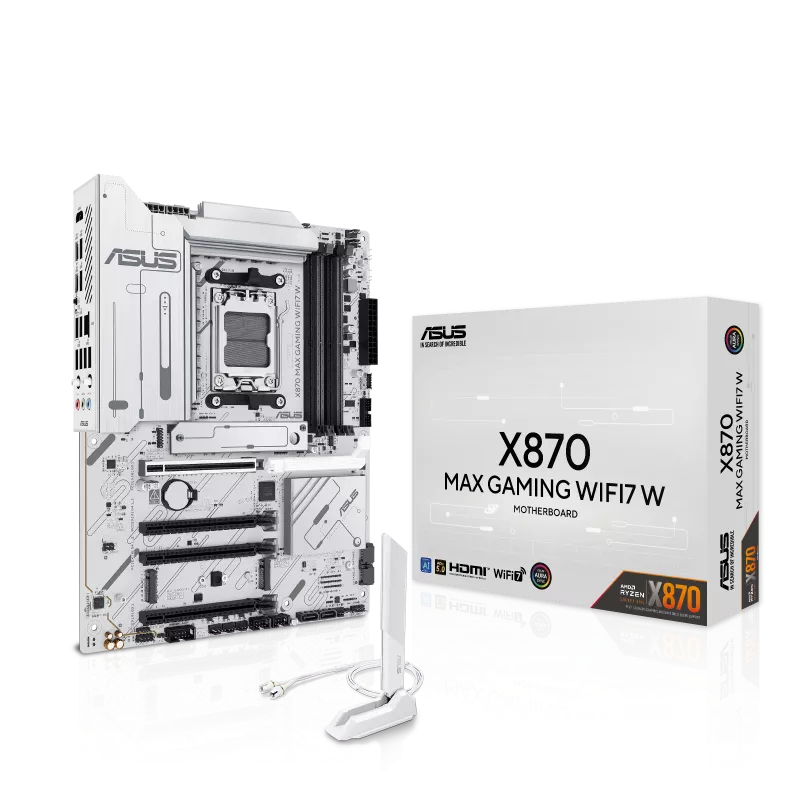

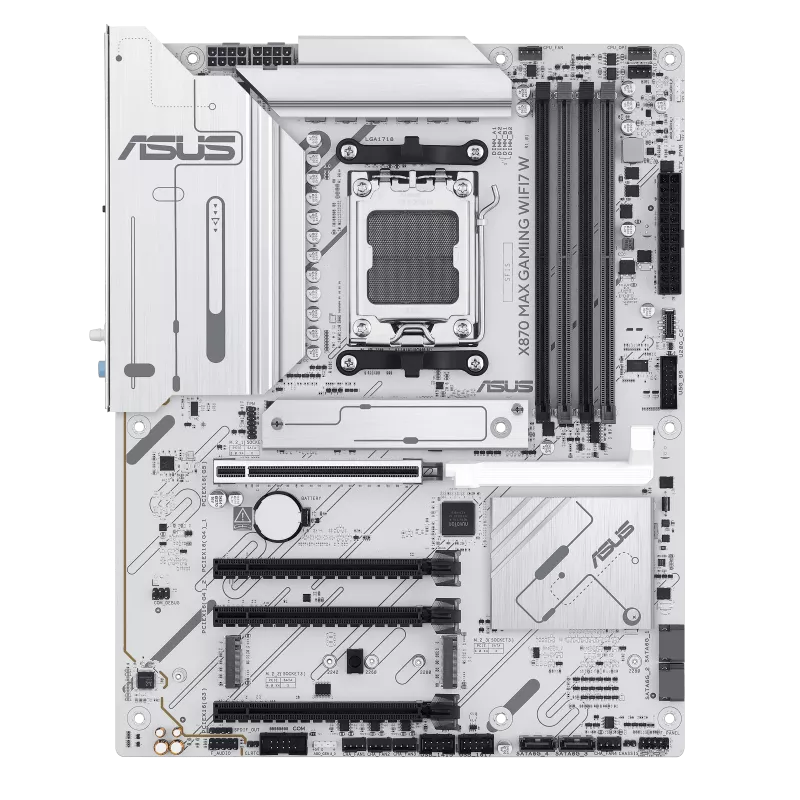

Asus X870 Max Gaming WiFi7 W ATX AM5 DDR5 Gaming Motherboard

Name: Asus X870 Max Gaming WiFi7 W ATX AM5 DDR5 Gaming Motherboard
Brand: ASUS
SKU: RBTGMB00414
Price: 96999 PKR
Availability: InStock

₨96,999

2 Years Local WarrantyReplacement or Refund

ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

AMD Ryzen 9000 Series Ready
4x DIMMs, DDR5 8000+MT/s
12+2+1 VRM Power Stages
Stable WiFi 7 Connection

In stock

Get an email the moment this price drops.

Description
Additional information

Asus X870 Max Gaming WiFi7 W ATX AM5 DDR5 Gaming Motherboard

Specification Group	ASUS X870 MAX GAMING WIFI7 W Details
General & Platform	Model: X870 MAX GAMING WIFI7 W Form Factor: ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) CPU Socket: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD X870 Chipset Operating System: Windows 11
Memory Support	DIMM Slots: 4 x DIMM slots, max. 256GB, DDR5 Speed Specifications (OC): Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Architecture & Features: Dual channel memory architecture, ECC and Non-ECC, Un-buffered DIMM, On-Die ECC function, Supports AMD EXPO™, ASUS Enhanced Memory Profile (AEMP)
Graphics & Slots	Graphics Outputs: 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1), 2 x USB4® (40Gbps) ports supporting USB Type-C® display outputs (max. 4K@60Hz as specified in DisplayPort 1.4a) Expansion Slots (Varying by CPU): – AMD Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 slot (supports x16 mode) – AMD Ryzen™ 8000: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) – AMD X870 Chipset: 2 x PCIe 4.0 x16 slots (support x1 mode), 1 x PCIe 3.0 x16 slot (supports x1 mode, shares bandwidth with SATA6G_3 and SATA6G_4 ports)
Storage & RAID	M.2 Slots (Total 3): – M.2_1 (Key M): Type 2280 (supports PCIe 5.0 x4 mode for Ryzen 9000/7000; PCIe 4.0 x4 mode for Ryzen 8000) – M.2_2 (Key M): Type 2242/2260/2280 (supports PCIe 4.0 x4 mode; shares bandwidth with USB4 ports) – M.2_3 (Key M – Chipset): Type 2280 (supports PCIe 4.0 x4 mode) SATA Ports: 4 x SATA 6Gb/s ports RAID Support: AMD RAIDXpert2 Technology (RAID 0/1/5/10 for Ryzen 9000; RAID 0/1 for Ryzen 8000; RAID 0/1/10 for Ryzen 7000)
Networking	Ethernet: 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard Wireless & Bluetooth: Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency bands, Wi-Fi 7 160MHz bandwidth (up to 2.9Gbps transfer rate), Bluetooth® v5.4
USB Connectivity	Rear USB (Total 10 ports): 2 x USB4® (40Gbps) Type-C® ports, 1 x USB 10Gbps port (Type-A), 3 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports (Type-A) Front USB (Total 7 ports): 1 x USB 20Gbps connector (supports Type-C®), 1 x USB 5Gbps header (2 additional ports), 2 x USB 2.0 headers (4 additional ports)
Audio System	CODEC: Realtek 7.1 Surround Sound High Definition Audio CODEC Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking, supports up to 24-Bit/192 kHz playback, Audio Shielding, premium audio capacitors, dedicated audio PCB layers

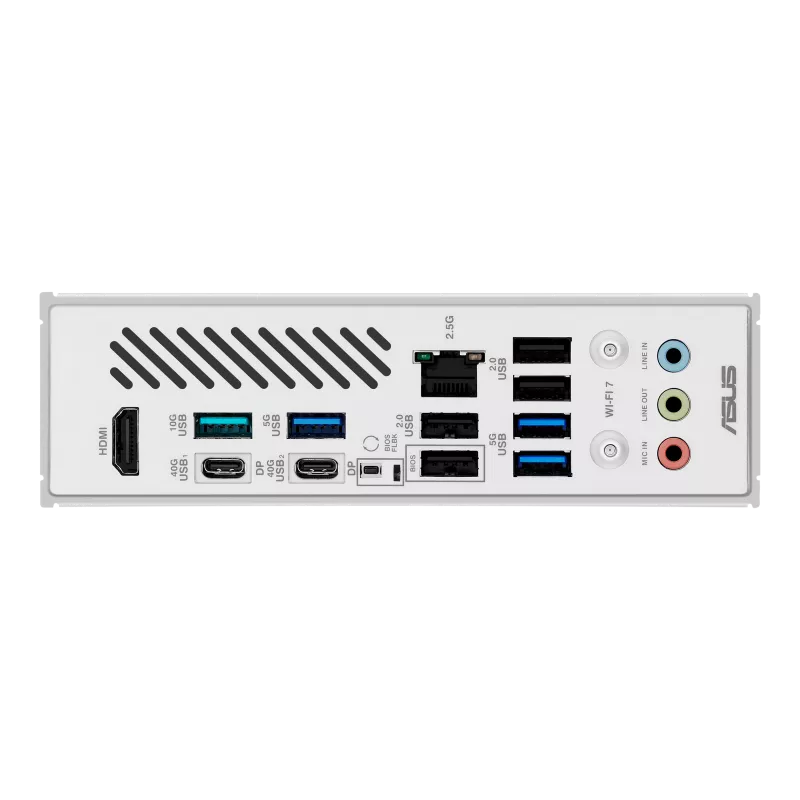

I/O & Connectors	Back Panel I/O: 2 x USB4® Type-C, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button Internal Headers: Fan headers (CPU Fan, CPU OPT, AIO Pump, 4x Chassis), Power connectors (24-pin, 2x 8-pin +12V CPU), 3 x M.2 slots, 4 x SATA 6Gb/s, USB connectors/headers, 3 x Addressable RGB Gen 2 headers, Clear CMOS header, Chassis Intrusion header, COM Port header, Front Panel Audio, S/PDIF Out header, SPI TPM header (14-1 pin), 10-1 pin System Panel header
Special Features	ASUS 5X Protection III: DIGI+ VRM (Digital power design with DrMOS), LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot Thermal & EZ DIY: Flexible M.2 heatsink, VRM heatsink design, BIOS FlashBack™ button & LED, ProCool, Pre-mounted I/O shield Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe & WinRAR trials, UEFI BIOS tools

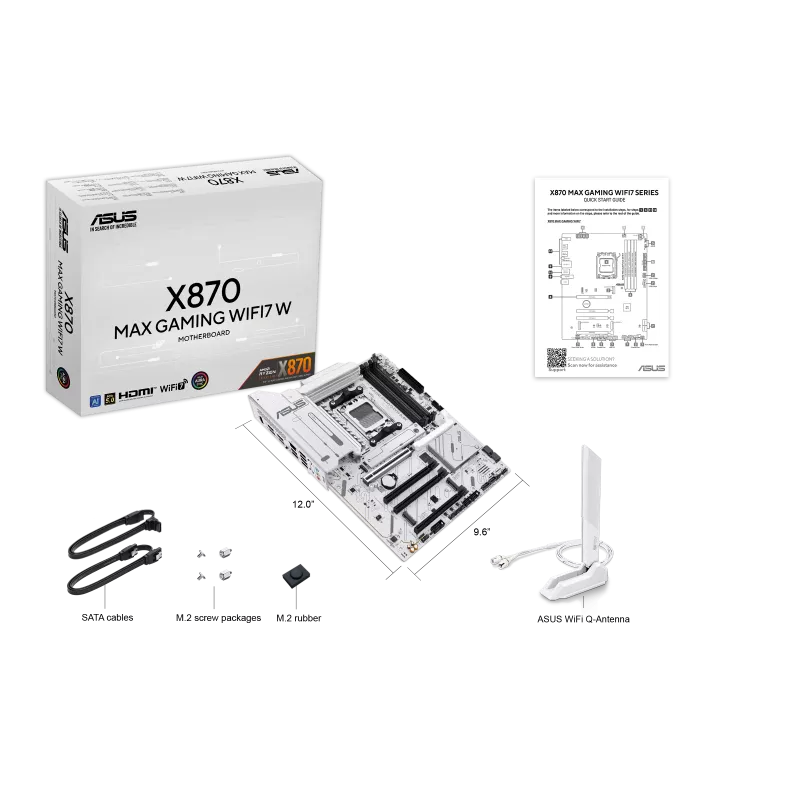

Accessories & BIOS	BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Package Accessories: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 1 x Screw package for M.2 SSD, 1 x Quick start guide
