New

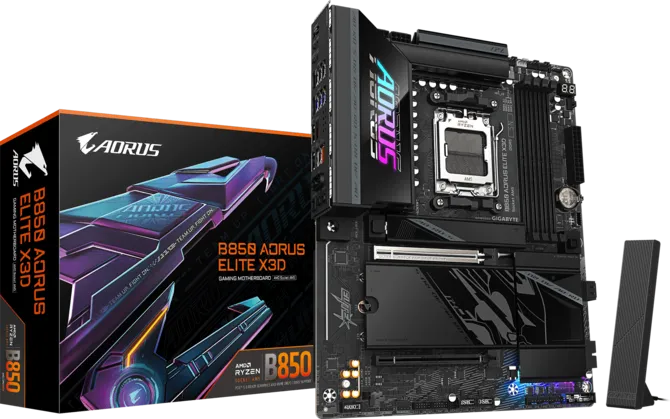

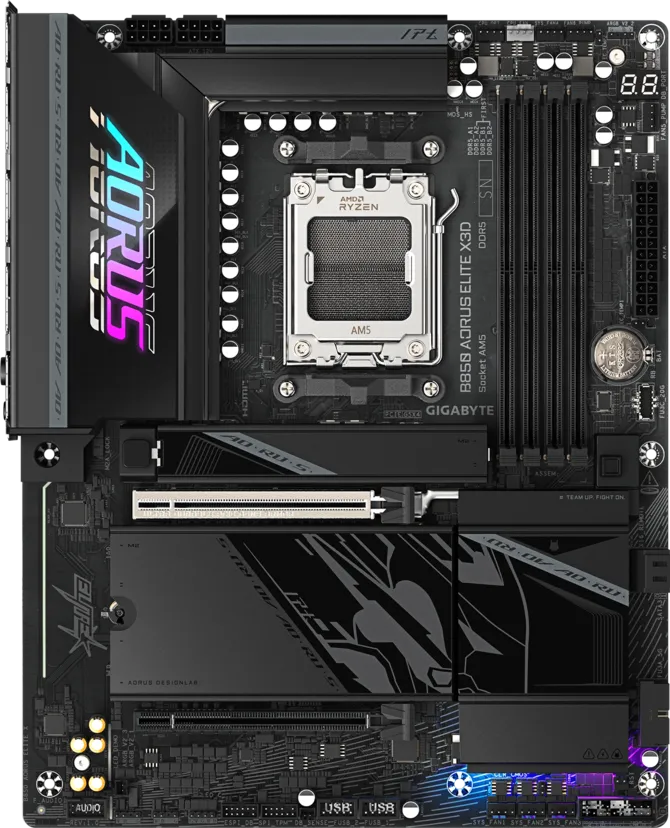

Gigabyte B850 Aorus Elite X3D ATX AM5 DDR5 Gaming Motherboard

₨74,999

1 Year Local WarrantyReplacement or Refund

X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
DDR5 OC up to 8200MT/s
DriverBIOS: Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
PCIe EZ-Latch Plus: One click for screwless & quick release on PCIe slot
M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4

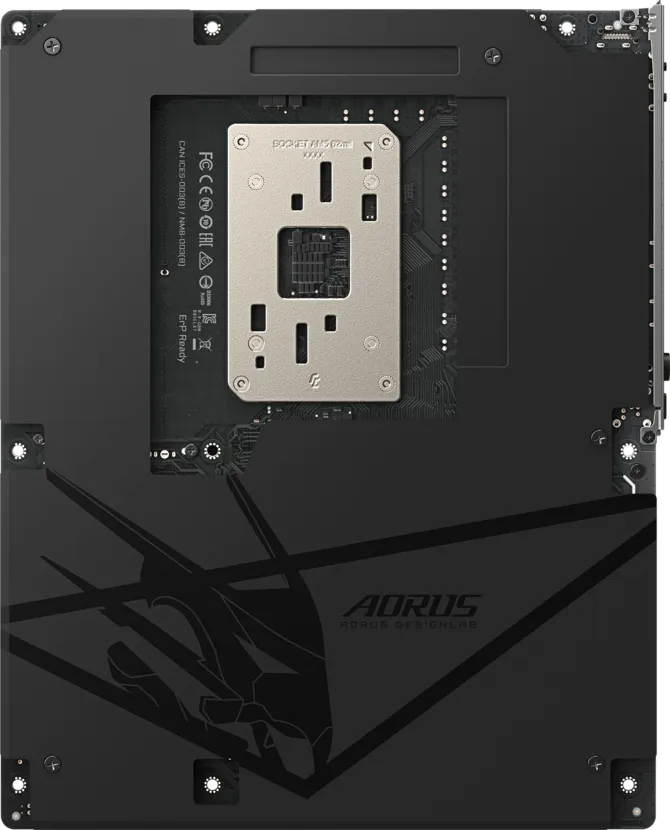

PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: HDMI

In stock

Get an email the moment this price drops.

Description
Additional information

Gigabyte B850 Aorus Elite X3D ATX AM5 DDR5 Gaming Motherboard

Specification Group	Motherboard Details
CPU & Chipset	CPU: AMD Socket AM5, support for: – AMD Ryzen™ 9000 Series Processors – AMD Ryzen™ 8000 Series Processors – AMD Ryzen™ 7000 Series Processors Chipset: AMD B850
Memory Specifications	Memory Speed Support: DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules Capacity & Sockets: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Architecture & Module Support: Dual channel memory architecture \| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Overclocking Profiles: Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Graphics & Audio	Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. Audio:** Realtek® ALC1220 CODEC \| High Definition Audio \| 2/4/5.1/7.1-channel * The back panel line out jack supports DSD audio. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN & Wireless	LAN: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module: Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion & Storage	Expansion Slots: – 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface: – 1 x M.2 connector (M2A_CPU), integrated in CPU, Socket 3, M key, type 2580/2280 SSDs: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in CPU, Socket 3, M key, type 22110/2280 SSDs: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in Chipset, Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. – 2 x SATA 6Gb/s connectors RAID Support: – RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0 and RAID 1 support for SATA storage devices
USB Configuration	CPU: – 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset + USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	– 1 x 24-pin ATX main power connector – 2 x 8-pin ATX 12V power connectors – 1 x CPU fan header – 1 x CPU fan/water cooling pump header – 4 x system fan headers – 2 x system fan/water cooling pump headers – 3 x addressable RGB Gen2 LED strip headers – 1 x RGB LED strip header – 4 x M.2 Socket 3 connectors – 2 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0/1.1 headers – 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) – 1 x reset jumper – 1 x Clear CMOS jumper – 2 x temperature sensor headers – 1 x noise detection header

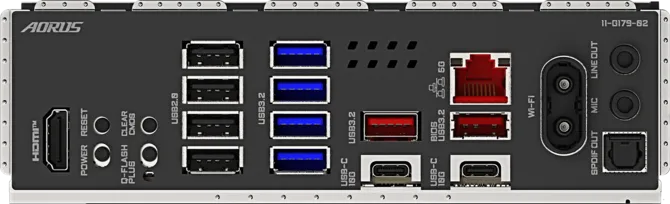

Back Panel Connectors	– 1 x HDMI port (Note: Actual support may vary by CPU) – 1 x reset button – 1 x power button – 1 x Clear CMOS button – 1 x Q-Flash Plus button – 4 x USB 2.0/1.1 ports – 4 x USB 3.2 Gen 1 ports – 2 x USB 3.2 Gen 2 Type-A ports (red) – 2 x USB Type-C® ports, with USB 3.2 Gen 2 support – 1 x RJ-45 port – 2 x antenna connectors (2T2R) – 2 x audio jacks – 1 x optical S/PDIF Out connector
System, BIOS & Physical	I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection \| Temperature detection \| Fan speed detection \| Water cooling flow rate detection \| Fan fail warning \| Fan speed control \| Noise detection * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 1 x 512 Mbit flash \| Use of licensed AMI UEFI BIOS \| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for GIGABYTE Control Center (GCC) \| Support for Q-Flash \| Support for Q-Flash Plus \| Support for Smart Backup * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundled Software: Norton® Internet Security (OEM version) Operating System: Support for Windows 11 64-bit Form Factor: ATX Form Factor; 30.5cm x 24.4cm
