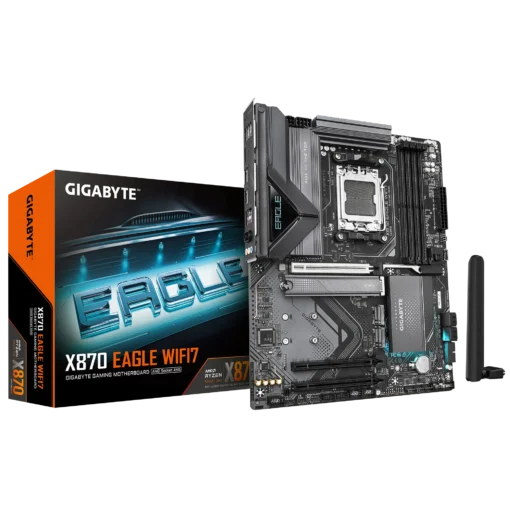

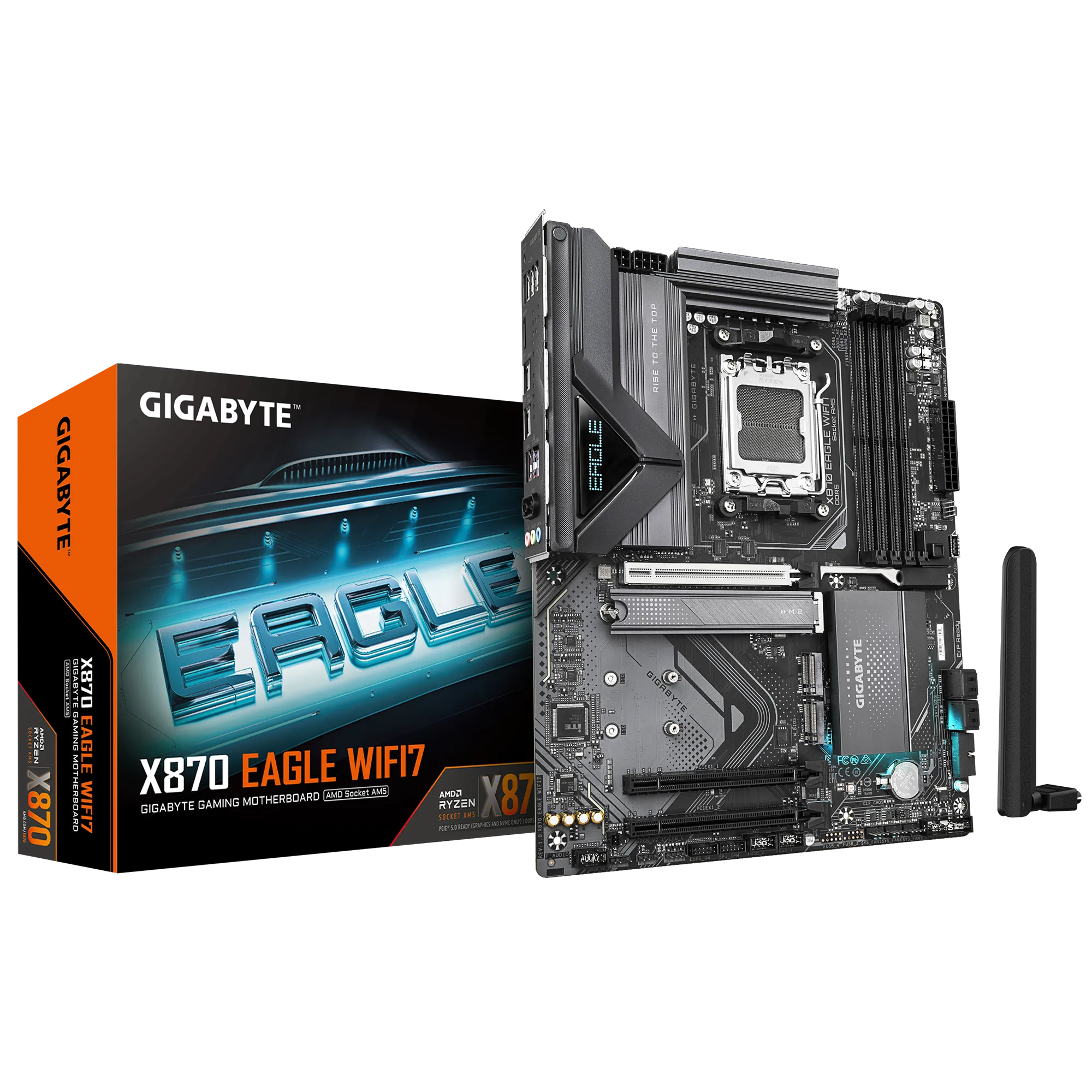

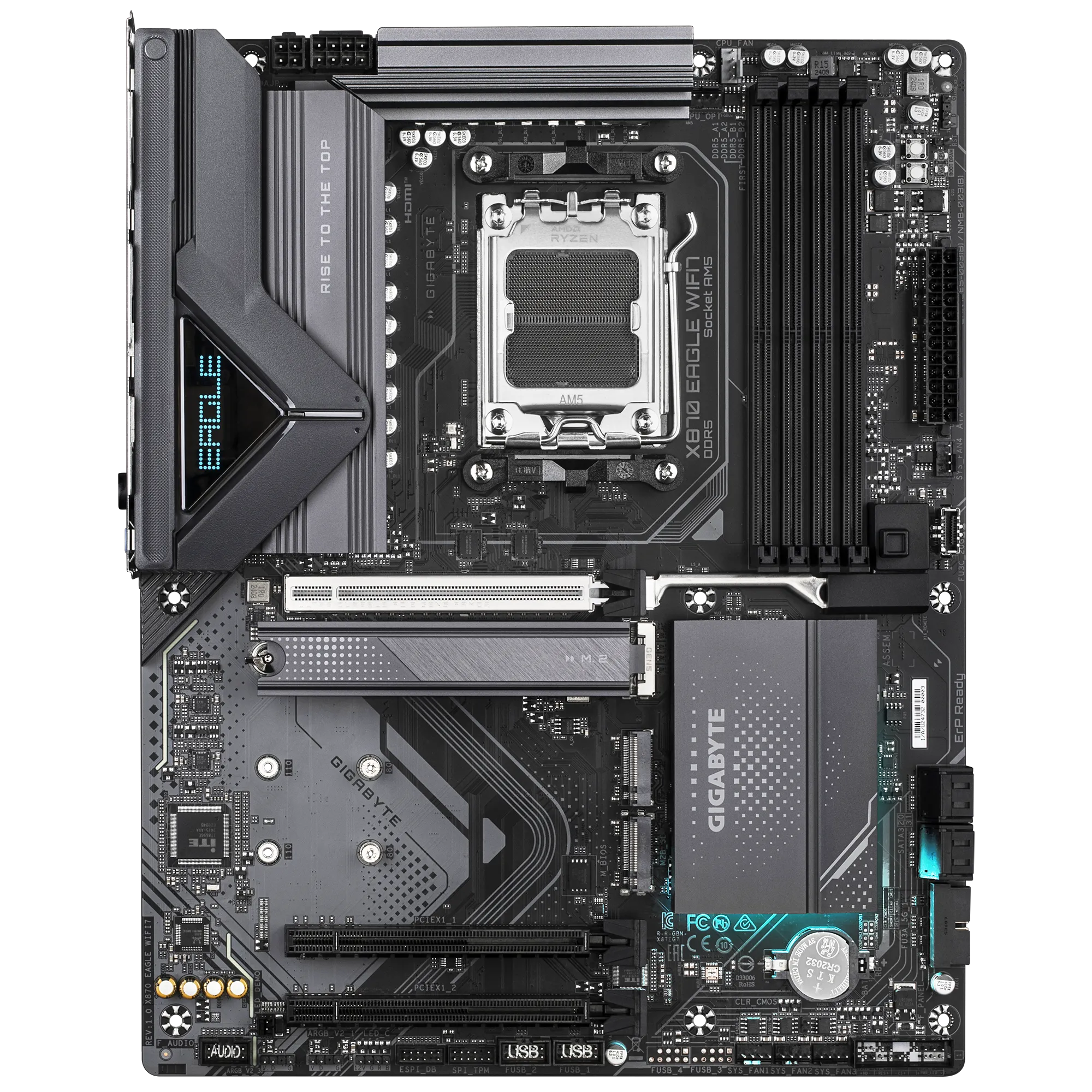

Gigabyte X870 Eagle WIFI7 ATX AM5 DDR5 Gaming Motherboard
Motherboard Specifications | |
---|---|
CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
Chipset | AMD X870 |
Memory | Support for DDR5 8200(OC) to 4400 MT/s memory modules 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel memory architecture Support for non-ECC Un-buffered DIMMs Supports AMD EXPO™ and XMP memory modules (Refer to GIGABYTE’s Memory Support List for compatibility.) |
Onboard Graphics | Integrated AMD Radeon™ Graphics 2 x USB4® Type-C (3840×2160@240 Hz, DisplayPort 1.4, HDR) 1 x HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) (Graphics support depends on CPU.) |
Audio | Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel * Jack function configurable via audio software |
LAN | Realtek® 2.5GbE LAN (2.5/1 Gbps/100 Mbps) |
Wireless | Wi-Fi 7 (MediaTek MT7925 / Realtek RTL8922AE) 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz Bluetooth 5.4 * Wi-Fi 7 requires Windows 11 SV3 ** 6 GHz availability depends on region |
Expansion Slots | 1 x PCIe x16 (CPU): – Ryzen™ 9000/7000: PCIe 5.0 x16 – Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 2 x PCIe x1 (Chipset): PCIe 3.0 |
Storage | 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 1 x M.2 (M2B_SB): PCIe 4.0 x4/x2 1 x M.2 (M2C_SB): PCIe 4.0 x2 * M2B_SB shares bandwidth with M2C_SB 4 x SATA 6Gb/s RAID 0/1/5/10 for NVMe (RAID 5 with Ryzen™ 9000 only) RAID 0/1/10 for SATA |
USB | Back Panel: 2 x USB4® Type-C 1 x USB 3.2 Gen 2 Type-A 3 x USB 3.2 Gen 1 4 x USB 2.0 Internal: 1 x USB 3.2 Gen 2×2 Type-C header 2 x USB 3.2 Gen 1 4 x USB 2.0 |
Internal Connectors | 1 x 24-pin ATX 1 x 8-pin + 1 x 4-pin ATX 12V 1 x CPU fan + 1 x CPU/water pump 4 x system fan headers 3 x ARGB Gen2 + 1 x RGB header 3 x M.2 Socket 3 4 x SATA Front panel, audio, power/reset buttons USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 1, USB 2.0 1 x TPM header 1 x Clear CMOS jumper |

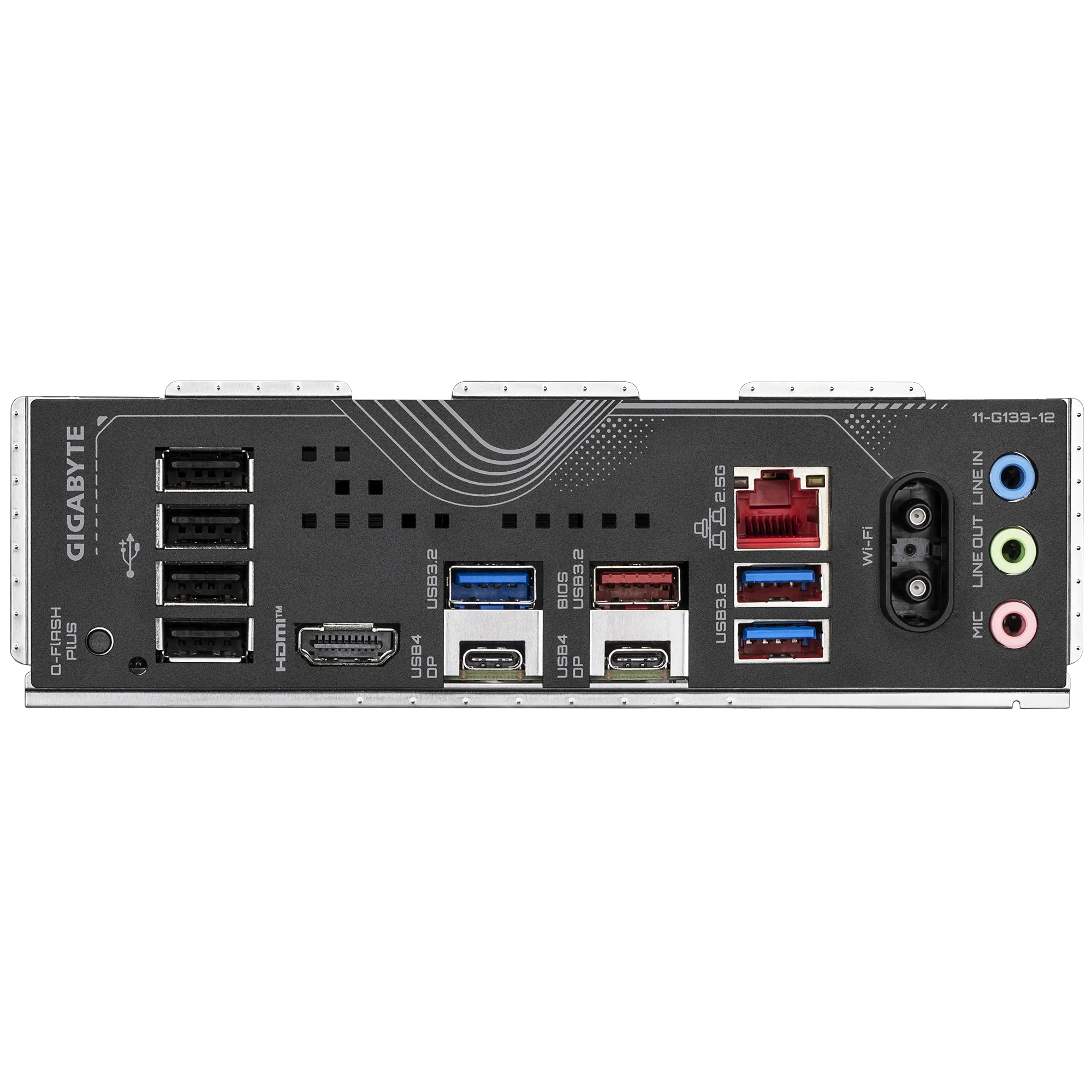

Back Panel I/O | 1 x Q-Flash Plus button 2 x USB4® Type-C (DisplayPort) 1 x HDMI 1 x USB 3.2 Gen 2 Type-A 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x RJ-45 3 x audio jacks 2 x antenna connectors |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage, Temperature, Fan speed & water flow detection Fan fail warning Fan/pump speed control (fan-dependent) |
BIOS | 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | GIGABYTE Control Center (GCC) * Features may vary by model Q-Flash & Q-Flash Plus Smart Backup |
Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management |
Operating System | Windows 11 64-bit |
Form Factor | ATX; 30.5cm x 24.4cm |
