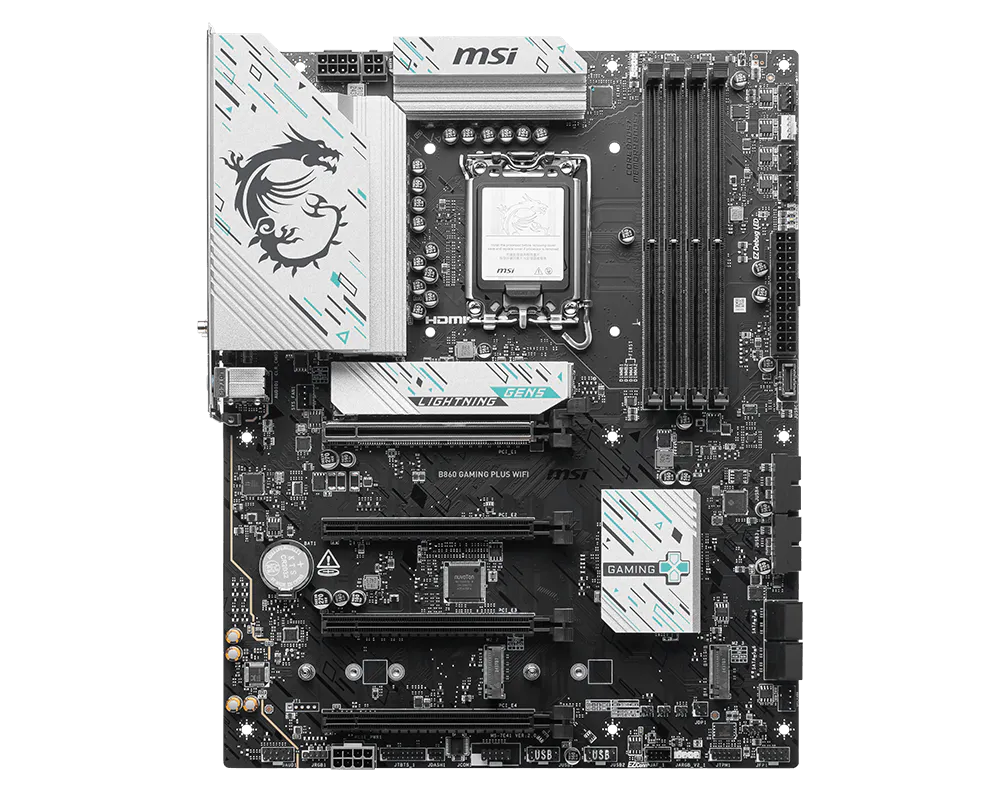

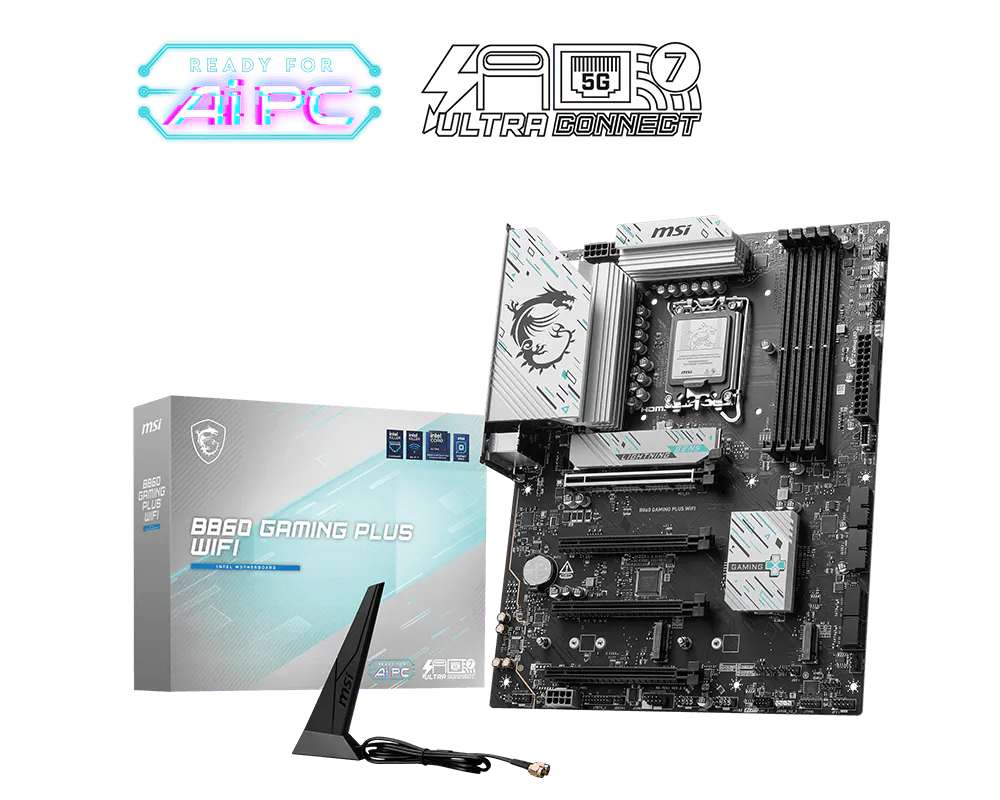

MSI B860 Gaming Plus WiFi ATX LGA1851 DDR5 Gaming Motherboard

₨64,499

Lowest price ever

2 Years Local WarrantyReplacement or Refund

The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

In stock

Get an email the moment this price drops.

MSI B860 Gaming Plus WiFi ATX LGA1851 DDR5 Gaming Motherboard

Specification Group	MSI B860 Motherboard Details
General & Platform	Chipset: INTEL B860 CPU Socket: Intel® Core™ Ultra Processors (Series 2), LGA 1851 Form Factor & PCB Size: ATX, 243.84 mm x 304.8 mm Operating System: Support for Windows® 11 64-bit
Memory Support	DIMM Slots: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Speeds: 8800–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s Max Overclocking Frequency Breakdown: – 1DPC 1R: Max speed up to 8800+ MT/s – 1DPC 2R: Max speed up to 7200+ MT/s – 2DPC 1R: Max speed up to 6400+ MT/s – 2DPC 2R: Max speed up to 5600+ MT/s Features: Supports Intel® POR & JEDEC Speed, Memory Overclocking, Intel® XMP 3.0, Dual-Controller Dual-Channel mode, Non-ECC Un-buffered memory, CUDIMM (Note: DIMM slots feature single-sided latches)
Graphics & Display	HDMI™: 1x HDMI™ port (Supports HDMI™ 2.1, max resolution 4K @ 60Hz) DisplayPort: 1x DisplayPort (Supports DisplayPort 1.4, max resolution 4K @ 60Hz) Type-C DisplayPort: Thunderbolt™ 4 port supporting DisplayPort 2.1 with UHBR20 over USB Type-C (Max resolution up to 4K @ 120Hz / 8K @ 60Hz)
Expansion Slots	Total Slots: 4x PCI-E x16 slots – PCI_E1: Gen PCIe 5.0 supports up to x16 (From CPU) – PCI_E2: Gen PCIe 4.0 supports up to x1 (From Chipset) – PCI_E3: Gen PCIe 4.0 supports up to x4 (From Chipset) – PCI_E4: Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage & RAID	M.2 Slots (Total 3): – M.2_1: From CPU, supports up to PCIe 5.0 x4 (2280/2260 devices) – M.2_2: From Chipset, supports up to PCIe 4.0 x4 (2280/2260/2242 devices) – M.2_3: From Chipset, supports up to PCIe 4.0 x2 (2280/2260 devices) SATA Ports: 4x SATA 6G ports RAID Support: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Networking	Ethernet (LAN): Intel® Killer™ E5000 5Gbps LAN Wireless & Bluetooth: Intel® Killer™ BE1750x Wi-Fi 7 (pre-installed in M.2 Key-E slot) – Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps – Supports 802.11 a/b/g/n/ac/ax/be, Bluetooth® 5.4, MLO, 4K QAM
USB & Thunderbolt	Onboard Thunderbolt™ 4: 1x Thunderbolt™ 4 port (Rear) supporting up to 40Gbps with Thunderbolt devices, 20Gbps with USB4, 10Gbps with USB 3.2, 5V/3A (15W) power charging, daisy-chaining (up to 3 TB4 or 5 TB3 devices), and up to 8K display output. Rear USB Ports: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A Front USB Ports / Connectors: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
Audio System	Codec: Realtek® ALC897 Codec Channels: 7.1-Channel High Definition Audio
Internal I/O Connectors	– 1x Thunderbolt5 card connector (JTBT5, support RTD3) – Power Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8-pin) – Cooling: 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan – Headers & Panels: 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector (JDASH) – RGB & TPM: 2x Addressable V2 RGB LED connectors (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Supports TPM 2.0) – Internal USB Headers: 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C port

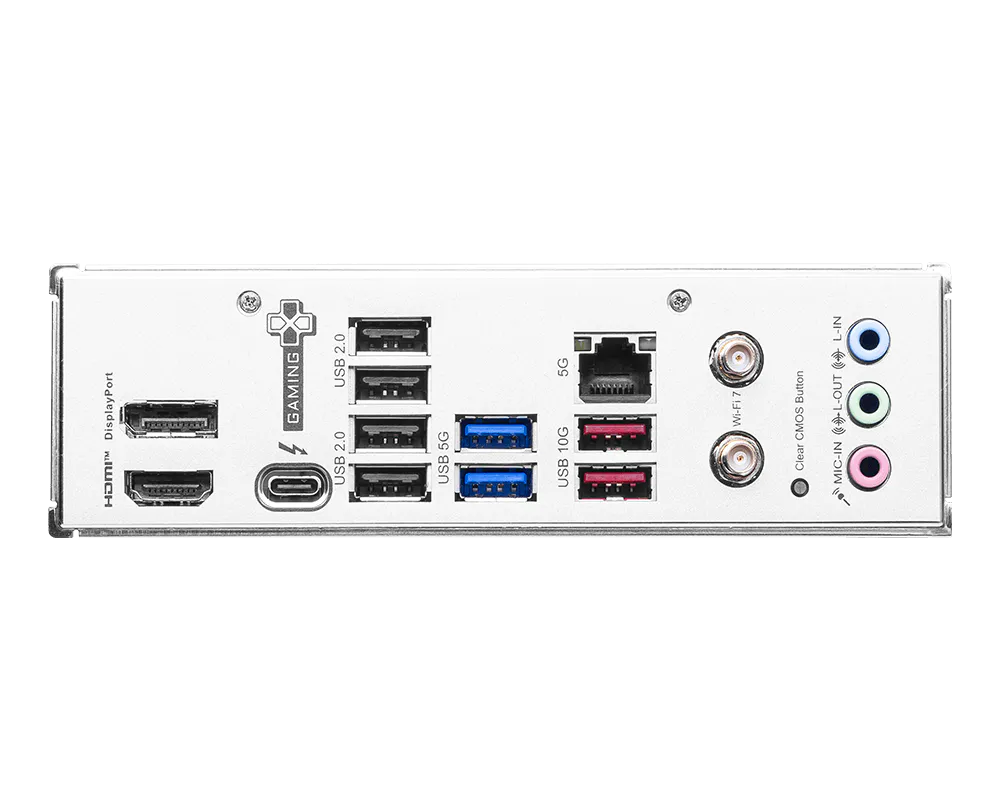

Back Panel & LED	LED Features: 4x EZ Debug LED Back Panel Ports: DisplayPort, USB 2.0 ports, 5G LAN port, Wi-Fi / Bluetooth modules, Audio Connectors, HDMI™ port, Thunderbolt™ 4 40Gbps (Type-C), USB 5Gbps (Type-A), USB 10Gbps (Type-A), Clear CMOS Button
