MSI Pro B760M-P M-ATX LGA1700 DDR4 Gaming Motherboard

₨35,999

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

In stock

Description
Additional information

MSI Pro B760M-P M-ATX LGA1700 DDR4 Gaming Motherboard

Technical Specifications
Chipset	Intel® B760
CPU Support	Supports Intel® Core™ 14th / 13th / 12th Gen Processors Intel® Pentium® Gold & Celeron® Processors Socket LGA 1700
Memory	4 × DDR4 DIMM Slots Max Capacity: 128GB Supports Dual-Channel Mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Memory Speed	4800+(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) 3200 / 2933 / 2666 / 2400 / 2133 (JEDEC) Max Overclocking Frequency: • 1DPC 1R: up to 4800+ MHz • 1DPC 2R: up to 4600+ MHz • 2DPC 1R: up to 4400+ MHz • 2DPC 2R: up to 4000+ MHz
Onboard Graphics	1 × HDMI™ 1.4 (Max 4K @ 30Hz) 1 × DisplayPort 1.4 (Max 4K @ 60Hz) 1 × VGA (Max 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz) *Available only with CPUs featuring integrated graphics
Expansion Slots	1 × PCIe 4.0 x16 (From CPU) 2 × PCIe 4.0 x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2 × M.2 Slots – M.2_1 (CPU): PCIe 4.0 x4, 2280/2260/2242 – M.2_2 (Chipset): PCIe 4.0 x4 / SATA, 2280/2260/2242 4 × SATA 6Gb/s * SATA5 disabled when M.2 SATA SSD installed in M.2_2
RAID	Supports RAID 0, 1, 5, and 10 (SATA devices)
USB	Rear: 4 × USB 2.0, 1 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C Front: 4 × USB 2.0, 2 × USB 5Gbps Type-A
LAN	Realtek® RTL8111H Gigabit LAN
Internal I/O	ATX Power Connector CPU Power Connector CPU Fan ×1, System Fan ×2 Front Panel ×2 Chassis Intrusion Front Audio Printer Port, COM Port RGB LED Header ×1 TPM Header (TPM 2.0) USB Headers: 4 × USB 2.0, 2 × USB 5Gbps
LED Feature	4 × EZ Debug LED

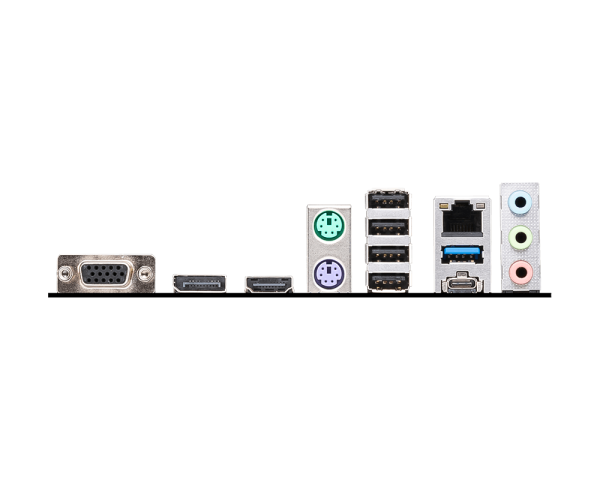

Back Panel I/O	VGA, DisplayPort, HDMI™ Keyboard / Mouse USB 2.0 USB 3.2 Gen1 Type-A (5Gbps) USB 3.2 Gen2 Type-C (10Gbps) LAN Port Audio Jacks
Operating System	Windows® 11 64-bit Windows® 10 64-bit
Form Factor	Micro-ATX (mATX) 243.84 × 243.84 mm

Link to official product page
