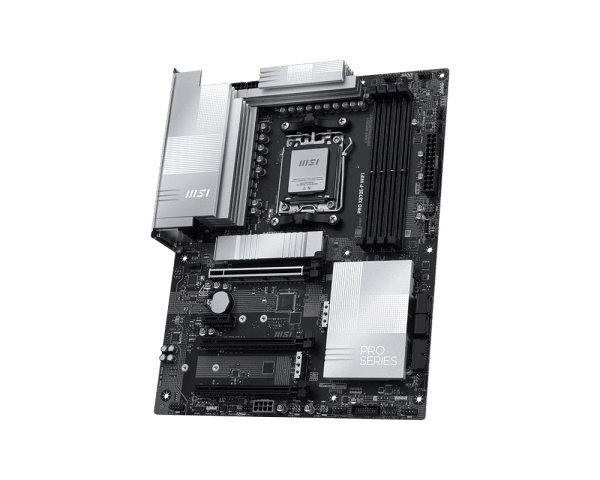

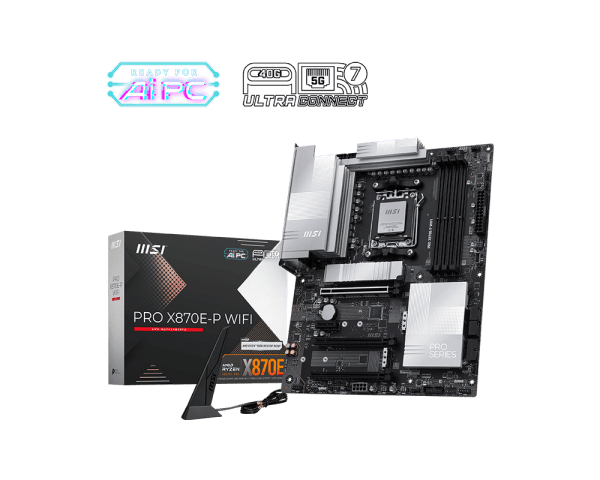

MSI Pro X870E-P WIFI ATX AM5 DDR5 Gaming Motherboard

₨89,999

MSI PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

In stock

Description
Additional information

MSI Pro X870E-P WIFI ATX AM5 DDR5 Gaming Motherboard

Detailed Specifications
Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics	1x HDMI™ (Support HDMITM 2.1, maximum resolution of 4K 60Hz) 1x Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz) *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot: • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 (M.2_1 PCIe 5.0 x4, M.2_2/M.2_3 PCIe 4.0 x4) 4x SATA 6G M.2_1 supports up to PCIe 5.0 x4 (Ryzen™ 9000/ 7000) or PCIe 4.0 x4 (Ryzen™ 8000)
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB	Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A, 1x USB 20Gbps Type C, 1x USB 40Gbps Type C Front: 6x USB 2.0, 4x USB 5Gbps Type A, 1x USB 10Gbps Type C
LAN & Wireless	Realtek® 8126VB 5G LAN Wi-Fi 7 (MU-MIMO up to 5.8Gbps), Bluetooth® 5.4
Internal IO	1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR 8pin 1x CPU Fan, 1x Pump_Sys Fan, 6x System Fan 1x EZ Conn-header, 2x JFP, 1x JCI, 1x JAUD, 1x JDASH 3x ARGB V2, 1x RGB, 1x TPM header

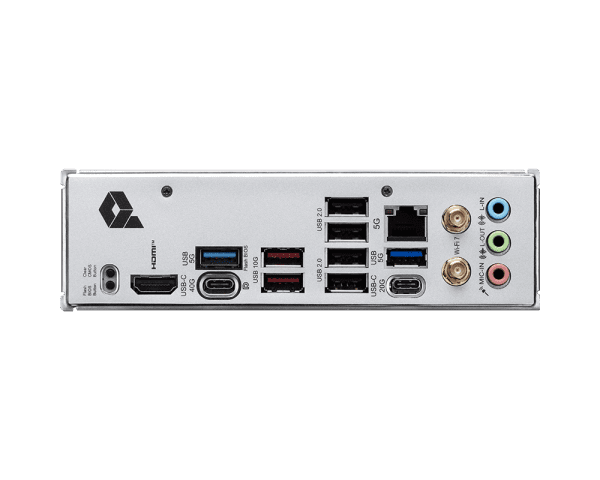

Back Panel Ports	Clear CMOS, Flash BIOS Button, HDMI™, 5G LAN, Wi-Fi/BT, Audio connectors, Multiple USB (40G C, 20G C, 10G A, 5G A, 2.0)
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX (243.84mm x 304.8mm)
