MSI X870E Gaming Plus WiFi ATX AM5 DDR5 Motherboard

₨104,999

MSI X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience

In stock

Description
Additional information

MSI X870E Gaming Plus WiFi ATX AM5 DDR5 Motherboard

Processor & Chipset
Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors / Socket AM5
Memory Specifications
Capacity & Support	4x DDR5 UDIMM, Maximum Memory Capacity 256GB DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 OC Speed	• 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s
Technical Features	Supports AMD POR Speed and JEDEC Speed / Supports Memory Overclocking and AMD EXPOTM / Supports Dual-Channel mode / Supports Non-ECC, Un-buffered memory / Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Expansion Slots & Graphics
Onboard Graphics	1x HDMI™ (Support HDMITM 2.1, maximum resolution of 4K 60Hz) 1x Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz)
PCI-E Slots	3x PCI-E x16 slot / 1x PCI-E x1 slot PCI_E1 slot: Supports PCIe 5.0 x16 (Ryzen™ 9000/ 7000); PCIe 4.0 x8 (Ryzen™ 8700/ 8600/ 8400); PCIe 4.0 x4 (Ryzen™ 8500/ 8300) PCI_E2 Gen PCIe 3.0 up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 up to x1 (From Chipset)
Storage & RAID
M.2 & SATA	M.2_1 Source (From CPU) up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G
RAID	• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
I/O, LAN & Wireless
USB Ports (Rear + Front)	4x USB 2.0 (Rear) / 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) / 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) / 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) / 1x USB 40Gbps Type C (Rear)
LAN & Wireless	Realtek® 8126VB 5G LAN Wi-Fi 7 (Up to 5.8Gbps), Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Audio	Realtek® ALC897 / 7.1-Channel High Definition Audio
Internal Connectors & Features
Internal IO	1x Power Connector(ATX_PWR) / 2x Power Connector(CPU_PWR) / 1x Power Connector(PCIE_PWR 8pin) / 1x CPU Fan / 1x Combo Fan (Pump_Sys Fan) / 6x System Fan / 1x EZ Conn-header (JAF_1) / 2x Front Panel (JFP) / 1x Chassis Intrusion (JCI) / 1x Front Audio (JAUD) / 1x Tuning Controller connector(JDASH) / 3x Addressable V2 RGB LED connector (JARGB_V2) / 1x RGB LED connector(JRGB) / 1x TPM pin header(Support TPM 2.0) / 6x USB 2.0 ports / 4x USB 5Gbps Type A ports / 1x USB 10Gbps Type C ports
LED Features	4x EZ Debug LED / 1x EZ Memory Detection LED
Rear Panel, OS & Physical

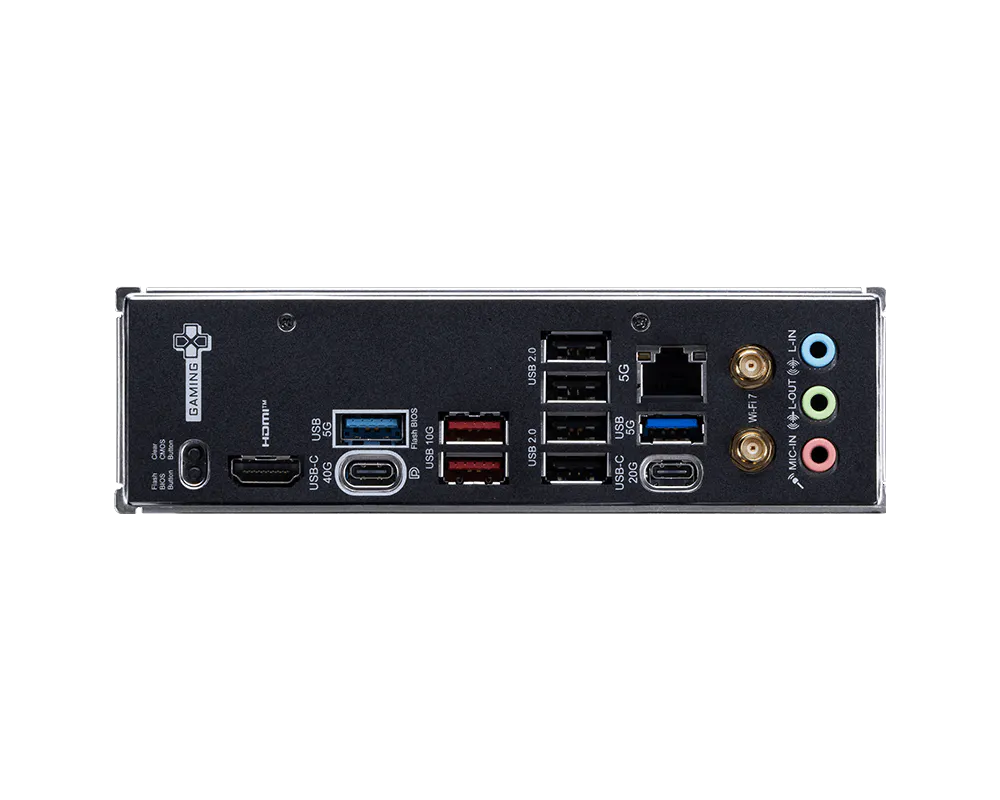

Back Panel Ports	Clear CMOS Button / USB 5Gbps Type-A / USB 10Gbps Type-A / USB 2.0 / 5G LAN / Wi-Fi / Bluetooth / Audio connectors / Flash BIOS Button / HDMI™ / USB 40Gbps Type-C / USB 2.0 / USB 20Gbps Type-C / USB 5Gbps Type-A
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX / 243.84mmx304.8mm

Link to official product page

Brands	MSI
Socket Brands	AMD
