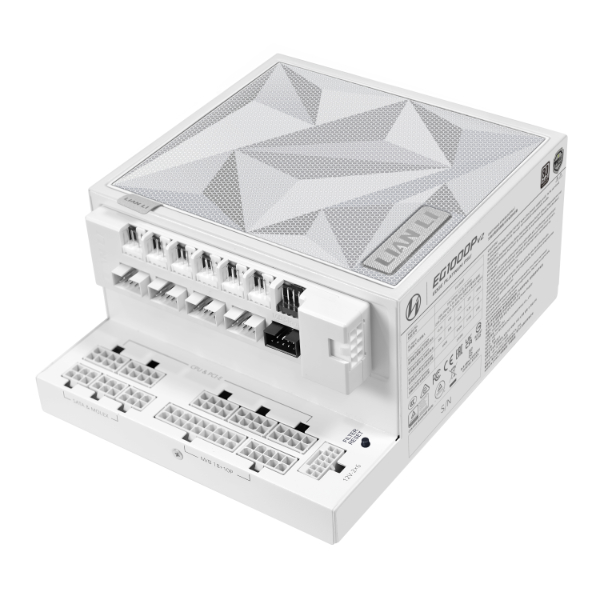

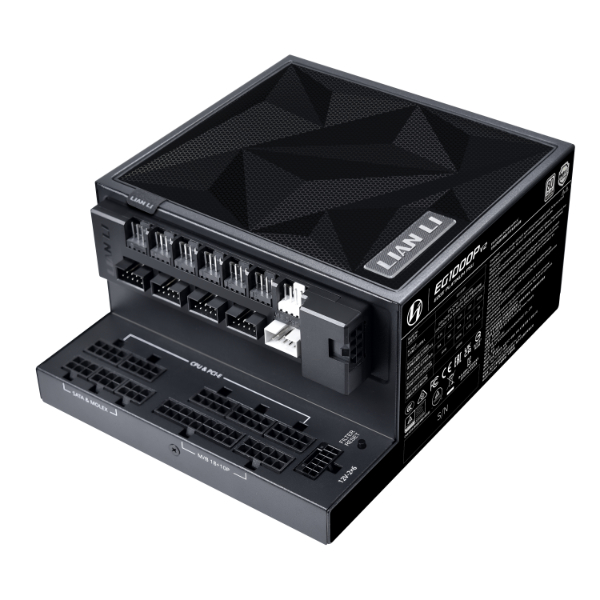

Lian Li Edge Platinum V2 1000W (EG1000P) 80 PLUS Platinum Certified Fully Modular ATX Power Supply – Black/White

₨48,499

2 Years Local WarrantyReplacement or Refund

Triple Platinum certification from 80 PLUS, Cybenetics, and PPLP ensures high power efficiency.
Fully modular L-shaped design simplifies cable access and routing in dual-chamber cases.
120 mm PWM fan and mesh grille improve airflow for efficient cooling.
Fan on/off switch enables 0 RPM operation at low loads for quieter performance.
100% Japanese capacitors deliver stable power and long-term reliability.
Removable magnetic dust filter includes an LED cleaning reminder after 360 hours of fan operation.
1350W includes EDGE Hub ADV with GPU connector temperature monitoring; 1200W / 1000W include EDGE Hub V2.

Color

Get an email the moment this price drops.

Description
Additional information

Lian Li Edge Platinum V2 1000W (EG1000P) 80 PLUS Platinum Certified Fully Modular ATX Power Supply – Black/White

Specification Group	Lian Li Edge Platinum V2 1000W Details
General & Build	Product Name: Edge Platinum V2 1000W Model: EG1000P Color: Black / White Dimensions: (D) 182 mm x (W) 86 mm x (H) 150 mm Form Factor: ATX 3.1 Power Supply Design: Fully Modular Material: Steel Certification: 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM
Power & Electrical	Max. DC Output: 1000W Combined +3.3V & +5V: 100W Combined +12V: 996W Input Voltage: 110-240Vac Input Frequency Range: 12-6A 50-60Hz PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz Protective Circuits: OCP / OVP / OTP / OPP / SCP / UVP / SIP / NLP
Cooling & Fan	Fan Type: 120mm FDB Fan Fan Speed: 2000 RPM
Included Hub (Edge Hub V2)	Hub Product Name: Edge Hub V2 Hub Model: EG-HUB04B (Black) / EG-HUB04W (White) Dimensions: (D) 35mm x (W) 132mm x (H) 17mm Input: Fan 12Vdc 12.5A, USB 5Vdc 2.5A USB Signal Source: USB 3.0 header (D+/D- tap) Hub Architecture: Dual 1-to-4 hub chips Downstream USB Ports: 8 (4 headers x 2) USB Header Output: 4 x header 5Vdc for each 500mA Total 2.5A Fan Header Output: 6 x header 12Vdc 2A for each Backward Compatible: USB 2.0 9-pin fallback Bandwidth Monitoring: L-Connect 3, real-time per port Alerts: Data loss alerts Telemetry Protocol: USB HID, L-Connect 3 Power Source: Edge Series PSU Connector or PCIe 8-PIN Mounting: Magnetic, in case or on PSU Hub Included Cables: 1 x USB 3.0 20pin to USB 2.0 9pin / USB 3.0 Type-A header, 1 x USB 2.0 9pin to USB 2.0 9pin Sync Cable, 1 x PWM to PWM Sync Cable
Included PSU Cables	– Motherboard (1 x 24/20-Pin, 600mm): x1 – CPU/ATX 12V (1 x 8Pin CPU, 700mm): x1 – CPU/ATX 12V (1 x 4+4Pin CPU, 700mm): x2 – PCI-E (1 x 8/6+2 Pin, 550mm): x3 – 12V-2×6 (1x12V-2×6, 650mm): x1 – SATA (4 x SATA, 300-15-15-15mm): x1 – SATA (3 x SATA+PATA, 400-150-150-150mm): x1 – SATA (4 x Y Type SATA, (375-150mm)2): x1 – USB (USB9pin-USB9pin, 470mm): x1 – USB (USB 3.0 to USB 3.0 Female / USB9pin, 300-280mm): x1 – FAN (3pin-3pin, 550mm): x1
