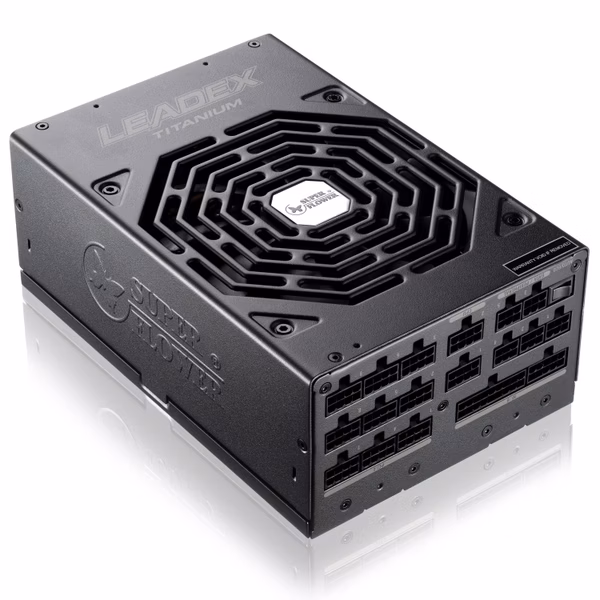

Super Flower LEADEX Titanium 1600W 80 Plus Titanium Fully Modular Power Supply
PSU Specifications – SF-1600F14HT | |
---|---|
Model No. | SF-1600F14HT |
Wattage | 1600W |
80+ Efficiency | 10%: 90%; 20%: 92%; 50%: 94%; 100%: 90% (115V Internal Titanium) |
Intel Power Design Guide | V2.92 |
AC Input / Frequency | 100-240V | 60 / 50Hz |
Fan Size | 140mm Two-Ball Bearing Fan |
Dimension | 220mm(L) x 150mm(W) x 86mm(H) |
Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
Safety Certifications | cTÜVus / TÜV / CB / CE / FCC / RCM / RoHS / KCC / CQC |
Temperature Test | Passed 50℃ Hot Testing |

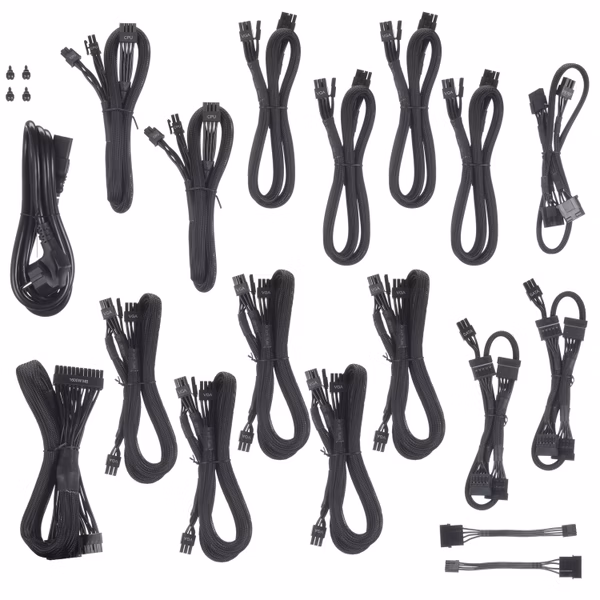

Cable Spec | 20+4 Pin: One cable (600mm) 8 (4+4) Pin CPU: Two cables (750mm) PCI-E 6+2 Pin: Four cables (750mm) SLI (2 x PCI 6+2 Pin): Five cables (750+150mm) 4 SATA: Three cables (550+100+100+1000mm) 2 SATA + 2 Molex: One cable (550+100+100+100mm) 3 Molex: One cable (550+100+100mm) Molex to FDD Adapter: Two cables (100mm) |
