SUPER FLOWER LEADEX VII PLATINUM PRO WHITE

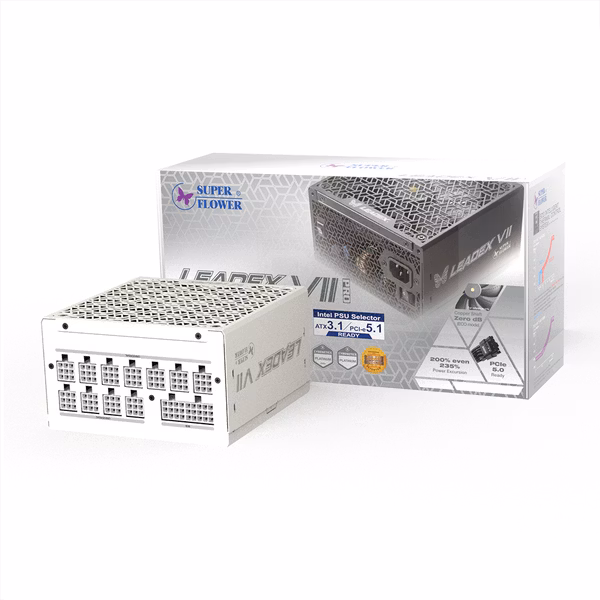

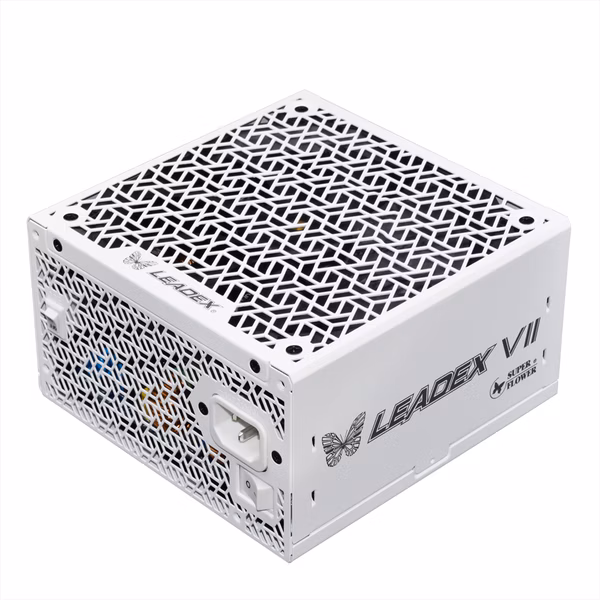

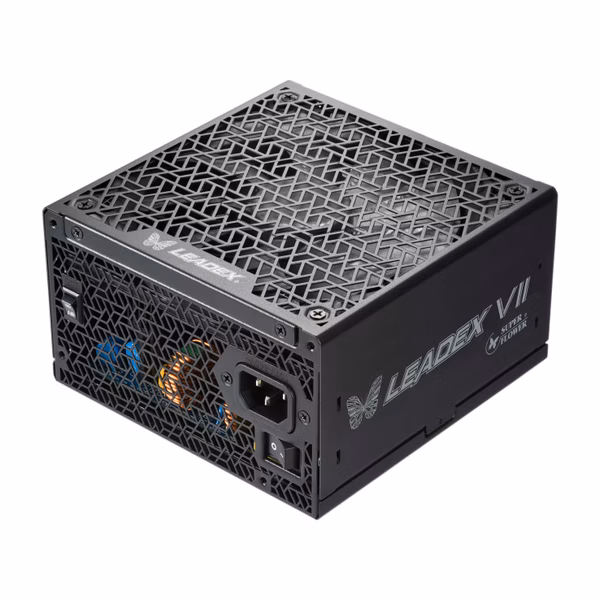

Super Flower LEADEX VII Platinum Pro 80 Plus Platinum Fully Modular Power Supply – 850W/1000W/1200W (Black/White)

₨59,999

Super Flower LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
New patented Universal SUPER CONNECTOR(Patent No.: Taiwan D196948 D196949 ; China CN304998083S) Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.
New patented technology of Buckle (20+4) Pin connector(Patent No.: Taiwan M563575 ; China 7566010)
Innovative Design for gaming System & PSU protection
- DC output +12V/+5V/+3.3V remain stable
- Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
- +12V Output With Exceptional Low Ripple Measurements
- Low Output Voltage Ripple
ECO-design
- Auto & ECO Fan Control
- High efficiency on all rails, including 5VSB

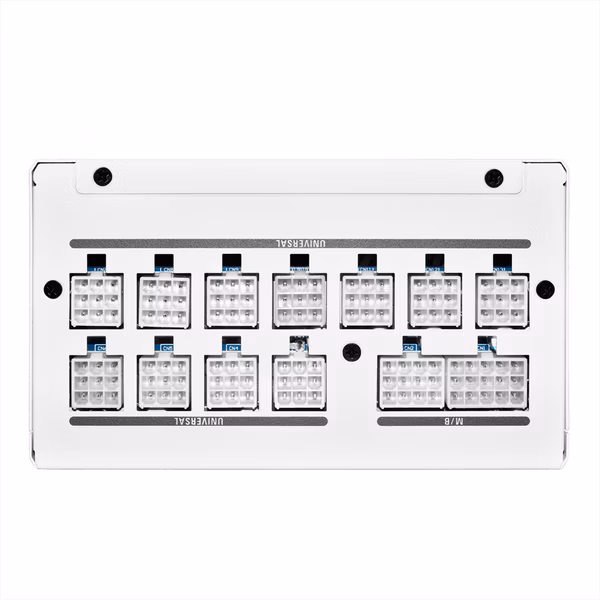

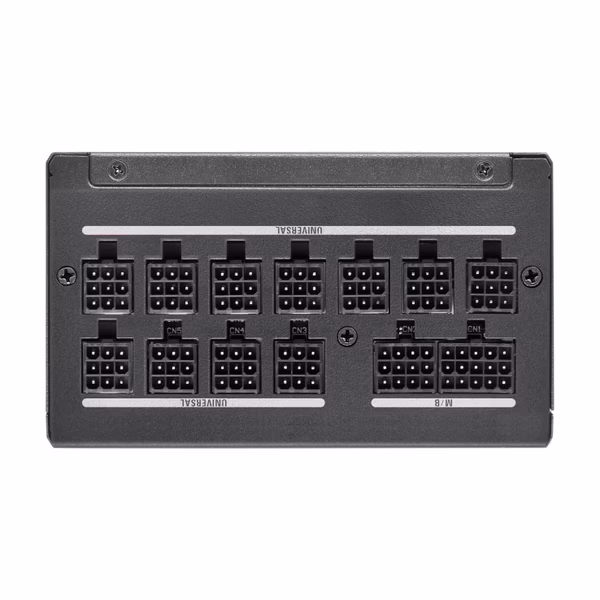

100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
More than 2,000 times On/Off test
Lead-free Green Materials with RoHS / WEEE Compliance
Perfect For Professional & High Performance Gaming System
PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.

Wattage

Color

Clear

Description
Additional information

Super Flower LEADEX VII Platinum Pro 80 Plus Platinum Fully Modular Power Supply – 850W/1000W/1200W (Black/White)

PSU Specifications
Specification	SF-850F14XP	SF-1000F14XP	SF-1200F14XP
Transform Efficiency	20%: 90%; 50%: 92%; 100%: 89% (115V Internal Platinum) Efficiency
Cybernetics Certified	Platinum / 230V: Platinum
Intel Power Design Guide	EPS Ver. 2.92 & ATX 3.1
AC Input \| Frequency	100V–240V \| 60 / 50Hz, Full Range APFC
Fan Size	14cm FDB FAN
Dimension	150mm(L) x 150mm(W) x 86mm(H)
Protection	OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP
Safety Certificates	cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC
Temperature	Passed 50℃ Hot Testing
Cable Wires	1x 20+4 Pin (600mm) 2x 8(4+4) Pin CPU (700mm) 3x PCIe 6+2 Pin (700mm) 3x SATA (550+130+130+130mm) 1x Molex (550+150+150+150mm) 1x PCIe 12+4 Pin (700mm)	1x 20+4 Pin (600mm) 2x 8(4+4) Pin CPU (700mm) 4x PCIe 6+2 Pin (700mm) 3x SATA (550+130+130+130mm) 1x Molex (550+150+150+150mm) 1x PCIe 12+4 Pin (700mm)	1x 20+4 Pin (600mm) 2x 8(4+4) Pin CPU (700mm) 4x PCIe 6+2 Pin (700mm) 3x SATA (550+130+130+130mm) 1x Molex (550+150+150+150mm) 1x PCIe 12+4 Pin (700mm)
AC Input (Detailed)	100-240V~ 10A 200-240V~ 10A (China/Korea)	100-240V~ 15A 200-240V~ 10A (China/Korea)	100-240V~ 15A 200-240V~ 10A (China/Korea)
+3.3V	20A	20A	20A
+5V	20A	20A	20A
+12V	70.8A	83.3A	99.9A
-12V	0.5A	0.5A	0.5A
+5VSB	2.5A	2.5A	2.5A
Max Combined Wattage	100W / 849.6W / 6W / 12.5W	100W / 999.6W / 6W / 12.5W	100W / 1198.8W / 6W / 12.5W
Total Power	850W	1000W	1200W
