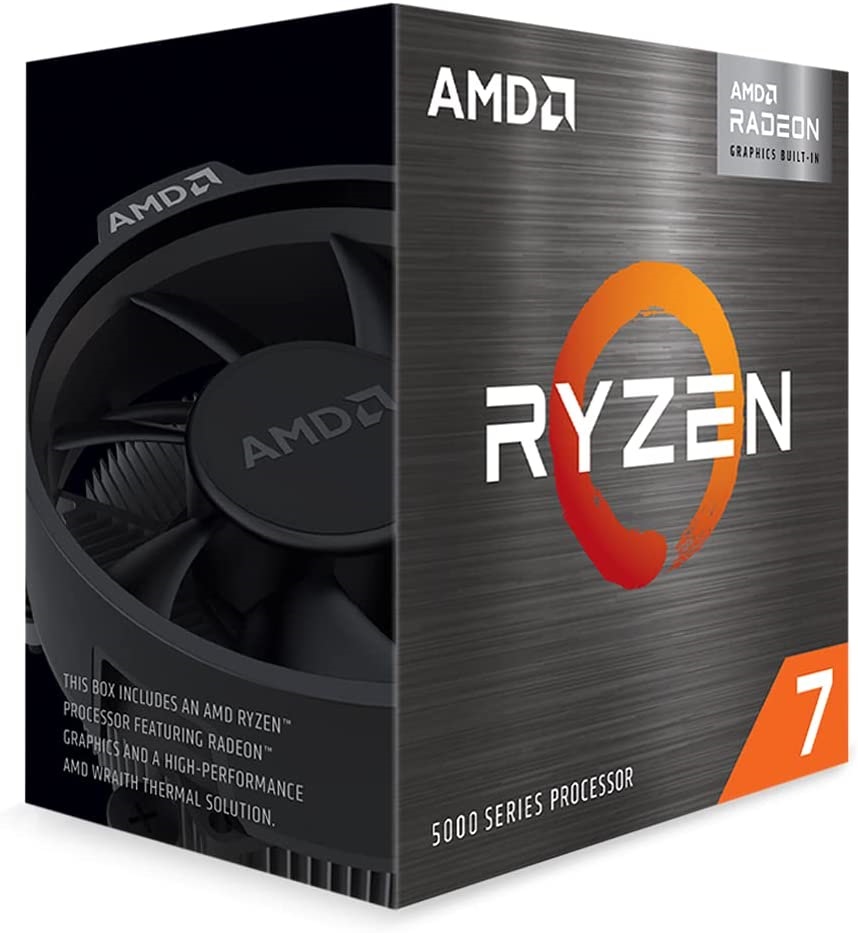

AMD Ryzen 7 5700G AM4 Processor with Radeon Graphics
| Specification Group | AMD Ryzen™ 7 5700G Processor Details |
|---|---|
| CPU Architecture & Cores | Processor Name & Series: AMD Ryzen™ 7 5700G (Ryzen 5000 Series, Ryzen Family) Codename & Architecture: Cezanne | Zen 3 Architecture Cores & Threads: 8 CPU Cores / 16 Threads Clock Speeds: Base Clock: 3.8 GHz | Max. Boost Clock: Up to 4.6 GHz Cache: L2 Cache: 4 MB | L3 Cache: 16 MB |
| Power, Thermal & Socket | CPU Socket: AM4 Power Ratings: Default TDP: 65W | AMD Configurable TDP (cTDP): 45–65W Process Technology: TSMC 7nm FinFET | Unlocked for Overclocking: Yes Thermal Specifications: Max. Operating Temperature (Tjmax): 95°C | Thermal Solution (PIB): AMD Wraith Stealth Launch Date & OS Support: 4/13/2021 | OS Support: Windows 10 (64-Bit), Windows 11 (64-Bit), RHEL x86 (64-Bit), Ubuntu x86 (64-Bit) |
| Memory & Connectivity | PCI Express® Version: PCIe® 3.0 System Memory: DDR4 | Memory Channels: 2 | System Memory Specification: Up to 3200 MT/s |
| Integrated Graphics | Graphics Model: Radeon™ Graphics Graphics Cores & Frequency: Graphics Core Count: 8 | Graphics Frequency: 2000 MHz |
| Product IDs & Form Factor | Form Factor: Desktops, Boxed Processor Product IDs: Boxed: 100-100000263BOX | Tray: 100-000000263 | MPK: 100-100000263MPK |
