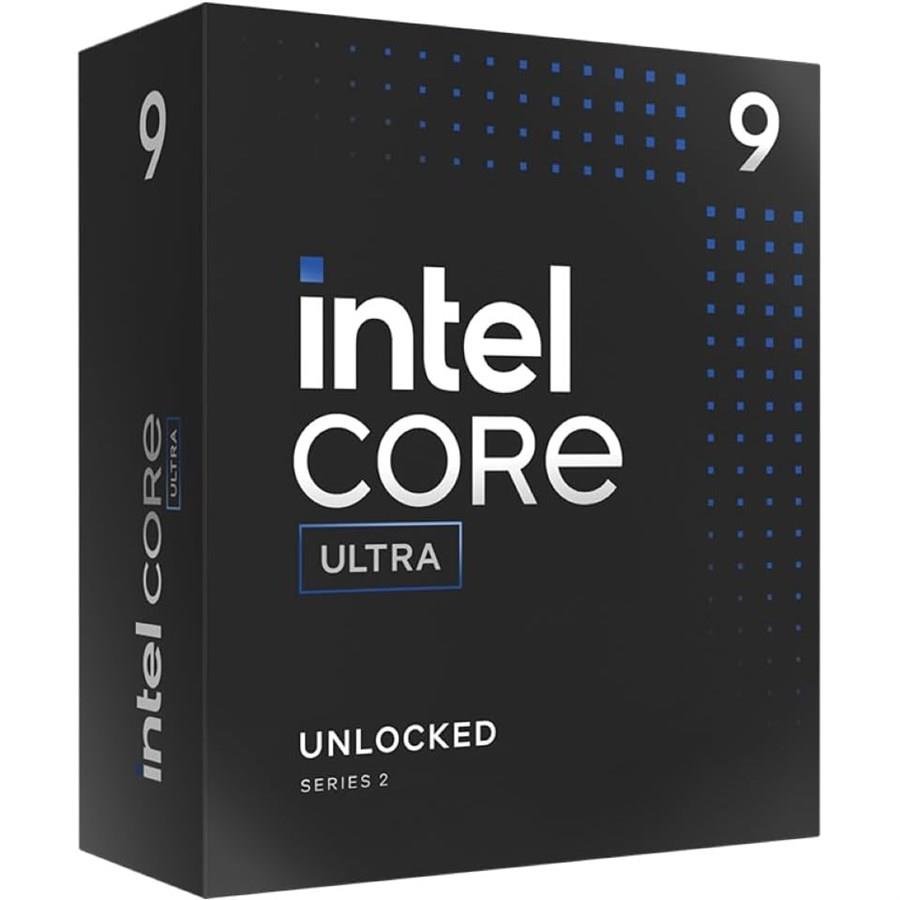

Intel Core Ultra 9 285K Desktop Processor
| Intel® Core™ Ultra 285K Specifications | |
|---|---|
| Product Collection | Intel® Core™ Ultra Processors (Series 2) |
| Code Name | Products formerly Arrow Lake |
| Vertical Segment | Desktop |
| Processor Number | 285K |
| Overall Peak TOPS (Int8) | 36 |
| Total Cores | 24 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 16 |
| # of Low Power Efficient-cores | 0 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.7 GHz |
| Intel® Thermal Velocity Boost Frequency | 5.7 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.6 GHz |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Base Frequency | 3.7 GHz |
| Efficient-core Base Frequency | 3.2 GHz |
| Cache | 36 MB Intel® Smart Cache |
| Total L2 Cache | 40 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 250 W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Marketing Status | Launched |
| Launch Date | Q4’24 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet, Workstation |
| Max Memory Size (dependent on memory type) | 256 GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Max # of Memory Channels | 2 |
| ECC Memory Supported ‡ | Yes |
| GPU Name‡ | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 2 GHz |
| GPU Peak TOPS (Int8) | 8 |
| Graphics Output | eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL |
