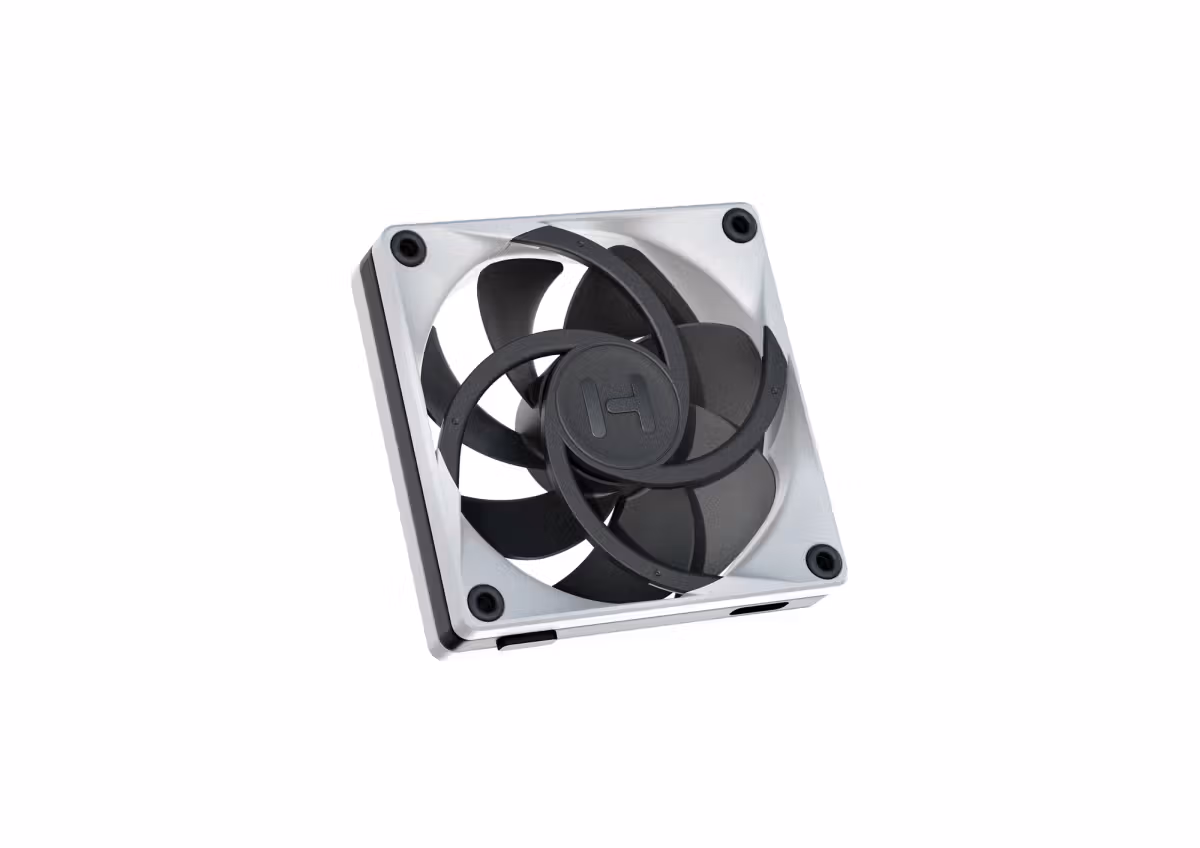

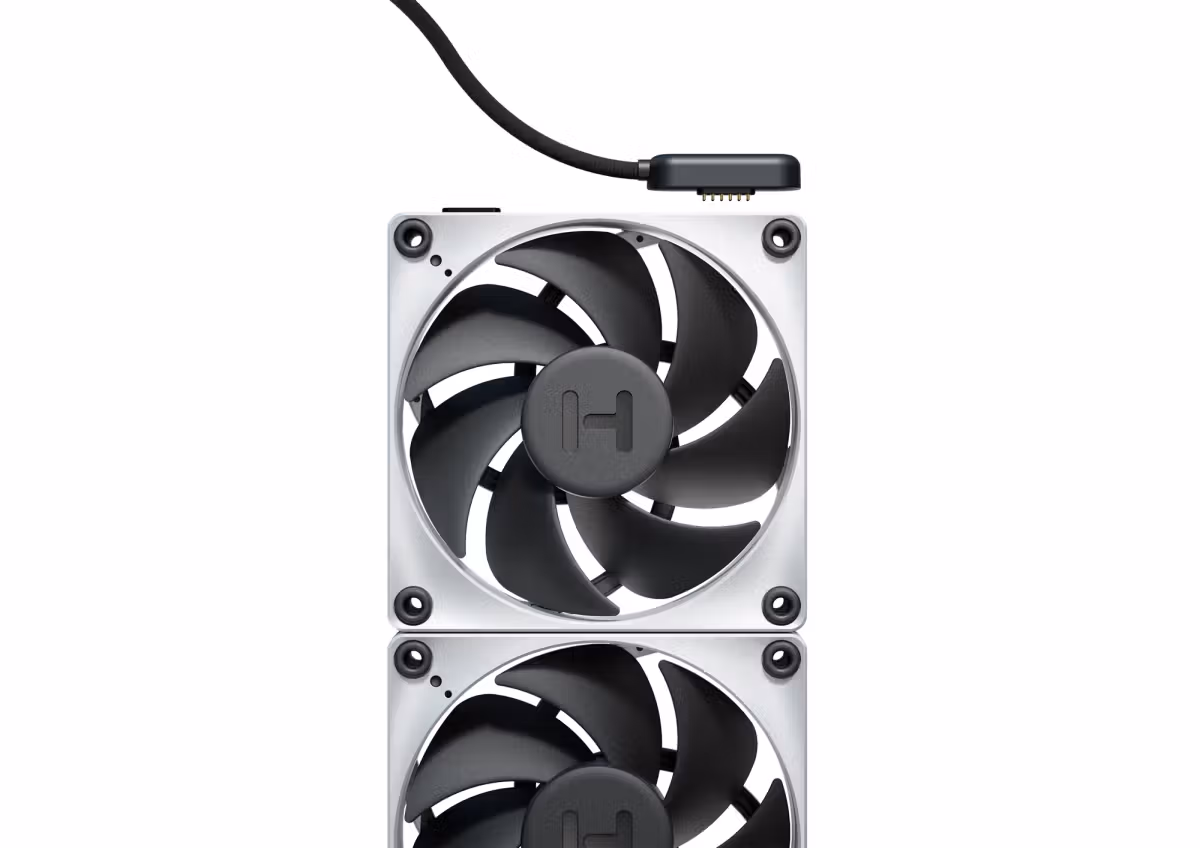

HYTE Thicc FP12 120mm 3 Pack Fans – NP50 Bundle/Without Bundle
| Tech Specs | |
|---|---|
| Fan Dimensions | 120 x 120 x 32 mm |
| Fan Speed | 0 – 3,000 RPM |
| Current | 0.1A/12V @1000 RPM, 0.2A/12V @2000 RPM, 0.8A/12V @3000 RPM |
| Air Flow | 105.8 CFM |
| Static Pressure | 8.14 mm-H2O |
| Noise Level | <10.0* – 47.3 dBA – *Measuring below 10 dBA was not possible in our test chamber due to the noise floor |
| Fan Blade Material | Fiberglass Reinforced Liquid Crystal Polymer (LCP) |
| Fan Connector | Nexus Link Type-M |
| Additional Sensors | Thermal + Positioning |
| Included Accessories | 12x Case Fan Screws, 12x Radiator Fan Screws, 2x Nexus Link Type-M to Type-M Cables (300 mm), 1x Nexus Link Type-C to Type-M Cable (600 mm), 1x Nexus Link Type-M to Type-C Cable (600 mm), 1x Nexus Link Type-C to 4-Pin PWM Cable |
| Software Support | HYTE Nexus |
| Sku | FAN-HYTE-FP12-BW-3, FAN-HYTE-FP12-BW-3NP |

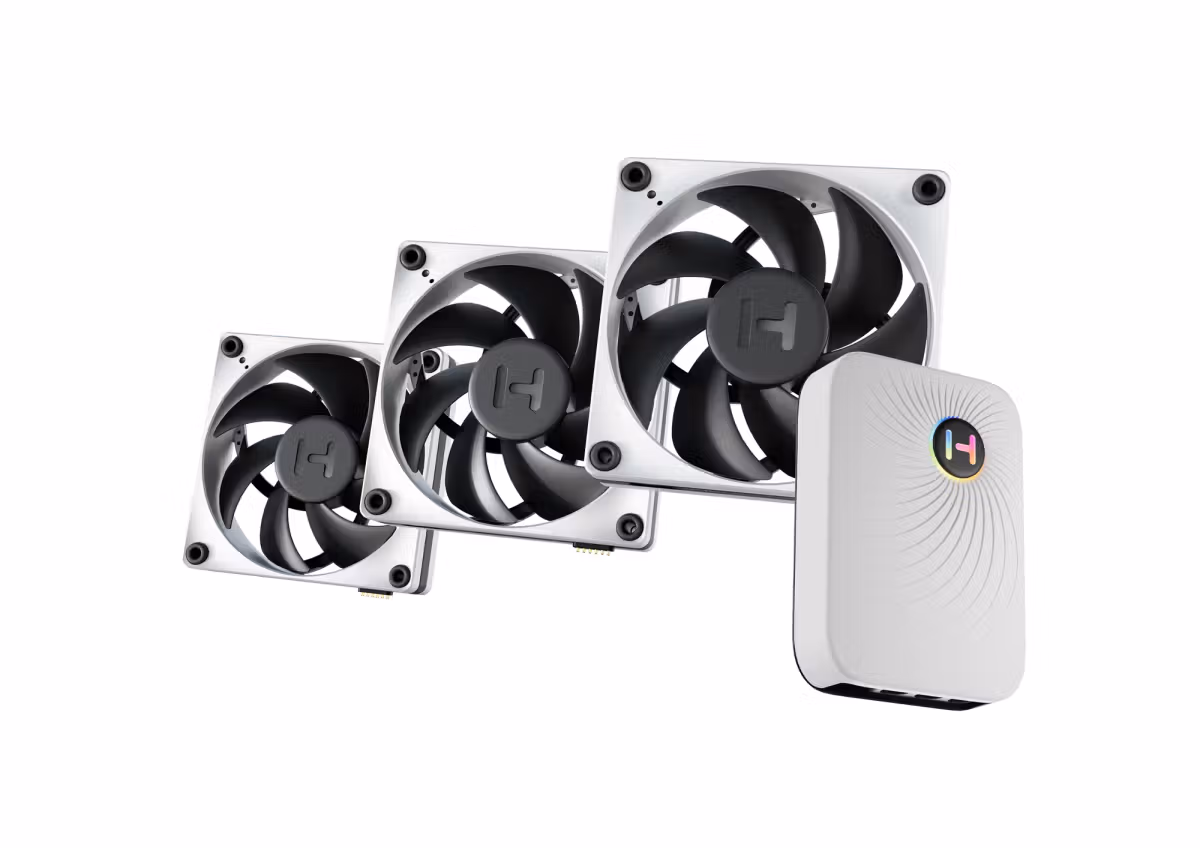

| Nexus Portal NP50: (Only Included With Optional Bundle) | |
|---|---|
| Connection Channels | 3x Nexus Link Type-C, 1x 4-Pin PWM |
| Maximum Devices – Single Channel | 18 |
| Maximum Devices – All Channels | 54 |
| Maximum Current – Single Channel | 8A/12V |
| Maximum Current – All Channels | 15A/12V |
| Maximum PSU Power Draw | Up to 180W depending on the number of connected Nexus Link devices |
| ARGB LEDs | 6 qRGB Pixels (Also Function As Status Indicators) |
| Input Connections | USB 2.0 Header, 6-Pin PCIe Power |
| Software Support | HYTE Nexus |
