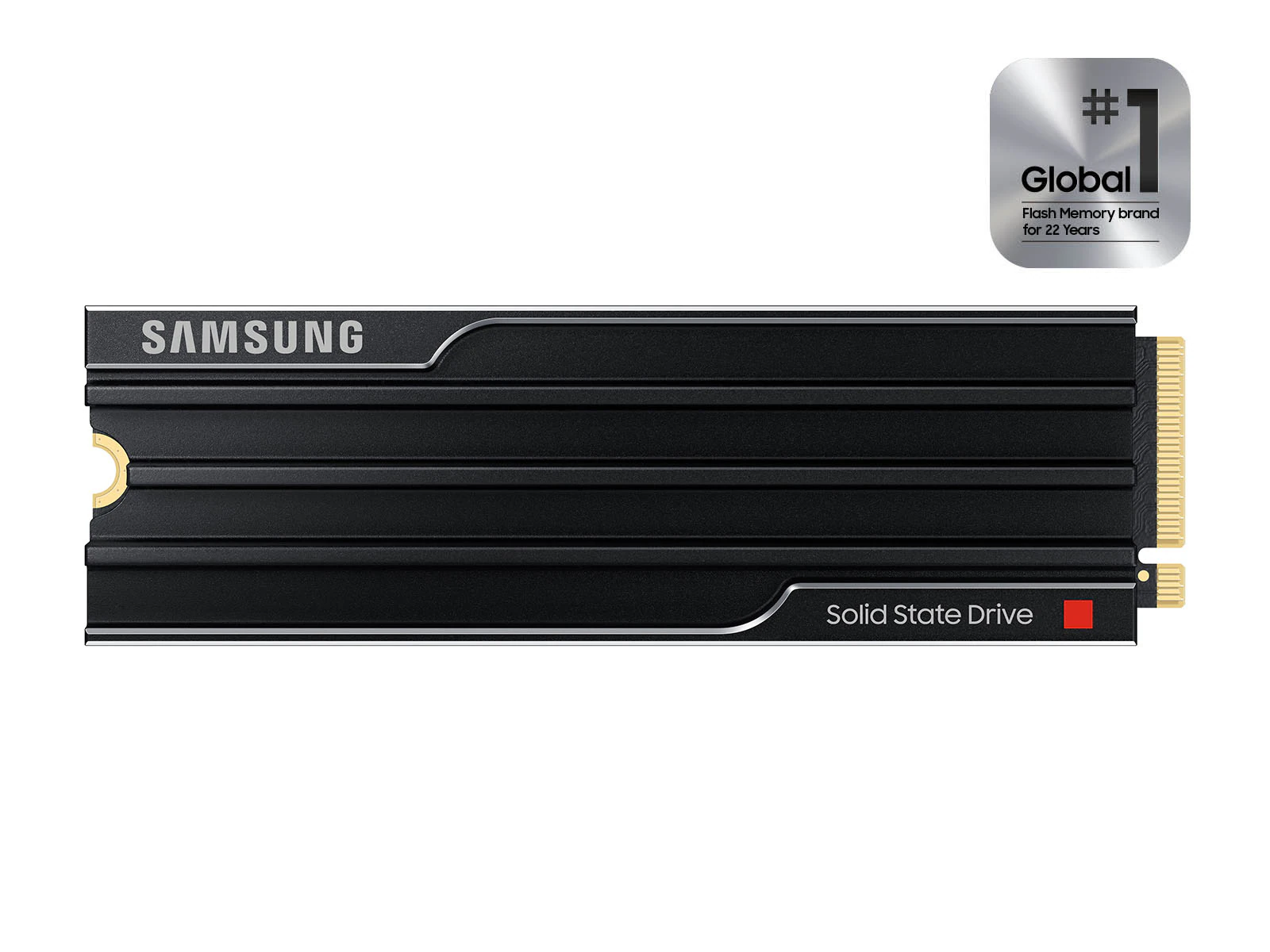

SAMSUNG 9100 PRO WITH HEATSINK

Samsung 9100 PRO NVMe M.2 GEN 5 SSD – 1TB/2TB/4TB/8TB (with Heatsink)

Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD¹ and up to an 8TB storage option, the Samsung 9100 PRO SSD supercharges AI workloads, 4K video rendering, and gaming.

Supercharge your workflow and gaming with PCIe 5.0, boasting up to 14,800/13,400 MB/s sequential read/write speeds. Tackle massive files and power up your gaming with Gen5—twice as fast as the 990 PRO SSD.
Speed past productivity limits. With random read/ write speeds up to 2,200K/2,600K IOPS2, enjoy fast game loads, seamless AI apps, and efficient multitasking. Virtually no lag, no limits—just nonstop performance.
With random read/write speeds of up to 2,200K/2,600K IOPS2, the 9100 PRO with Heatsink SSD fuels seamless AI content creation, swift loads, and smooth gameplay. Work, play, and create at lightning speed.
No barriers, just action. Team up with the 9100 PRO with Heatsink SSD on your compatible PC, laptop, or PlayStation® 5 and dive into top-notch performance with the newest PCIe 5.0 interfaces. Crush the competition and come out on top in any arena.
Push limits, not temperatures. A 5nm controller boosts power efficiency up to 49% over the 990 PRO SSD, while advanced thermal control keeps performance smooth and reliable.

Description
Additional information

Samsung 9100 PRO NVMe M.2 GEN 5 SSD – 1TB/2TB/4TB/8TB (with Heatsink)

Specifications

Form Factor: M.2

Capacity: 1TB, 2TB, 4TB, 8TB

Sequential Read Speed: Up to 14,800 MB/s

Sequential Write Speed: Up to 13,400 MB/s

Model Codes: MZ-VAP1T0CW (1TB), MZ-VAP2T0CW (2TB), MZ-VAP4T0CW (4TB), MZ-VAP8T0CW (8TB)

Application: Client PCs, PlayStation®5

Interface: PCIe® 5.0 x4, NVMe™ 2.0

Dimensions: 1TB/2TB/4TB: 80.15 × 25 × 8.88 mm, 8TB: 80.15 × 25 × 11.25 mm

Weight: 1TB/2TB/4TB: Max 30 g, 8TB: Max 35 g

Storage Memory: Samsung V-NAND TLC

Controller: Samsung in-house Controller

Cache Memory: 1TB: 1GB DDR4X, 2TB: 2GB DDR4X, 4TB: 4GB DDR4X, 8TB: 8GB DDR4X

TRIM Support: Supported

S.M.A.R.T Support: Supported

Garbage Collection: Auto Garbage Collection Algorithm

Encryption Support: AES 256-bit (Class 0) TCG/Opal, IEEE1667

WWN Support: Not supported

Device Sleep Mode Support: Yes

Sequential Read (per capacity): 1TB/2TB: 14,700 MB/s, 4TB/8TB: 14,800 MB/s

Sequential Write (per capacity): 1TB: 13,300 MB/s, 2TB/4TB/8TB: 13,400 MB/s

Random Read (4KB QD32): 1TB/2TB: 1,850,000 IOPS, 4TB/8TB: 2,200,000 IOPS

Random Write (4KB QD32): 2,600,000 IOPS (all capacities)

Average Power Consumption: 1TB: 7.6W, 2TB: 8.1W, 4TB: 9W, 8TB: 10.5W

Power Consumption (Idle): 1TB: 4 mW, 2TB: 4.8 mW, 4TB: 6.5 mW, 8TB: 9.3 mW

Power Consumption (Device Sleep): 1TB: 3.3 mW, 2TB: 4 mW, 4TB: 5.7 mW, 8TB: 8.6 mW

Allowable Voltage: 3.3 V ±5%

Reliability (MTBF): 1.5 Million Hours

Operating Temperature: 0–70 ℃

Shock: 1,500 G & 0.5 ms (Half sine)

Installation Kit: Not Available

Management Software: Magician Software for SSD management

Link to official product page

Brands	SAMSUNG
