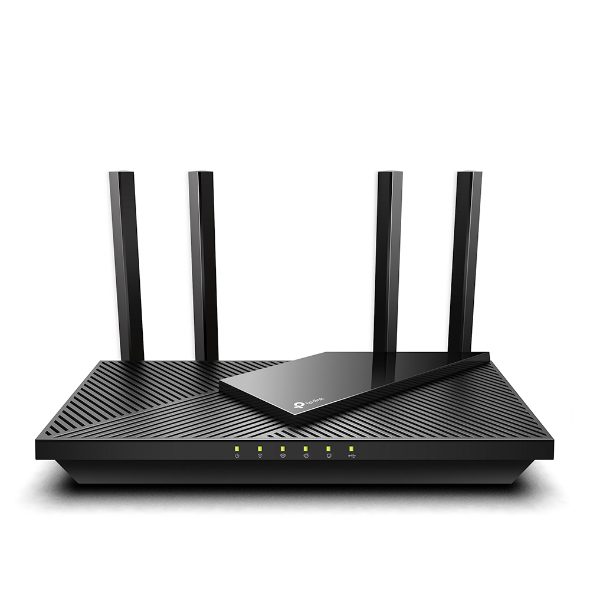

TP-Link Archer AX55 AX3000 Dual Band Gigabit WiFi 6 Router
WIRELESS | |
---|---|
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Beamforming High-Power FEM |
WiFi Capacity | High Dual-Band OFDMA Airtime Fairness DFS 4 Streams |
Working Modes | Router Mode Access Point Mode |
SECURITY | |
Network Security | SPI Firewall, Access Control, IP & MAC Binding, ALG HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention, DDoS Protection, Home Network Scanner |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN, PPTP |
VPN Client | OpenVPN Client, PPTP VPN Client, L2TP VPN Client |
WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
Processor | Dual-Core CPU |

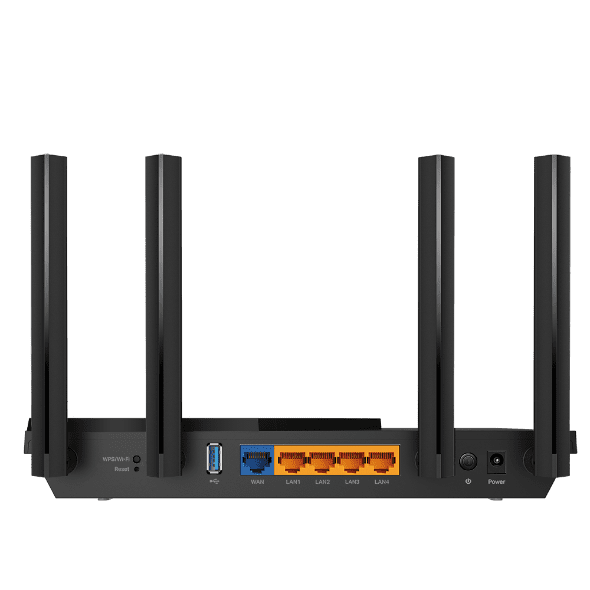

Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
USB Support | 1× USB 3.0 Port Formats: NTFS, exFAT, HFS+, FAT32 Functions: Time Machine, FTP, Media Server, Samba |
Buttons | Wi-Fi/WPS, Power On/Off, Reset |
Power | 12 V ⎓ 2 A |
SOFTWARE | |
Protocols | IPv4, IPv6 |
Service Kits | HomeShield |
OneMesh™ | Supported – Flexible network coverage with TP-Link OneMesh™ |
EasyMesh | Mesh networking for seamless roaming |
Parental Controls | HomeShield Parental Controls: Profiles, Filters, Time Limits, Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
QoS | QoS by Device |
Cloud Service | Auto/OTA Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Virtual Servers, Port Forwarding, Port Triggering, DMZ, UPnP |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link, NO-IP, DynDNS |
Management Features | Tether App, Web UI |
PHYSICAL & OTHER | |
Dimensions | 261.1 × 134.5 × 41.0 mm (10.2 × 5.3 × 1.5 in) |
Package Content | Wi-Fi Router Archer AX55, Power Adapter, RJ45 Cable, Quick Guide |
Certifications | FCC, CE, RoHS |
Environment | 0℃~40℃, 10%~90% RH (non-condensing) |
