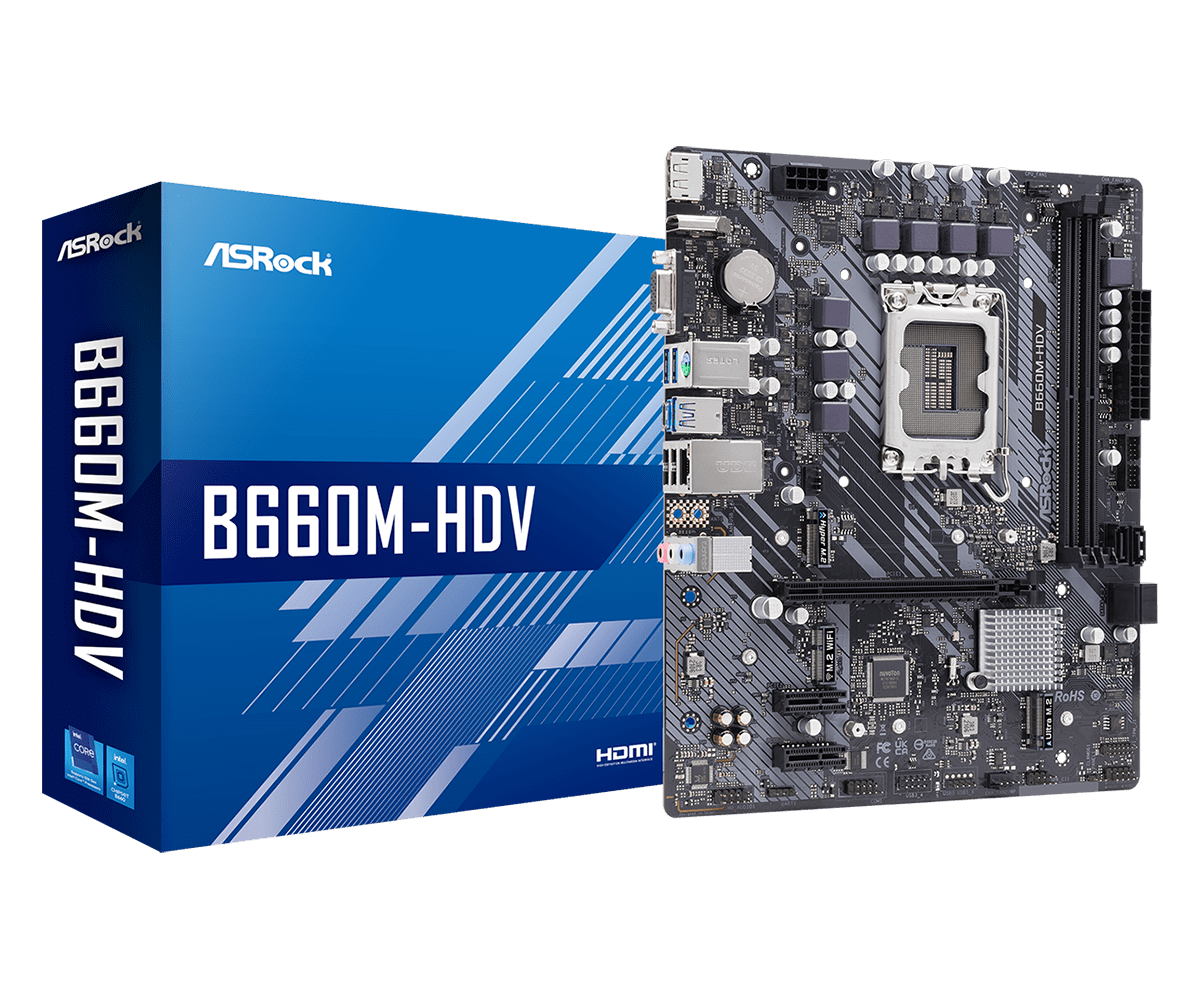

ASRock B660M-HDV M-ATX LGA1700 DDR4 Gaming Motherboard – USED

₨17,499

3 Months Local WarrantyReplacement or Refund

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
6 Phase Power Design
2 x DDR4 DIMMs
Supports Dual Channel, up to 5066+ (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3
1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4 & SATA3)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
5 USB 2.0 (2 Rear, 3 Front)
Intel® Gigabit LAN

In stock

Get an email the moment this price drops.

Description
Additional information

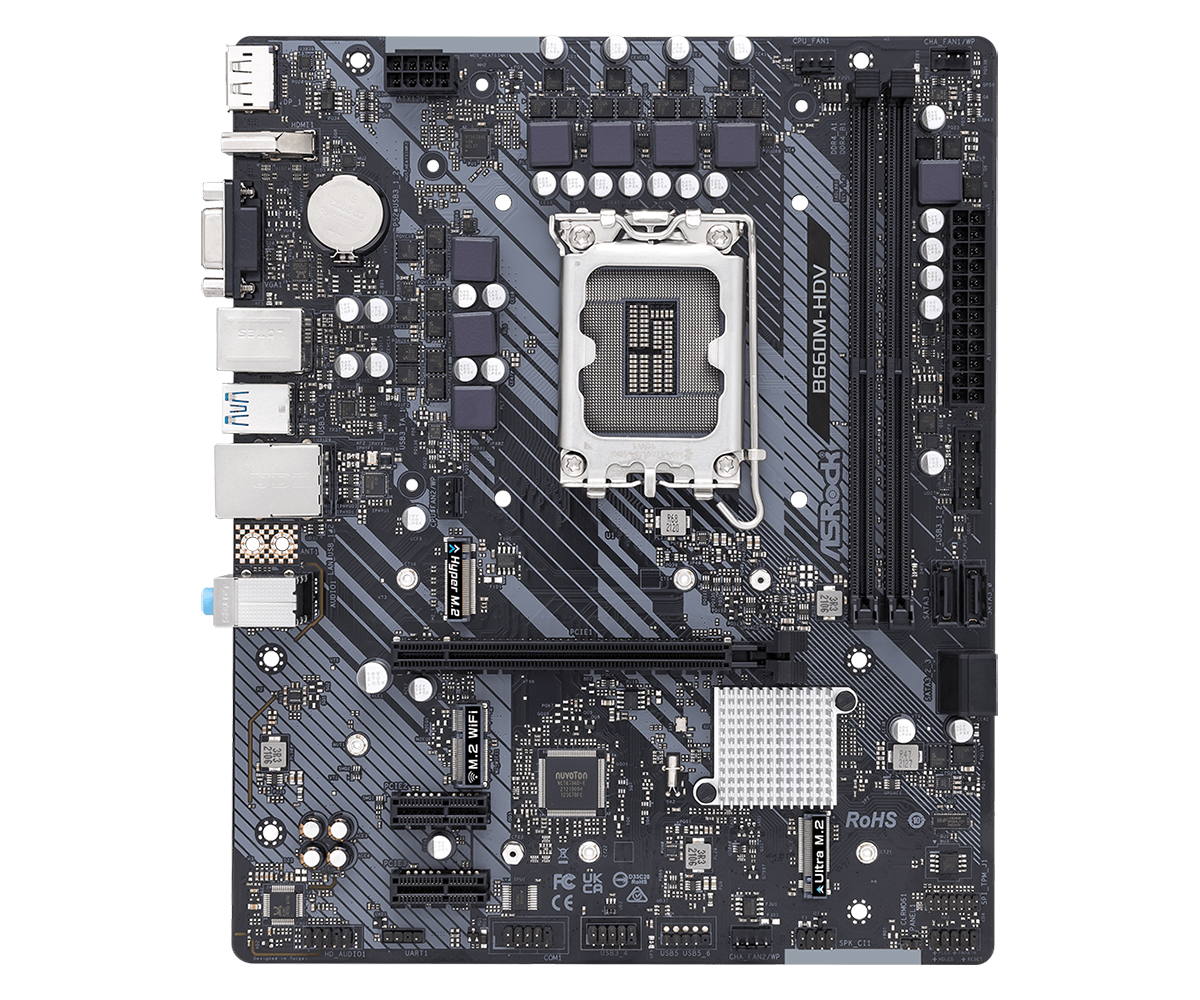

ASRock B660M-HDV M-ATX LGA1700 DDR4 Gaming Motherboard

Specification Group	ASRock B660 Motherboard Details
Unique Features	– ASRock Super Alloy: Premium Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB – Storage & Protection: ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection (for all USB, Audio, LAN Ports) – Software Support: ASRock Live Update & APP Shop
CPU & Chipset	Processor Socket: LGA1700 CPU Compatibility: Supports 14th, 13th & 12th Gen Intel® Core™ Processors Power & Design Features: Digi Power design, 6 Power Phase design, Supports Intel® Hybrid Technology, Supports Intel® Turbo Boost Max 3.0 Technology Chipset: Intel® B660
Memory Support	Memory Architecture: Dual Channel DDR4 Memory Technology Slots & Capacity: 2 × DDR4 DIMM Slots, Max. capacity of system memory 64GB Supported Frequencies: Supports DDR4 Non-ECC, Un-buffered memory up to 5066+(OC)* (Natively supports DDR4 3200) Module Support & Profiles: Supports ECC UDIMM memory modules (operate in non-ECC mode), Supports Intel® Extreme Memory Profile (XMP) 2.0
Graphics & Expansion	Integrated Graphics Architecture:* Intel® Xe Graphics Architecture (Gen 12) Display Outputs: – 1 × DisplayPort 1.4 with DSC (compressed), max resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz – 1 × HDMI 2.1 TMDS Compatible, max resolution up to 4K x 2K (4096×2160) @ 60Hz – 1 × D-Sub, max resolution up to 1920×1200 @ 60Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports Intel® UHD Graphics Built-in Visuals and VGA outputs are supported only with GPU-integrated processors. Expansion Slots:* – CPU: 1 × PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* – Chipset: 2 × PCIe 3.0 x1 Slots (PCIE2 and PCIE3), 1 × M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports NVMe SSD as boot disks.
Storage & RAID	M.2 Slots: – CPU: 1 × Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – Chipset: 1 × Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* SATA Ports: 4 × SATA3 6.0 Gb/s Connectors Storage Features: Supports Intel® Optane™ Memory H Series (M2_2 only), Intel® Volume Management Device (VMD), NVMe SSD as boot disks, ASRock U.2 Kit RAID Support: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
Audio & Networking	Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec), Supports Surge Protection LAN Controller: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel® I219V LAN Features: Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, UEFI PXE
USB Connectivity	Rear USB Ports (6 total): – 3 × USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) – 1 × USB 3.2 Gen1 Type-C Port (Supports ESD Protection) – 2 × USB 2.0 Ports (Supports ESD Protection) Front USB Headers (5 ports total): – 1 × USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports, ESD Protection) – 2 × USB 2.0 Headers (Supports 3 USB 2.0 ports, ESD Protection)
Internal Connectors	– Power: 1 × 24 pin ATX Power, 1 × 8 pin 12V Power – Fan & Cooling: 1 × 4-pin CPU Fan (max 1A/12W), 1 × 4-pin CPU/Water Pump Fan (max 2A/24W, Smart Fan Speed Control), 2 × 4-pin Chassis/Water Pump Fans (max 2A/24W, Smart Fan Speed Control) – Storage & USB: 2 × M.2 Sockets, 4 × SATA3 6.0 Gb/s, 1 × USB 3.2 Gen1 Header, 2 × USB 2.0 Headers – System & Misc Headers: 1 × COM Port, 1 × SPI TPM, 1 × Chassis Intrusion and Speaker, 1 × Front Panel Audio *CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

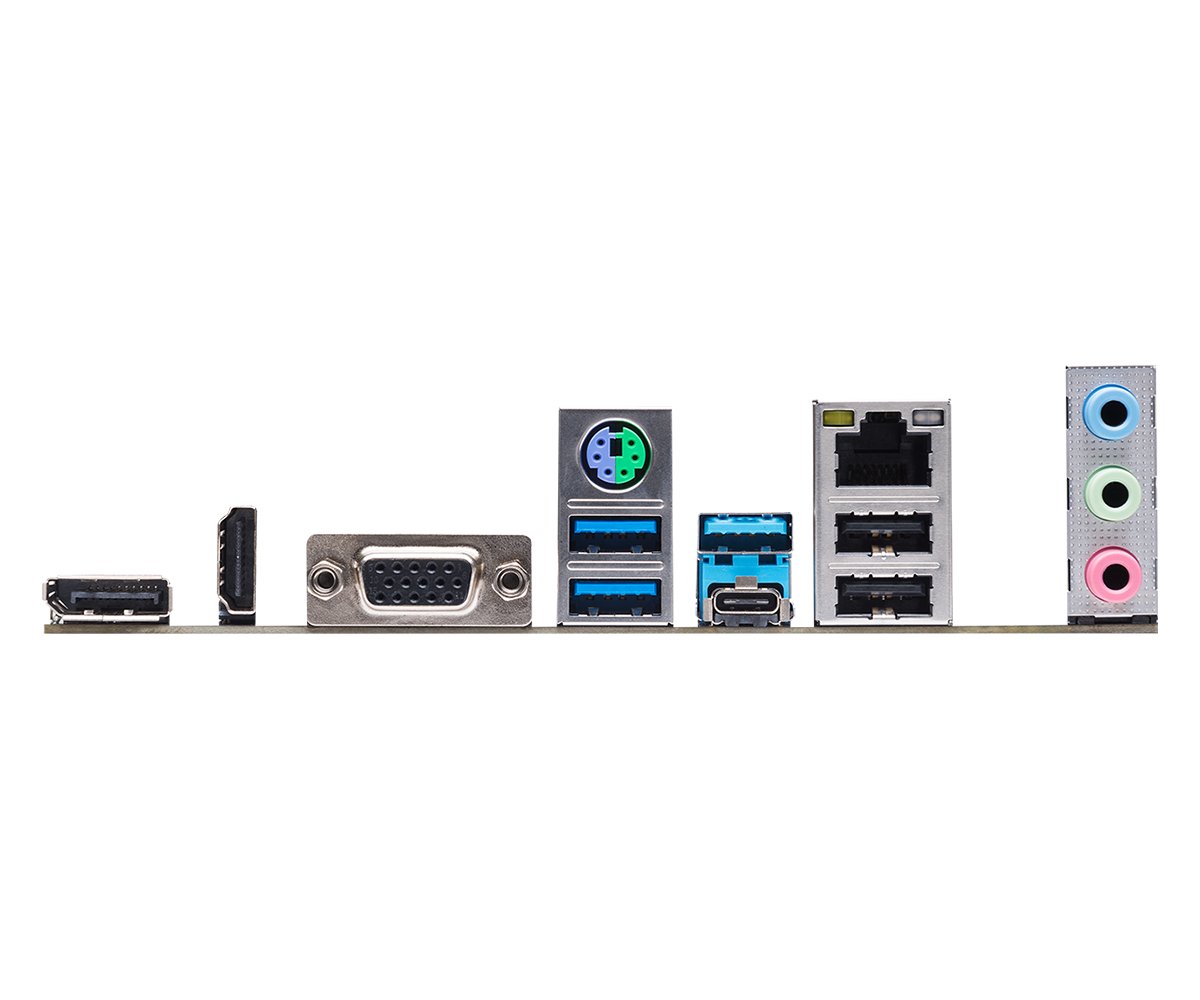

Back Panel Ports	2 × Antenna Mounting Points \| 1 × PS/2 Mouse/Keyboard Port \| 1 × D-Sub Port \| 1 × HDMI Port \| 1 × DisplayPort 1.4 \| 3 × USB 3.2 Gen1 Type-A Ports \| 1 × USB 3.2 Gen1 Type-C Port \| 2 × USB 2.0 Ports \| 1 × RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) \| HD Audio Jacks (Line in / Front Speaker / Microphone)
Software & Monitoring	Software Utilities: ASRock Motherboard Utility (A-Tuning) (Downloadable via ASRock Live Update & APP Shop) UEFI Features: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Easy RAID Installer Hardware Monitor: Fan Tachometer, Quiet Fan (Auto adjust chassis fan speed by CPU temperature), Fan Multi-Speed Control for CPU & Chassis/Water Pump Fans, CASE OPEN detection, Voltage monitoring (CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V)
System & Physical	BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, Voltage Multi-adjustment (CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH) Form Factor: Micro ATX Form Factor (9.6″ × 7.9″ / 24.4 cm × 20.1 cm), Solid Capacitor design Operating System: Microsoft Windows® 10 64-bit / 11 64-bit Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply required)
Included Accessories	– 1 × I/O Shield – 2 × SATA Data Cables – 3 × Screws for M.2 Sockets
