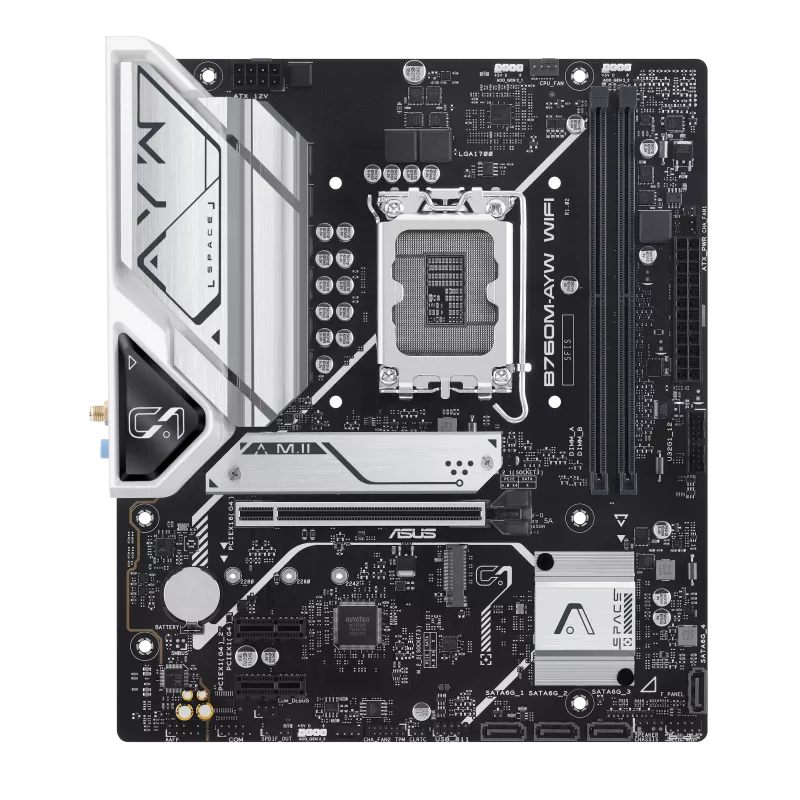

Asus B760M-AYW WiFi M-ATX LGA1700 DDR5 Gaming Motherboard

Name: Asus B760M-AYW WiFi M-ATX LGA1700 DDR5 Gaming Motherboard
Brand: ASUS
SKU: RBTGMB00386
Price: 40999 PKR
Availability: InStock

₨40,999

2 Years Local WarrantyReplacement or Refund

ASUS B760M-AYW WIFI, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, WiFi 6, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet , WiFi 6 and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares

In stock

Get an email the moment this price drops.

Description
Additional information

Asus B760M-AYW WiFi M-ATX LGA1700 DDR5 Gaming Motherboard

Specification Group	Motherboard Details
General Profile	Model: B760M-AYW WIFI Form Factor: mATX Form Factor \| 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
CPU, Chipset & Memory	CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors \| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B760 Chipset Memory: 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Graphics, Slots & Storage	Graphics: 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI™ 2.1) Expansion Slots: – Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot – Intel® B760 Chipset: 2 x PCIe 4.0 x1 slots Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports – Intel® Core™ Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports RAID Support: Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Networking, USB & Audio	Ethernet: 1 x Realtek 2.5Gb Ethernet \| ASUS LANGuard Wireless & Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax, Supports 2.4/5GHz frequency band) \| Bluetooth® v5.3 USB: – Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A) – Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
I/O Connectors	Back Panel I/O Ports: 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks Internal I/O Connectors: – Fan and Cooling Related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers – Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector – Storage Related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports – USB: 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports – Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header
Features, Software & BIOS	Special Features: – ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core +, Stainless-Steel Back I/O – ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot – ASUS EZ DIY: ProCool – ASUS Thermal Solution: M.2 heatsink, VRM heatsink design – Aura Sync: Addressable Gen 2 headers Software Features: – ASUS Exclusive Software: Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation), AI Suite 3 (DIGI+ VRM, PC Cleaner), ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR – UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode) BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE

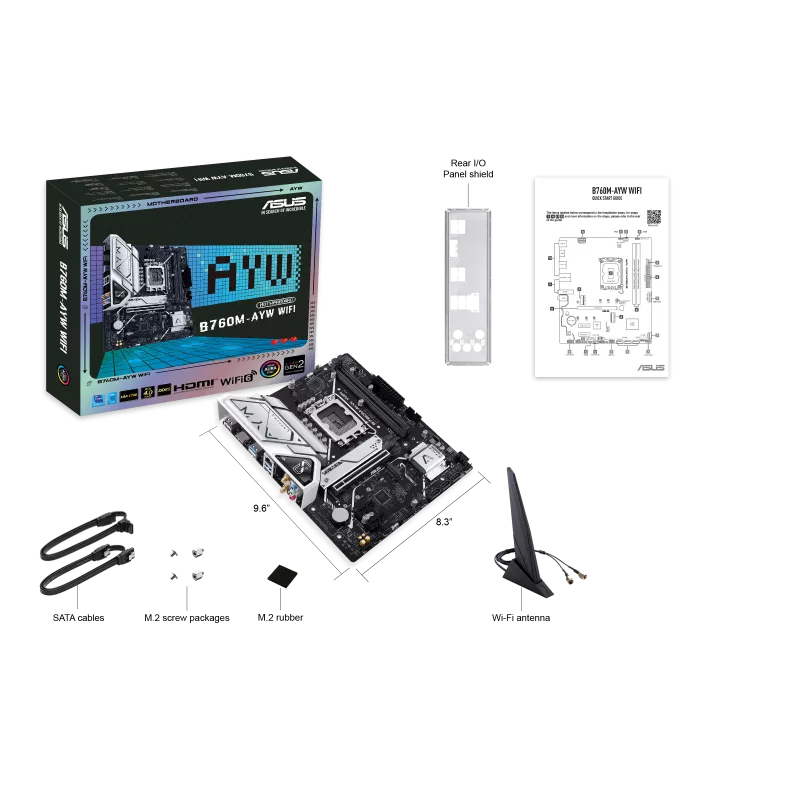

Accessories & OS	Accessories: – Cables: 2 x SATA 6Gb/s cables – Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD – Documentation: 1 x User guide Operating System: Windows® 11, Windows® 10 64-bit
