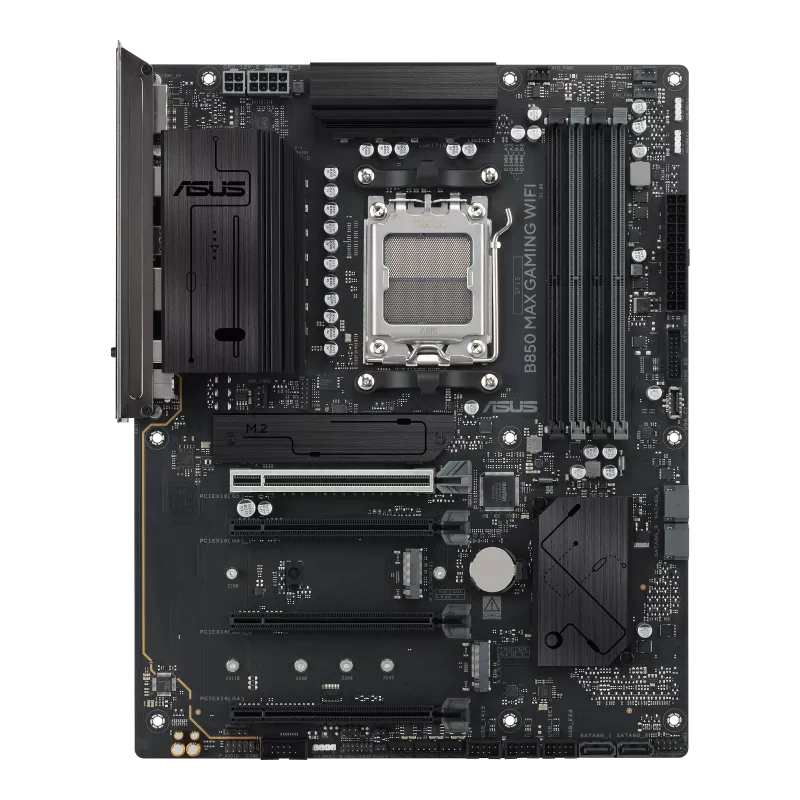

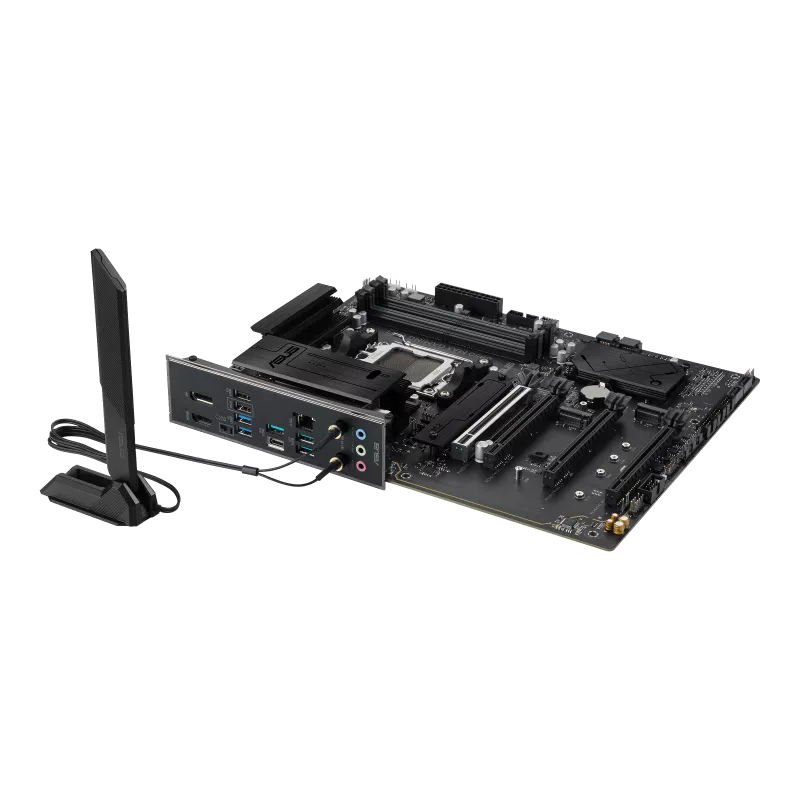

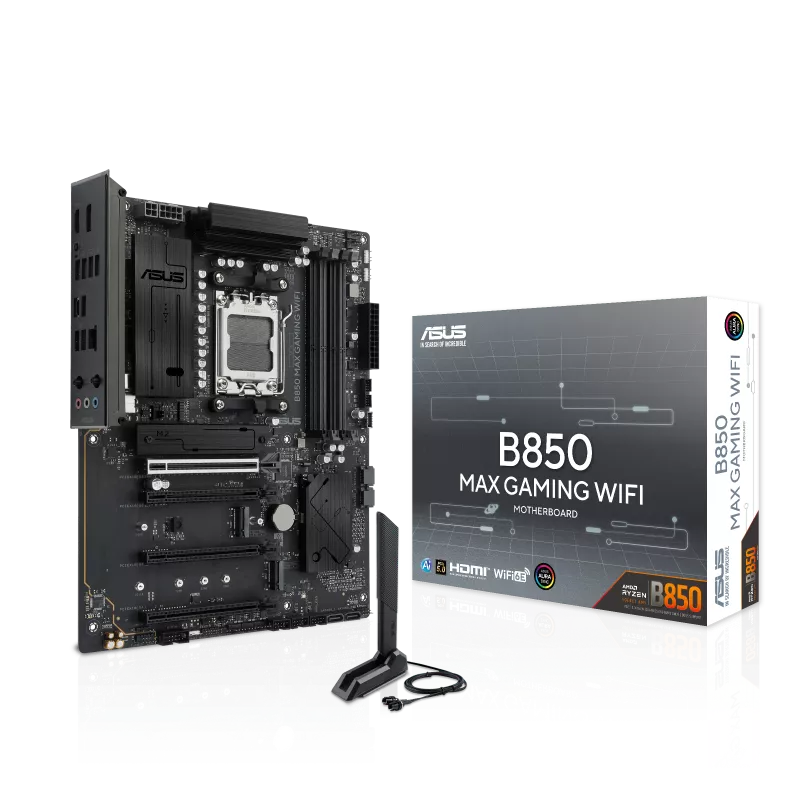

Asus B850 Max Gaming WiFi ATX AM5 DDR5 Gaming Motherboard – OPEN BOX

Name: Asus B850 Max Gaming WiFi ATX AM5 DDR5 Gaming Motherboard - OPEN BOX
Brand: ASUS
SKU: RBTGMB00393-open-box
Price: 64999 PKR
Availability: InStock

₨64,999

3 Months Local WarrantyReplacement or Refund

Asus B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

WiFi 6E
AEMP for enhanced DDR5 performance
2.5Gb Ethernet
USB 10Gbps Type-C
PCIe 5.0 slots
Pre-mounted I/O shield

In stock

Get an email the moment this price drops.

Description
Additional information

Asus B850 Max Gaming WiFi ATX AM5 DDR5 Gaming Motherboard

Specification Group	B850 MAX GAMING WIFI Details
CPU & Chipset	Model Name: B850 MAX GAMING WIFI Processor Socket: AMD Socket AM5 CPU Compatibility: Supports AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors (up to 170W CPU) Chipset: AMD B850 Chipset
Memory Support	Memory Slots: 4 × DIMM slots, Max. 256GB, DDR5 ECC and Non-ECC Un-buffered DIMM (On-Die ECC) Memory Architecture: Dual Channel Overclocking Profiles: AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) Supported Speeds: – Ryzen™ 9000 Series: Up to 8400+ MT/s (OC) / 8200+ MT/s (OC) – Ryzen™ 8000 Series: Up to 9000+ MT/s (OC) / 8600+ MT/s (OC) – Ryzen™ 7000 Series: Up to 8000+ MT/s (OC)
Graphics & Expansion	Integrated Display Outputs:* – 1 × DisplayPort 1.4 (Supports max. 8K@30Hz) – 1 × HDMI™ 2.1 (Supports max. 4K@60Hz) Requires CPU with integrated graphics. Expansion Slots:* – Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot (supports x16 mode) – Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) – AMD B850 Chipset: 1 × PCIe 4.0 x16 slot (supports x4 mode) & 2 × PCIe 3.0 x16 slots (support x1 mode) PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. SATA6G_1/2 will be disabled when either PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Storage & RAID	Total Storage Support: 3 × M.2 slots & 4 × SATA 6Gb/s ports M.2 Configurations: – M.2_1 slot (Key M, 2280): PCIe 5.0 x4 mode (Ryzen™ 9000/7000) \| PCIe 4.0 x4 mode (Ryzen™ 8000) – M.2_2 slot (Key M, 2280): PCIe 4.0 x4 mode (Ryzen™ 9000/7000) \| PCIe 4.0 x4/x2 mode (Ryzen™ 8000) – M.2_3 slot (Key M, 2242/2260/2280/22110): PCIe 4.0 x2 mode (via B850 Chipset) SATA Ports: 4 × SATA 6Gb/s ports (shares bandwidth with PCIEX16(G3)_1/2) RAID Technology: AMD RAIDXpert2 Technology (Supports RAID 0/1/5/10 across Ryzen™ 9000, 8000 & 7000 Series)
Networking & Wireless	Ethernet: 1 × Realtek® 2.5Gb Ethernet with ASUS LANGuard Wi-Fi: Wi-Fi 6E 2×2 (802.11ax), supports 2.4/5/6GHz frequency bands* Bluetooth: Bluetooth® v5.4 (supports LE Audio) *WiFi 6E 6GHz support depends on regional regulations and requires Windows 11 or later.
USB Connectivity	Rear USB Ports (8 total): – 4 × USB 10Gbps ports (3 × Type-A + 1 × USB Type-C® [Max 5V/3A]) – 2 × USB 5Gbps ports (2 × Type-A) – 2 × USB 2.0 ports (2 × Type-A) Front USB Headers (9 total): – 1 × USB 5Gbps connector (supports USB Type-C®) – 1 × USB 5Gbps header (supports 2 additional USB 5Gbps ports) – 3 × USB 2.0 headers (support 6 additional USB 2.0 ports)
Audio	Audio CODEC: Realtek® 7.1 Surround Sound High Definition Audio CODEC* Audio Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers *Requires a chassis with an HD audio module in the front panel to support 7.1 Surround Sound.
I/O Connectors	Back Panel I/O: 4 × USB 10Gbps (3 Type-A + 1 Type-C®) \| 2 × USB 5Gbps \| 2 × USB 2.0 \| 1 × DisplayPort \| 1 × HDMI™ \| 1 × Wi-Fi Module \| 1 × Realtek® 2.5Gb Ethernet \| 3 × Audio Jacks \| 1 × BIOS FlashBack™ Button Internal Headers & Connectors: – Cooling: 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT Fan, 1 × 4-pin AIO Pump, 4 × 4-pin Chassis Fan headers – Power: 1 × 24-pin Main Power, 1 × 8-pin +12V CPU Power, 1 × 4-pin +12V CPU Power – Storage & USB: 3 × M.2 slots, 4 × SATA 6Gb/s, 1 × USB 5Gbps Type-C®, 1 × USB 5Gbps header (2 ports), 3 × USB 2.0 headers (6 ports) – Miscellaneous: 3 × Addressable RGB Gen 2, 1 × Clear CMOS, 1 × Chassis Intrusion, 1 × COM Port, 1 × Front Panel Audio (F_AUDIO), 1 × S/PDIF Out, 1 × SPI TPM (14-1 pin), 1 × 10-1 pin System Panel, 1 × Thunderbolt™ (USB4®) header
Special Features & Software	ASUS Special Features: – ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O – ASUS Q-Design: Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot – Thermal Solution: Flexible M.2 Heatsink, VRM Heatsink Design – EZ DIY: BIOS FlashBack™ Button & LED, Pre-mounted I/O Shield, SafeSlot, CrashFree BIOS 3, EZ Flash 3 – Aura Sync: Addressable RGB Gen 2 Headers Software Features: – Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+) – ASUS DriverHub (ASUS MB Manager, AI Advisor, CPU-Z, GlideX, TurboV Core) – Bundled Software: Norton 360 Deluxe (60 Days Trial), WinRAR (40 Days Trial) – UEFI BIOS: EZ Mode, ASUS MyHotkey
System & Physical	BIOS & Management: 32MB (256Mb) Flash ROM, UEFI AMI BIOS, WOL by PME, PXE Supported Operating System: Windows 11, Windows 10 64-bit Form Factor: ATX Form Factor (12″ × 9.6″ / 30.5 cm × 24.4 cm)

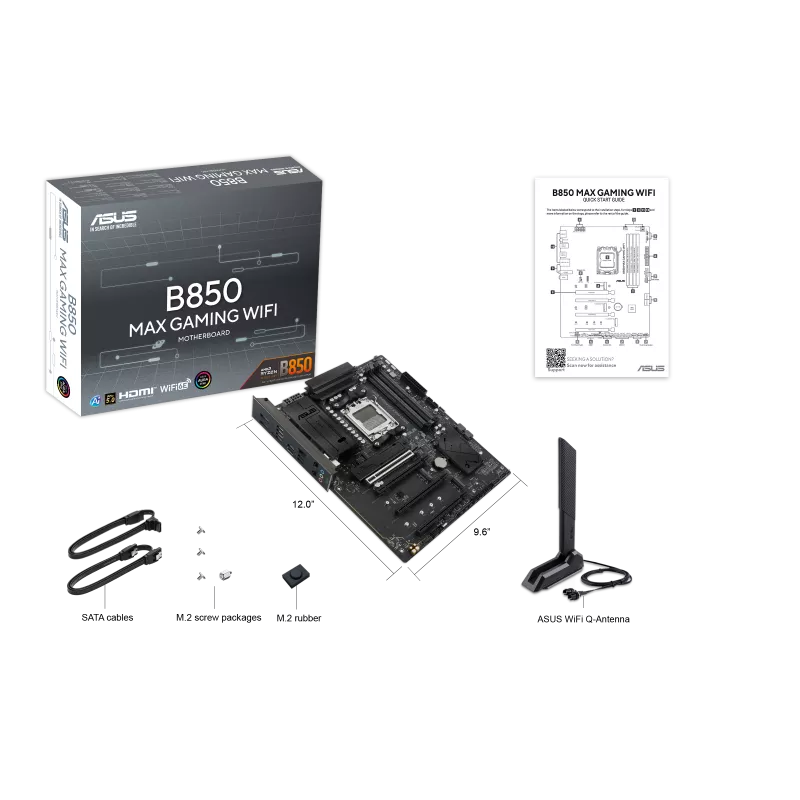

Included Accessories	– 2 × SATA 6Gb/s Cables – 1 × ASUS WiFi Q-Antenna – 1 × M.2 Rubber Package – 3 × Screw Packages for M.2 SSD – 1 × Quick Start Guide
