New

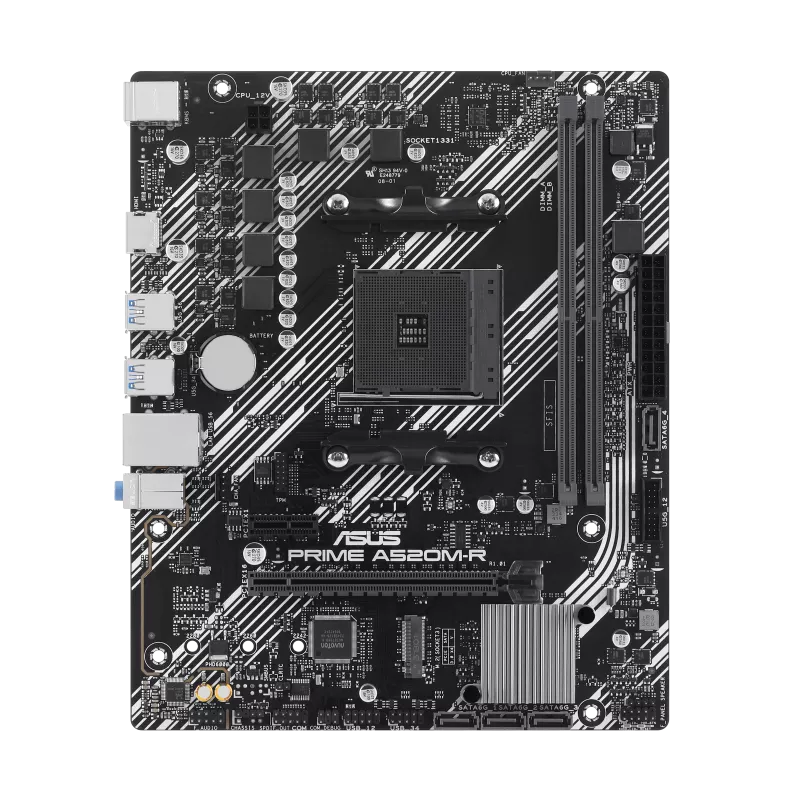

Asus Prime A520M-R M-ATX AM4 DDR4 Gaming Motherboard
₨22,499
AMD A520 (Ryzen™ AM4) micro-ATX motherboard with M.2 support, Realtek 1Gb Ethernet, HDMI™, SATA 6 Gbps, rear and front USB 5Gbps support
- AMD AM4 Socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- Ultrafast Connectivity: M.2 support, 1Gb Ethernet, rear and front USB 5Gbps support
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- 5X Protection III: Multiple hardware safeguards for all-around system protection
In stock
Asus Prime A520M-R M-ATX AM4 DDR4 Gaming Motherboard
| Model Name | PRIME A520M-R |
| Socket | AM4 |
| CPU | AMD Socket AM4 for Ryzen™ 5000 / 5000 G / 4000 G / 3000 / 3000 G Series Desktop Processors * Refer to www.asus.com for CPU support list. |
| Chipset | AMD A520 Chipset |
| Memory | 2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4666(OC)/…/2133 Dual channel architecture * ECC support varies by CPU. |
| Graphics | 1 x HDMI™ port (Supports 4K@60Hz as per HDMI 2.1) * Graphics specifications may vary by CPU. |
| Expansion Slots | 1 x PCIe 3.0 x16 slot (x16 mode) 1 x PCIe 3.0 x1 slot |
| Storage | 1 x M.2 slot (2242/2260/2280, PCIe 3.0 x4 & SATA) 4 x SATA 6Gb/s ports * Supports PCIe/SATA RAID 0/1/10 via AMD RAIDXpert2. |
| Ethernet | Realtek 1Gb Ethernet |
| USB (Rear) | 4 x USB 3.2 Gen 1 (Type-A) 2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Supports 24-bit/192kHz playback Features: Audio Shielding, Premium Capacitors, Dedicated PCB layers |

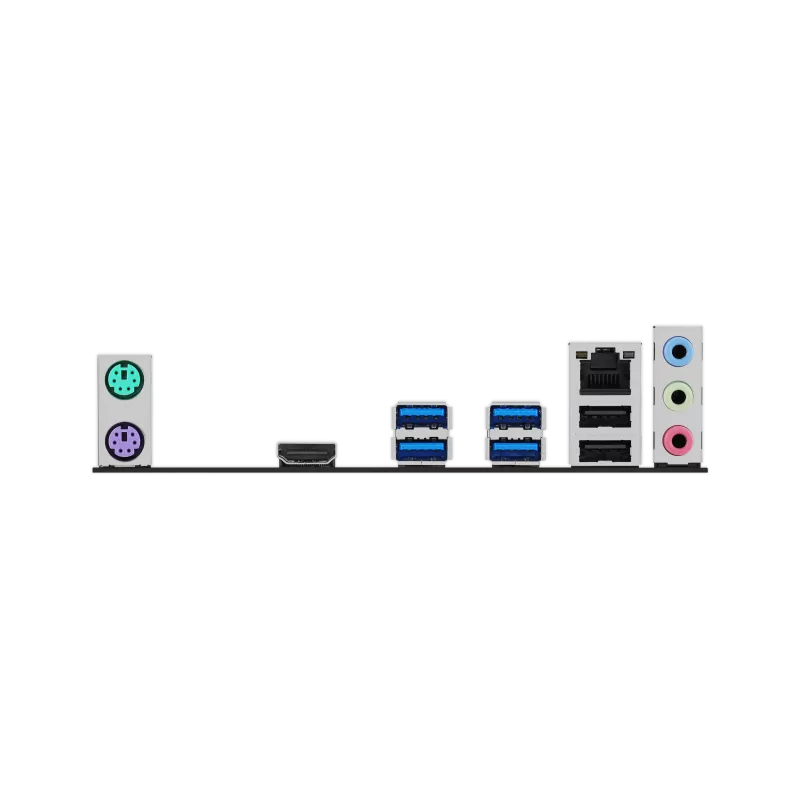

| Back Panel I/O | 4 x USB 3.2 Gen 1 (Type-A) 2 x USB 2.0 (Type-A) 1 x HDMI 1 x RJ-45 LAN 3 x Audio Jacks 1 x PS/2 Keyboard 1 x PS/2 Mouse |
| Internal I/O | 1 x 24-pin ATX Power 1 x 4-pin CPU Power 1 x M.2, 4 x SATA 1 x CPU Fan header, 1 x Chassis Fan header 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) 1 x COM, 1 x TPM, 1 x Front Audio, 1 x S/PDIF Out, 1 x Speaker, 1 x Clear CMOS |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core, SS Back I/O) Q-Design (Q-DIMM, Q-LED Core, Q-Slot) Aluminum Heatsink Design |
| Software | Armoury Crate, AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert), EZ Update, PC Cleaner, ASUS CPU-Z Norton 360 Deluxe (60 Days), WinRAR (40 Days) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS (EZ Mode) |

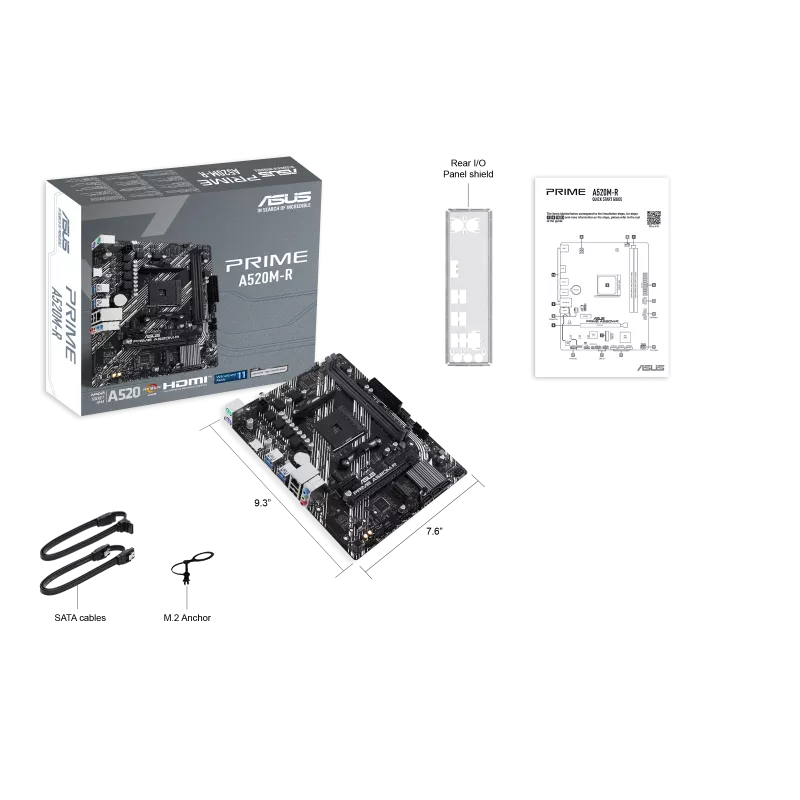

| Accessories | 2 x SATA Cables 1 x I/O Shield 1 x M.2 Anchor 1 x Quick Start Guide |
| Operating System | Windows® 11 / 10 64-bit |
| Form Factor | micro-ATX (23.6 cm x 19.3 cm / 9.3″ x 7.6″) |
| Brands | ASUS |
|---|---|
| Socket Brands | AMD |
