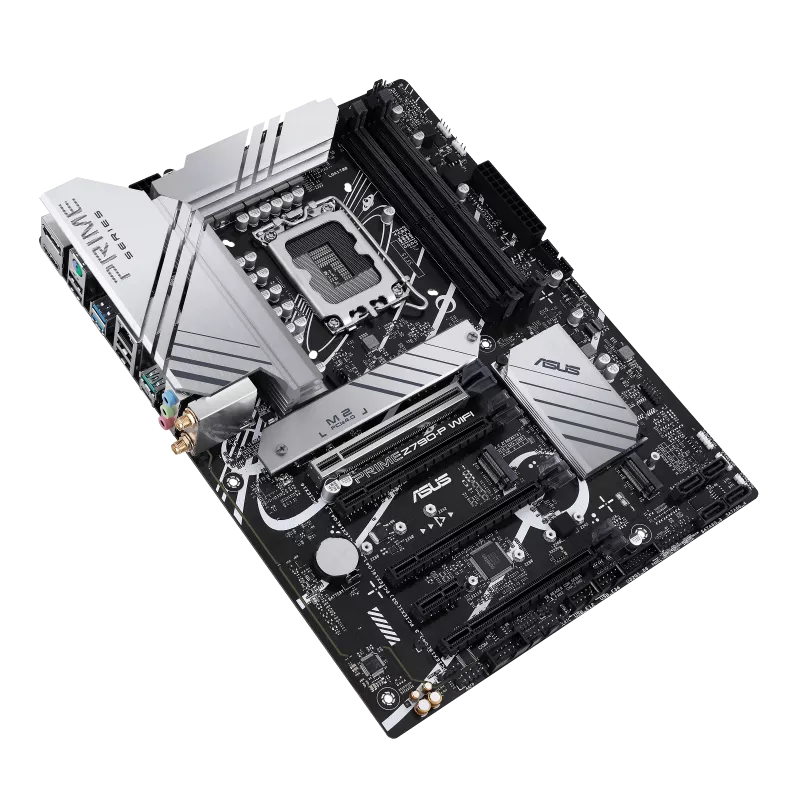

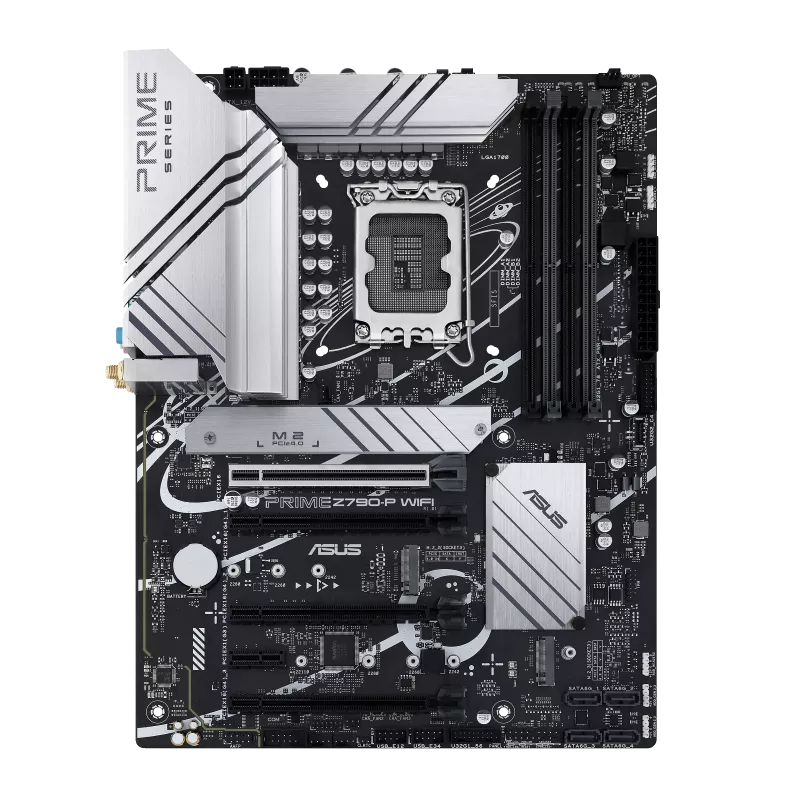

Asus Prime Z790-P WiFi ATX LGA1700 DDR5 Gaming Motherboard – USED

Name: Asus Prime Z790-P WiFi ATX LGA1700 DDR5 Gaming Motherboard - USED
Brand: ASUS
SKU: RBTGMB00401-used
Price: 49999 PKR
Availability: InStock

₨49,999

3 Months Local WarrantyReplacement or Refund

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

14(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
Gen 5 Slot for Graphics Card
AEMP II for Ultimate DDR5 Performance
USB 3.2 Gen 2×2 Type-C® & Thunderbolt (USB4®) Support
2.5 Gb Ethernet
WiFi 6

In stock

Get an email the moment this price drops.

Description
Additional information

Asus Prime Z790-P WiFi ATX LGA1700 DDR5 Gaming Motherboard

Specification Group	PRIME Z790-P WIFI Details
CPU & Chipset	Model Name: PRIME Z790-P WIFI Processor Socket: Intel® Socket LGA1700 CPU Compatibility: Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors CPU Technologies: Intel® Turbo Boost Technology 2.0 & Intel® Turbo Boost Max Technology 3.0 (dependent on CPU type) Chipset: Intel® Z790 Chipset
Memory Support	Memory Capacity & Slots: 4 × DIMM slots, Max. 192GB, DDR5 Non-ECC Un-buffered Memory (On-Die ECC) Memory Speeds: 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz Memory Features: Dual Channel Architecture, Intel® Extreme Memory Profile (XMP), OptiMem II
Graphics & Expansion	Integrated Display Outputs:* – 1 × DisplayPort 1.4 (Supports max. 4K@60Hz) – 1 × HDMI® 2.1 (Supports max. 4K@60Hz) Graphics specifications may vary between CPU types.Expansion Slots: – Intel® Core™ Processors (14th/13th/12th Gen):* 1 × PCIe 5.0 x16 slot – Intel® Z790 Chipset: 3 × PCIe 4.0 x16 slots (support x4 mode), 1 × PCIe 3.0 x1 slot
Storage & RAID	Total Storage Support: 3 × M.2 slots & 4 × SATA 6Gb/s ports M.2 Configurations: – M.2_1 slot (Key M, 2242/2260/2280/22110): PCIe 4.0 x4 mode (via CPU) – M.2_2 slot (Key M, 2242/2260/2280): PCIe 4.0 x4 mode (via Z790 Chipset) – M.2_3 slot (Key M, 2242/2260/2280/22110): PCIe 4.0 x4 & SATA modes (via Z790 Chipset) SATA Ports: 4 × SATA 6Gb/s ports RAID Support: Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10
Networking & Wireless	Ethernet: 1 × Realtek 2.5Gb Ethernet Wi-Fi: Wi-Fi 6 (2×2 802.11 a/b/g/n/ac/ax), supports 2.4/5GHz dual-band Bluetooth: Bluetooth® v5.2
USB Connectivity	Rear USB Ports (8 total): – 1 × USB 3.2 Gen 2×2 port (1 × USB Type-C®) – 1 × USB 3.2 Gen 2 port (1 × Type-A) – 2 × USB 3.2 Gen 1 ports (2 × Type-A) – 4 × USB 2.0 ports (4 × Type-A)Front USB Headers (9 total): – 1 × USB 3.2 Gen 2 connector (supports USB Type-C®) – 2 × USB 3.2 Gen 1 headers (support 4 additional USB 3.2 Gen 1 ports) – 2 × USB 2.0 headers (support 4 additional USB 2.0 ports) *Note: USB_E1 to E4 ports share bandwidth; USB_E5 to E8 ports share bandwidth.
Audio	Audio CODEC: Realtek 7.1 Surround Sound High Definition Audio CODEC* Capabilities: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers *Requires a chassis with an HD audio module in the front panel to support 7.1 Surround Sound output.

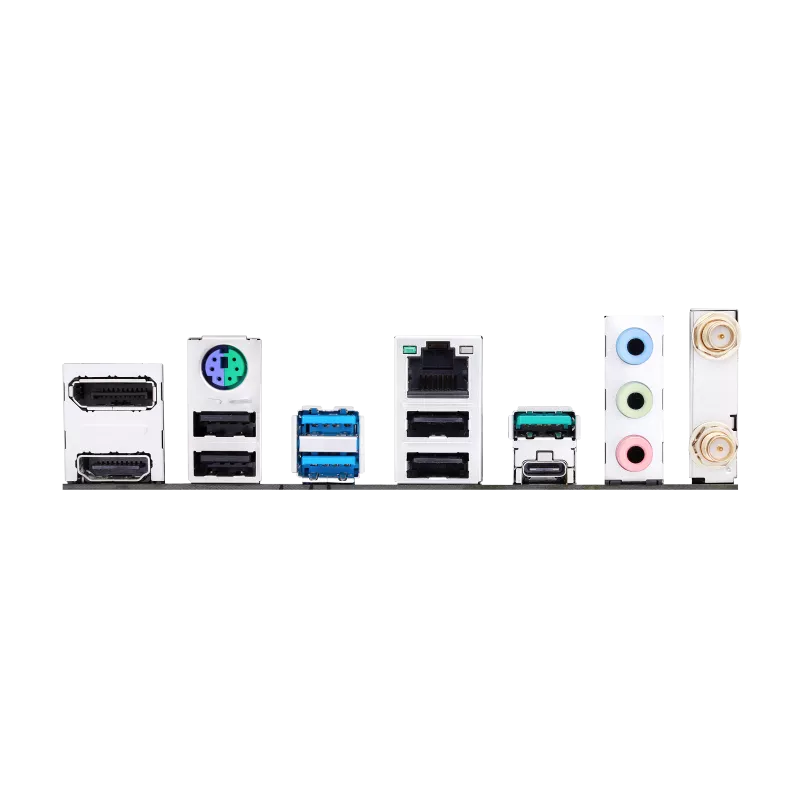

I/O Connectors	Back Panel I/O: 1 × USB 3.2 Gen 2×2 (Type-C®) \| 1 × USB 3.2 Gen 2 (Type-A) \| 2 × USB 3.2 Gen 1 (Type-A) \| 4 × USB 2.0 (Type-A) \| 1 × DisplayPort \| 1 × HDMI® \| 1 × Wi-Fi Module \| 1 × Realtek 2.5Gb Ethernet \| 3 × Audio Jacks \| 1 × PS/2 Keyboard/Mouse Combo PortInternal Headers & Connectors: – Cooling: 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT Fan, 1 × 4-pin AIO Pump, 3 × 4-pin Chassis Fan headers – Power: 1 × 24-pin Main Power, 1 × 8-pin +12V Power, 1 × 4-pin +12V Power – Storage & USB: 3 × M.2 slots (Key M), 4 × SATA 6Gb/s, 1 × USB 3.2 Gen 2 Type-C®, 2 × USB 3.2 Gen 1 headers (4 ports), 2 × USB 2.0 headers (4 ports) – Miscellaneous: 3 × Addressable Gen 2 headers, 2 × Aura RGB headers, 1 × Clear CMOS header, 1 × COM Port header, 1 × Front Panel Audio header (AAFP), 1 × S/PDIF Out header, 1 × SPI TPM header (14-1pin), 1 × 20-5pin System Panel header, 1 × Thunderbolt™ (USB4®) header
Special Features & Software	ASUS Special Features: – ASUS 5X PROTECTION III: DIGI+ VRM (Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O – ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core – Thermal Solution: Flexible M.2 Heatsink, VRM Heatsink Design – EZ DIY: ProCool – Aura Sync: Aura RGB Headers, Addressable Gen 2 HeadersSoftware Features: – Armoury Crate (Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving) – AI Suite 3 (TurboV EVO, PC Cleaner, DIGI+ VRM) – ASUS CPU-Z, MyASUS, Norton 360 Deluxe (60 Days Free Trial), WinRAR – UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
System & Physical	BIOS & Management: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, WOL by PME, PXE Supported Operating System: Windows® 11, Windows® 10 64-bit Form Factor: ATX Form Factor (12″ × 9.2″ / 30.5 cm × 23.4 cm)

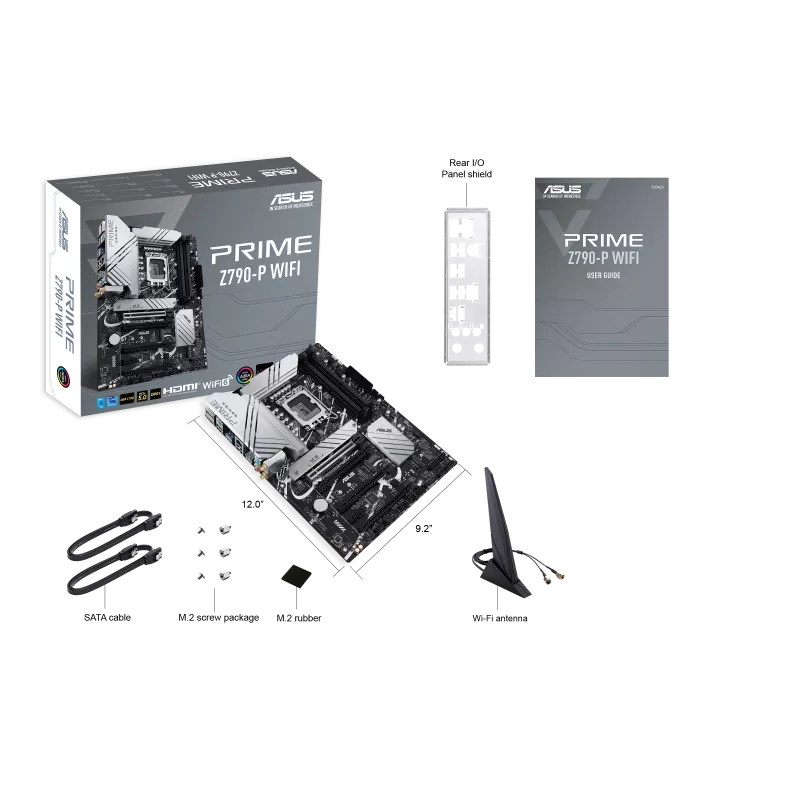

Included Accessories	– Cables: 2 × SATA 6Gb/s cables – Miscellaneous: 1 × ASUS Wi-Fi moving antennas, 1 × I/O Shield, 1 × M.2 Rubber Package, 2 × Screw packages for M.2 SSD – Documentation: 1 × User guide
