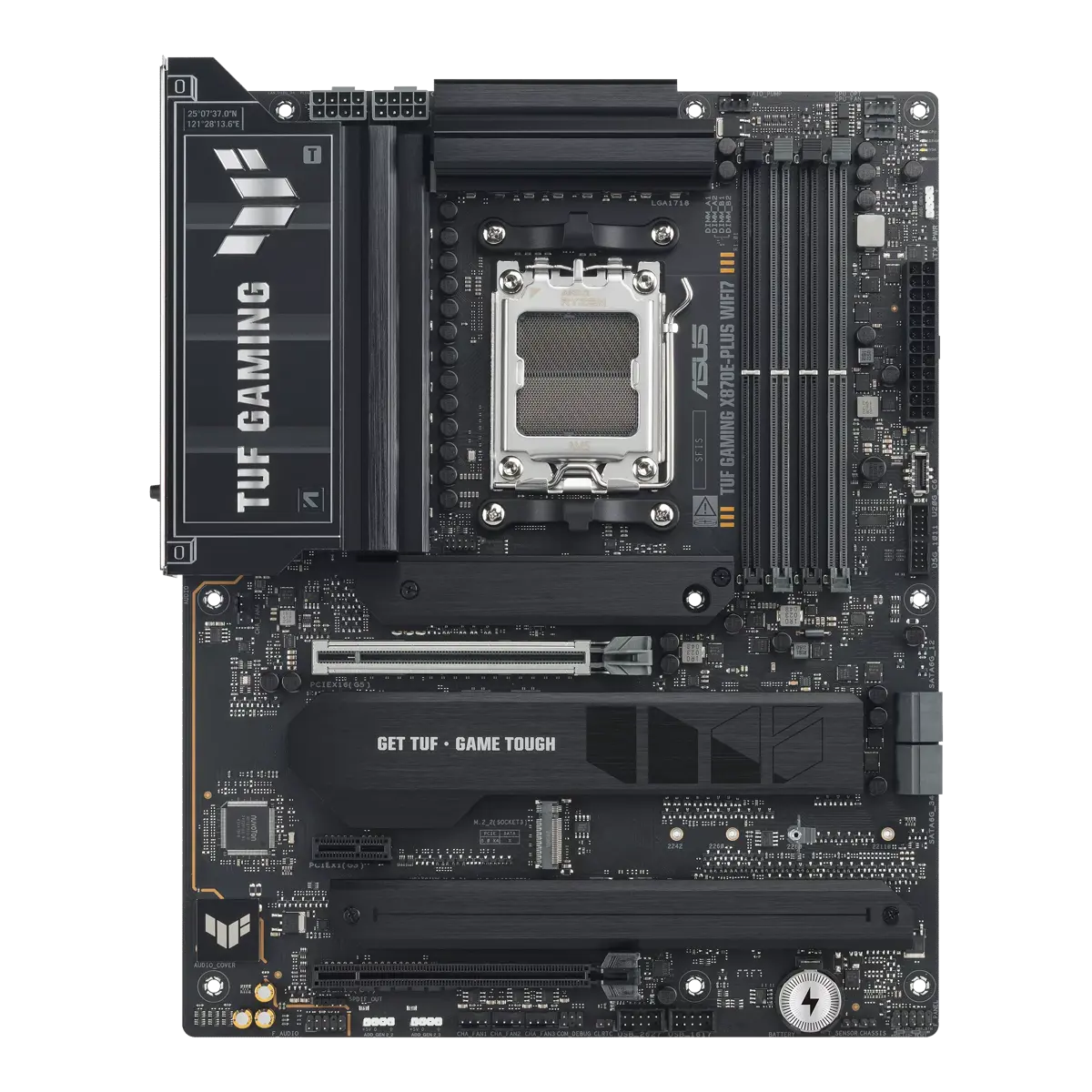

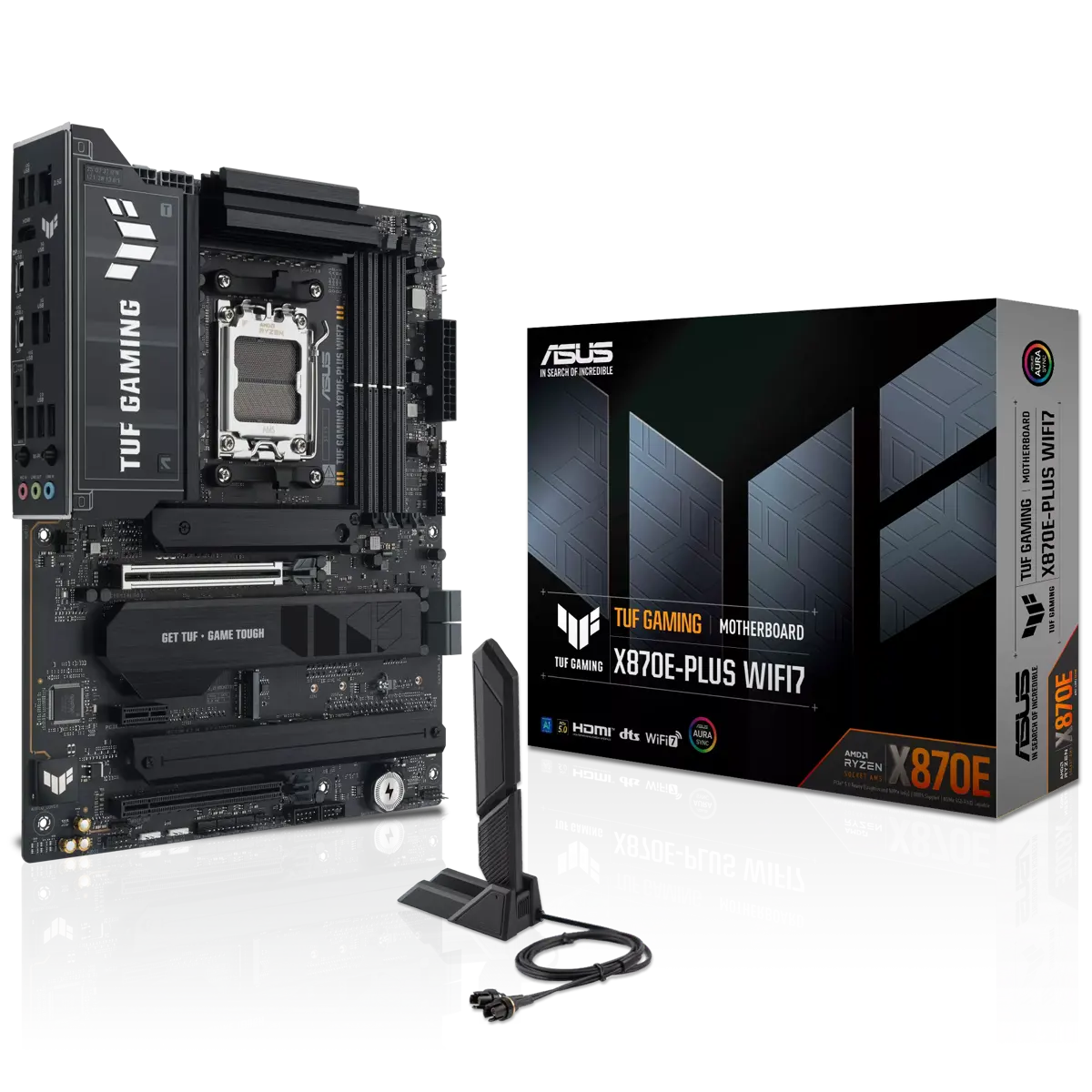

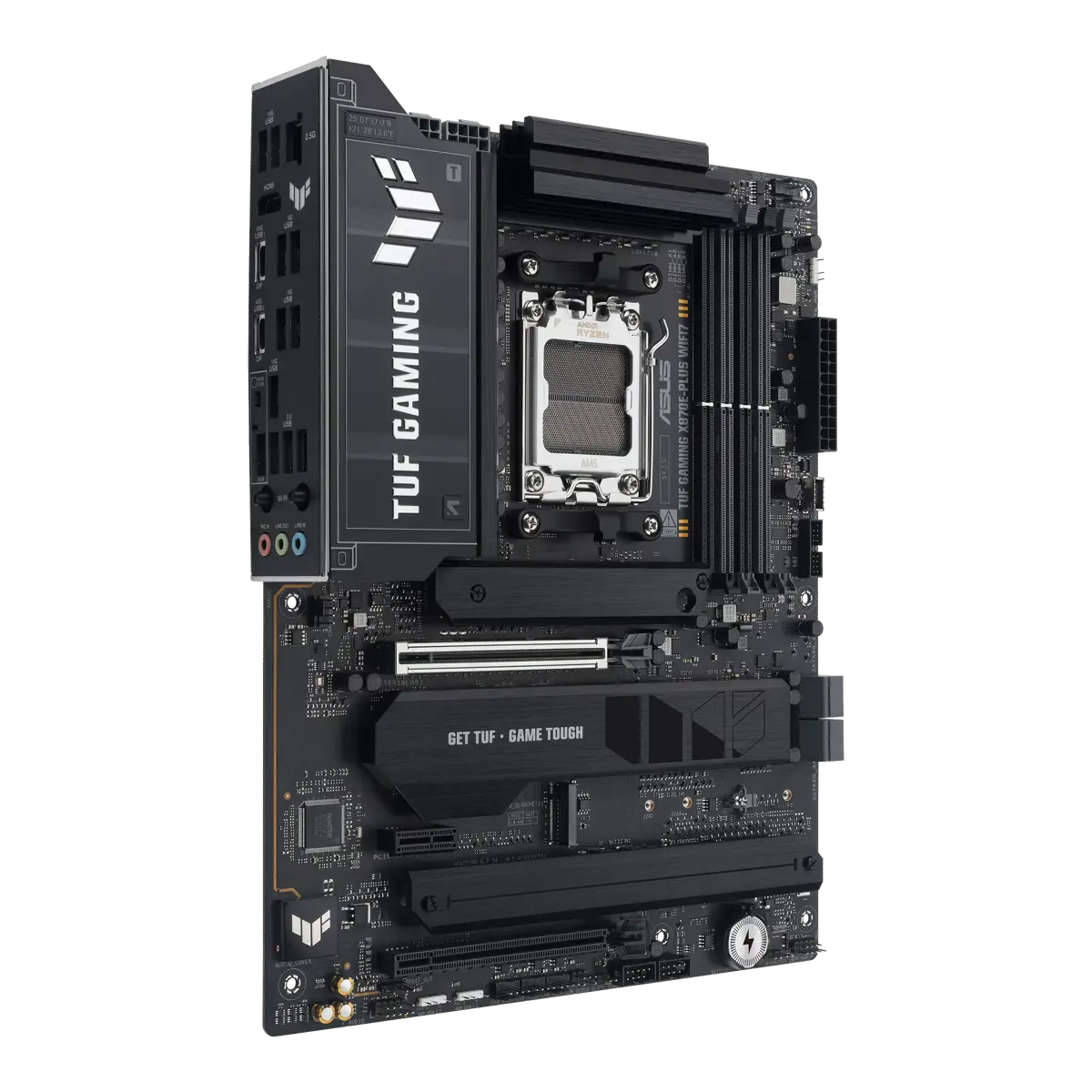

Asus TUF Gaming X870E-Plus WiFi7 ATX AM5 DDR5 Gaming Motherboard

Name: Asus TUF Gaming X870E-Plus WiFi7 ATX AM5 DDR5 Gaming Motherboard
Brand: ASUS
SKU: RBTGMB00408
Price: 109999 PKR
Availability: InStock

₨109,999

2 Years Local WarrantyReplacement or Refund

ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Supports AMD Ryzen 9000 Series
4x DIMMs, DDR5 8000+MT/s (OC)
Ultrafast WiFi 7 Networking
Aura Sync Full RGB Lighting

In stock

Get an email the moment this price drops.

Description
Additional information

Asus TUF Gaming X870E-Plus WiFi7 ATX AM5 DDR5 Gaming Motherboard

Specification Group	TUF GAMING X870E-PLUS WIFI7 Details
CPU & Chipset	Model Name: TUF GAMING X870E-PLUS WIFI7 Processor Socket: AMD Socket AM5 Supported Processors: AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors* Chipset: AMD X870E Chipset *Refer to ASUS support site for the full CPU support list.
Memory Support	Capacity & Slots: 4 × DIMM slots, max. 256GB, DDR5 Memory Speed: Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000, & 7000 Series Processors Supported Types: ECC and Non-ECC Un-buffered DIMM (Non-ECC DDR5 supports On-Die ECC) Architecture & Profiles: Dual channel memory architecture, DIMM Fit, AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) *Memory speed and module support depend on CPU and memory configuration.
Graphics & Displays	– 1 × HDMI™ port (Supports max. 4K@60Hz as specified in HDMI 2.1) – 2 × USB4® (40Gbps) ports (Supports USB Type-C® display output, max. 4K@60Hz as specified in DisplayPort 1.4a) *Graphics specifications and VGA resolution support depend on processor or graphics card installed.
Expansion Slots	CPU Source: – AMD Ryzen™ 9000 & 7000 Series: 1 × PCIe 5.0 x16 slot* – AMD Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 slot (supports x8/x4 mode) Chipset Source (AMD X870E): – 1 × PCIe 4.0 x16 slot (supports x4 mode) – 1 × PCIe 3.0 x1 slot *Refer to the PCIe bifurcation table on the ASUS support site for configuration details.
Storage Support	Total Slots: 4 × M.2 slots and 4 × SATA 6Gb/s ports M.2 Slots (CPU Source): – AMD Ryzen™ 9000 & 7000: M.2_1 (Key M, type 2280, PCIe 5.0 x4) & M.2_2 (Key M, type 2242/2260/2280/22110, PCIe 5.0 x4)* – AMD Ryzen™ 8000: M.2_1 (Key M, type 2280, PCIe 4.0 x4) \| M.2_2 is not supported M.2 Slots (AMD X870 Chipset): – M.2_3 slot (Key M, type 2280, supports PCIe 4.0 x4 mode) – M.2_4 slot (Key M, type 2280, supports PCIe 4.0 x4 mode) SATA & RAID Features: 4 × SATA 6Gb/s ports \| AMD RAIDXpert2 Technology – Ryzen™ 9000 Series: RAID 0/1/5/10 – Ryzen™ 8000 Series: RAID 0/1 – Ryzen™ 7000 Series: RAID 0/1/10 *M.2_2 slot shares bandwidth with PCIex16(G5)_1. When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run at x8.
LAN & Wireless	Wired Ethernet: 1 × Realtek 2.5Gb Ethernet, TUF LANGuard Wi-Fi Features: Wi-Fi 7* (2×2 802.11be), 2.4/5/6GHz frequency bands, 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth: Bluetooth® v5.4* Wi-Fi 7 full functionality requires Windows 11 24H2 or later (21H2/22H2/23H2 support Wi-Fi 6E). 6GHz band regulatory laws vary by region. **Bluetooth version subject to Wi-Fi module specs.
USB Connectivity	Rear USB Ports (Total 13 ports): – 2 × USB4® 40Gbps ports (USB Type-C®, max. 5V/3A PD) – 3 × USB 10Gbps ports (Type-A) – 4 × USB 5Gbps ports (Type-A) – 4 × USB 2.0 ports (Type-A) Front USB Ports (Total 7 ports): – 1 × USB 20Gbps connector (USB Type-C® with up to 30W PD Fast-charge: 5V/9V max 3A, 12V max 2.5A, 15V max 2A, PD3.0 compatible) – 1 × USB 5Gbps header (supports 2 additional USB 5Gbps ports) – 2 × USB 2.0 headers (support 4 additional USB 2.0 ports)
Audio & Sound Features	Audio CODEC: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier for headphone and speaker output – Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output & 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Enhancements: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit *32-Bit/192 kHz is not supported for 7.1 Surround Sound due to HDA bandwidth limitations.

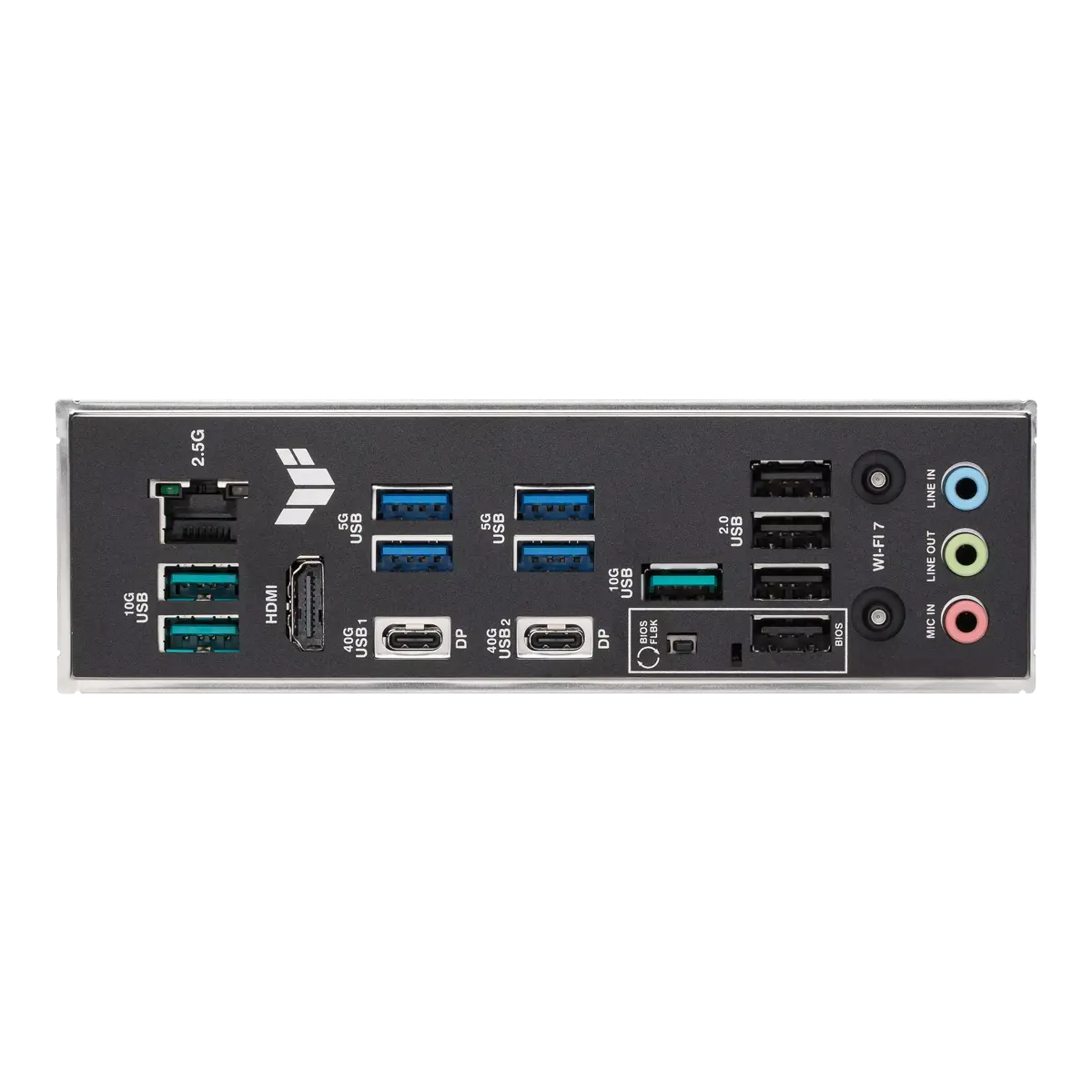

Back Panel Ports	2 × USB4® 40Gbps (USB Type-C®) \| 3 × USB 10Gbps (Type-A) \| 4 × USB 5Gbps (Type-A) \| 4 × USB 2.0 (Type-A) \| 1 × HDMI™ port \| 1 × Wi-Fi module \| 1 × Realtek 2.5Gb Ethernet port \| 3 × Audio jacks \| 1 × BIOS FlashBack™ button
Internal I/O Headers	– Fan & Cooling: 1 × 4-pin CPU Fan header, 1 × 4-pin CPU OPT Fan header, 1 × 4-pin AIO Pump header, 4 × 4-pin Chassis Fan headers – Power: 1 × 24-pin Main Power connector, 2 × 8-pin +12V CPU Power connectors – Storage: 4 × M.2 slots (Key M), 4 × SATA 6Gb/s ports – USB Headers: 1 × USB 20Gbps connector (Type-C® with 30W PD Fast-charge), 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) – Miscellaneous: 3 × Addressable Gen 2 headers, 1 × Clear CMOS header, 1 × Chassis Intrusion header, 1 × Front Panel Audio header (F_AUDIO), 1 × 10-1 pin Front System Panel header, 1 × Thermal Sensor header
Special Features	ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with SPS), ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: M.2 Q-Latch, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot ASUS Thermal Solution: M.2 heatsinks, VRM heatsink design ASUS EZ DIY: BIOS FlashBack™ button & LED, ProCool, Pre-mounted I/O shield, SafeDIMM Aura Sync: Addressable Gen 2 headers Front Panel Fast Charge: USB 20Gbps with up to 30W PD Fast Charge & USB Wattage Watcher (PD3.0 compatible)
Software & BIOS	ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial) UEFI BIOS Features: AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey) BIOS Hardware: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE

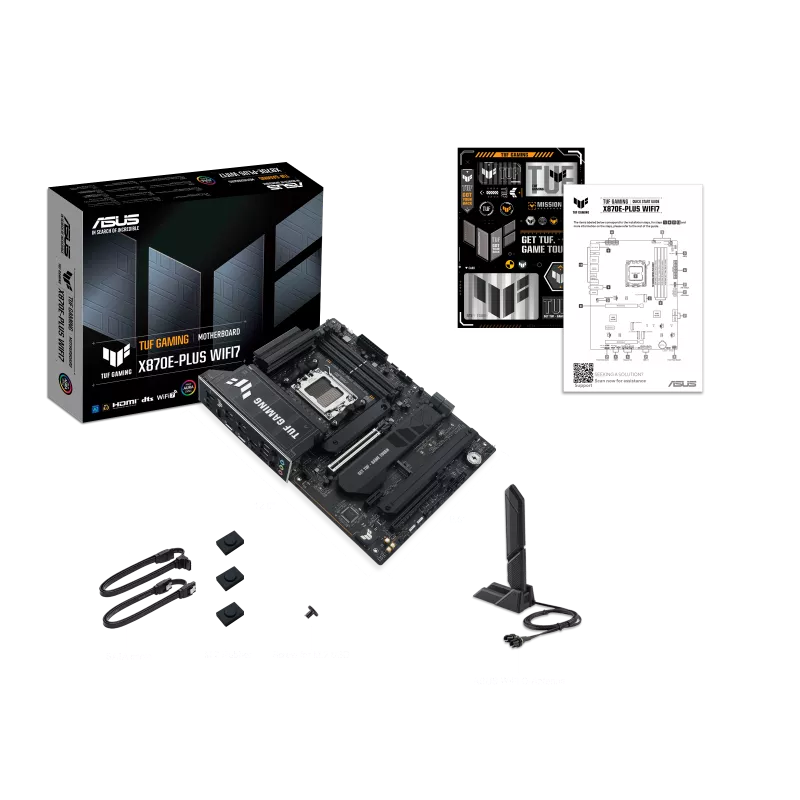

Included Accessories	Cables: 2 × SATA 6Gb/s cables Miscellaneous Tools & Extras: 1 × ASUS WiFi Q-Antenna, 2 × M.2 rubber packages, 1 × Screw package for M.2 SSD, 1 × TUF GAMING sticker Documentation: 1 × Quick start guide
Physical Specs & OS	Supported Operating System: Windows 11 Form Factor & Dimensions: ATX Form Factor (12″ × 9.6″ / 30.5 cm × 24.4 cm)
