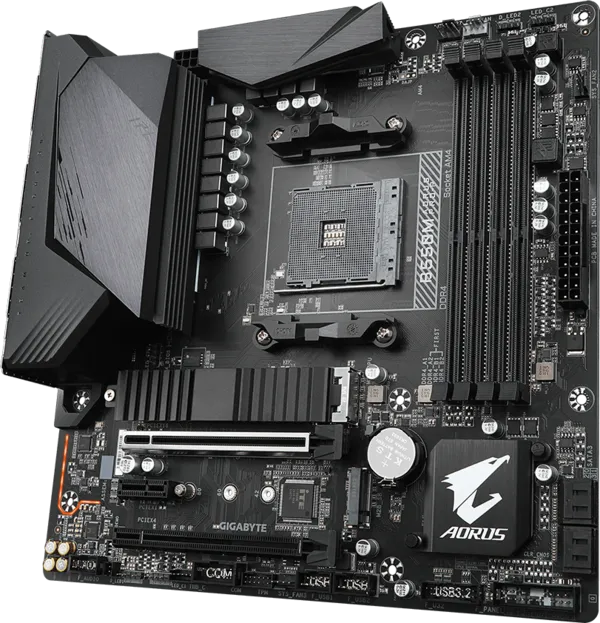

Gigabyte B550M Aorus Pro-P M-ATX AM4 DDR4 Gaming Motherboard

₨34,999

AMD B550 AORUS Motherboard with 10+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged VRM Heatsinks
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
AMP-UP Audio with ALC1200 and premium capacitor
Blazing Fast 2.5GbE LAN with Bandwidth Management
DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

In stock

Description
Additional information

Gigabyte B550M Aorus Pro-P M-ATX AM4 DDR4 Gaming Motherboard

Technical Specifications
CPU Support	AMD Socket AM4 Supports AMD Ryzen™ 5000 Series / 5000 G-Series Ryzen™ 4000 G-Series Ryzen™ 3000 Series / 3000 G-Series Please refer to CPU Support List for details
Chipset	AMD B550
Memory	4 × DDR4 DIMM Slots Max Capacity: 128GB (32GB per DIMM) Dual-Channel Architecture Supports ECC* & Non-ECC Un-buffered DIMMs Supports Extreme Memory Profile (XMP) *ECC support varies by CPU
Memory Speed	DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) 3200 / 2933 / 2667 / 2400 / 2133 MHz
Onboard Graphics	Integrated Graphics Processor 1 × HDMI (Max 4096×2160 @ 60Hz, HDMI 2.1, HDCP 2.3, HDR) 1 × DisplayPort (Max 5120×2880 @ 60Hz, DP 1.4, HDCP 2.3, HDR) Maximum Shared Memory: 16GB
Expansion Slots	1 × PCIe x16 (CPU) – PCIe 4.0 x16 (Ryzen™ 5000 / 3000) – PCIe 3.0 x16 (Ryzen™ 5000G / 4000G) 1 × PCIe 3.0 x16 (x4, Chipset) 1 × PCIe 3.0 x1 (Chipset)
Storage	2 × M.2 Slots – M2A_CPU: PCIe 4.0/3.0 x4/x2 & SATA (2242/2260/2280/22110) – M2B_SB: PCIe 3.0 x4/x2 & SATA (2242/2260/2280) 4 × SATA 6Gb/s Supports RAID 0 / 1 / 10
Audio	Realtek® ALC1200 Codec High Definition Audio 2 / 4 / 5.1 / 7.1 Channels Supports S/PDIF Out
LAN	Realtek® 2.5GbE LAN 2.5Gb / 1Gb / 100Mb
USB	Rear: USB-C Gen2, USB-A Gen2, USB 3.2 Gen1 ×4, USB 2.0 ×4 Internal: USB 3.2 Gen1 ×2, USB 2.0 ×4
Internal I/O	24-pin ATX Power 8-pin CPU Power CPU Fan ×1, Water Pump ×1, System Fan ×3 ARGB ×2, RGB ×2 Front Panel, Front Audio USB Headers, TPM Header, Thunderbolt Header Clear CMOS Jumper

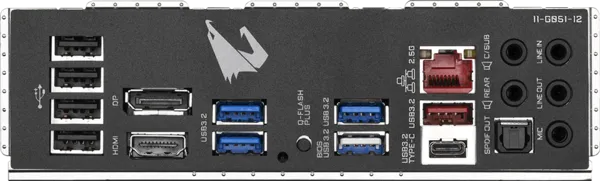

Back Panel I/O	DisplayPort, HDMI USB 2.0 ×4, USB 3.2 Gen1 ×4 USB 3.2 Gen2 Type-A, USB-C RJ-45 LAN Optical S/PDIF Out Audio Jacks
Operating System	Windows® 11 64-bit Windows® 10 64-bit
Form Factor	Micro-ATX 24.4 × 24.4 cm
