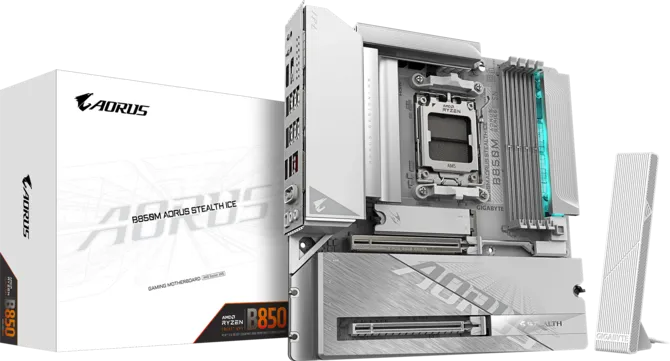

Gigabyte B850M Stealth Ice M-ATX AM5 DDR5 Gaming Motherboard

₨54,999

1 Year Local WarrantyReplacement or Refund

X3D Turbo Mode: Unleash new era gaming performance
DDR5 OC up to 8200MT/s
DriverBIOS: Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital 8+2+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
M.2 EZ-Latch Click: M.2 heatsinks with screwless design
Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard & M.2 Thermal Guard Ext.
Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: Display Port, HDMI
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support

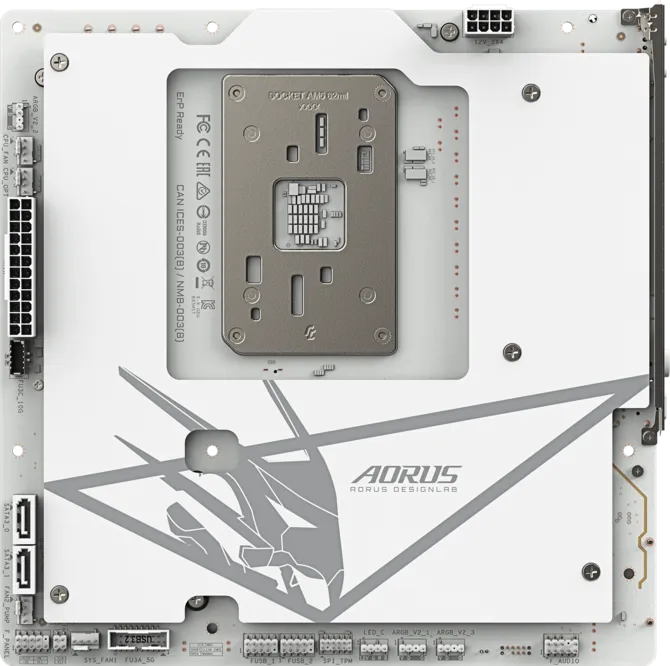

UD Base Plate: Experience the protection and heat dissipation with the UD Base Plate.

In stock

Get an email the moment this price drops.

Description
Additional information

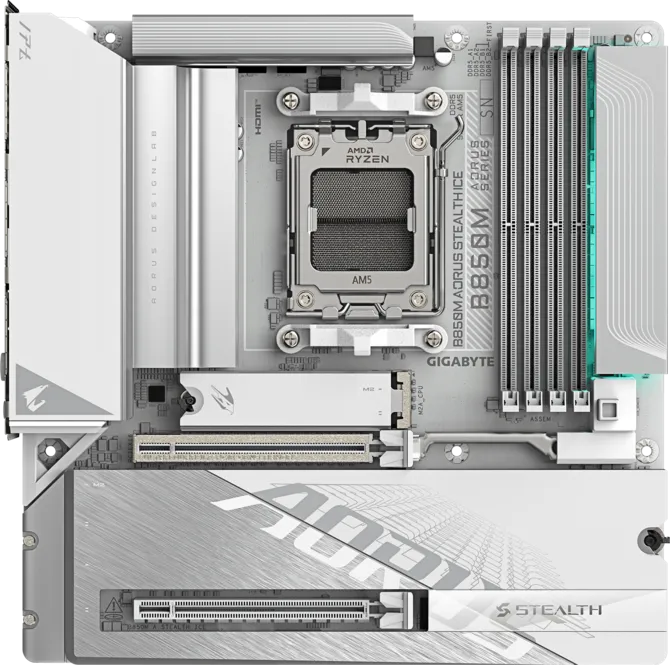

Gigabyte B850M Stealth Ice M-ATX AM5 DDR5 Gaming Motherboard

Specification Group	Motherboard Details
CPU & Chipset	CPU: AMD Socket AM5, support for: – AMD Ryzen™ 9000 Series Processors – AMD Ryzen™ 8000 Series Processors – AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) Chipset: AMD B850
Memory Specifications	Memory Speed Support: Support for DDR5 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Capacity & Sockets: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Architecture & Module Support: Dual channel memory architecture \| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Overclocking Profiles: Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Graphics & Audio	Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Audio: Realtek® ALC1220 CODEC \| High Definition Audio \| 2/4/5.1/7.1-channel * The back panel line out jack supports DSD audio. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN & Wireless	LAN: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module: Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion & Storage	Expansion Slots: – 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface: – 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs – 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs – 2 x SATA 6Gb/s connectors RAID Support: – RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0 and RAID 1 support for SATA storage devices
USB Configuration	CPU: – 3 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 2 x USB Type-C® ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) – 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	– 1 x 24-pin ATX main power connector – 1 x 8-pin ATX 12V power connector – 1 x CPU fan header – 1 x CPU fan/water cooling pump header – 1 x system fan header – 1 x system fan/water cooling pump header – 3 x addressable RGB Gen2 LED strip headers – 1 x RGB LED strip header – 3 x M.2 Socket 3 connectors – 2 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x USB Type-C® header, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0/1.1 headers – 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) – 1 x Clear CMOS jumper – 1 x reset jumper

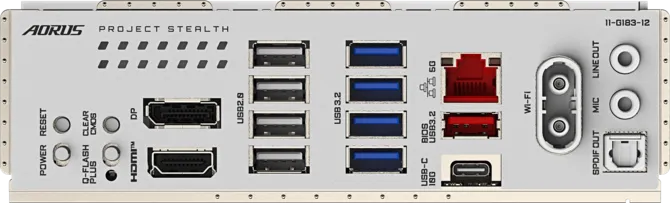

Back Panel Connectors	– 1 x Q-Flash Plus button – 1 x Clear CMOS button – 1 x power button – 1 x reset button – 1 x HDMI port (Note) – 1 x DisplayPort (Note) – 2 x antenna connectors (2T2R) – 1 x USB Type-C® header, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 2 Type-A ports (red) – 4 x USB 3.2 Gen 1 ports – 4 x USB 2.0/1.1 ports – 1 x RJ-45 port – 1 x optical S/PDIF Out connector – 2 x audio jacks (Note) Actual support may vary by CPU.
System, BIOS & Physical	I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection \| Temperature detection \| Fan speed detection \| Water cooling flow rate detection \| Fan fail warning \| Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 1 x 512 Mbit flash \| Use of licensed AMI UEFI BIOS \| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for GIGABYTE Control Center (GCC) \| Support for Q-Flash \| Support for Q-Flash Plus \| Support for Smart Backup * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundled Software: Norton® Internet Security (OEM version) Operating System: Support for Windows 11 64-bit Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
