Gigabyte H610M H V2 M-ATX LGA1700 DDR4 Gaming Motherboard – USED

₨19,999

3 Months Local WarrantyReplacement or Refund

Supports Intel® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

In stock

Get an email the moment this price drops.

Description
Additional information

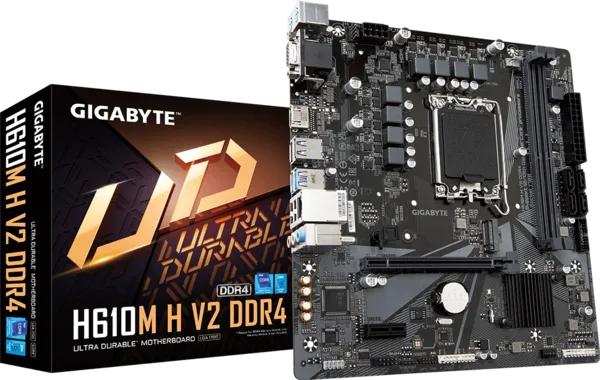

Gigabyte H610M H V2 M-ATX LGA1700 DDR4 Gaming Motherboard

Specification Group	GIGABYTE H610 Series Motherboard Details
CPU, Chipset & Form Factor	CPU Socket: LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (L3 cache varies with CPU; refer to “CPU Support List”) Chipset: Intel® H610 Express Chipset I/O Controller: iTE® I/O Controller Chip Form Factor & Size: Micro ATX Form Factor; 23.0cm x 21.5cm
Memory Support	DIMM Sockets: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) system memory Supported Speeds: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Architecture & Features: Dual channel memory architecture \| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) \| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules \| Support for Extreme Memory Profile (XMP) memory modules (Refer to “Memory Support List” for configuration details)
Onboard Graphics	Integrated Graphics Processor (Intel® HD Graphics support): – 1 x D-Sub port, supporting a maximum resolution of 1920×1200 @ 60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160 @ 60 Hz (Support for HDMI 2.1 version and HDCP 2.3; support native HDMI 2.1 TMDS compatible ports) (Note: Graphics specifications may vary depending on CPU support.)
Audio & LAN	Audio Codec: Realtek® Audio CODEC (High Definition Audio, 2/4/5.1/7.1-channel; jack functionality can be changed via audio software) Wired LAN: Realtek® GbE LAN chip (1 Gbps / 100 Mbps)
Expansion Slots & Storage	Expansion Slots: – CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 – Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface (Chipset): – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) – 4 x SATA 6Gb/s connectors
USB Ports	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) \| 4 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Clear CMOS jumper

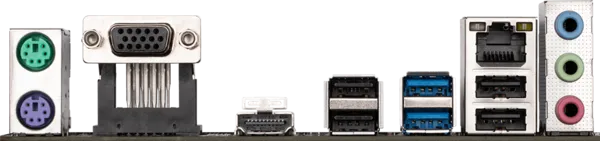

Back Panel Connectors	1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
H/W Monitoring, BIOS & Software	Hardware Monitoring: Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control (support depends on installed cooler) BIOS: 1 x 128 Mbit flash, licensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) Unique Features: Support for APP Center (@BIOS, Ambient LED, EasyTune, Smart Backup, System Information Viewer), Q-Flash, Xpress Install Bundled Software: Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System	Support for Windows 11 64-bit, Support for Windows 10 64-bit
