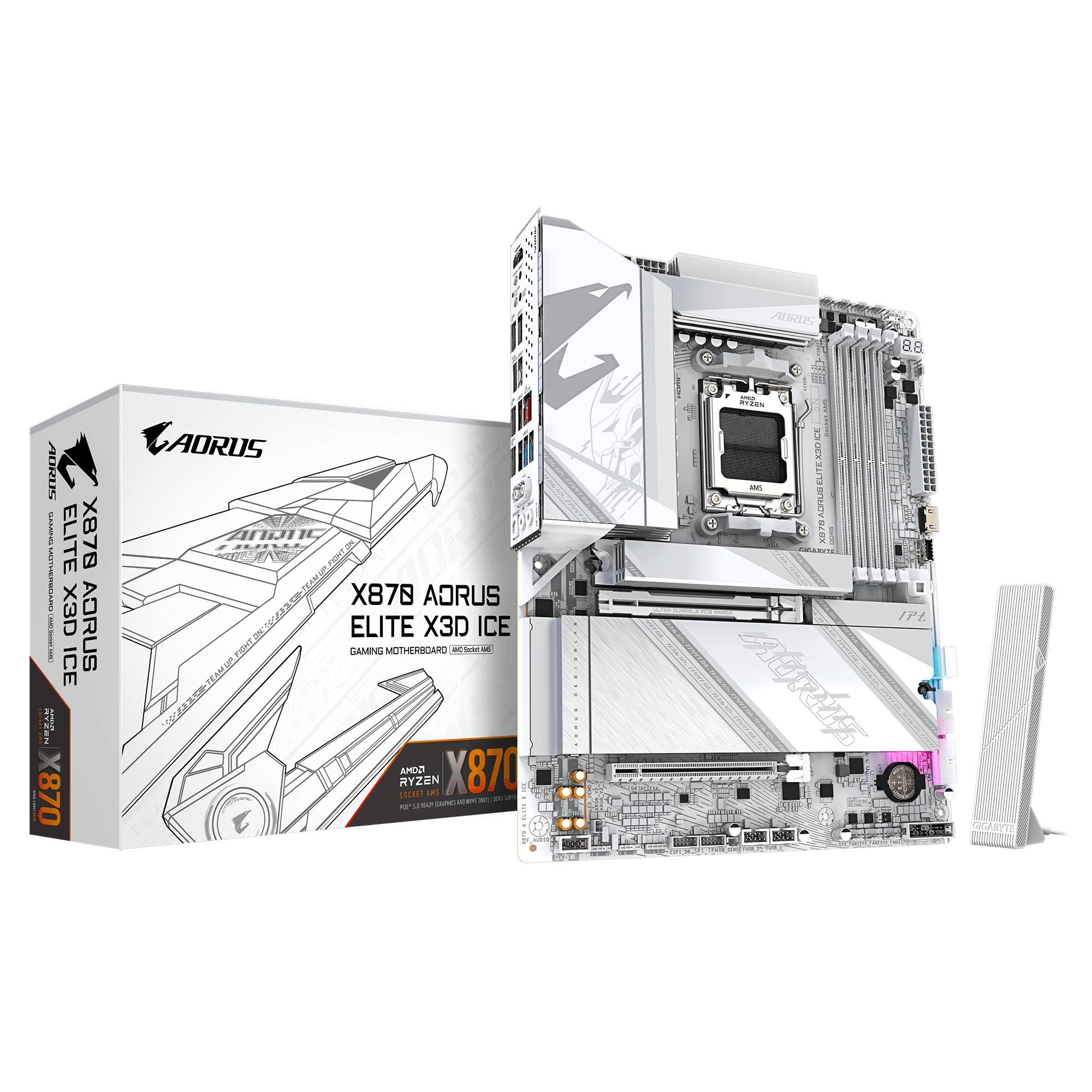

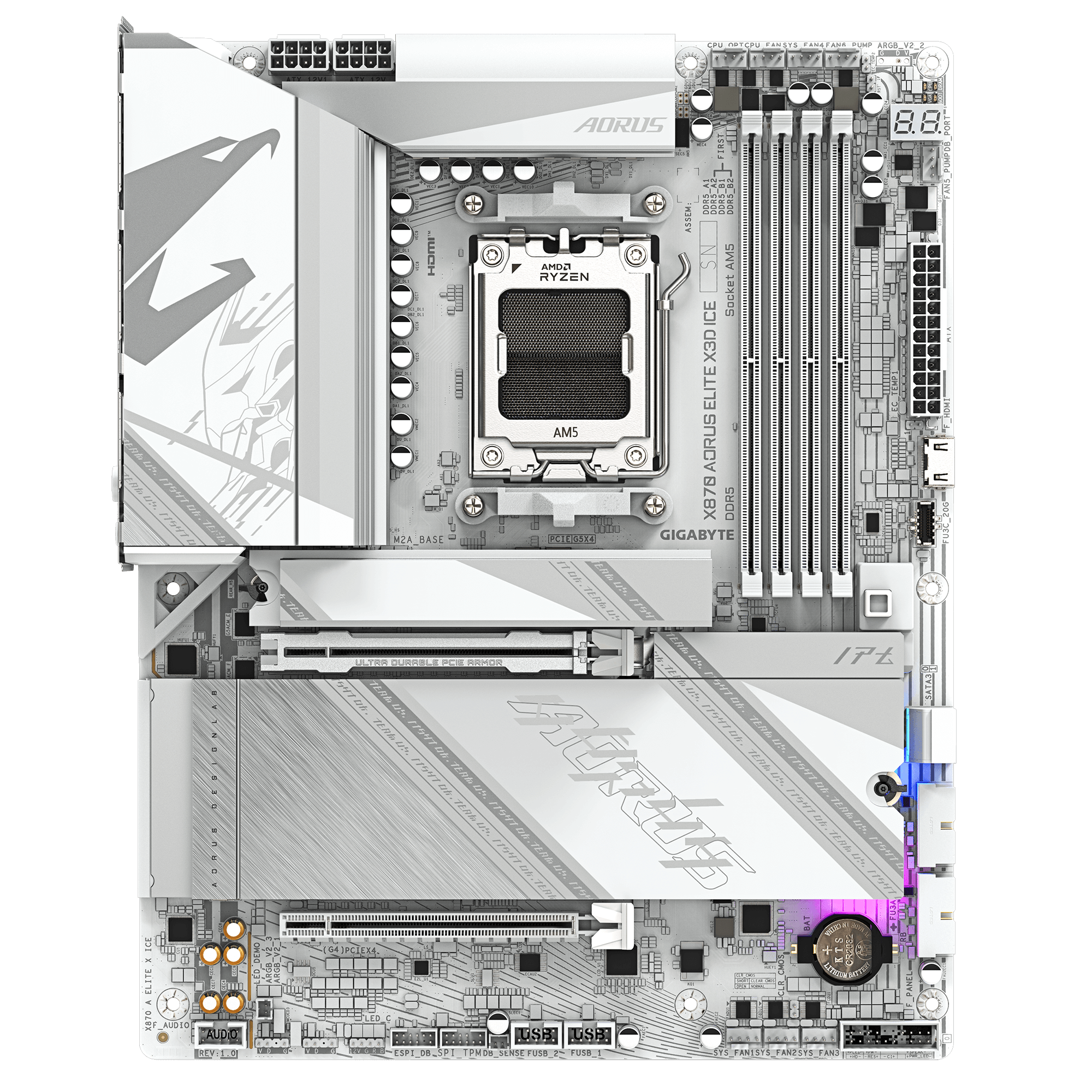

Gigabyte X870 Aorus Elite X3D Ice ATX AM5 DDR5 Gaming Motherboard

₨104,999

2 Years Local WarrantyReplacement or Refund

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 8800MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

In stock

Get an email the moment this price drops.

Description
Additional information

Gigabyte X870 Aorus Elite X3D Ice ATX AM5 DDR5 Gaming Motherboard

Specification Group	GIGABYTE X870 Series Motherboard Details
CPU, Chipset & Form Factor	CPU Socket: AMD Socket AM5 (Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors) Chipset: AMD X870 Form Factor & Size: ATX Form Factor (30.5 cm × 24.4 cm) I/O Controller: iTE® I/O Controller Chip
Memory Support	DIMM Sockets: 4 × DDR5 DIMM sockets supporting up to 256 GB system memory (64 GB single DIMM capacity) Supported Speeds: DDR5 up to 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8200(O.C.) / 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5200 / 4800 MT/s Architecture & Features: Dual Channel Memory Architecture \| Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Support \| AMD EXPO™ & Extreme Memory Profile (XMP) Support
Graphics & Display	Integrated Graphics Processor (AMD Radeon™ Graphics + ASMedia USB4® Controller): – 2 × USB4® USB Type-C® ports supporting DisplayPort video outputs (Max Resolution: 3840×2160 @ 240 Hz, DP 1.4, HDR) – 1 × HDMI port (Max Resolution: 4096×2160 @ 60 Hz, HDMI 2.1, HDCP 2.3, HDR, native TMDS compatible) – 1 × Front HDMI port (Max Resolution: 1920×1080 @ 30 Hz, HDMI 1.4) (Note: Graphics specifications may vary depending on installed CPU support.)
Audio & LAN	Audio Codec: Realtek® ALC1220 CODEC (High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support; back panel line out supports DSD audio) Wired LAN: Realtek® 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless & Bluetooth	Wireless Module: Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz bands, 320MHz wireless standard) Bluetooth Version: BLUETOOTH 5.4 (Note: Wi-Fi 7 features require Windows 11 SV3; 6 GHz band availability depends on local regulations.)
Expansion Slots	PCIEX16 Slot (Integrated in CPU): Supports PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8 (Ryzen 8000-Phoenix 1), or PCIe 4.0 x4 (Ryzen 8000-Phoenix 2). Supports a graphics card or NVMe SSD. PCIEX4 Slot (Chipset): Supports PCIe 4.0 running at x4. Shares bandwidth with the M2D_SB connector (unavailable when M2D_SB is populated).
Storage Interface	M.2 Connectors (CPU): – M2A_CPU: Socket 3, M key, type 25110/22110/2580/2280 (PCIe 5.0 x4/x2 for Ryzen 9000/7000; PCIe 4.0 x4/x2 for Ryzen 8000 series) – M2B_CPU: Socket 3, M key, type 22110/2280 (PCIe 5.0 x4/x2). Shares bandwidth with ASMedia USB4 controller (both operate at up to x2 bandwidth when populated; unavailable with Ryzen 8000 processors). M.2 Connectors (Chipset): 2 × M.2 connectors (M2C_SB, M2D_SB), type 22110/2280 PCIe 4.0 x4/x2 SATA & RAID: 2 × SATA 6Gb/s connectors \| RAID 0, 1, 5 (Ryzen 9000 only), 10 for NVMe; RAID 0, 1 for SATA
USB Ports	CPU + ASMedia USB4 Controller: 2 × USB4® USB Type-C® ports (back panel) CPU: 1 × USB Type-C® (USB 3.2 Gen 2, back panel), 1 × USB 2.0/1.1 (back panel) Chipset: 1 × USB Type-C® (USB 3.2 Gen 2×2, internal header), 2 × USB 3.2 Gen 2 Type-A (red, back panel), 4 × USB 2.0/1.1 (back panel) Chipset + USB 3.2 Gen 1 Hubs: 8 × USB 3.2 Gen 1 ports (4 on back panel, 4 via internal headers)
Internal I/O Connectors	Power & Cooling: 1× 24-pin ATX, 2× 8-pin ATX 12V, 1× CPU fan, 1× CPU fan/pump, 4× system fan, 2× system fan/pump headers, 2× temperature sensor headers, 1× noise detection header Lighting & Storage: 3× ARGB Gen2 LED strip headers, 1× RGB LED strip header, 4× M.2 Socket 3, 2× SATA 6Gb/s Headers & Jumpers: Front panel, front panel audio, USB Type-C® (USB 3.2 Gen 2×2), 2× USB 3.2 Gen 1, 2× USB 2.0/1.1, Trusted Platform Module (GC-TPM2.0 SPI V2), HDMI port, reset jumper, Clear CMOS jumper

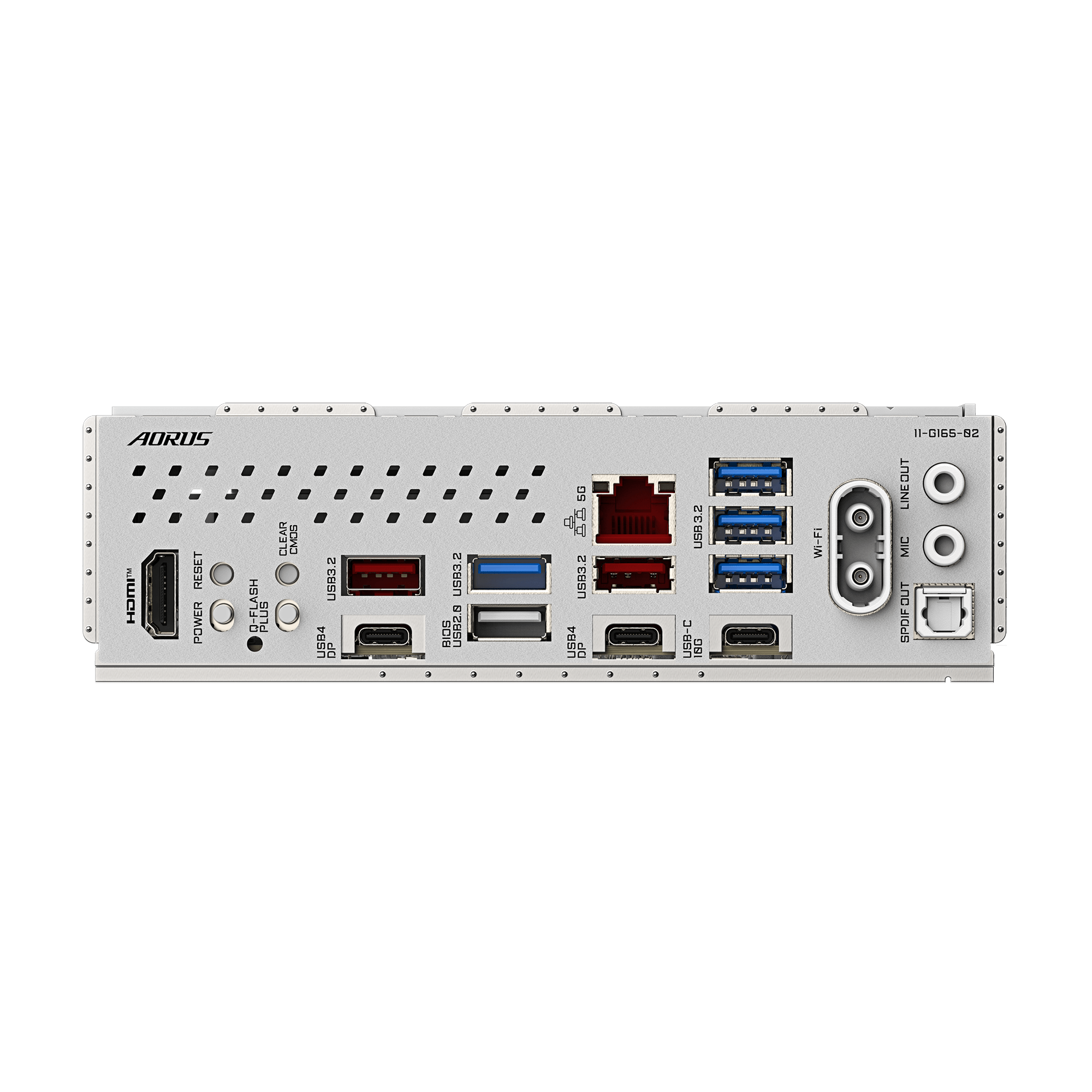

Back Panel Connectors	Buttons & Display: 1× HDMI port, Power button, Reset button, Q-Flash Plus button, Clear CMOS button Ports & Audio: 2× USB4® USB Type-C® (DisplayPort), 1× USB Type-C® (USB 3.2 Gen 2), 2× USB 3.2 Gen 2 Type-A (red), 4× USB 3.2 Gen 1, 1× USB 2.0/1.1, 1× RJ-45 port, 2× antenna connectors (2T2R), 1× optical S/PDIF Out, 2× audio jacks
H/W Monitoring, BIOS & Software	Hardware Monitoring: Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan/pump speed control, noise detection BIOS: 1× 512 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) Unique Features & Software: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup \| Bundled Software: Norton® Internet Security (OEM version) Operating System: Support for Windows 11 64-bit
