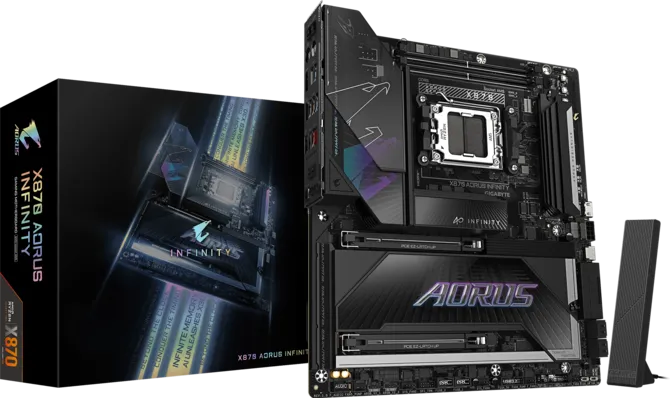

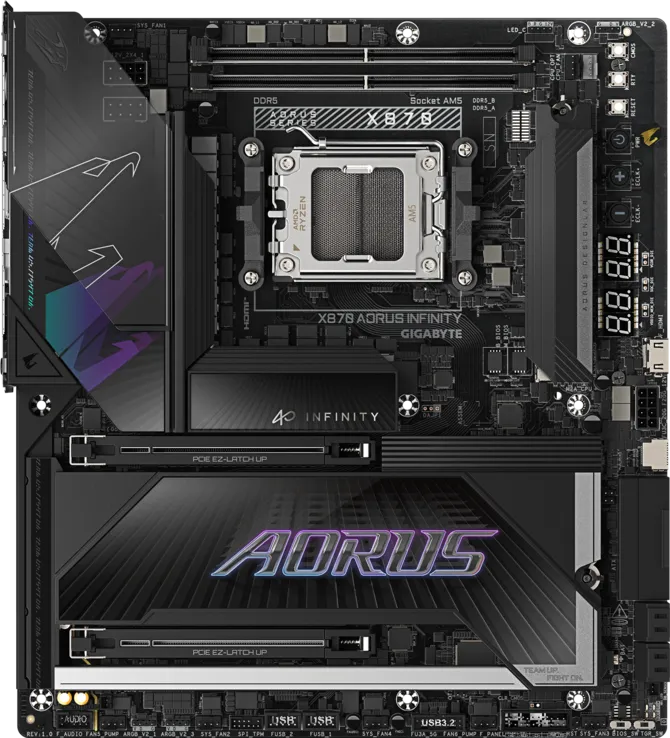

Gigabyte X870 Aorus Infinity E-ATX AM5 DDR5 Gaming Motherboard

₨139,999

1 Year Local WarrantyReplacement or Refund

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 11400MT/s
Daul DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
Exclusive onboard Overclocking Kit for Extreme Overclocking
PCIe EZ-Latch Up : Easy, Safe, and Scratch-Free GPU Removal Design
WIFI EZ-Mag : Magnetic design for quick and easy Wi-Fi antenna installation
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 2* PCIe 5.0 x4

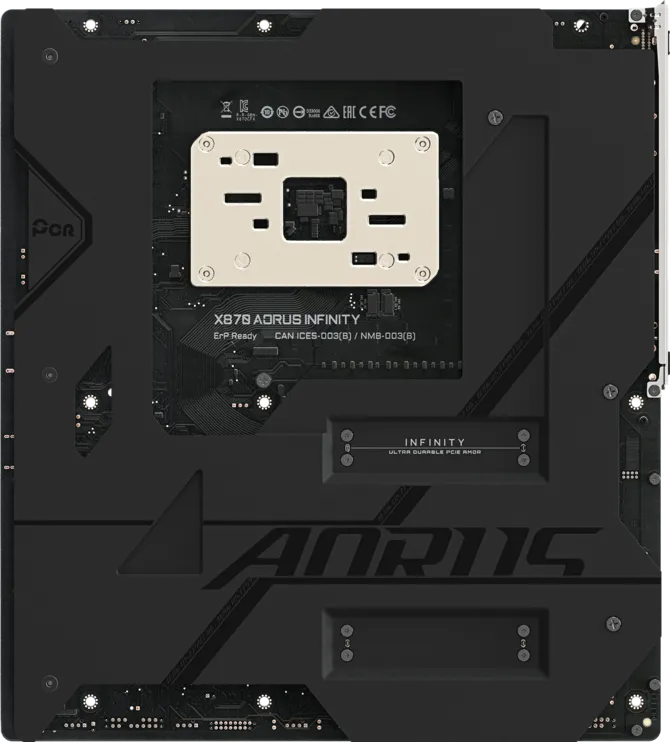

PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Extention
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, USB4 Type-C with DP-Alt, Front QC-USB 65W
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

In stock

Get an email the moment this price drops.

Description
Additional information

Gigabyte X870 Aorus Infinity E-ATX AM5 DDR5 Gaming Motherboard

Specification Group	Motherboard Details
CPU & Chipset	CPU: AMD Socket AM5, support for: – AMD Ryzen™ 9000 Series Processors – AMD Ryzen™ 8000 Series Processors – AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) Chipset: AMD X870
Memory Specifications	Memory Speed Support: DDR5 11400(OC)** / 9600(OC)* / 9200(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Capacity & Sockets: 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Architecture & Module Support: Dual channel memory architecture \| Support for non-ECC Un-buffered DIMM memory modules Overclocking Profiles: Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) * EXPO/XMP overclocking: Rated memory frequencies are attainable by enabling the appropriate EXPO/XMP performance profile in the BIOS settings. Manual overclocking:** Rated memory frequencies are achievable with advanced BIOS settings and specialized finetuning components. Performance may vary by system configuration and operating environment conditions.
Graphics & Audio	Onboard Graphics: – Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: • 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. – Integrated Graphics Processor with AMD Radeon™ Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. • 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Audio: Realtek® ALC1220 CODEC \| DTS:X® Ultra \| High Definition Audio \| 2/4/5.1/7.1-channel * The back panel line out jack supports DSD audio. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out
LAN & Wireless	LAN: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module: Qualcomm® Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. * Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion & Storage	Expansion Slots: – 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. – 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. Storage Interface: – 1 x M.2 connector (M2A_CPU), integrated in CPU, Socket 3, M key, type 25110/22110/2580/2280 SSDs: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs – 1 x M.2 connector (M2B_CPU), integrated in CPU, Socket 3, M key, type 22110/2280 SSDs: • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. – 1 x M.2 connector (M2D_SB), integrated in Chipset, Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs – 4 x SATA 6Gb/s connectors RAID Support: – RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. – RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB Configuration	CPU + ASMedia USB4® Controller: – 1 x USB4® USB Type-C® port on the back panel CPU: – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset + USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) * For precautions regarding the fast charging function, refer to “USB Type-C® Header” in Chapter 2-8, “Internal Connectors.” – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	– 1 x 24-pin ATX main power connector – 2 x 8-pin ATX 12V power connectors – 1 x PCIe power connector – 1 x CPU fan header – 1 x CPU fan/water cooling pump header – 4 x system fan headers – 2 x system fan/water cooling pump headers – 3 x addressable RGB Gen2 LED strip headers – 1 x RGB LED strip header – 3 x M.2 Socket 3 connectors – 4 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0/1.1 headers – 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) – 1 x HDMI port (Note) – 1 x Clear CMOS jumper – 2 x temperature sensor headers – 1 x power button (PWR) – 1 x reset button (RESET) – 1 x Clear CMOS button (CMOS) – 1 x Cold Reset button (RTY) – 1 x CPU Clock up button (ECLK+) – 1 x CPU Clock down button (ECLK-) – 1 x BIOS switch (BIOS_SW) – 1 x OC Trigger switch (TGR_SW) – Voltage Measurement Points

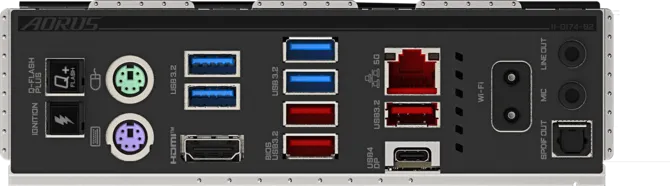

Back Panel Connectors	– 1 x Q-Flash Plus button – 1 x OC Ignition button – 1 x PS/2 keyboard port – 1 x PS/2 mouse port – 1 x HDMI port (Note: Actual support may vary by CPU) – 4 x USB 3.2 Gen 1 ports – 3 x USB 3.2 Gen 2 Type-A ports (red) – 1 x USB4® USB Type-C® port (DisplayPort (Note)) – 1 x RJ-45 port – 2 x antenna connectors (2T2R) – 2 x audio jacks – 1 x optical S/PDIF Out connector
System, BIOS & Physical	I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection \| Temperature detection \| Fan speed detection \| Water cooling flow rate detection \| Fan fail warning \| Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 2 x 512 Mbit flash \| Use of licensed AMI UEFI BIOS \| Support for DualBIOS™ \| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for GIGABYTE Control Center (GCC) \| Support for Q-Flash \| Support for Q-Flash Plus \| Support for Smart Backup * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Bundled Software: Norton® Internet Security (OEM version) Operating System: Support for Windows 11 64-bit Form Factor: E-ATX Form Factor; 30.5cm x 27.5cm
