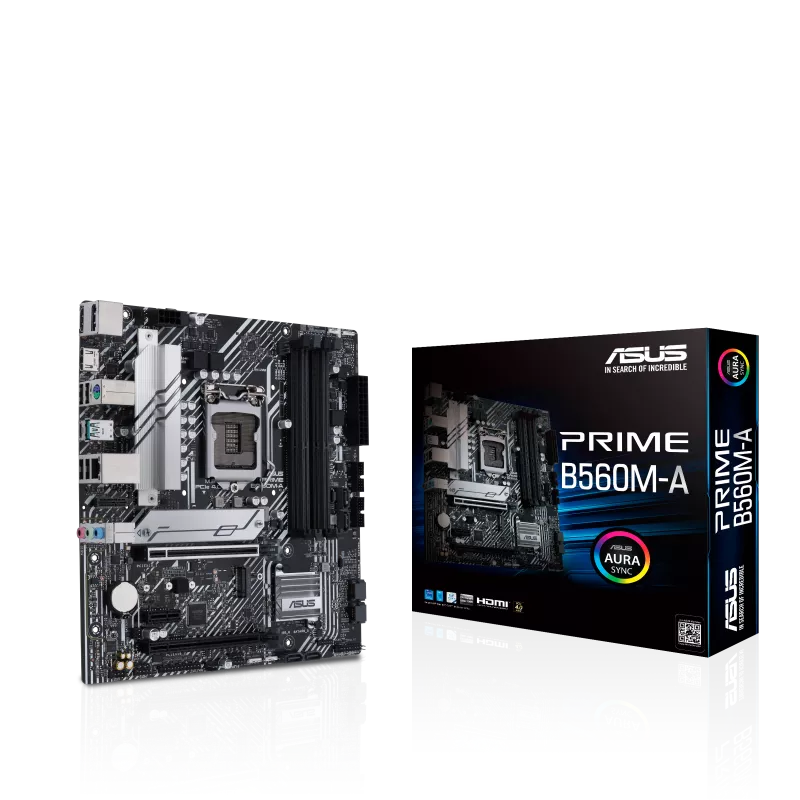

ASUS PRIME B560M-A M-ATX LGA1200 DDR4 Gaming Motherboard – USED

Name: ASUS PRIME B560M-A M-ATX LGA1200 DDR4 Gaming Motherboard - USED
Brand: ASUS
SKU: RBTGMB00191-used
Price: 24999 PKR
Availability: InStock

₨24,999

3 Months Local WarrantyReplacement or Refund

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.ASUS Prime B560M-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.

Flexible M.2 heatsink takes care of two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfer.
Two M.2 slots (up to 64 Gbps)
PCIe® 4.0 Slot
USB 3.2 Gen 2 Type-C
V-M.2 Slot Key E for Wi-Fi

In stock

Get an email the moment this price drops.

Description
Additional information

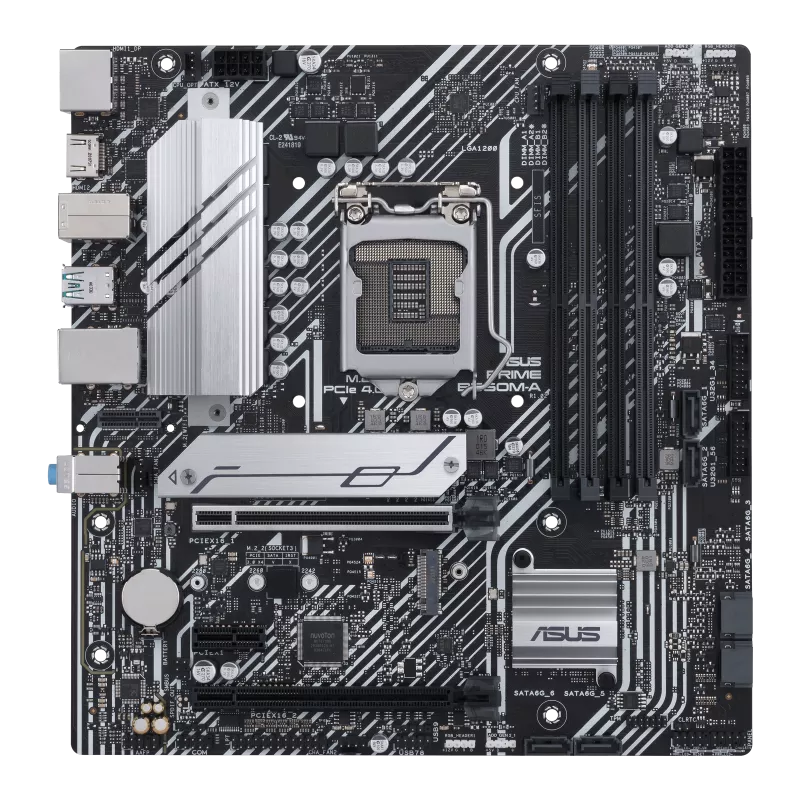

ASUS PRIME B560M-A M-ATX LGA1200 DDR4 Gaming Motherboard

Specification Group	ASUS PRIME B560M-A Details
CPU & Chipset	Model Name: PRIME B560M-A Processor Socket: LGA1200 CPU Compatibility: 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors (14nm) Processor Features: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* Chipset: Intel® B560 *Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.
Memory Support	Memory Architecture: Dual Channel Memory Architecture, OptiMem II Supported Frequencies: DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Native Speed Support: – 11th Gen Intel® Processors: Supports 3200/2933/2800/2666/2400/2133 MHz natively – 10th Gen Intel® Core™ i7/i9: Supports 2933/2800/2666/2400/2133 MHz natively (others run up to DDR4 2666MHz) Module Support: Non-ECC, Un-buffered Memory; Supports Intel® Extreme Memory Profile (XMP)
Graphics & Expansion	Integrated Display Outputs:* – 1 × DisplayPort 1.4 (Max resolution 4096 × 2304 @ 60Hz) – 2 × HDMI™ ports (HDMI 2.0 with max 4K @ 60Hz on 11th Gen; HDMI 1.4 with max 4K @ 30Hz on 10th Gen) Graphics specifications vary depending on installed CPU.Expansion Slots: – CPU Slot:* 1 × PCIe 4.0/3.0 x16 slot (PCIe 4.0 x16 supported by 11th Gen; PCIe 3.0 x16 by 10th Gen) – Chipset Slots: 1 × PCIe 3.0 x16 slot (supports x4 mode), 1 × PCIe 3.0 x1 slot Requires RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Storage Support	M.2 Connectors: – M.2_1 Slot (CPU Attached): Key M, type 2242/2260/2280 (Supports PCIe 4.0 x4 mode; only supported by 11th Gen CPUs, disabled for other CPUs) – M.2_2 Slot (Chipset Attached): Key M, type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA modes)*SATA Ports: 6 × SATA 6Gb/s ports *M.2_2 slot shares bandwidth with SATA_2. When M.2_2 is operating in SATA mode, SATA_2 will be disabled.
Audio & Networking	LAN: 1 × Intel® I219-V 1Gb Ethernet port Wireless Expansion: 1 × V-M.2 slot (Key E) on back panel Audio Features: Audio Shielding, Premium Japanese audio capacitors, Dedicated audio PCB layers Audio Capabilities: Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback* *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound output.
USB Connectivity	Rear Panel USB: – 2 × USB 3.2 Gen 2 ports (1 × Type-A + 1 × USB Type-C®) – 4 × USB 2.0 ports (Type-A)Internal Headers: – 2 × USB 3.2 Gen 1 headers (supports additional 4 USB 3.2 Gen 1 ports) – 1 × USB 2.0 header (supports additional 2 USB 2.0 ports) – 1 × USB 2.0 header (supports additional 1 USB 2.0 port)
Internal Connectors	– Power: 1 × 24-pin Main Power, 1 × 8-pin +12V Power – Fan & Cooling: 1 × 4-pin CPU Fan header, 1 × 4-pin CPU OPT Fan header, 2 × 4-pin Chassis Fan headers – Storage & USB: 2 × M.2 slots (Key M), 6 × SATA 6Gb/s, 2 × USB 3.2 Gen 1 headers, 2 × USB 2.0 headers (3 ports total) – RGB Headers: 2 × AURA Addressable Gen 2 headers, 2 × AURA RGB headers – System & Misc Headers: 1 × Clear CMOS, 1 × COM Port, 1 × Front Panel Audio (AAFP), 1 × LPT header, 1 × S/PDIF Out, 1 × SPI TPM (14-1pin), 1 × System Panel header (20-3 pin) with Chassis Intrusion

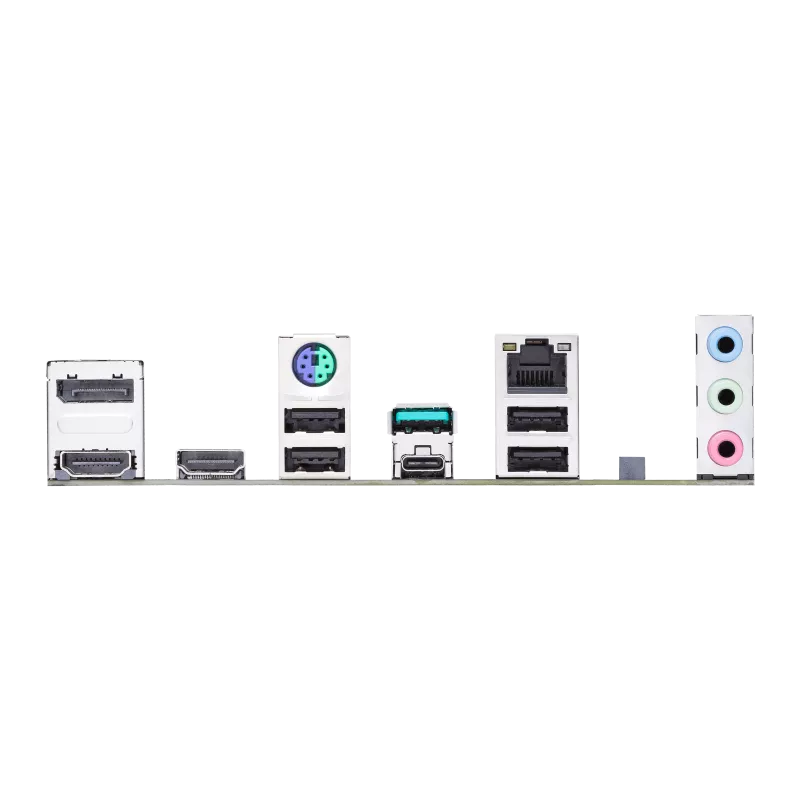

Back Panel Ports	2 × USB 3.2 Gen 2 ports (1 × Type-A, 1 × Type-C®) \| 4 × USB 2.0 ports \| 1 × DisplayPort \| 2 × HDMI™ ports \| 1 × Intel® I219-V 1Gb Ethernet port \| 1 × V-M.2 slot (Key E) \| 3 × Audio jacks \| 1 × PS/2 Keyboard/Mouse combo port
Special Features & Software	ASUS Protection & Design: ASUS 5X PROTECTION III (DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED [CPU, DRAM, VGA, Boot Device], Q-Slot), Flexible M.2 & VRM heatsinks Illumination: AURA Sync (AURA RGB & Addressable Gen 2 headers) Software Suite: Armoury Crate (AURA Creator, AURA Sync), AI Suite 3 (TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update), ASUS CPU-Z, AI Charger, DAEMON Tools, WinRAR, Norton Anti-virus (Free Trial) UEFI BIOS Utilities: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode

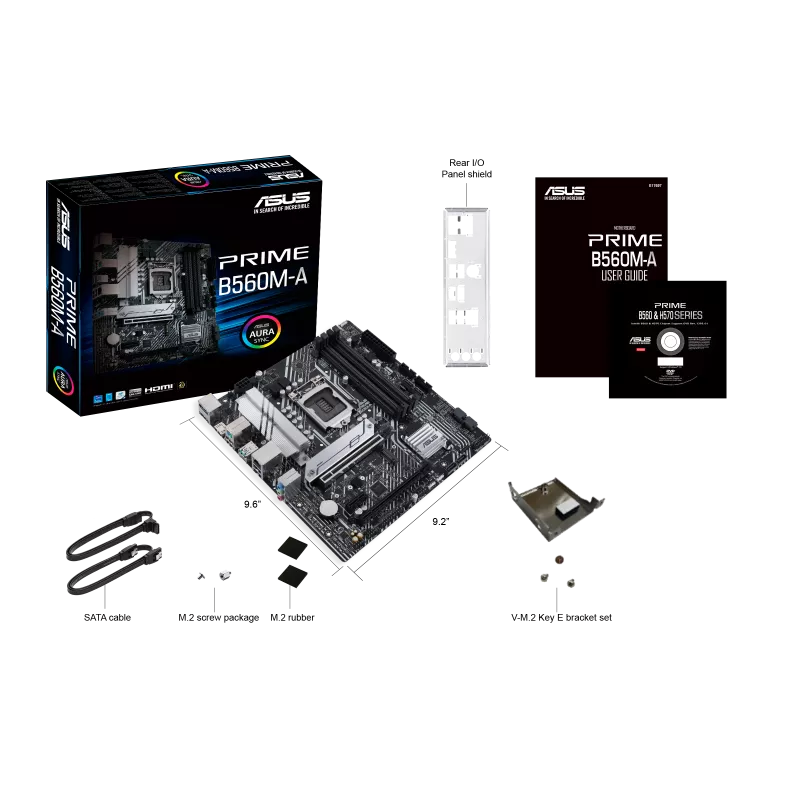

System & Physical	BIOS & Manageability: 128 Mb Flash ROM, UEFI AMI BIOS, WOL by PME, PXE Supported Operating System: Windows 10 64-bit Form Factor: Micro-ATX (M-ATX) Included Accessories: 2 × SATA 6Gb/s cables, 1 × M.2 Rubber Package, 1 × M.2 SSD screw package, 1 × Vertical M.2 Key E bracket set, Support DVD, User manual
