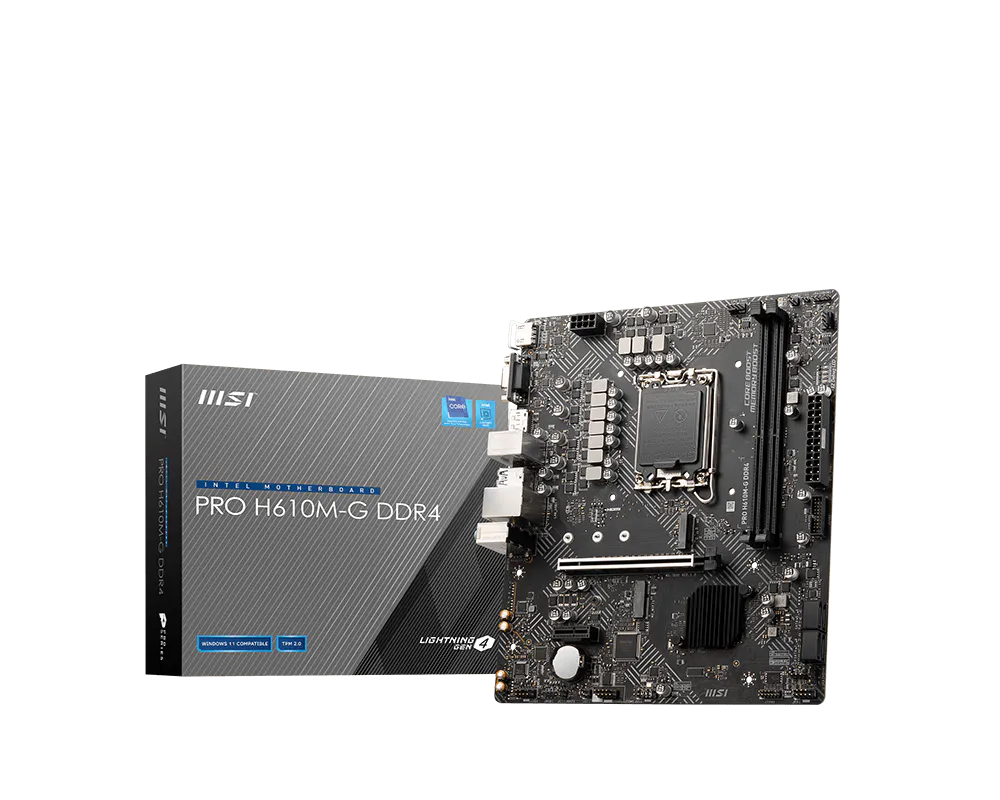

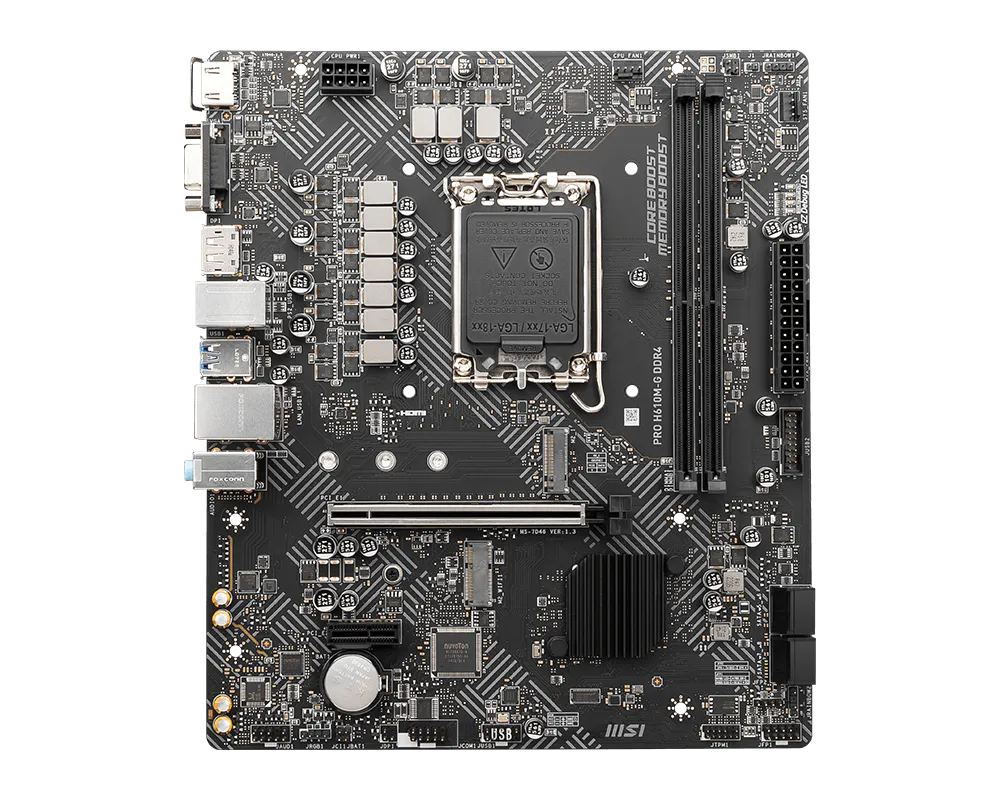

MSI Pro H610M-G M-ATX LGA1700 DDR4 Gaming Motherboard – USED

₨19,499

3 Months Local WarrantyReplacement or Refund

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

In stock

Get an email the moment this price drops.

Description
Additional information

MSI Pro H610M-G M-ATX LGA1700 DDR4 Gaming Motherboard

Specification Group	MSI H610 Motherboard Details
CPU & Chipset	Processor Socket: LGA1700 CPU Compatibility: Supports Intel® Core™ 14th, 13th & 12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors Chipset: Intel® H610 Chipset
Memory Support	Memory Slots & Capacity: 2 × DDR4 memory slots, supports up to 64GB Supported Frequencies: 1R 2133 / 2666 / 2933 / 3200 MHz (by JEDEC & POR) Memory Architecture: Dual-Channel mode, supports Non-ECC, Un-buffered memory
Graphics & Expansion	Onboard Display Outputs:* – 1 × HDMI™ 2.1 with HDR (Supports max resolution 4K 60Hz) – 1 × DisplayPort 1.4 (Supports max resolution 4K 60Hz) – 1 × VGA (Supports max resolution 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz) *Available only on processors featuring integrated graphics. Specs vary by CPU installed.Expansion Slots: – 1 × PCIe x16 slot (From CPU, supports up to PCIe 4.0 x16) – 1 × PCIe x1 slot (Supports PCIe 3.0 x1) – 1 × M.2 slot (E-key, M2_WIFI1, dedicated for PCIe WiFi module only)
Storage Support	M.2 SSD Slots: 1 × M.2 slot (Key M, from chipset), supports up to PCIe 3.0 x4 & SATA 6Gb/s, supports 2242/2260/2280 form factor devices SATA Ports: 4 × SATA 6Gb/s ports* Storage Features: Supports Intel® Smart Response Technology for Intel Core™ processors *Note: SATA7 will be unavailable when installing an M.2 SATA SSD in the M2_1 slot.
USB Connectivity	USB 3.2 Gen 1 5Gbps Ports (4 total): 2 × Type-A ports on back panel, 2 ports available via internal USB connector USB 2.0 Ports (6 total): 4 × Type-A ports on back panel (hub-GL850G), 2 ports available via internal USB 2.0 connector
Audio & Network	Audio CODEC: Realtek® ALC892 / ALC897 Codec (7.1-Channel High Definition Audio) LAN Controller: 1 × Intel® I219V 1Gbps LAN controller
Internal Connectors	Power Connectors: 1 × 24-pin ATX main power, 1 × 8-pin ATX 12V power Fan Connectors: 1 × 4-pin CPU fan, 1 × 4-pin system fan System Headers: 1 × Front panel audio, 2 × System panel connectors, 1 × Chassis Intrusion, 1 × TPM module, 1 × Serial port connector Jumpers & LED Features: 1 × Clear CMOS jumper, 1 × 4-pin RGB LED connector, 2 × 3-pin RAINBOW LED connectors, 4 × EZ Debug LED

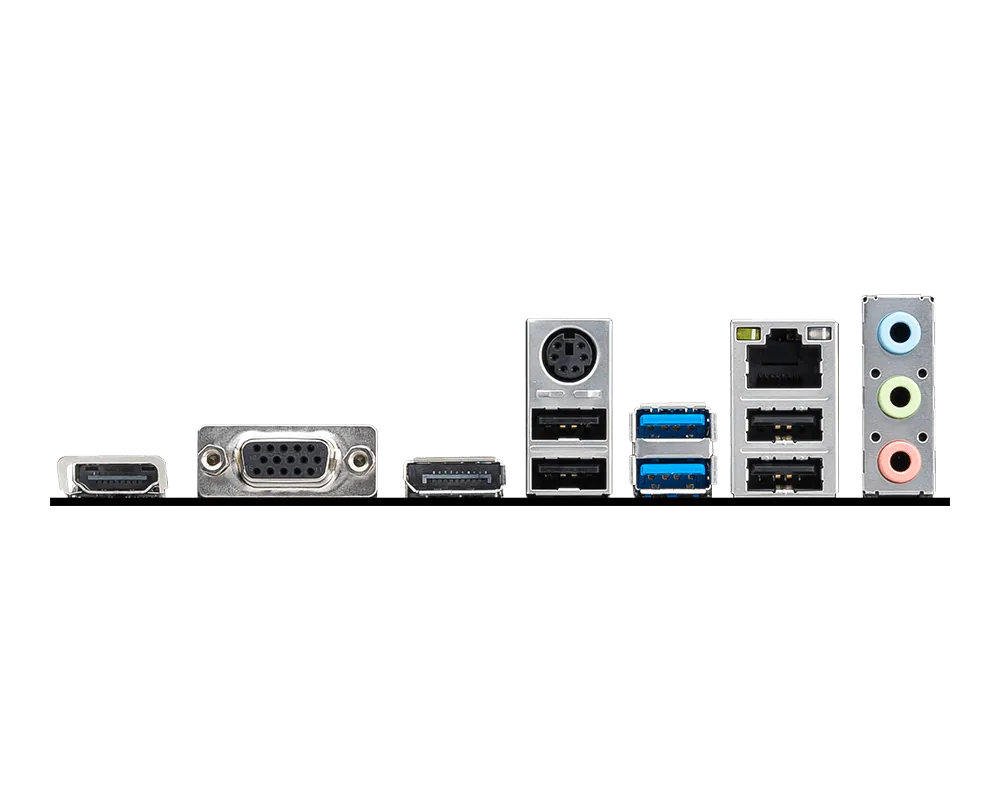

Back Panel Ports	1 × HDMI™, 1 × VGA, 1 × DisplayPort, 1 × PS/2 Keyboard/Mouse combo port, 2 × USB 3.2 Gen 1 5Gbps Type-A, 4 × USB 2.0 Type-A, 1 × LAN port (RJ45), 3 × Audio jacks
System & Dimensions	Form Factor & Dimensions: mATX Form Factor (9.61″ × 8.31″ / 24.4 cm × 21.1 cm) Operating System Support: Windows® 11 64-bit
