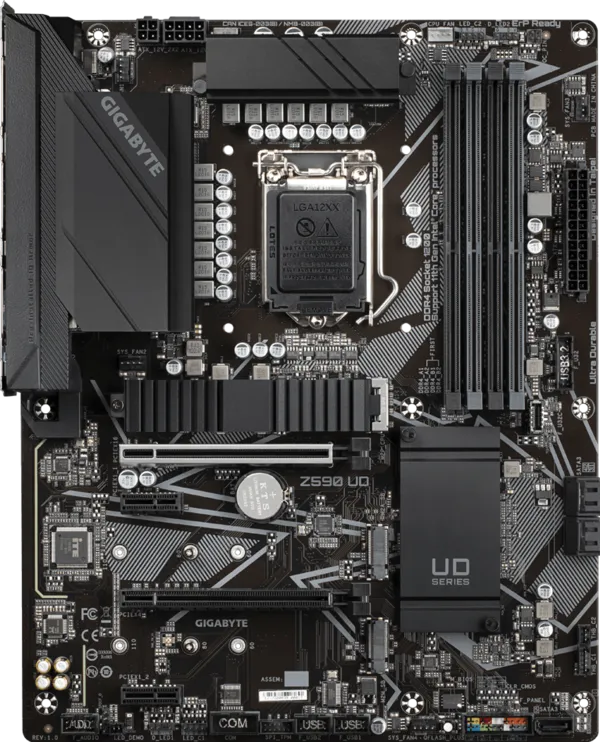

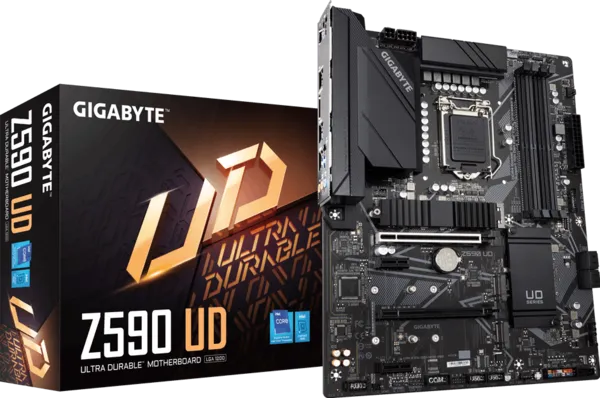

Gigabyte Z590 UD ATX LGA1200 DDR4 Gaming Motherboard – USED

Name: Gigabyte Z590 UD ATX LGA1200 DDR4 Gaming Motherboard - USED
Brand: Gigabyte
SKU: RBTGMB00405-used
Price: 34999 PKR
Availability: InStock

₨34,999

Lowest price ever

3 Months Local WarrantyReplacement or Refund

Intel Z590 Ultra Durable Motherboard with Direct 12+1 Phases Digital VRM and DrMOS, Full PCIe 4.0* Design, Extended Thermal Design with Integrated IO Armor, PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact
Fast 2.5GbE LAN with Bandwidth Management
Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
USB 3.2 Gen2 and Front USB Type-C® for Fast and Versatile Connections
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

In stock

Get an email the moment this price drops.

Gigabyte Z590 UD ATX LGA1200 DDR4 Gaming Motherboard

Specification Group	Intel® Z590 ATX Motherboard Details
CPU & Chipset	Processor Socket: LGA1200 Supported Processors: – 11th Generation Intel® Core™ i9 / i7 / i5 processors – 10th Generation Intel® Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® processors* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 Cache:* Varies with CPU Chipset: Intel® Z590 Express Chipset
Memory Support	Capacity & Sockets: 4 × DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) Architecture: Dual-channel memory architecture 11th Gen CPU Speeds: DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Gen i9/i7 Speeds: DDR4 2933 / 2666 / 2400 / 2133 MHz 10th Gen i5/i3/Pentium/Celeron Speeds: DDR4 2666 / 2400 / 2133 MHz Supported Module Types: ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Extreme Memory Profile (XMP)
Graphics & Audio	Onboard Graphics: Integrated Graphics Processor – Intel® HD Graphics support – 1 × DisplayPort (Max resolution 4096 × 2304 @ 60 Hz, DisplayPort 1.2, HDCP 2.3) Graphics specifications may vary depending on CPU support. Audio Hardware:* Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out *7.1-channel audio requires audio software configuration (Device advanced settings > Playback Device).
LAN & Expansion	Wired LAN: Realtek® 2.5GbE LAN chip (2.5 Gbit / 1 Gbit / 100 Mbit) Expansion Slots: – 1 × PCIe x16 slot, running at x16 (PCIEX16) — PCIe 4.0 standard (Supported by 11th Gen processors only) – 1 × PCIe x16 slot, running at x4 (PCIEX4) — PCIe 3.0 standard – 2 × PCIe x1 slots — PCIe 3.0 standard Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
Storage Support	M.2 Connectors: – M2P_CPU (CPU Source): 1 × M.2 (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support)* – M2A_SB (Chipset Source): 1 × M.2 (Socket 3, M key, type 2260/2280/22110 SATA & PCIe 3.0 x4/x2 SSD support) – M2M_SB (Chipset Source): 1 × M.2 (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) M2P_CPU supported by 11th Generation processors only. SATA Ports:* 5 × SATA 6Gb/s connectors RAID Features: RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™: Intel® Optane™ Memory Ready
USB Connectivity	Chipset Ports: – 2 × USB 3.2 Gen 2 Type-A ports (red) on back panel – 6 × USB 3.2 Gen 1 ports (4 ports on back panel, 2 ports via internal header) – 1 × USB Type-C® port with USB 3.2 Gen 1 support via internal header Chipset + 2 USB 2.0 Hubs: – 6 × USB 2.0/1.1 ports (2 ports on back panel, 4 ports via internal headers)
Internal I/O Headers	– Power: 1 × 24-pin ATX, 1 × 8-pin ATX 12V, 1 × 4-pin ATX 12V – Fan & Cooling: 1 × CPU fan header, 4 × system fan headers* – Lighting: 2 × addressable LED strip headers, 2 × RGB LED strip headers – Storage & Expansion: 5 × SATA 6Gb/s, 3 × M.2 Socket 3, 2 × Thunderbolt™ add-in card connectors – USB Headers: 1 × USB 3.2 Gen 1, 1 × USB Type-C® (USB 3.2 Gen 1), 2 × USB 2.0/1.1 – Front Panel & Audio: 1 × Front panel, 1 × Front panel audio, 1 × S/PDIF Out – Controls & Misc: 1 × Q-Flash Plus button, 1 × TPM header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module), 1 × Serial port header, 1 × Clear CMOS jumper *All fan headers support AIO_Pump, Pump, and high-performance fans delivering up to 2A/12V @ 24W.

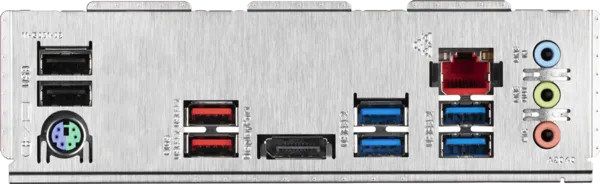

Back Panel Ports	1 × PS/2 keyboard/mouse port \| 1 × DisplayPort \| 2 × USB 3.2 Gen 2 Type-A (red) \| 4 × USB 3.2 Gen 1 \| 2 × USB 2.0/1.1 \| 1 × RJ-45 LAN port \| 3 × Audio jacks
System & BIOS	I/O Controller: iTE® I/O Controller Chip Hardware Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control (depends on fan/pump installed) BIOS Specifications: 1 × 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software & Physical	Unique Features: APP Center (@BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer), Q-Flash Plus, Q-Flash, Xpress Install Bundled Software: Norton® Internet Security (OEM version), Realtek® 8125 Gaming LAN Bandwidth Control Utility Supported OS: Windows 10 64-bit Form Factor: ATX Form Factor (30.5 cm × 24.4 cm)
