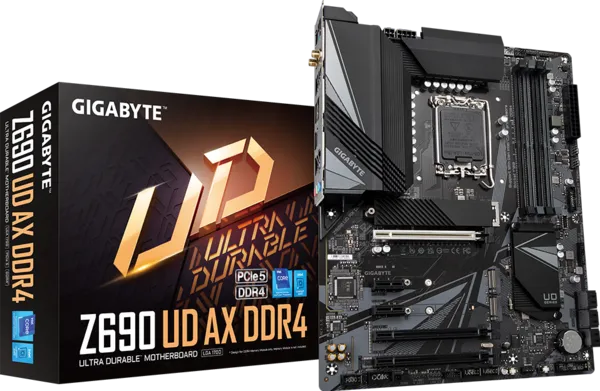

Gigabyte Z690 UD AX ATX LGA1700 DDR4 Gaming Motherboard – USED

Name: Gigabyte Z690 UD AX ATX LGA1700 DDR4 Gaming Motherboard - USED
Brand: Gigabyte
SKU: RBTGMB00398-used
Price: 39999 PKR
Availability: InStock

₨39,999

3 Months Local WarrantyReplacement or Refund

Intel® Z690 Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2×2 Type-C®, Q-Flash Plus

Supports Intel® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage* and Tantalum Polymer Capacitor
Ultra Performance VRM Heatsinks
Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
Fast 2.5 GbE LAN with Bandwidth Management
3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

In stock

Get an email the moment this price drops.

Description
Additional information

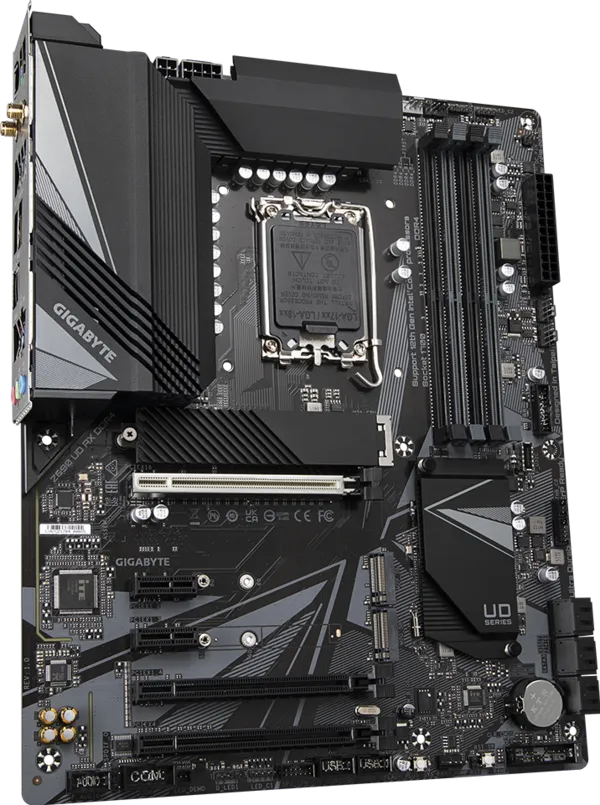

Gigabyte Z690 UD AX ATX LGA1700 DDR4 Gaming Motherboard

Specification Group	Gigabyte Z690 Motherboard Details
CPU & Chipset	Processor Socket: LGA1700 CPU Compatibility: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 Cache: Varies with CPU Chipset: Intel® Z690 Express Chipset
Memory Support	Capacity & Slots: 4 × DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) Memory Architecture: Dual Channel Architecture Supported Speeds (O.C./Native): DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MT/s Module Types: Non-ECC Un-buffered DIMM (1Rx8/2Rx8/1Rx16), ECC Un-buffered DIMM (1Rx8/2Rx8, operates in non-ECC mode), Extreme Memory Profile (XMP) support
Graphics & Expansion	Integrated Display Outputs:* – 1 × HDMI 2.1 port (TMDS compatible, supports HDCP 2.3, max. resolution 4096×2160@60 Hz) – 1 × DisplayPort 1.2 (supports HDCP 2.3, max. resolution 4096×2304@60 Hz) Requires CPU with integrated Intel® HD Graphics support. Expansion Slots:* – 1 × PCIe 5.0 x16 slot (PCIEX16, running at x16; recommended for primary GPU) – 1 × PCIe 3.0 x16 slot (PCIEX4, running at x4) – 1 × PCIe 3.0 x16 slot (PCIEX1_4, running at x1) – 2 × PCIe 3.0 x1 slots
Storage Support	M.2 Connectors: – CPU: 1 × M.2 slot (M2A_CPU, Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) – Chipset: 2 × M.2 slots (M2P_SB & M2Q_SB, Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) SATA Ports: 6 × SATA 6Gb/s connectors RAID & Optane Support: Supports RAID 0, RAID 1, RAID 5, and RAID 10; Intel® Optane™ Memory Ready (enabled on Chipset M.2 connectors)
Networking & Audio	LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) Wireless & Bluetooth (by PCB Revision): – PCB Rev 1.0: Intel® Wi-Fi 6 AX201 (2.4/5 GHz, Wi-Fi 802.11ax 160MHz up to 2.4 Gbps, Bluetooth 5.2) – PCB Rev 1.1 / 1.2: Intel® Wi-Fi 6 AX200 (2.4/5 GHz, Wi-Fi 802.11ax 160MHz up to 2.4 Gbps, Bluetooth 5.2) – PCB Rev 1.3 / 1.4: Intel® Wi-Fi 6E AX211 (2.4/5/6 GHz, Wi-Fi 802.11ax 160MHz up to 2.4 Gbps, Bluetooth 5.3) Audio: Realtek® Audio CODEC, High Definition Audio (2/4/5.1/7.1-channel), S/PDIF Out support
USB Connectivity	Back Panel USB: – 1 × USB Type-C® port (USB 3.2 Gen 2×2) – 1 × USB 3.2 Gen 2 Type-A port (red) – 4 × USB 3.2 Gen 1 ports – 4 × USB 2.0/1.1 ports Internal Headers: – 1 × USB Type-C® header (USB 3.2 Gen 1 support) – 1 × USB 3.2 Gen 1 header (supports 2 ports) – 2 × USB 2.0/1.1 headers (supports 4 ports)
Internal Connectors	Power Connectors: 1 × 24-pin ATX, 1 × 8-pin ATX 12V, 1 × 4-pin ATX 12V Fan & Cooling Headers:* 1 × CPU fan, 1 × Water cooling CPU fan, 3 × System fan, 1 × System fan/water cooling pump RGB Headers: 2 × Addressable LED strip headers, 2 × RGB LED strip headers System & Expansion Headers: 3 × M.2 Socket 3, 6 × SATA 6Gb/s, 1 × Front panel, 1 × Front panel audio, 1 × S/PDIF Out, 1 × USB Type-C®, 1 × USB 3.2 Gen 1, 2 × USB 2.0/1.1, 1 × Serial port, 2 × Thunderbolt™ add-in card connectors, 1 × TPM header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 support) Onboard Buttons & Jumpers: 1 × Reset button, 1 × Reset jumper, 1 × Q-Flash Plus button, 1 × Clear CMOS jumper *All fan headers support AIO_Pump, Pump, and high-performance fans up to 2A/12V @ 24W.

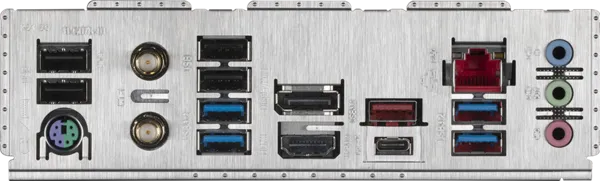

Back Panel Ports	1 × PS/2 keyboard/mouse port \| 2 × SMA antenna connectors (2T2R) \| 1 × DisplayPort \| 1 × HDMI port \| 1 × USB Type-C® port (USB 3.2 Gen 2×2) \| 1 × USB 3.2 Gen 2 Type-A port (red) \| 4 × USB 3.2 Gen 1 ports \| 4 × USB 2.0/1.1 ports \| 1 × RJ-45 LAN port \| 3 × Audio jacks
Monitoring & Features	I/O Controller & Monitoring: iTE® I/O Controller Chip; Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control Unique Features: APP Center (@BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer), Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install Bundled Software: Norton® Internet Security (OEM version), LAN bandwidth management software
System & Physical	BIOS: 1 × 256 Mbit flash, Licensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) Supported Operating System: Windows 11 64-bit, Windows 10 64-bit Form Factor: ATX Form Factor (30.5 cm × 24.4 cm)
