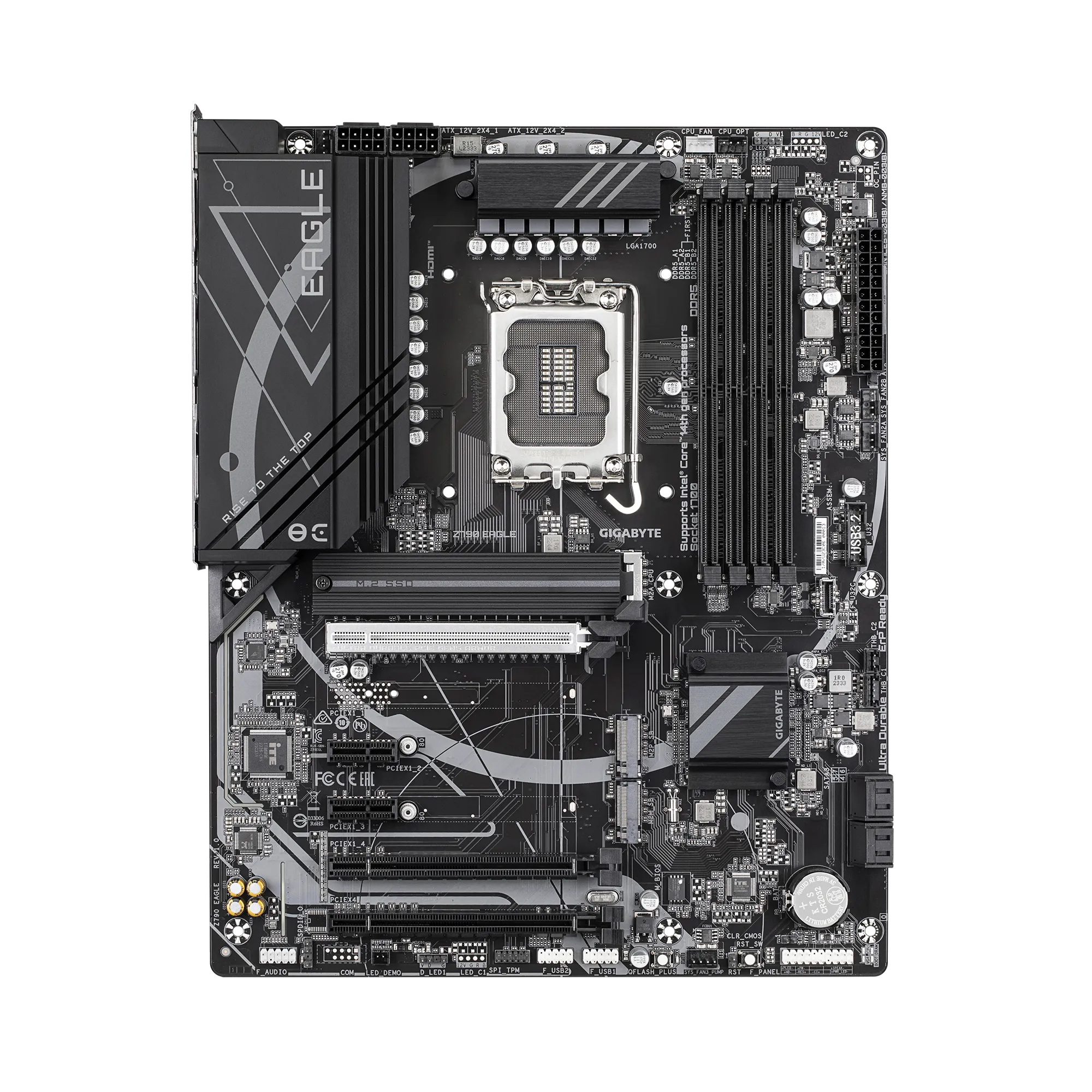

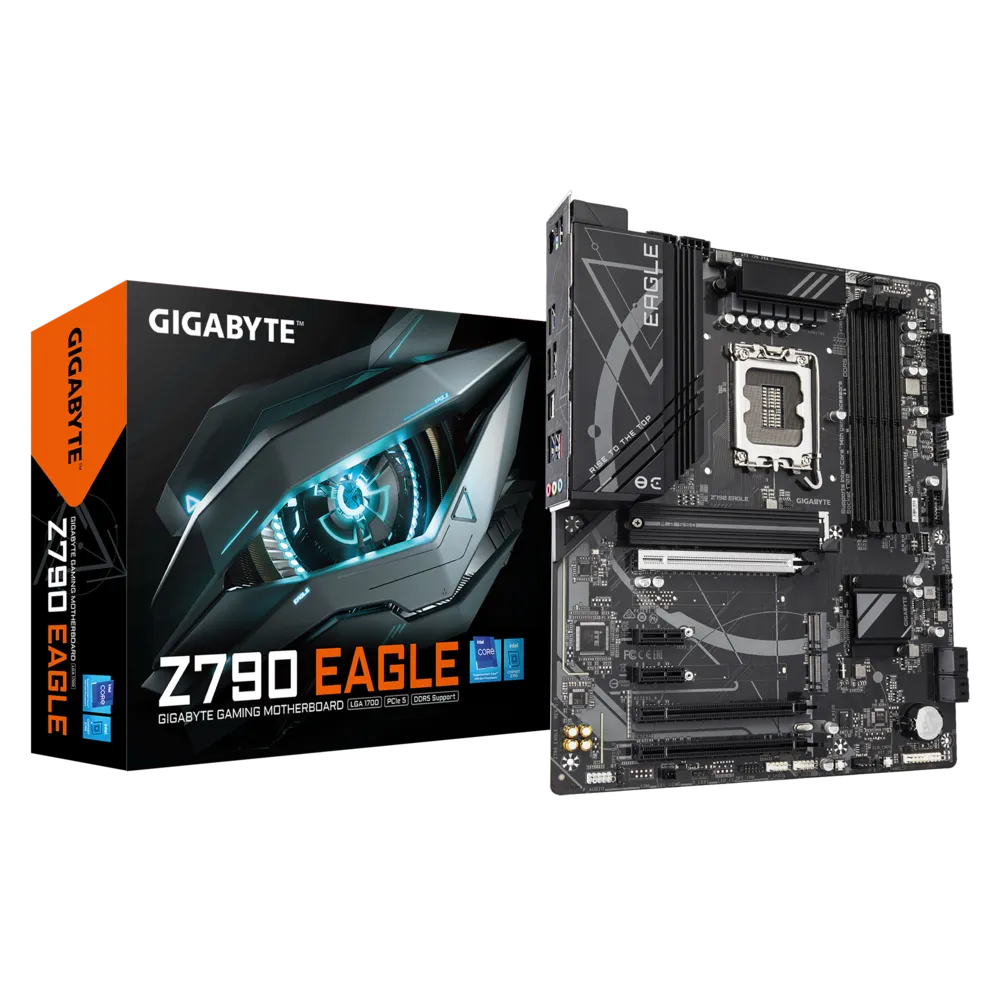

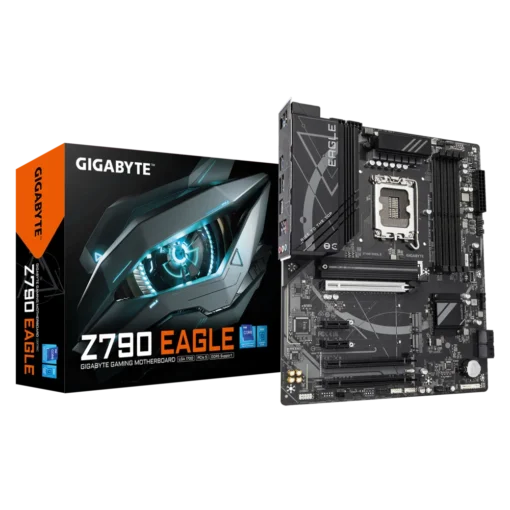

Gigabyte Z790 Eagle ATX LGA1700 DDR5 Gaming Motherboard

₨64,999

Supports Intel Core™ 14th/ 13th /12th processors
Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 5.0×16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 6+6 phases parallel power design”

In stock

Description
Additional information

Gigabyte Z790 Eagle ATX LGA1700 DDR5 Gaming Motherboard

GIGABYTE Z790 Motherboard Specifications
CPU	LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors L3 cache varies with CPU (Refer to “CPU Support List” on GIGABYTE’s website)
Chipset	Intel® Z790 Express Chipset
Memory	Supports DDR5 up to 7600(O.C.) MT/s (i9/i7 CPUs) 4 x DDR5 DIMM sockets, up to 256 GB Dual channel architecture Support for ECC/Non-ECC Un-buffered DIMMs (ECC operates in non-ECC mode) Supports XMP (Refer to “Memory Support List” for details)
Onboard Graphics	Integrated Intel® HD Graphics: – 1 x HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3) – 1 x DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3) (Depends on CPU support)
Audio	Realtek® Audio CODEC High Definition Audio Supports 2/4/5.1/7.1-channel configurations Supports S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip
Expansion Slots	CPU: – 1 x PCIe 5.0 x16 Chipset: – 1 x PCIe 4.0 x4 – 2 x PCIe 3.0 x1
Storage Interface	CPU: – 1 x M.2 PCIe 4.0 x4/x2 (22110/2280) Chipset: – 2 x M.2 PCIe 4.0 x4/x2 (2280) – 1 x M.2 SATA/PCIe 4.0 x4/x2 (2280) – 4 x SATA 6Gb/s RAID 0/1/5/10 support for both NVMe and SATA
USB	Rear: – 1 x USB Type-C® (USB 3.2 Gen 2) – 1 x USB 3.2 Gen 2 Type-A – 4 x USB 3.2 Gen 1 – 2 x USB 2.0 Internal: – 1 x USB Type-C® header (USB 3.2 Gen 1) – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0 headers (4 ports)
Internal I/O	2 x 8-pin ATX 12V 1 x 24-pin ATX 4 x system fan headers 2 x LED headers 3 x M.2 4 x SATA Front panel, audio, USB (2.0, 3.2, Type-C) TPM, Clear CMOS, Q-Flash Plus, Reset button

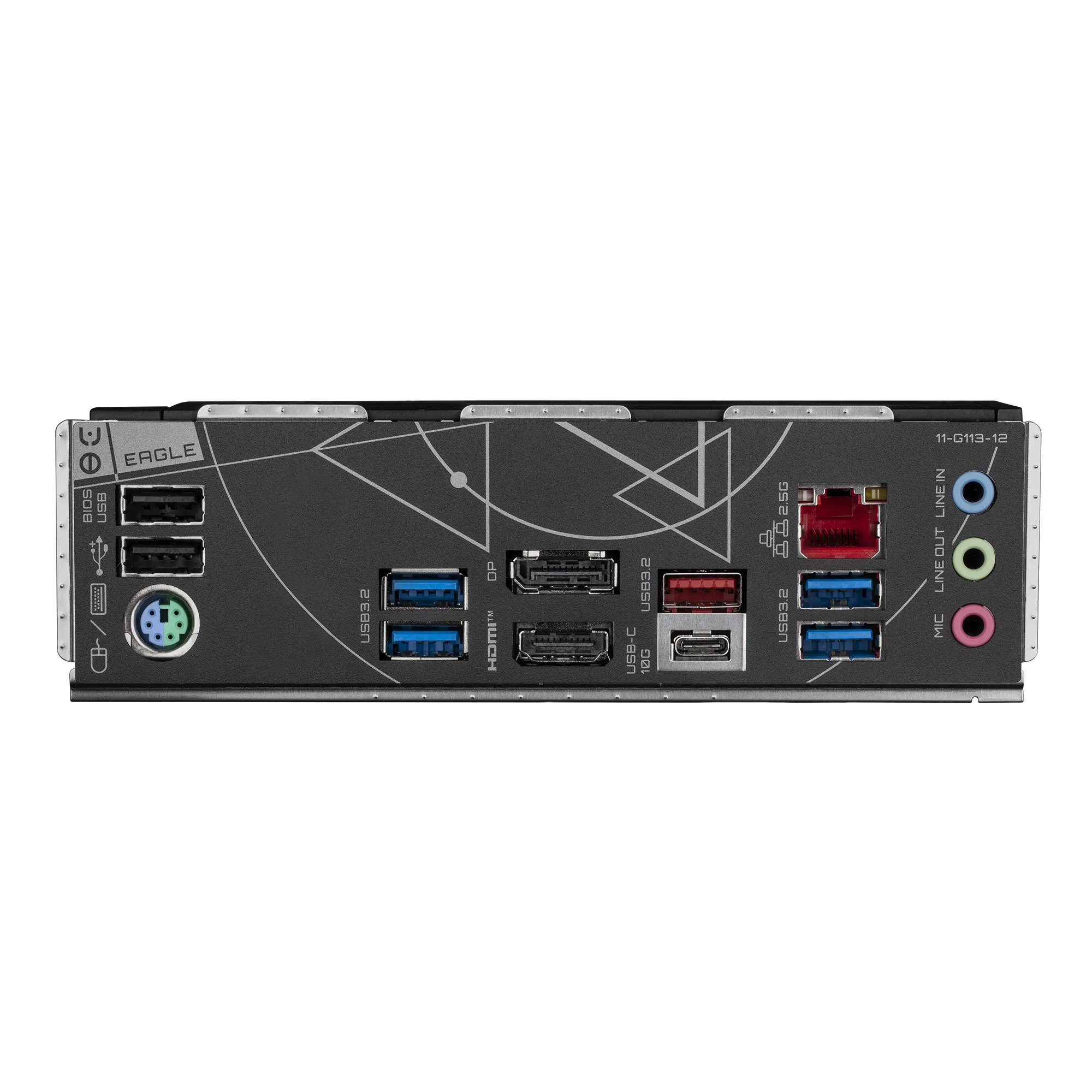

Back Panel I/O	1 x PS/2 1 x USB Type-C® (Gen 2) 1 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI, 1 x DP 1 x RJ-45 3 x audio jacks
Monitoring	Voltage, Temperature, Fan speed Water flow, Fan fail warning Fan speed control (dependent on fan type)
BIOS	256 Mbit flash AMI UEFI BIOS ACPI 5.0, PnP, SM BIOS 2.7, etc.
Unique Features	GIGABYTE Control Center (GCC) Support for Q-Flash / Q-Flash Plus / Smart Backup
Software	Norton Internet Security (OEM) LAN bandwidth manager
OS Support	Windows 11 64-bit Windows 10 64-bit
Form Factor	ATX; 30.5cm x 24.4cm
