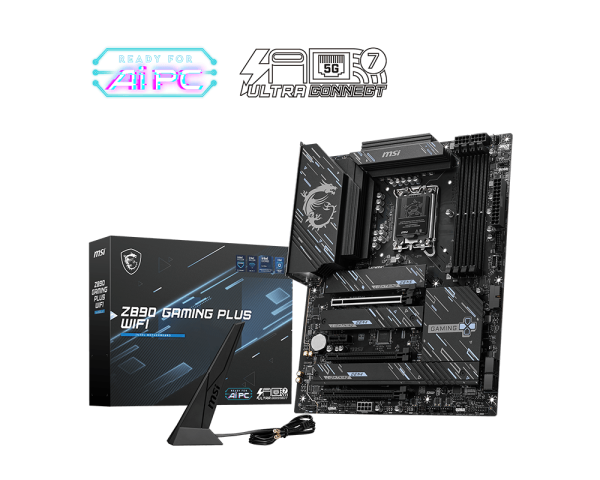

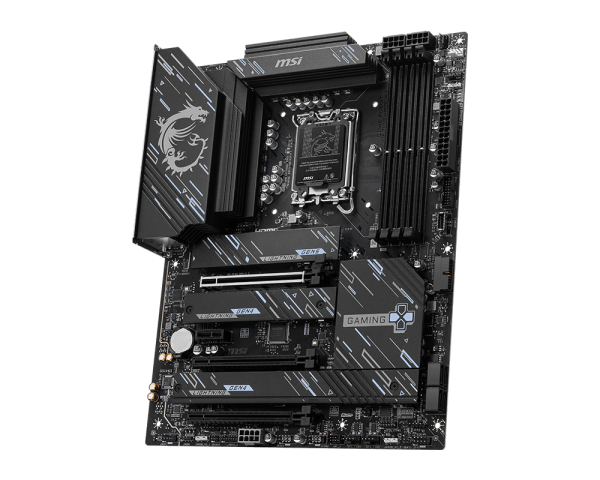

MSI Z890 Gaming Plus WiFi ATX LGA 1851 DDR5 Gaming Motherboard

₨98,999

MSI Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for 24/7 non-stop gaming of Intel Core Ultra processors.

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Out of stock

Description
Additional information

MSI Z890 Gaming Plus WiFi ATX LGA 1851 DDR5 Gaming Motherboard

Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. Please refer to the Memory Compatibility List on the product’s Support page.
Onboard Graphics	1x HDMI™ (HDMI™ 2.1, max 4K 60Hz)* 1x DisplayPort (DP 1.4, max 4K 60Hz)* 1x Type-C DisplayPort — Thunderbolt™ 4 port, supporting DP 2.1 with UHBR20, max 4K@120Hz / 8K@60Hz* *Available only on processors with integrated graphics.
Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 up to x4 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	4x M.2 M.2_1 PCIe 5.0 x4 (CPU) — 2280/2260 M.2_2 PCIe 4.0 x4 (Chipset) — 22110/2280/2260 M.2_3 PCIe 4.0 x4 (Chipset) — 2280/2260/2242 M.2_4 PCIe 4.0 x4 / SATA (Chipset) — 2280/2260/2242 4x SATA 6G *Refer to manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, 1, 5, 10 (SATA) Supports RAID 0, 1, 5, 10 (M.2 NVMe)
Onboard Thunderbolt	1x Thunderbolt 4 port (Rear) Up to 40Gbps with TB devices Up to 20Gbps with USB4 Up to 10Gbps with USB 3.2 Up to 5V/3A 15W charging Daisy-chain up to 3 TB4 / 5 TB3 devices Supports up to 8K display
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	Intel® Killer™ E5000 5Gbps LAN
Internal I/O	1x Thunderbolt5 card connector (JTBT5) 1x ATX_PWR 2x CPU_PWR 1x PCIE_PWR 8pin 1x CPU Fan 1x Combo Fan (Pump/Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller (JDASH) 3x ARGB V2 1x RGB header 1x TPM 2.0 header 4x USB 2.0 ports 4x USB 5Gbps Type-A ports 1x USB 20Gbps Type-C port
Wireless LAN & Bluetooth	Intel® Killer™ BE1750x Wi-Fi 7 MU-MIMO TX/RX — 2.4/5/6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4**
LED Feature	4x EZ Debug LED

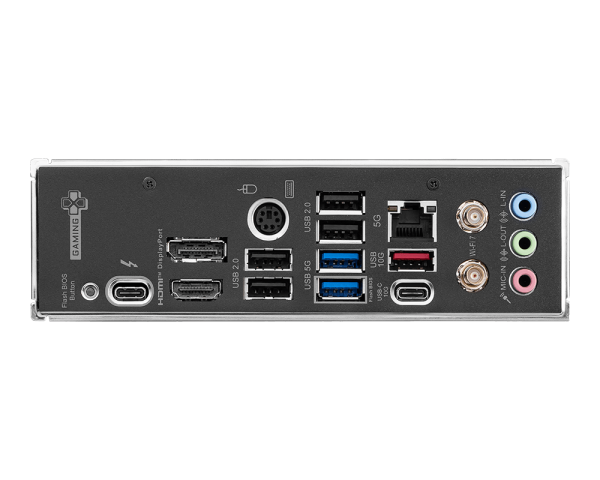

Back Panel Ports	DisplayPort Keyboard / Mouse USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 5Gbps Type A USB 10Gbps Type C USB 10Gbps Type A
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX — 243.84mm x 304.8mm
