Asus ROG Crosshair X870E Dark Hero ATX AM5 DDR5 Gaming Motherboard

Name: Asus ROG Crosshair X870E Dark Hero ATX AM5 DDR5 Gaming Motherboard
Brand: ASUS
SKU: RBTGMB00413
Price: 297999 PKR
Availability: InStock

₨297,999

2 Years Local WarrantyReplacement or Refund

Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity.

AI Cache Boost
ASUS AI Advisor
Overclocking
AI Cooling II
ASUS AIO Q-CONNECTOR
WIFI 7
3D VC M.2 Heatsink
EZ PC DIY
Polymo Lighting II
USB4

In stock

Get an email the moment this price drops.

Description
Additional information

Asus ROG Crosshair X870E Dark Hero ATX AM5 DDR5 Gaming Motherboard

Specification Group	ASUS ROG CROSSHAIR X870E DARK HERO Details
General & Platform	Model: ROG CROSSHAIR X870E DARK HERO Form Factor: ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) CPU Socket: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD X870E Operating System: Windows 11
Memory Support	DIMM Slots: 4 x DIMM slots, Max. 256GB, DDR5 Speed Specifications (OC): – Up to 8600+ MT/s (OC) / 8200+ MT/s with Ryzen™ 9000 Series Processors – Up to 9600+ MT/s (OC) / 9200+ MT/s with Ryzen™ 8000 Series Processors – Up to 8000+ MT/s (OC) with Ryzen™ 7000 Series Processors Architecture & Features: Dual channel memory architecture, ECC and Non-ECC, Un-buffered DIMM, On-Die ECC function, Supports AMD EXPO™, DIMM Fit, DIMM Fit Pro, NitroPath DRAM Technology, ASUS Enhanced Memory Profile (AEMP)
Graphics & Slots	Graphics Outputs: 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1), 2 x USB4® (40Gbps) ports supporting USB Type-C® display outputs (max. 4K@60Hz as specified in DisplayPort 1.4a) Expansion Slots (Varying by CPU): – AMD Ryzen™ 9000 & 7000: 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) – AMD Ryzen™ 8700/8600/8400: 2 x PCIe 4.0 x16 slots (G5_1 supports x8, G5_2 runs at PCIe 3.0 x4) – AMD Ryzen™ 8500/8300: 2 x PCIe 4.0 x16 slots (G5_1 supports x4, G5_2 runs at PCIe 3.0 x4)
Storage & RAID	M.2 Slots (Total 5): – M.2_1 (Key M): up to PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000 series) – M.2_2 (Key M): up to PCIe 5.0 x4 / PCIe 4.0 x4 (shares bandwidth with USB4 ports) – M.2_3 & M.2_4 (Chipset): PCIe 4.0 x4 mode – M.2_5 (Chipset): Type 2230, PCIe 4.0 x2 mode SATA Ports: 4 x SATA 6Gb/s ports (2 via chipset, 2 via ASMedia ASM1162 controller) RAID Support: AMD RAIDXpert2 Technology (RAID 0/1/5/10 for Ryzen 9000/8000/7000 processors)
Networking	Ethernet: 1 x Realtek 10Gb Ethernet, 1 x Realtek 5Gb Ethernet with ASUS LANGuard Wireless & Bluetooth: Wi-Fi 7 (MediaTek MT7927), 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency bands, Wi-Fi 7 320MHz bandwidth, Bluetooth® v5.4 (supports LE Audio)
USB Connectivity	Rear USB (Total 11 ports): 2 x USB4® (40Gbps) Type-C® ports, 9 x USB 10Gbps connectors (6 x Type-A + 3 x USB Type-C®) Front USB (Total 12 ports): 1 x USB 20Gbps connector (supports Type-C® with up to 60W PD/QC4+), 1 x USB 20Gbps connector (Type-C®), 2 x USB 5Gbps headers (4 ports), 3 x USB 2.0 headers (6 ports)
Audio System	CODEC: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 DAC & Features: ESS® ES9219 QUAD DAC, Impedance sense for front/rear headphones, 120 dB SNR stereo playback, 110 dB SNR recording, up to 32-Bit/384 kHz playback, SupremeFX Shielding, gold-plated jacks, optical S/PDIF out port, premium audio capacitors

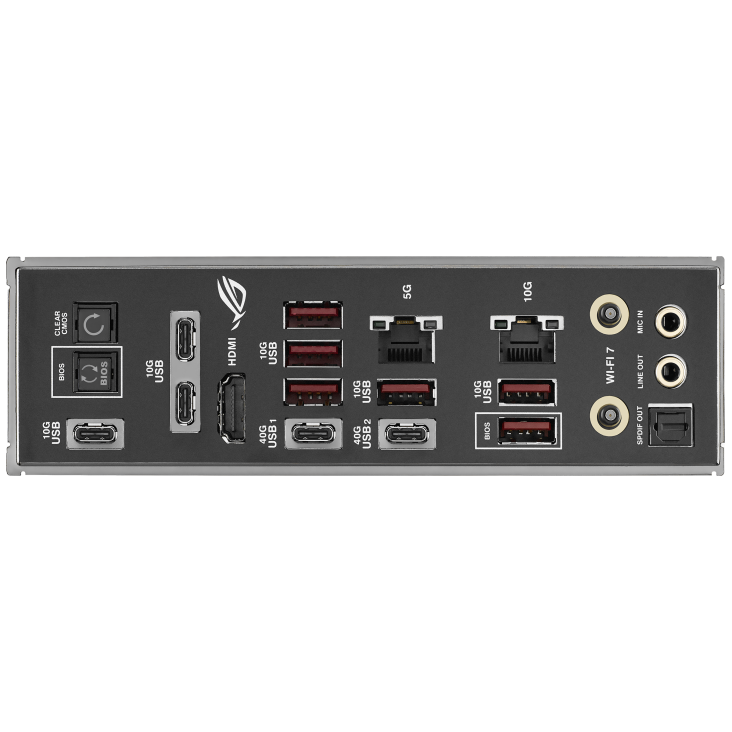

I/O & Connectors	Back Panel I/O: 2 x USB4 Type-C, 9 x USB 10Gbps, 1 x HDMI, 1 x Wi-Fi module, 1 x 10Gb Ethernet, 1 x 5Gb Ethernet, 2 x audio jacks, 1 x Optical S/PDIF out, BIOS FlashBack™ button, Clear CMOS button Internal Headers: Fan/cooling headers (CPU, CPU OPT, AIO Pump, 4x Chassis, W_PUMP+), Power connectors (24-pin, 2x 8-pin +12V CPU, 8-pin PCIe), 5 x M.2 slots, 4 x SATA 6Gb/s, USB headers, addressable Gen2 headers, FlexKey, Start, ReTry, LN2 Mode, System Panel, Thermal Sensor
Special Features	Overclocking & Power: Asynchronous Clock, Extreme OC Kit (FlexKey, LN2 Mode, ReTry, Start), Extreme Engine Digi+ (10K capacitors, MicroFine alloy choke) ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Slot Thermal Solutions: DDR5 fan holder, ROG assistant fan (60mm), 3D VC M.2 Heatsink, M.2 heatsink backplate, VRM heatsink design, Metal backplate Software: ROG CPU-Z, Dolby Atmos, Armoury Crate (Aura Sync, Fan Xpert 4 with AI Cooling II, GameFirst, MLO Wizard), AIDA64 Extreme (1-yr license), Adobe Creative Cloud trial, UEFI BIOS tools (EZ Flash 3, CrashFree BIOS 3)
Accessories & BIOS	BIOS: 64 MB (512Mb) Flash ROM, UEFI AMI BIOS Package Accessories: 4 x SATA 6Gb/s cables, DDR5 fan holder, ROG assistant fan (60mm), thermal pad for M.2 22110, ASUS WiFi Q-Antenna, Q-connector, M.2 Q-Slide package, M.2 backplate rubber packages, ROG stickers, ROG VIP card, ROG Bottle Opener, Quick start guide
