Asus ROG Maximus XI Hero WiFi ATX LGA1151 DDR4 Gaming Motherboard – USED

Name: Asus ROG Maximus XI Hero WiFi ATX LGA1151 DDR4 Gaming Motherboard - USED
Brand: ASUS
SKU: RBTGMB00400-used
Price: 19999 PKR
Availability: InStock

₨19,999

3 Months Local WarrantyReplacement or Refund

Intel Z390 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 4400MHz, 802.11ac Wi-Fi, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

LGA1151 socket for 9th/8th -gen Intel® Core™ desktop processors
Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Philips Hue
Perfected cooling with dedicatedwater cooling zones, M.2 heatsink and various fan controls
Gaming connectivity: Intel Gigabit Ethernet , LANGaurd, dual M.2, USB 3.1 Gen 2, and 802.11AC Wi-Fi
5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig
Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
Gaming durability: ASUS SafeSlot and premium components for maximum durability

In stock

Get an email the moment this price drops.

Description
Additional information

Asus ROG Maximus XI Hero WiFi ATX LGA1151 DDR4 Gaming Motherboard

Specification Group	ASUS ROG MAXIMUS XI HERO (WI-FI) Details
CPU & Chipset	Model Name: ROG MAXIMUS XI HERO (WI-FI) Processor Socket: LGA1151 CPU Compatibility: 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors (14nm) Processor Features: Supports Intel® Turbo Boost Technology 2.0 Chipset: Intel® Z390
Memory Support	Capacity & Slots: 4 × DIMM sockets supporting up to 128 GB of system memory Memory Architecture: Dual Channel Architecture Supported Frequencies (O.C./Native): DDR4 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Module Types: Non-ECC, Un-buffered Memory; Supports Intel® Extreme Memory Profile (XMP)
Graphics & Multi-GPU	Integrated Display Outputs:* – 1 × HDMI 1.4b port (Supports max. resolution 4096 × 2160 @ 30 Hz) – 1 × DisplayPort 1.2 (Supports max. resolution 4096 × 2304 @ 60 Hz) Requires CPU with integrated Intel® UHD Graphics support. Multi-GPU Technology:* – Supports NVIDIA® 2-Way SLI™ Technology – Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	CPU Slots: 2 × PCIe 3.0 x16 slots (supports x16, dual x8, or x8/x4/x4) Chipset Slots: – 1 × PCIe 3.0 x16 slot (max at x4 mode)* – 3 × PCIe 3.0 x1 slots *The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. It runs at x2 mode by default.
Storage Support	M.2 Connectors: – 1 × M.2 Socket 3 (M key, type 2242/2260/2280/22110, PCIe 3.0 x4 mode) – 1 × M.2 Socket 3 (M key, type 2242/2260/2280, SATA & PCIe 3.0 x4 mode)* SATA Ports: 6 × SATA 6Gb/s connectors RAID & Memory Features: Support RAID 0, 1, 5, 10; Intel® Optane™ Memory Ready *When the M.2_1 Socket 3 is operating in SATA mode, the SATA6G_2 port will be disabled.
Networking & Wireless	LAN Controller: Intel® I219V Gigabit LAN Controller with Anti-surge LANGuard & ROG GameFirst Technology Wireless Network: Intel® Wireless-AC 9560 (Wi-Fi 802.11 a/b/g/n/ac, Dual-band 2.4/5 GHz, MU-MIMO, Channel bandwidth HT20/HT40/HT80/HT160) Bluetooth: Bluetooth® 5.0
Audio Features	Audio CODEC: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 with ESS® ES9023P DAC Performance Specs: 120 dB SNR stereo playback output, 113 dB SNR recording input, up to 32-Bit/192kHz playback* Audio Enhancements: SupremeFX Shielding Technology, Impedance sense for front/rear headphones, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Gold-plated jacks, Optical S/PDIF out port, Sonic Radar III, Sonic Studio III + Sonic Studio Link *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Connectivity	Back Panel USB: – 4 × USB 3.2 Gen 2 ports (3 × Type-A [red] + 1 × Type-C) – 2 × USB 3.2 Gen 1 ports (blue) – 2 × USB 2.0 ports Internal Headers: – 1 × USB 3.1 Gen 2 front panel connector – 1 × USB 3.1 Gen 1 header (supports additional 2 USB 3.1 Gen 1 ports) – 2 × USB 2.0 headers (supports additional 4 USB 2.0 ports)
Internal Connectors	Power Connectors: 1 × 24-pin EATX power, 1 × 8-pin EATX 12V power, 1 × 4-pin ATX 12V power Fan & Cooling Headers: 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT Fan, 3 × 4-pin Chassis Fan, 1 × 4-pin AIO_PUMP, 1 × 4-pin W_PUMP+, 1 × H_AMP fan, 1 × EXT_Fan header, W_IN / W_OUT / W_FLOW headers, 1 × Thermal sensor connector RGB Headers: 2 × Aura Addressable Strip headers, 2 × Aura RGB Strip headers Buttons & Switches: Start button, Reset button, ReTry button, MemOK! II switch System & Misc Headers: 2 × M.2 Socket 3, 6 × SATA 6Gb/s, 1 × Front panel audio (AAFP), 1 × USB 3.1 Gen 2 front panel, 1 × USB 3.1 Gen 1, 2 × USB 2.0, 1 × TPM, 1 × Node connector, 1 × System panel connector

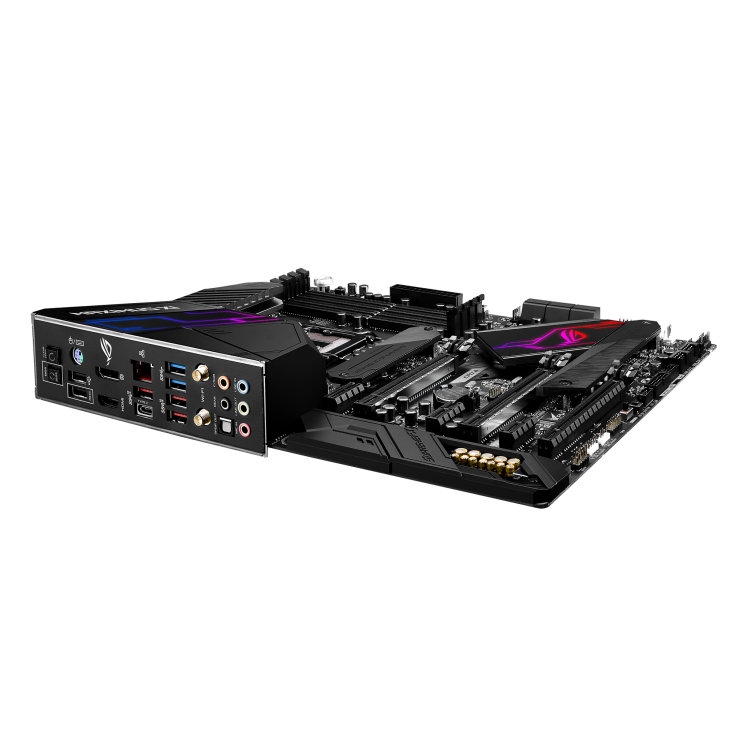

Back Panel Ports	4 × USB 3.2 Gen 2 (1 × Type-C + 3 × Type-A) \| 2 × USB 3.2 Gen 1 Type-A \| 2 × USB 2.0 \| 1 × USB BIOS FlashBack™ Button \| 1 × Clear CMOS button \| 1 × PS/2 Keyboard/Mouse combo port \| 1 × DisplayPort \| 1 × HDMI \| 1 × RJ45 LAN port \| 1 × Optical S/PDIF out \| 1 × ASUS Wi-Fi Module \| 5 × Gold-plated audio jacks
Special & ROG Features	Hardware Features: Extreme Engine Digi+ (MicroFine Alloy Chokes, 10K Black Metallic Capacitors), OptiMem II, MemOK! II, Pre-mounted I/O Shield, ASUS NODE interface, USB BIOS FlashBack™ ASUS Q-Design: ASUS Q-Code, Q-LED (CPU, DRAM, VGA, Boot Device), Q-Slot, Q-DIMM, Q-Connector Optimization & Software: 5-Way Optimization (TPU, EPU, DIGI+ VRM, Fan Xpert 4, Turbo App), Aura Lighting Control, ROG Software (Mem TweakIt, RAMCache III, RAMDisk, CPU-Z, GameFirst V, Sonic Studio III, Sonic Radar III), AI Suite 3, Armoury Crate
System & Physical	BIOS: 1 × 128 Mb Flash ROM, UEFI AMI BIOS (PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1) Supported Operating System: Windows® 10 64-bit Form Factor: ATX Form Factor (12″ × 9.6″ / 30.5 cm × 24.4 cm)

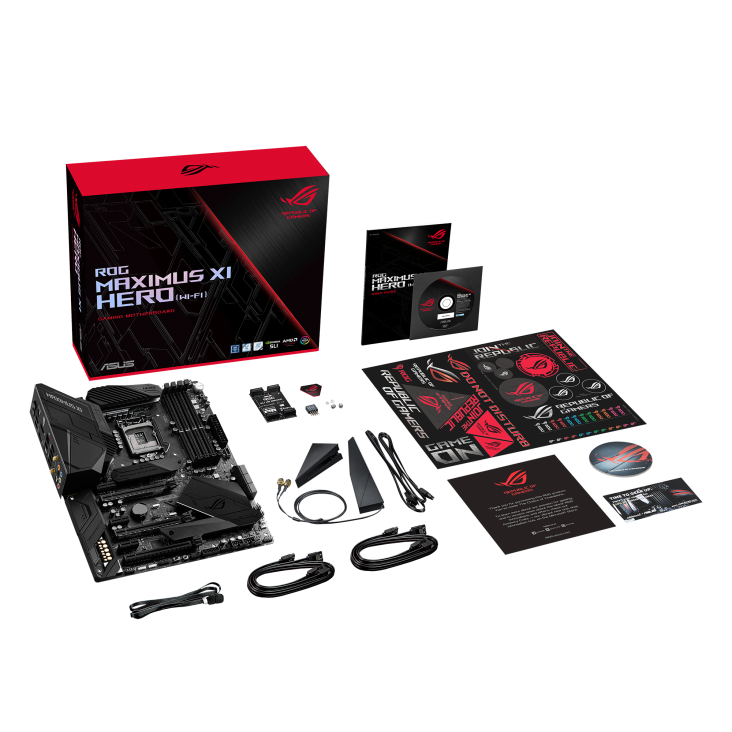

Included Accessories	– 1 × SLI HB BRIDGE (2-WAY-M) – 4 × SATA 6Gb/s cables – 1 × M.2 Screw Package – 1 × ASUS 2T2R dual band Wi-Fi moving antenna – 1 × Extension Cable for RGB strips (80 cm) – 1 × Extension cable for Addressable LED – 1 × Q-Connector – ROG big sticker, ROG coaster(s), User’s manual, Supporting DVD
