Gigabyte H510M DS2V M-ATX LGA1200 DDR4 Gaming Motherboard – USED

Name: Gigabyte H510M DS2V M-ATX LGA1200 DDR4 Gaming Motherboard - USED
Brand: Gigabyte
SKU: RBTGMB00396-used
Price: 9999 PKR
Availability: InStock

₨9,999

3 Months Local WarrantyReplacement or Refund

Intel H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

Supports 11th and 10th Gen Intel Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
Realtek GbE LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

In stock

Get an email the moment this price drops.

Description
Additional information

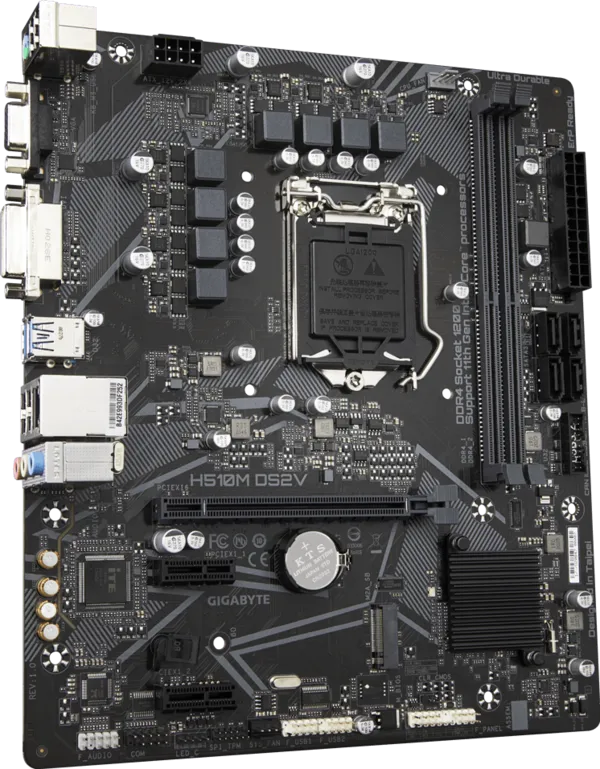

Gigabyte H510M DS2V M-ATX LGA1200 DDR4 Gaming Motherboard

Specification Group	Gigabyte H510 Motherboard Details
CPU & Chipset	Processor Socket: LGA1200 CPU Compatibility: – 11th Gen Intel® Core™ i9 / i7 / i5 Processors – 10th Gen Intel® Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® Processors L3 Cache: Varies with CPU Chipset: Intel® H510 Express Chipset
Memory Support	Capacity & Slots: 2 × DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) Memory Architecture: Dual Channel Architecture Supported Frequencies: – 11th Gen Core i9/i7/i5: DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz – 10th Gen Core i9/i7: DDR4 2933 / 2666 / 2400 / 2133 MHz – 10th Gen Core i5/i3/Pentium®/Celeron®: DDR4 2666 / 2400 / 2133 MHz Module Types: ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode), Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Extreme Memory Profile (XMP) support
Graphics & Expansion	Integrated Display Outputs:* – 1 × D-Sub port (Supports max. resolution 1920×1200@60 Hz) – 1 × DVI-D port (Supports max. resolution 1920×1200@60 Hz; does not support D-Sub adapter) Requires CPU with integrated Intel® HD Graphics support. Expansion Slots:* – 1 × PCIe Express x16 slot (PCIe 4.0 standard; supported by 11th Gen processors only) – 2 × PCIe Express x1 slots (PCIe 3.0 standard)
Storage Support	M.2 Connector: 1 × M.2 connector (Socket 3, M key, type 2260/2280, supports SATA & PCIe 3.0 x4/x2 SSD)* SATA Ports: 4 × SATA 6Gb/s connectors *M2A_SB connector shares bandwidth with the PCIEX1_2 slot. When PCIEX1_2 is populated, M2A_SB operates up to x2 mode.
Audio & Network	Audio CODEC: Realtek® Audio CODEC (High Definition Audio, 2/4/5.1/7.1-channel)* LAN Controller: Realtek® GbE LAN chip (10/100/1000 Mbit) *7.1-channel audio configuration requires audio software setup (Device advanced settings > Playback Device).
USB Connectivity	USB 3.2 Gen 1 Ports (4 total): 2 × Type-A ports on back panel, 2 ports available through internal USB header USB 2.0 / 1.1 Ports (8 total): 4 × Type-A ports on back panel, 4 ports available through internal USB headers (via USB Hub)
Internal Connectors	Power Connectors: 1 × 24-pin ATX main power, 1 × 8-pin ATX 12V power Fan Headers:* 1 × CPU fan header, 1 × System fan header Storage & USB Headers: 1 × M.2 Socket 3, 4 × SATA 6Gb/s, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0/1.1 headers System & Misc Headers: 1 × Front panel header, 1 × Front panel audio header, 1 × RGB LED strip header, 1 × TPM header (for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 × Serial port header, 1 × Clear CMOS jumper *All fan headers support AIO_Pump, Pump, and high-performance fans up to 2A/12V @ 24W.

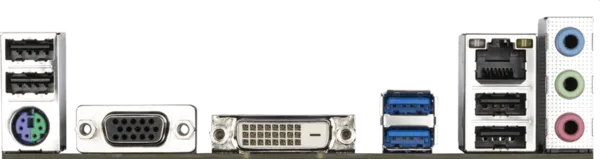

Back Panel Ports	1 × PS/2 Keyboard/Mouse port, 1 × D-Sub port, 1 × DVI-D port, 2 × USB 3.2 Gen 1 ports, 4 × USB 2.0/1.1 ports, 1 × RJ-45 LAN port, 3 × Audio jacks
Monitoring & Features	I/O Controller & Monitoring: iTE® I/O Controller Chip; Voltage, Temperature, Fan speed detection, Fan fail warning, Fan speed control (cooler dependent) Unique Features: APP Center (@BIOS, Ambient LED, EasyTune, Fast Boot, ON/OFF Charge, Smart Backup, System Information Viewer), Support for Q-Flash, Support for Xpress Install Bundled Software: Norton® Internet Security (OEM version), LAN bandwidth management software
System & Physical	BIOS: 1 × 256 Mbit flash, Licensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) Supported Operating System: Windows 10 64-bit Form Factor: Micro ATX Form Factor (24.4 cm × 21.0 cm)
