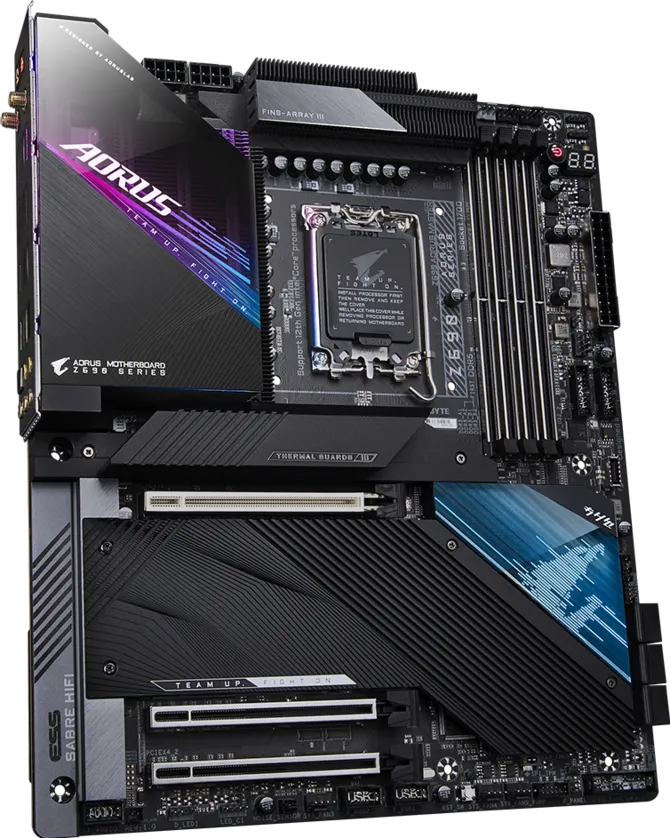

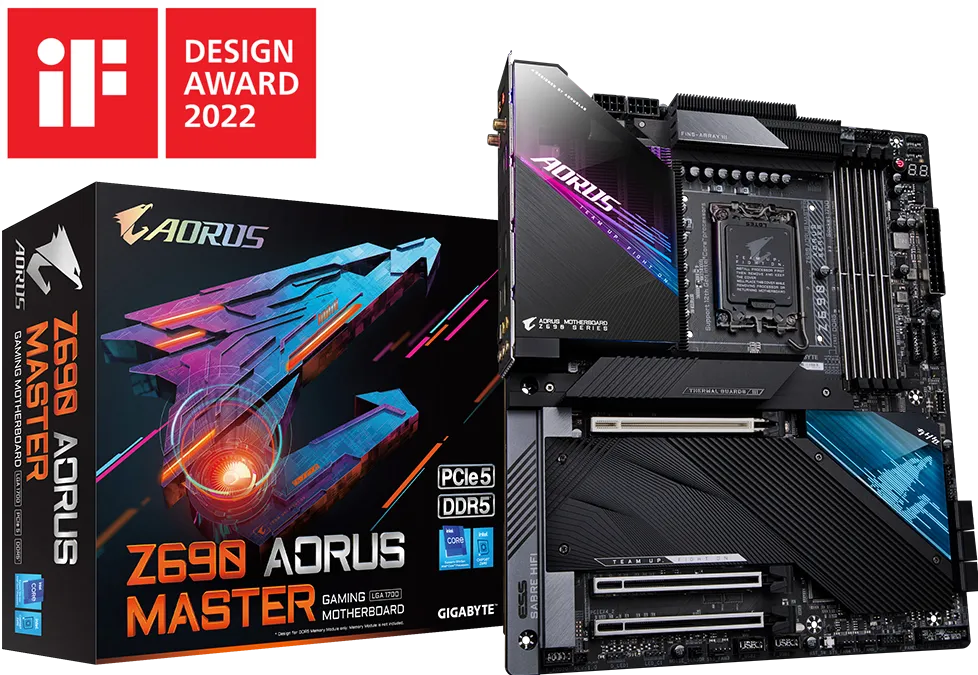

Gigabyte Z690 Aorus Master ATX LGA1700 DDR5 Gaming Motherboard – USED

Name: Gigabyte Z690 Aorus Master ATX LGA1700 DDR5 Gaming Motherboard - USED
Brand: Gigabyte
SKU: RBTGMB00402-used
Price: 74999 PKR
Availability: InStock

₨74,999

3 Months Local WarrantyReplacement or Refund

Intel Z690 AORUS Motherboard with Direct 19+1+2 Phases Digital VRM Design, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel® WIFI 6E 802.11ax, AQUANTIA® 10GbE LAN

Support 12th Gen Intel® Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
Direct 19+1+2 Phases VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II and NanoCarbon Baseplate
Intel® WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
Audio Solution with ESS Sabre ES9118 125dB on Rear Audio
AQUANTIA® 10GbE BASE-T LAN
5 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

In stock

Get an email the moment this price drops.

Description
Additional information

Gigabyte Z690 Aorus Master ATX LGA1700 DDR5 Gaming Motherboard

Specification Group	Intel® Z690 E-ATX Motherboard Details
CPU & Chipset	Processor Socket: LGA1700 socket CPU Compatibility: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors* Cache Support: L3 cache varies by CPU Chipset: Intel® Z690 Express Chipset
Memory Support	Capacity & Slots: 4 × DDR5 DIMM sockets supporting up to 256 GB (up to 64 GB single DIMM capacity) Memory Architecture: Dual Channel Memory Architecture Supported Frequencies: DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s Module Types: ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Supports Intel® Extreme Memory Profile (XMP)
Graphics & Expansion	Integrated Display Output:* 1 × DisplayPort 1.2 (Supports max. resolution 4096 × 2304 @ 60 Hz, HDCP 2.3) Requires CPU with integrated Intel® HD Graphics support. Expansion Slots:* – 1 × PCIe 5.0 x16 slot (PCIEX16, operates at x16) – 2 × PCIe 3.0 x16 slots (PCIEX4_1, PCIEX4_2, operate at x4)* *PCIEX4_1 shares bandwidth with the M2C_SB connector and becomes unavailable when a device is installed in M2C_SB.
Storage Support	CPU M.2 Socket: 1 × M.2 (M2A_CPU, Key M, type 2260/2280/22110, PCIe 4.0 x4/x2 SSD) Chipset M.2 Sockets: – 2 × M.2 (M2P_SB, M2Q_SB, Key M, type 2260/2280/22110, PCIe 4.0 x4/x2 SSD) – 1 × M.2 (M2C_SB, Key M, type 2242/2260/2280, PCIe 3.0 x4/x2 SSD) – 1 × M.2 (M2M_SB, Key M, type 2242/2260/2280, SATA & PCIe 4.0 x4/x2 SSD) SATA Ports: 6 × SATA 6Gb/s connectors RAID & Memory Features: Support RAID 0, 1, 5, 10; Intel® Optane™ Memory Ready (on Chipset M.2 connectors)
Audio & Networking	Wired LAN: Marvell® AQtion AQC113C 10GbE LAN chip (10G / 5G / 2.5G / 1G / 100M) Wireless & Bluetooth: Wi-Fi 6E (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, 160MHz up to 2.4 Gbps) + Bluetooth® 5.3 Audio Hardware: Realtek® ALC1220-VB CODEC + ESS ES9118 DAC chip Audio Features: High Definition Audio (2/4/5.1/7.1-channel), DTS:X® Ultra, S/PDIF Out, Front panel line-out DSD audio support
USB Connectivity	Rear Panel USB: – 1 × USB Type-C® (USB 3.2 Gen 2×2) – 1 × USB Type-C® (USB 3.2 Gen 2) – 5 × USB 3.2 Gen 2 Type-A ports (red) – 4 × USB 3.2 Gen 1 ports Internal Headers: – 1 × USB Type-C® header (USB 3.2 Gen 2×2) – 2 × USB 3.2 Gen 1 headers (supports additional 4 USB 3.2 Gen 1 ports) – 2 × USB 2.0/1.1 headers (supports additional 4 USB 2.0/1.1 ports)
Internal Connectors	– Power: 1 × 24-pin ATX main power, 2 × 8-pin ATX 12V power – Fan & Cooling: 1 × CPU fan, 1 × Water cooling CPU fan, 4 × System fan, 4 × System fan/water cooling pump headers – Lighting Headers: 2 × Addressable LED strip, 2 × RGB LED strip headers – Storage & Expansion: 5 × M.2 Socket 3, 6 × SATA 6Gb/s, 2 × Thunderbolt™ add-in card connectors – Controls & Monitoring: Onboard Power & Reset buttons, Reset & Clear CMOS jumpers, Noise detection header, 2 × Temperature sensor headers, Voltage Measurement Points – System & Misc: Front panel header, Front panel audio header, 1 × TPM header (SPI), USB headers

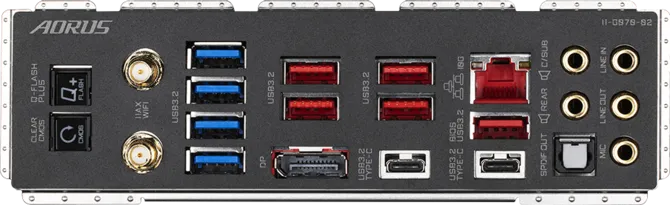

Back Panel Ports	1 × Q-Flash Plus button \| 1 × Clear CMOS button \| 2 × SMA antenna connectors (2T2R) \| 1 × DisplayPort \| 1 × USB Type-C® (USB 3.2 Gen 2) \| 1 × USB Type-C® (USB 3.2 Gen 2×2) \| 5 × USB 3.2 Gen 2 Type-A (red) \| 4 × USB 3.2 Gen 1 \| 1 × RJ-45 (10GbE) \| 1 × Optical S/PDIF Out \| 5 × Audio jacks
Features & Monitoring	Hardware Monitoring: Voltage, Temperature, Fan/Pump speed, Water cooling flow rate, Fan fail warning, Noise detection Unique Features: APP Center (@BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer), Q-Flash, Q-Flash Plus, Xpress Install Bundled Software: Norton® Internet Security (OEM version), cFosSpeed Controller & Management: iTE® I/O Controller Chip, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
System & Physical	BIOS: 1 × 256 Mbit flash, Licensed AMI UEFI BIOS Supported Operating System: Windows® 11 64-bit, Windows® 10 64-bit Form Factor: E-ATX Form Factor (30.5 cm × 25.9 cm)
