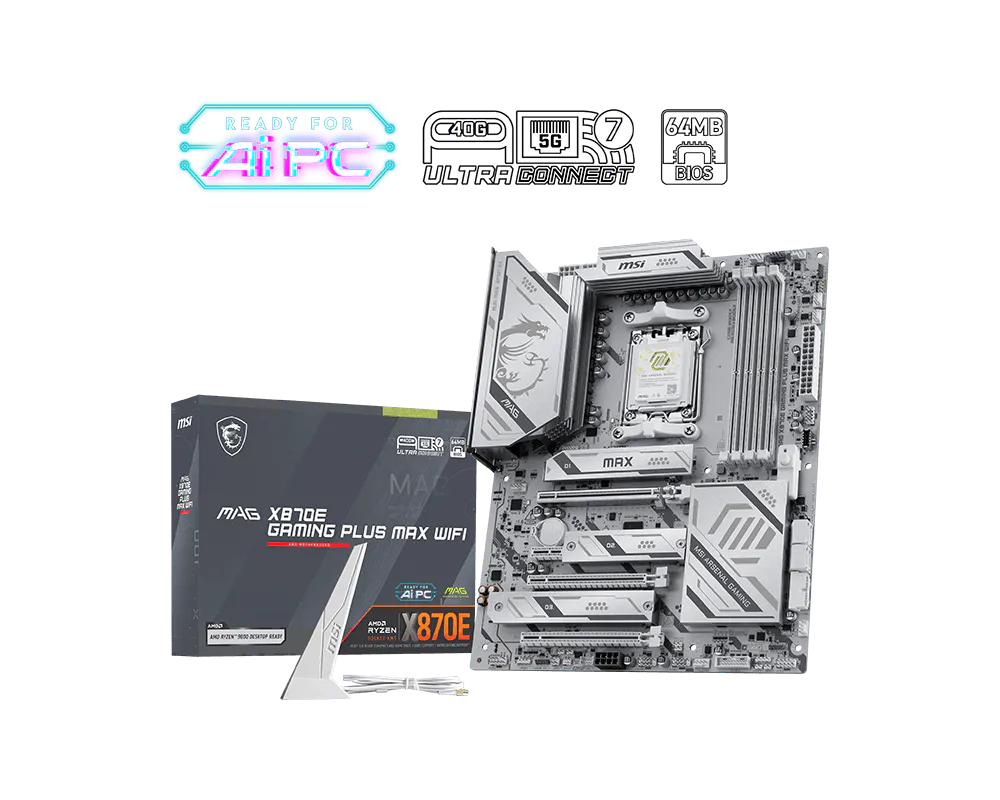

MSI MAG X870E Gaming Plus Max WiFi ATX AM5 DDR5 Gaming Motherboard

₨119,999

2 Years Local WarrantyReplacement or Refund

MSI MAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen™ 9000 series processors.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

In stock

Get an email the moment this price drops.

Description
Additional information

MSI MAG X870E Gaming Plus Max WiFi ATX AM5 DDR5 Gaming Motherboard

Specification Group	AMD X870E Motherboard Details
Processor & Chipset	Chipset: AMD X870E CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors CPU Socket: Socket AM5 Form Factor: ATX (243.84 × 304.8 mm)
Memory Support	Memory Architecture: 4× DDR5 UDIMM Slots, Dual-Channel, up to 256GB Max Capacity Overclocking Speeds: DDR5 8200+ to 5600 (OC) MT/s \| 5600 to 4800 (JEDEC) MT/s Ryzen 9000 OC Profile: 1DPC 1R up to 8200+ MT/s \| 1DPC 2R up to 6400+ MT/s \| 2DPC 1R up to 6400+ MT/s \| 2DPC 2R up to 6000+ MT/s Memory Features: Supports AMD EXPO™, Non-ECC Un-buffered memory, CUDIMM (Clock Driver bypass mode only), Single-sided DIMM latches
Expansion Slots	PCI_E1 Slot (CPU): PCIe 5.0 x16 (Ryzen 9000/7000) \| PCIe 4.0 x8 (Ryzen 8700/8600/8400) \| PCIe 4.0 x4 (Ryzen 8500/8300) PCI_E3 Slot (Chipset): PCIe 4.0 x4 PCI_E2 & PCI_E4 Slots (Chipset): PCIe 3.0 x1
Storage & RAID	M.2 Slots: 3× M.2 Slots • M.2_1 (CPU): Up to PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000), supports 2280/2260 devices • M.2_2 (Chipset): Up to PCIe 4.0 x4, supports 2280/2260 devices • M.2_3 (Chipset): Up to PCIe 4.0 x4, supports 22110/2280 devices SATA Ports: 4× SATA 6Gb/s RAID Support: RAID 0, 1, 10 for SATA \| RAID 0, 1, 5 for M.2 NVMe (RAID 5 requires Ryzen 9000 Series)
Networking & Audio	Ethernet LAN: 1× Realtek® 8126 5G LAN Wi-Fi & Bluetooth: Wi-Fi 7 (Pre-installed M.2 Key-E, 320MHz, up to 5.8Gbps, 2.4/5/6GHz) \| Bluetooth® 5.4, MLO, 4KQAM Audio Chipset: Realtek® ALC897 7.1-Channel High Definition Audio
I/O Ports & Graphics	Onboard Display: 1× HDMI™ 2.1 (Up to 4K 60Hz) \| 1× USB4® Type-C DisplayPort 1.4 (Up to 4K 120Hz) Rear USB Ports: 1× USB 40Gbps Type-C \| 1× USB 20Gbps Type-C \| 2× USB 10Gbps Type-A \| 2× USB 5Gbps Type-A \| 4× USB 2.0 Front Panel USB Headers: 1× USB 10Gbps Type-C \| 4× USB 5Gbps Type-A \| 6× USB 2.0 Rear Utility Buttons: Clear CMOS Button, Flash BIOS Button
Internal Headers	Power Connectors: 1× 24-pin ATX Power, 2× 8-pin CPU Power, 1× 8-pin PCIe Supplemental Power Fan & Cooling: 1× CPU Fan header, 1× Combo Fan (Pump/System), 6× System Fan headers RGB & Lighting: 3× Addressable V2 RGB LED headers (JARGB_V2), 1× RGB LED header (JRGB) Expansion & Security: 1× EZ Conn-header (JAF_1), 1× Tuning Controller header (JDASH), 1× TPM 2.0 header, 2× Direct OC Jumpers (JBCLK), 1× Chassis Intrusion header
Diagnostics & OS	Diagnostic Indicators: 4× EZ Debug LEDs \| 1× EZ Memory Detection LED Supported OS: Windows® 11 64-bit
